Jabra BT5010 Multiuse User manual

Headset Setup and Charging

Adjusting headset for your comfort 4

Charging your headset 5

Turning your headset on 5

Bluetooth Hub Setup and Use (for Desk Phone)

Connecting Bluetooth Hub with desk phone and power supply 6

Making a test call on your desk phone to adjust settings 7

Making and ending a call via desk phone 9

Answering an incoming call to desk phone 11

Mobile Phone Setup and Use

Pairing headset to mobile phone 12

Making and ending a call from mobile phone 13

Using Voice Dial 14

Answering an incoming call to mobile phone 14

Quick Reference

Operating the Answer/End button 15

What the lights mean 16

Content In the box

Before you begin setup, be sure all parts

have been above 32°F/0°C for at least 30

minutes.

A. Jabra BT5010 headset

1. Light indicator (LED)

2. Volume controls

3. Charging socket

4. Answer/End button

5. On/Off + Pairing button

6. Microphone

7. Speaker

8. Earhook

B. Jabra Bluetooth Hub

9. Dial Tone Switch

10. Light indicator (LED)

11. Pairing button

12. Microphone volume control

13. AUX socket

14. Handset socket

15. Desk phone socket

16. Reset button

17. Desk stand socket (not for use with Jabra

BT5010 headset)

18. Power supply socket

English English

C. Desk stand

D. Bluetooth Hub power supply

E. Headset power supply

F. Desk phone-Bluetooth Hub connection cord

G. USB cable

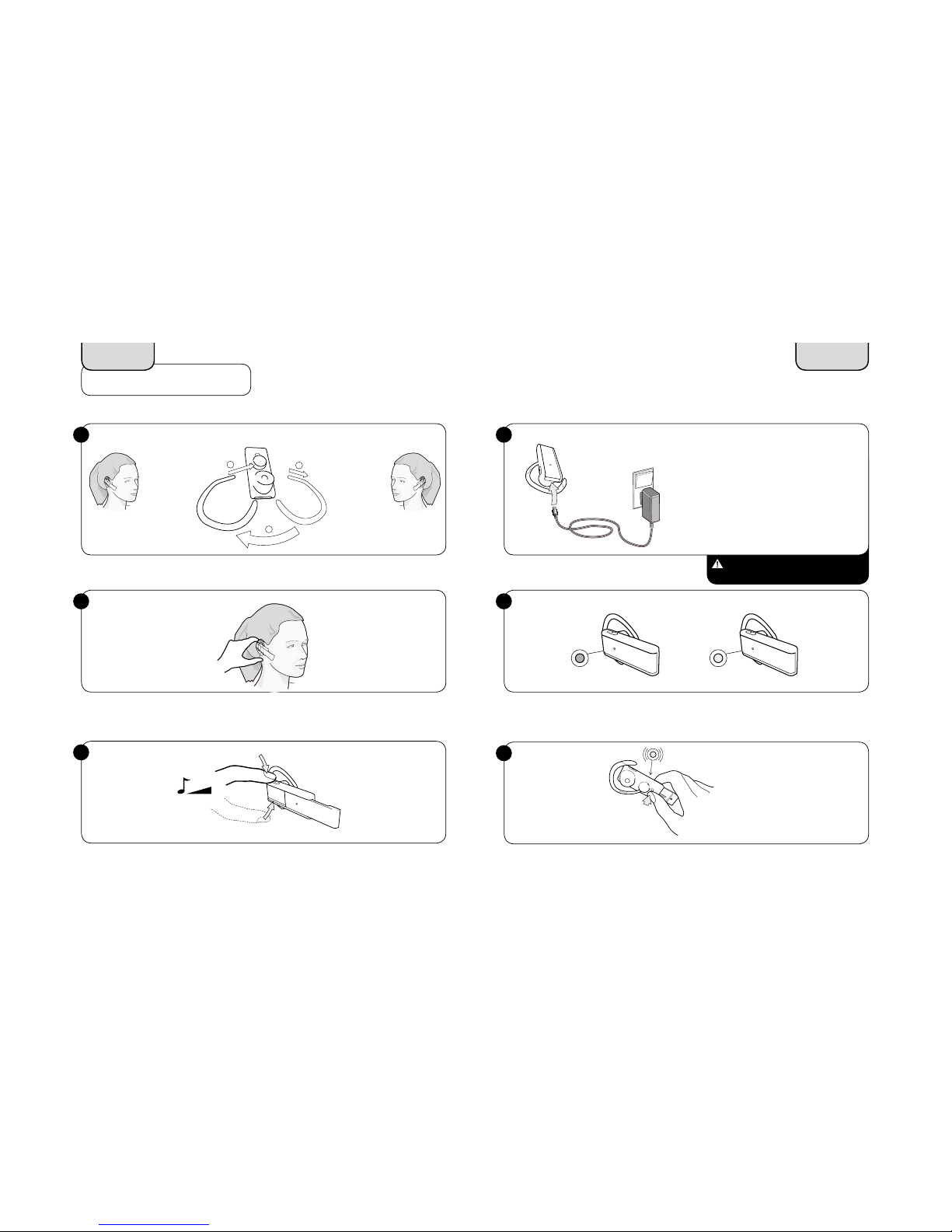

Headset Setup and Charging

Adjusting headset for your comfort

Headset is preset for use on right ear. Switch if necessary.

Bend to fit.

During a call adjust speaker volume (how others sound to you) on headset.

Press Headset on/off/pairing button for 1 sec. Blue flash.

Red = charging. Green = fully charged (approximately 2 hrs.).

Charging your headset

Charge via PC or Charge directly (handy for travel).

Turning your headset on

Important: Make sure your headset

is inactive while charging.

English English

For desk phones with headset port

Connecting Bluetooth Hub with desk phone and power supply

• If you are using a GN 1000 (remote handset lifter) or an electronic hook switch lifter, please refer to the

user manual on the supplied CD-ROM for instructions.

• If your desk phone has a headset port, see instructions inset.

For desk phones without headset port

Connect handset to Bluetooth

Hub.

1 2

Disconnect handset from desk phone.

Connect power supply to Bluetooth Hub.

Connect desk phone with Bluetooth Hub

using supplied connection cord (F).

Bluetooth Hub Setup and Use (for Desk Phone)

Connect desk phone with Bluetooth Hub

using supplied connection cord (F).

Connect power supply to Bluetooth Hub.

Making a test call on your desk phone to adjust settings

If your desk phone has an electronic hookswitch lifter, or you are using a GN 1000 (remote

handset lifter), please refer to the User Manual on the supplied CD-ROM for instructions.

Place headset on ear.

Press the appropriate desk phone button

to establish a clear dial tone.

Lift desk phone handset.

For desk phones with headset port

Listen for dial tone in headset.

To be continued in the next page.

Tap headset Answer/End button.

English English

If dial tone is missing or unclear, slowly slide the Dial Tone Switch from A – G on the Bluetooth

Hub. Dial Tone Switch is preset to setting A (most commonly used).

Adjust microphone volume (how your voice

sounds to others) via Bluetooth Hub.

Dial a friend to test settings.

Press the appropriate button on desk phone

AND tap headset Answer/End button.

To end call, replace desk phone handset

AND tap headset Answer/End button.

For desk phones with headset port

English

Making and ending a call via desk phone

If your desk phone has an electronic hookswitch lifter, or you are using a GN 1000 (remote

handset lifter), please refer to the User Manual on the CD-ROM for instructions.

English

Place headset on ear.

Press the appropriate desk phone button

to establish a clear dial tone.

Lift desk phone handset.

For desk phones with headset port

Dial number. Dial number.

Tap headset Answer/End button.

For desk phones with headset port

Begin talking.

To end call, replace desk phone handset AND tap headset Answer/End button.

For desk phones with headset port, press the appropriate button on desk phone AND

tap headset Answer/End button.

English

Answering an incoming call to desk phone

If your desk phone has an electronic hookswitch lifter, or you are using a GN 1000 (remote

handset lifter), please refer to the User Manual on the CD-ROM for instructions.

English

Place headset on ear.

Press the appropriate desk phone button

to establish a clear dial tone.

Lift desk phone handset.

For desk phones with headset port

Tap headset Answer/End button.

Begin talking.

Mobile Phone Setup and Use

English

Pairing headset to mobile phone (establishes Bluetooth connection)

See your mobile phone User Guide for Bluetooth pairing instructions.

Press headset pairing button for 1 sec.

Blue light indicates open for pairing (5 minutes).

Mobile Phone Use

English

Place headset on ear. Dial number on mobile phone and tap Talk/Yes or similar.

Begin talking. To end call, press End/No or similar on mobile phone OR tap headset Answer/End

button.

Making and ending a call from mobile phone

Using Voice Dial (if your mobile phone supports this feature)

English

Press headset Answer/End button for 1 sec.

Give voice dial command.

Hear voice dial signal. (Mobile phone

dependent)

Answering an incoming call to mobile phone

Tap headset Answer/End button.

Begin talking.

Quick Reference

English

How to… Headset Answer/End button action

Make call via desk phone Tap

Make call via mobile phone Voice Dial* Press for 1 sec

Redial last outgoing number* (from mobile phone) Double tap

Answer all calls Tap

End all calls Tap

Reject a call (to your mobile phone) Press for 1 sec

Put a call on hold* Press for 1 sec

Switch between two active calls* Press for 1 sec

End active call when another is on hold* Tap

Operating the Answer/End button

* If the mobile phone supports this feature

Quick Reference

English

Headset

Green steady Charge complete

Blue slow flash Headset on

Blue fast flash Call in progress

Blue steady Headset in pairing mode

Red flash Low battery

Red steady Charge in progress

What the lights mean

Bluetooth Hub

Green steady Bluetooth Hub on

Blue steady Pairing in progress

Blue flash 10 times Pairing successful

Red flash Bluetooth Hub needs

to be reset

Red steady Reset in progress

Range: Up to 10 meters/33 feet

in line of sight

Talk time: Up to 10 hours

Standby time: Up to 300 hours

Charge time: Up to 2 hours

Red Blue Green Red Blue Green

English
