ISHIDA SR-2000 alpha Manual
CALIBRATION PROCEDURE FOR ISHIDA SR2000
1. Remove weighing platter. Near the front left side of the scale
cover there will be 2 hexagon shaped screws. Locate the one on
the left side as this one accesses the memory initialization switch.
2. Remove the left side hex screw with a 5/32” hex wrench.
3. Re-install the weighing platter.
4. Turn power on.
5. Press the MENU button on the touch panel display
6. Press 4 9 5 3 4 4 PLU and touch the TEST MODE button on the
touch panel. Press the calibration button.
7. The following screen should appear in the display
8. Make sure the scale is level and ensure there is nothing touching
the weighing platter. Press the ZERO button to set the zero
setting of the weight platter. Now place the full capacity span
weight on the weighing platter and press SPAN.
For span weight setting:
Metric 15kg
Imperial 30lbs
9. Remove the weight from the platter and remove the platter.
Using a long thin instrument, insert into the hole where the hex
screw was removed in steps 1&2, press until the switch is
activated (make sure power is still on).
10. Return the weighing platter to the unit, and exit to the issuance
mode. Test the calibration setting by placing a 5 kg weight (or
other known weight) to the platter and confirm weight setting. If
required, repeat the calibration procedure if the weight is not
accurately displayed.
11. Finally, re-attach hex screw & reinstall the weighing platter.
Other manuals for SR-2000 alpha
2
Table of contents
Other ISHIDA Scale manuals
ISHIDA
ISHIDA IWX-150/30 User manual
ISHIDA
ISHIDA CWS-02 Quick guide
ISHIDA
ISHIDA Astra User manual
ISHIDA

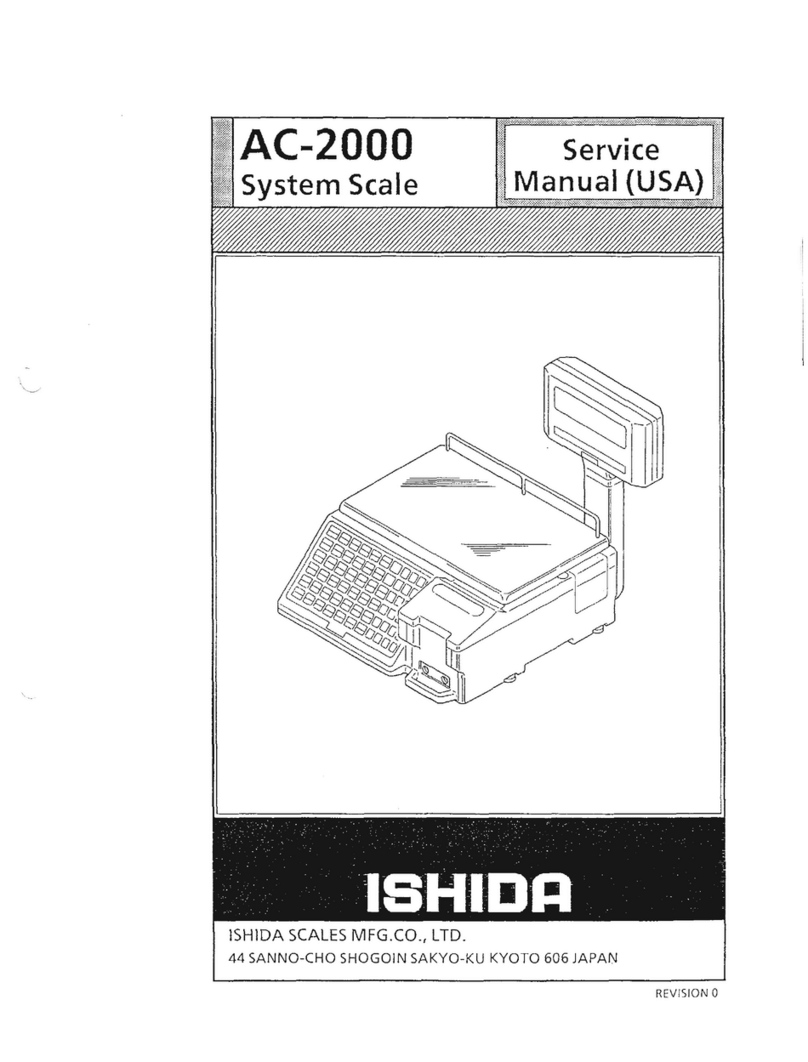

ISHIDA AC-2000 User manual
