IRobot ROOMBA 5105 User manual

iRobot™Roomba™

OWNER’S MANUAL

MANUEL DE L’UTILISATEUR

BEDIENUNGSHANDBUCH

GEBRUIKERSHANDLEIDING

MANUAL DEL USUARIO

MANUALE DELL’UTENTE

MANUAL DO UTILIZADOR

INSTRUKCJA OBŁUGI

PRZEZNACZONA

DLA WŁAŚCICIELA

KEZELÉSI KÉZIKÖNYV

ΕΓΧΕΙΡΙΔΙΟ ΚΑΤΟΧΟΥ

PŘÍRUČKA MAJITELE

РУКОВОДСТВО

ПОЛЬЗОВАТЕЛЯ

BRUKERHÅNDBOK

BRUKSANVISNING

OMISTAJAN KÄSIKIRJA

BRUGER VEJLEDNING

Table of Contents

ENGLISH ............................................................................................3

FRANÇAIS...........................................................................................9

DEUTSCH ...........................................................................................15

NEDERLANDS .....................................................................................21

ESPAÑOL............................................................................................27

ITALIANO.............................................................................................33

PORTUGUÉS .......................................................................................39

POLSKI...............................................................................................45

MAGYAR .............................................................................................51

ΕΛΛΗΝΙΚΑ ..........................................................................................57

TÜRKÇE .............................................................................................63

ČESKY ................................................................................................69

РУССКИЙ............................................................................................75

NORSK...............................................................................................81

SVENSKA............................................................................................87

SUOMI................................................................................................93

DANSK ...............................................................................................99

Anatomy

Buttons and Lights

Model 5105

Spot

Cleaning

Button

Cleaning

Button

Max

Cleaning

Button

Status Light

Dirt Detect™

Power Button

Model 5210

Virtual Wall™

Sensor

Bin Release

Battery Charger

Socket

Serial Port

Handle

Battery Charger

Socket

Serial PortBin Release

Virtual Wall™

Sensor

Handle

Power

Button

Spot

Button

Cleaning

Button Max

Cleaning

Button

Status

Light

Dirt

Detect™

Charging

Indicator

Color of Battery Indicator Battery Status

Pulsing Amber Charging

Green Fully charged

Amber Partially charged

Red Almost fully

discharged

Flashing Red Fully discharged

Status Light Cleaning Mission

Status

Green Mission complete

Amber Mission abandoned or

battery depleted

How It Works

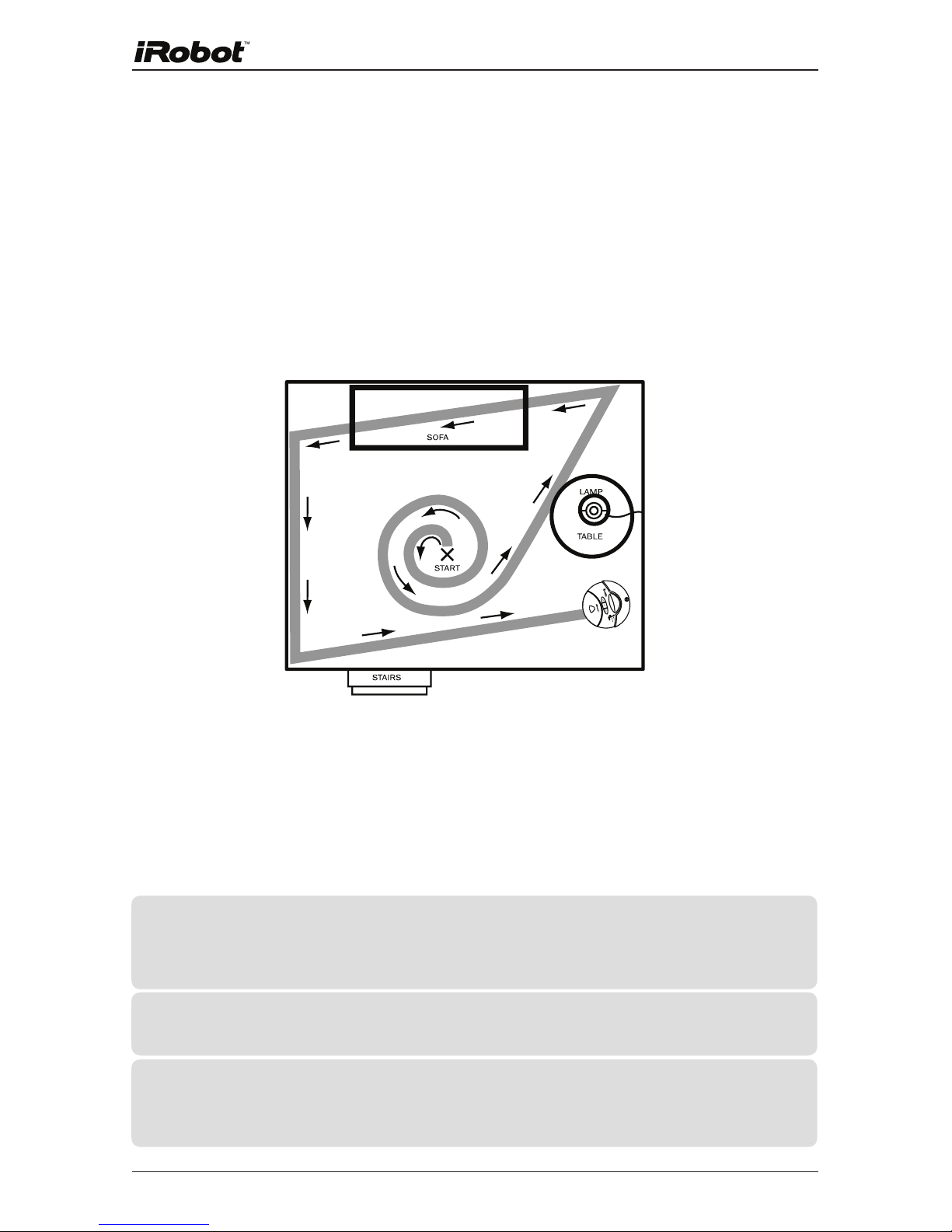

Roomba’s Cleaning Pattern

Roomba is a robot that cleans differently than the way most people

clean their ﬂoors. Roomba uses iRobot’s AWARE™ Robot Intelligence

System to determine the best way to pass over and clean every

section of the ﬂoor.

Roomba calculates the optimal cleaning path as it cleans and

determines when to use its various cleaning behaviors:

Wall Following: Cleans the perimeter of the room and navigates

around furniture and obstacles.

Spiraling: Cleans a concentrated area.

Room Crossing: Ensures full coverage of an area.

Dirt Detect™: Senses dirt and cleans more intensely in that area.

TIP: Roomba takes approximately 45 minutes to clean an

average room and will pass over the same area of the ﬂoor

multiple times to ensure total ﬂoor coverage.

TIP: For faster cleaning, clear your ﬂoor of clutter and use a

Virtual Wall to conﬁne Roomba to one room.

TIP: Wires should be elevated off of the ﬂoor and rug tassels

should be tucked under the rug to prevent Roomba from

getting stuck.

iRobot Roomba Owner’s Manual

Place battery into Roomba.

Set up Roomba’s Self-

Charging Home Base™

(included with Model 5210)

Charge Roomba in one of

two ways:

Set up the Virtual Wall™

to keep Roomba where you

want it

Set the Virtual Wall’s range from 1

to 3 meters.

Place Virtual Wall in a doorway or

other area you wish to block.

Clean With Roomba

Press Power then select cleaning

mode

Getting Started

Shape of

Beam

Range

Battery

Door

Always keep Roomba plugged in

or on the Home Base when not

in use.

Requires 2 “D”

batteries, not included

Battery

Door

Model Charge Time

5105 7 hours

5210 3 hours

Cleaning Modes

Roomba will clean based on the cleaning mode you select. Roomba has up to

four cleaning modes, depending on your model:

Clean Mode

Roomba automatically calculates the room size and adjusts its cleaning time

appropriately. Roomba may clean for up to 60 minutes.

Spot Mode

Roomba will spiral approximately 1 meter in diameter and then spiral back to

where it started, intensely cleaning a localized area.

Max Mode

Roomba runs until its battery is nearly depleted.

Dirt Detect™

The blue Dirt Detect light will illuminate when Roomba has detected dirt and it

will clean more intensely in that area.

Tips For Best Performance

• Roomba is very effective at picking up hair. Remove and clean Roomba’s

brushes after every 3 uses.

• Empty Roomba’s bin and clean its ﬁlter after every 3 uses.

• To extend battery life, store Roomba connected to its charger or Home

Base™.

• Use the Virtual Walls to keep Roomba cleaning where you want it.

• Keep wheels and brush free of hair and debris by inspecting and cleaning the

bottom of the robot regularly.

Remote Control

The Roomba Remote Control lets you conveniently control Roomba’s functions.

Power

Spot

Clean

Max

Directional

Buttons

Pause

iRobot Roomba Owner’s Manual

Remove and empty Roomba’s bin

Clean Roomba’s ﬁlter

compartment

Inspect and wipe sensors clean

each month

Clean Roomba’s brushes regularly

A. Remove brush guard by pulling

both yellow tabs

Maintenance

To keep Roomba running at peak performance, it is recommended that you

perform the following maintenance tasks every three uses:

Press button and

pull to remove bin

B. Remove both brush caps from end of

bristle brush and use scissors to cut

any hair wrapped around the brush.

Use the Roomba cleaning tool to

comb hair from brush.

D. Remove and clean hair and dirt from

Roomba’s brush bearings.

Brush

bearings

Brushes

Brush

caps

Additional information in English and instructional photos are available at www.irobot.com/usetips

Cliff Sensor

Openings

Dirt Detect

Sensor

Contact

Points for

Home Base

Empty bin

A. Clean or replace ﬁlter*

B. Clean ﬁlter

compartment

*Replace ﬁlter every 2 months

Brush

caps

iRobot, Roomba, Virtual Wall, AWARE, Home Base and Dirt Detect are trademarks of iRobot Corporation.

Protected by International patents. Additional patents pending. Burlington, MA 01803 USA.

iRobot Roomba Owner’s Manual

Anatomie

Boutons et voyants

Modèle 5105

Bouton de

nettoyage

local (Spot)

Bouton de

nettoyage

(Clean)

Bouton de

nettoyage

Max (Max)

Voyant d’état (Status)

Détecteur de saleté

(Dirt DetectTM)

Bouton d’alimentation (Power)

Modèle 5210

Capteur Mur virtuel

(Virtual Wall)

Bouton de

libération du

conteneur Support du chargeur

de pile (Battery

Charger Socket)

Port série

Poignée

Capteur Mur

virtuel (Virtual

Wall Sensor)

Poignée

Bouton

d’alimentation

(Power) Bouton de

nettoyage

local (Spot)

Bouton de

nettoyage

(Clean) Bouton de

nettoyage

Max

Voyant d’état

(Status)

Dirt

DetectMC

Indicateur

de charge

(Charging

Indicator)

Couleur de l’indicateur

de pile

État de la pile

Jaune clignotant En charge

Vert Pleine charge

Jaune Partiellement chargé

Rouge Presque complètement

déchargé

Rouge clignotant Complètement déchargé

Voyant d’état

(Status)

Etat de la mission de

nettoyage

Vert Mission accomplie

Jaune Mission interrompue ou pile

déchargée

Bouton de

libération du

conteneur Support du chargeur

de pile (Battery

Charger Socket)

Port série

Fonctionnement

Patron de nettoyage du Roomba

Roomba est un robot qui nettoie les sols d’une manière différente

de la plupart des gens. Roomba fait appel au système d’intelligence

robotique AWARETM (Robot Intelligence System) d’iRobot pour

déterminer la meilleure façon de nettoyer toutes les sections du sol.

Roomba calcule la trajectoire de nettoyage optimale au fur et à

mesure qu’il nettoie et détermine à quel moment il convient d’activer

ses divers modes de nettoyage :

Suivi des murs : Nettoie le périmètre de la pièce et navigue autour des

meubles et des obstacles.

Trajectoire en spirale : Nettoie une zone concentrée.

Traversée de la pièce : Assure la couverture complète d’une zone.

Détecteur de saleté (Dirt Detect™) : Détecte la saleté et nettoie

cette zone plus en profondeur.

ASTUCE : Il faut à Roomba environ 45 minutes pour nettoyer une pièce

moyenne. Il passera plusieurs fois sur la même zone du sol

aﬁn d’assurer une couverture de sol totale.

ASTUCE : Pour un nettoyage plus rapide, ôtez tous les objets présents

sur le sol et utilisez un Mur virtuel (Virtual Wall) pour

conﬁner Roomba à une seule pièce.

ASTUCE : Les câbles et ﬁls électriques doivent être soulevés du sol

et les franges des tapis doivent être glissées sous les tapis

aﬁn d’éviter tout blocage de Roomba.

Manuel de l’utilisateur du Roomba de iRobot
