IOGear USB-C 8K Nano Dock Pro User manual
www.iogear.com
GUD3C8K2P
PART NO. Q1650
Quick Start Guide
USB-C™8K Nano Dock Pro™
1
Package Contents
System Requirements
1 x GUD3C8K2P
1 x Quick Start Guide
1 x Warranty Card
• USB-C™ compatible laptops with DP Alt-Mode support
• USB-C AC Adapter from Laptop is needed for Power
Delivery Pass-Through Function
• Compatible with Thunderbolt™ 3 or 4 laptops
• OS Support
-Windows®10 and 11
-macOS®13+ (MST is not supported by mac OS)

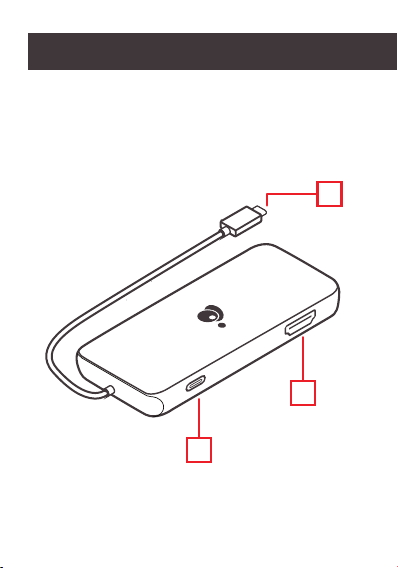

Overview
A. USB-C connector to host laptop
B. USB-C PD Pass-through port (Up to 100W pass-through)
C. HDMI 2 output (Up to 8K @30Hz)
A
B
C
D. HDMI®1 output (Up to 4K @30Hz)
E. USB-A 2.0 port
F. USB-A 2.0 port
G. USB-A 3.0 port
2
A. USB-C connector to host laptop
B. USB-C PD Pass-through port (Up to 100W pass-through)
C. HDMI 2 output (Up to 8K @30Hz)
DE
F
G
D. HDMI®1 output (Up to 4K @30Hz)
E. USB-A 2.0 port
F. USB-A 2.0 port
G. USB-A 3.0 port
3
Monitor Configuration
Single MonitorDual Monitor
HDMI 1
HDMI 2
macOS
3840x2160 @30Hz (DP 1.4 host)
Win OS
3840x2160 @30Hz (DP 1.4 host)
macOS
7680x4320 @30Hz (DP 1.4 host)
Win OS
7680x4320 @30Hz (DP 1.4 host)
HDMI 1
HDMI 2
macOS (mirror)
3840x2160 @30Hz (DP 1.4 host)
Win OS (extended)
3840x2160 @30Hz (DP 1.4 host)
Win OS (extended)
3840x2160 @30Hz (DP 1.4 host)
macOS (mirror)
3840x2160 @30Hz (DP 1.4 host)
Win OS (extended)
3840x2160 @60Hz (DP 1.4 host)
Win OS (mirror)
3840x2160 @30Hz (DP 1.4 host)
www.iogear.com

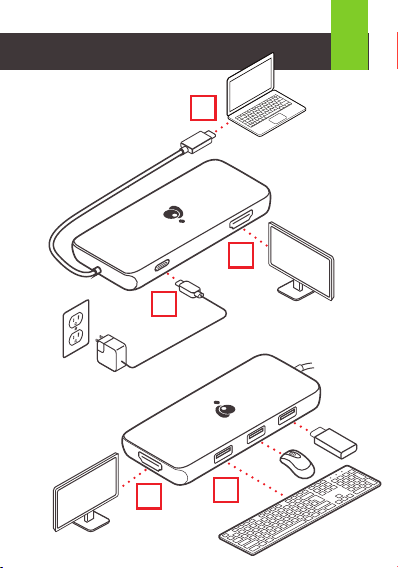

Hardware Installation
1. Turn on the host laptop then connect the laptop’s USB-C
power adapter to the USB-C PD3.0 port on the GUD3C05B
(optional)¹.
2. Connect the external USB devices (Keyboard, Mouse, etc.)
to the appropriate ports on the GUD3C8K2P as needed.
3. Connect the external monitor(s) to the appropriate video
outputs².
4. Connect the tethered USB-C cable on the GUD3C8K2P to
the USB-C port on the host computer. The computer screen
may appear to flicker a few times before the GUD3C8K2P
recognizes the connected devices.
Note
1. The GUD3C8K2P can still function without the external power adapter;
however, the GUD3C8K2P would not provide power to charge the laptop
2. Please refer to monitor configuration table for resolution
4
1
3
3
4
2
Limited Warranty
Warranty Information
This product carries a 1 Year Limited Warranty.
For the terms and conditions of this warranty, please go to
https://www.iogear.com/support/warranty
Register online at https://www.iogear.com/register
Important Product Information
Product Model ______________________
Serial Number ______________________
Contact
WE’RE HERE TO HELP YOU!
NEED ASSISTANCE SETTING UP THIS PRODUCT?
Make sure you:
1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and
product support
IOGEAR
https://iogear.custhelp.com
support@iogear.com
www.iogear.com
Compliance Information
Federal Communication Commission Interference
Statement
This equipment has been tested and found to comply with
the limits for a Class B digital service, pursuant to Part 15
of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. Any changes or modifications made
to this equipment may void the user’s authority to operate
this equipment. This equipment generates, uses, and can
radiate radio frequency energy. If not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and
receiver
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV
technician for help
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
