Invacare Camlock Upgrade Kit 1052250 User manual

-OVER-

PATIENT LIFT

CAMLOCK UPGRADE KIT Installation, Assembly

1052250 and Operating Instructions

SAFETY SUMMARY

The following recommendations are made for the safe

installation of the Patient Lift Camlock Upgrade Kit.

WARNING

Check ALL parts for shipping damage and test be-

fore using. In case of damage, DO NOT use. Con-

tact the carrier/dealer for further instructions.

Make certain all screws and nuts are tight at all

times.

Kit Includes the following:

Description Quantity

Bronze Washer 1

Camlock Assembly 1

Button Head Screw 1

Locknut 1

1/4-inch Washer 1

Tools Required:

One (1) Phillips Screwdriver

One (1) Allen Head Wrench

One (1) C-Clamp

LIFT DISASSEMBLY (FIGURES 1 and 2)

1. Turn and lift up the mast assembly to unlock it from

the base (FIGURE 1).

2. Remove the mast assembly from the base.

3. Using the shifter handle, close the legs of the base

(FIGURE 1).

INSTALLATION (FIGURE 3)

1. Position C-Clamp on both sides of the socket assem-

bly with the adjustable portion of the C- clamp against

the bottom of the cam as shown in FIGURE 3.

NOTE: The upper portion of the C-Clamp will lodge

against the the cam on the inside of the socket as-

sembly only after the adjustable portion of the C-

clamp has been engaged.

FIGURE 2 - REMOVING SHIFTER HANDLE AND REAR

COVER PLATE

4. Loosen the thumb screw that secures the base shifter

handle into the cam lock assembly at the back of the

base (FIGURE 2).

5. Remove the base shifter handle (FIGURE 2).

6. Lift up on the socket assembly (closed end of the

base) and lean the base against a workbench with

the socket assembly (closed end of the base) at the

TOP.

7. Remove the two (2) screws that secure the rear cover

plate to the socket assembly (FIGURE 2).

8. Remove the rear cover plate (FIGURE 2).

Rear Cover

Plate

Socket

Assembly

FIGURE 1 - REMOVING MAST AND CLOSING LEGS

Lift Up

Base

Shifter

Handle

Thumbscrew

Cam Lock

Assembly

Rear Cover

Plate Screws

CAUTION

Make sure the C-Clamp is securely lodged against

the socket assembly and cam BEFORE removing the

camlock.

2. SLOWLY tighten the C-clamp and push the cam UP

to release the camlock.

3. Remove the roll pin that secures the cam to the cam

lock and discard.

NOTE: The Button Head Socket Screw, washer and

locknut replace the roll pin.

4. Remove the camlock and washer.

NOTE: Visually inspect the washer and roll pin be-

low the cam spring for wear and replace if necessary.

6. Install the new bronze washer over the cam.

WARNING

For proper operation of the patient lift base the

camlock MUST be pointing to the RIGHT when stand-

ing BEHIND the patient lift.

7. With the camlock pointing to the right, install the

camlock onto the cam.

8. Line up the holes of the cam and camlock and insert

the button head socket screw through the holes.

9. Install the 1/4-inch washer over the button head socket

screw.

10. Securely tighten the button head screw and washer

with the locknut provided in the kit.

11. SLOWLY, release the C-Clamp fom the cam.

REASSEMBLY (FIGURES 1 and 2)

WARNING

After reassembly and before use, make sure ALL

bolts and screws are tightened securely.

1. Reinstall the cover plate onto the socket assembly

with the screws provided.

2. Lower the base assembly onto all four (4) casters.

3. Re-Insert the base shifter handle into the cam lock

assembly at the back of the base.

4. Align holes of the base shifter handle and cam lock

assembly.

5. Tighten thumb screw to secure the base shifter handle

in place.

NOTE: This should prevent the base shifter handle

from being removed.

6. Match the notch at the BOTTOM of the mast assem-

bly with the TAB INSIDE of the socket of the base

assembly.

7. Re-insert the mast assembly into the sockets and onto

the TAB.

8. Turn the mast assembly to make sure that the notch

is locked on the TAB of the socket.

NOTE: If the mast does not turn, the mast is centered

and locked in place.

WARNING

Each time the mast is removed and returned to the

socket of the base, the mast MUST be locked into

the socket of the base assembly.

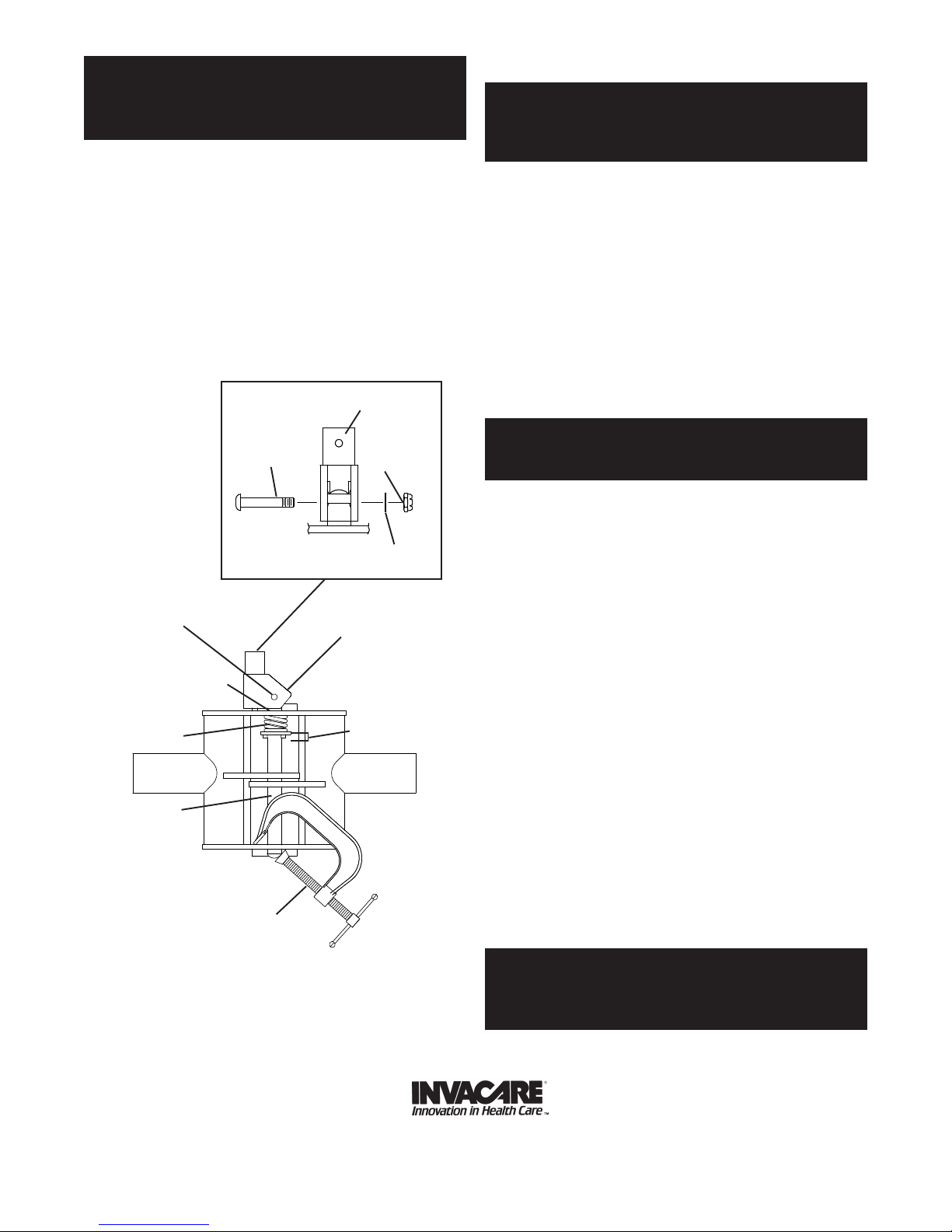

FIGURE 3 - INSTALLATION

899 Cleveland Street ● P.O. Box 4028 ● Elyria, Ohio 44036-2125 ● Phone 1-(800)-333-6900

Form No. 94-156 (1052249) (5/95) Printed in U.S.A.

C-Clamp

Cam

Cam Spring

Washer

Roll Pin Camlock

Visually

inspect

washer and

roll pin

Locknut

Camlock

Button Head

Socket

Screw

1/4-inch

Washer
