Invacare 2218 Assembly instructions

Part No. 1114827 Rev A 1Telescoping I.V. Rod

TELESCOPING I.V. ROD (MODEL 2218)

Assembly, Installation and Operating Instructions

Kit No. 1101760

SAVE THESE INSTRUCTIONS

NOTE: Check ALL parts for shipping damage. In case of shipping damage, DO NOT use. Contact

Carrier/ Dea er for further instruction.

SAFETY SUMMARY

To ensure the safe installation and adjustment of the Telescoping I.V. Rod Kit,

these instructions UST be followed:

GENERAL WARNINGS

DO NOT install or use this equipment without first reading and understand-

ing this instruction sheet. If you are unable to understand the Warnings,

Cautions or Instructions, contact a healthcare professional, dealer or techni-

cal personnel before attempting to install this equipment  otherwise, injury

or damage may occur.

DO NOT pull/push the wheelchair by the I.V. rod assembly. Injury to the

assistant/occupant and/or damage to the I.V. rod assembly may occur.

DO NOT place any objects on the I.V. rod assembly other than those

determined by a healthcare professional.

INSTALLATION WARNING

After any adjustments, repair or service and BEFORE use, make sure all

attaching hardware is securely tightened  otherwise injury or damage may

result.

This kit contains the following items:

DESCRIPTION QUANTITY

Telescoping I.V. Rod 1

Hex Screw 1

Large Lockn t 1

Pan Head Screw 1

Small Lockn t 1

I. V. Rod Mo nting Bracket 1

Spacer 1

Insert* 1

NOTE: The I.V. Rod can be insta ed to either the right or eft side of the whee chair. The right side

insta ation is shown in a figures. The eft side insta s in a simi ar manner.

*NOTE: The Insert is on y used with whee chairs that have 7/8 inch diameter rear step tubes.

Telescoping I.V. Rod 2Part No. 1114827 Rev A

INSTALLING THE TELESCOPING I.V. ROD (FIGURE 1)

1. Determine the side of the wheelchair to which the I.V. Rod is to be mounted.

2. If installed, remove rear anti tippers. Refer to the owners manual supplied with the wheelchair.

WARNING

If rear anti-tippers are used on the wheelchair, DO NOT block the attachment hole

in the bottom of the step tube (DETAIL A of FIGURE 1) with the insert and/or the

mounting bracket. Otherwise, anti-tippers will not reinstall correctly and injury or

damage may occur.

3. Determine whether the insert is required by measuring the outer diameter of the rear

step tube.

4. On the side determined in STEP 1, Perform one (1) of the following:

A. INSERT REQUIRED - Install the insert onto the rear step tube. Ensure the insert

is rotated so the slit is positioned as shown in DETAIL B of FIGURE 1.

B. NO INSERT REQUIRED- Proceed to STEP 5.

5. Install the I.V. Rod mounting bracket onto the step tube as shown in FIGURE 1.

6. Loosely install the hex screw, spacer and large locknut to secure the I.V. rod mounting

bracket to the step tube.

NOTE: Ensure the I.V. rod is positioned on the inside of the whee chair frame.

7. Open the handle clamp far enough to slide over the hand grip.

8. Perform one (1) of the following to position the handle clamp on the hand grip:

A. VINYL HAND GRIPS - Position the handle clamp in front of the first finger divider

on the hand grip as shown in DETAIL C of FIGURE 1. Ensure handle clamp is

positioned completely on hand grip.

B. FOA HAND GRIPS - Position the handle clamp towards the front of the hori

zontal portion of the hand grip as shown in DETAIL C of FIGURE 1.

9. Squeeze clamp closed around the hand grip.

10. Reinstall the pan head screw and locknut to secure the handle clamp to the hand grip.

11. Securely tighten all hardware.

12. Install rear anti tippers. Refer to the owners manual supplied with the wheelchair.

13. Adjust the height of the telescoping I.V. rod. Refer to ADJUSTING THE I.V. ROD

HEIGHT in this instruction sheet.

ADJUSTING THE I.V. ROD HEIGHT (FIGURE 1)

1. Loosen the adjustment knob.

2. Adjust I.V. rod to desired height.

3. Securely tighten adjustment knob.

INSERT REQUIRED

YES NO

7/8 INCH DIAMETER 1 INCH DIAMETER

REAR STEP TUBE REAR STEP TUBE

Part No. 1114827 Rev A 3Telescoping I.V. Rod

Rear Step

Tube

Anti-tipper Attachment Hole

DETAIL A - BOTTOM VIEW OF

WHEELCHAIR

Telescoping I.V. Rod

I.V. Rod

Mounting

Bracket

Hex

Scre

Spacer Insert *

Rear Step

Tube

Large Locknut

Handle

Clamp

Pan Head Scre

Shipping

Scre

Small Locknut

Hand Grip

Adjustment

Knob

DETAIL B -

INSERT INSTALLATION

REAR VIEW

Slit

(Approximately 45° from Bottom)

Insert

DETAIL C - POSITIONING

HANDLE CLAMP

First Finger

Divider

Hand Grip

FRONT

Position Handle Clamp HERE

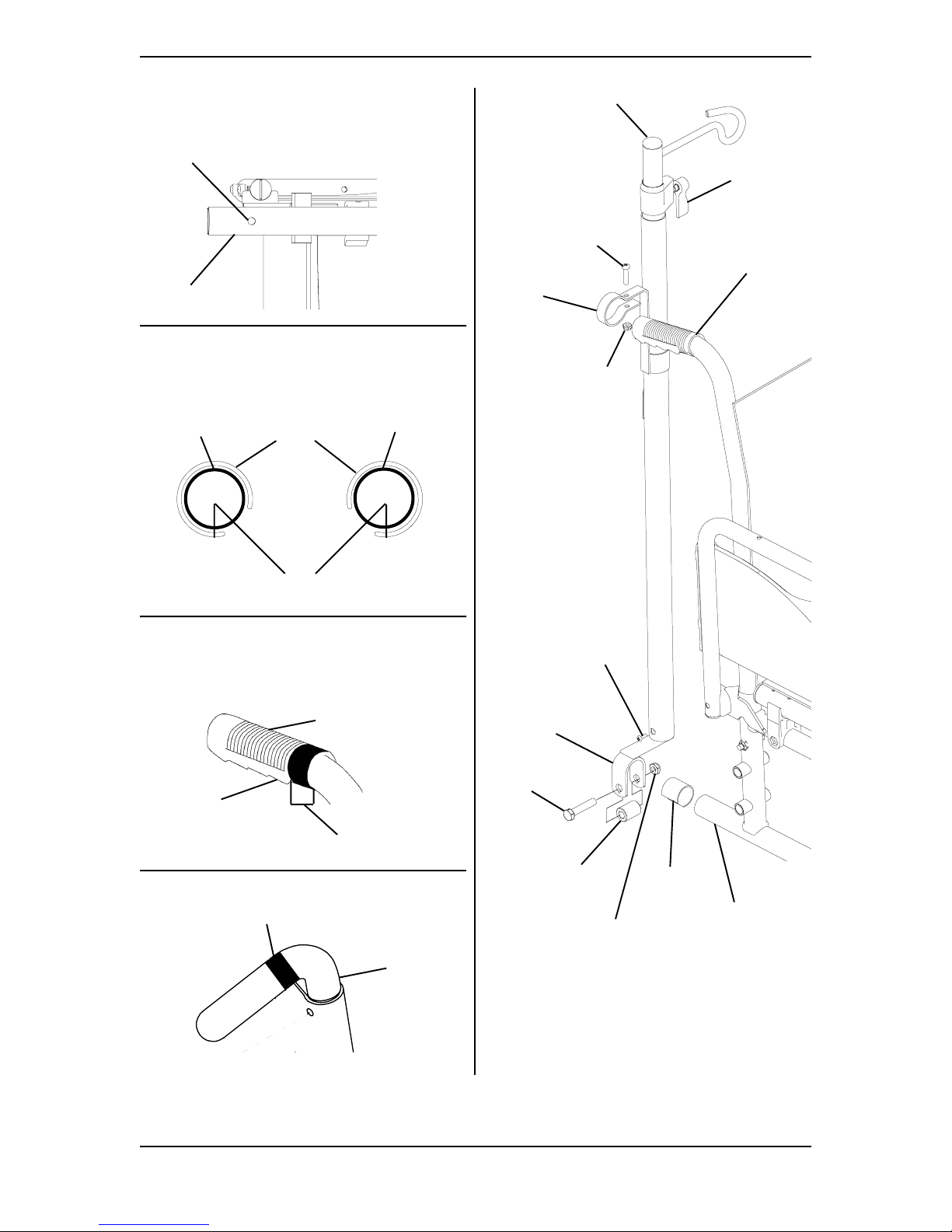

FIGURE 1 - INSTALLING THE TELESCOPING I.V. ROD / ADJUSTING THE

I.V. ROD HEIGHT

Rear Step

Tube

Rear Step

Tube

VINYL HAND GRIP

FOAM HAND GRIP

Hand Grip

FRONT

Position Handle Clamp HERE

*NOTE: The Insert is on y used with whee chairs

that have 7/8 inch diameter rear step tubes.

Invacare Corporation www.invacare.com

USA Canada

One Invacare Way 570 Matheson Blvd E Unit 8 Invacare is a registered trademark o

Elyria, Ohio USA Mississauga Ontario Invacare Corporation.

44036-2125 L4Z4G4 Canada Yes, you can. is a trademark o Invacare

800-333-6900 800-668-5324 Corporation.

Part No. 1114827 Rev A - 04/03
