Intermec 3400 User manual

3400

Twinax

Adapter

Card

The following instructions explain how to install a

3400 Twinax Adapter Card into a 3400 printer and are

intended to be performed by trained service personnel

only.

Parts Provided: Tools Required:

• Twinax Adapter Card • Phillips screwdriver

• Ribbon cable • Slip-joint pliers

• Guide rail

Step 1

Install the Guide Rail

1. Switch off the printer power and remove the power

cord from the printer.

2. Remove the media cover and the electronics cover

from the printer.

3. Remove and discard the I/O port cover from the

rear of the printer. Retain the two screws.

4. Press the tabs of the guide rail into the mounting

holes on the heat sink by using your hands or a pair

of slip-joint pliers.

Instruction

Sheet

3400-69

I/O Board

Port

Cover

(Remove and

discard.)

Guide

Rail

Heat Sink

Retain the

two screws.

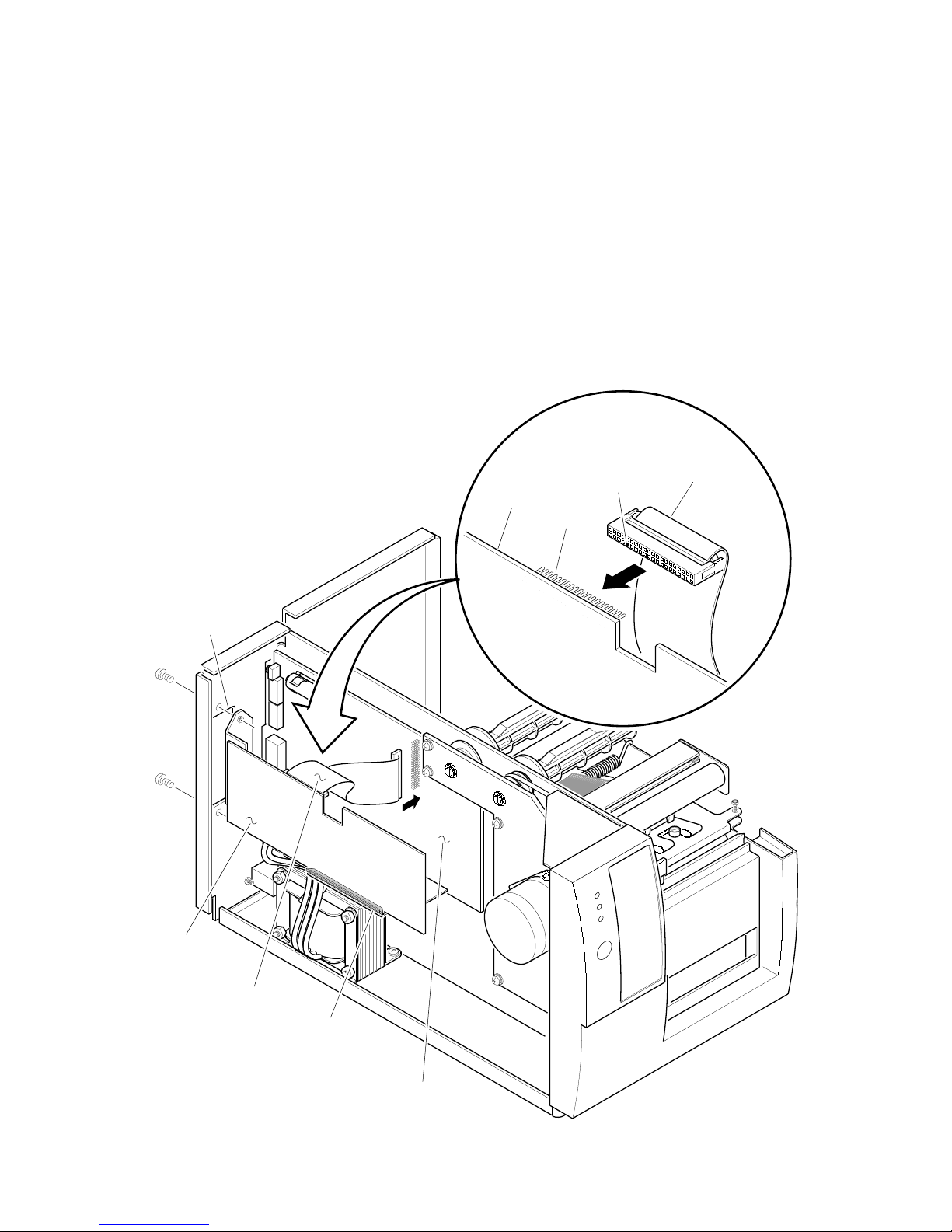

Step 2

Install the Twinax Adapter Card

1. Connect one end of the ribbon cable to J2 on the twinax adapter card.

Note: Both ends of the ribbon cable are keyed. Either end can be plugged onto

the twinax adapter card or the main PCB.

2. With the component side of the twinax adapter card facing the interior of the

printer, insert the twinax adapter card securely into the guide rail.

3. Connect the free end of the ribbon cable to J8 on the main PCB.

4. Secure the twinax adapter card to the I/O board port with the two port

cover screws.

5. Re-install and secure the media and

electronics covers.

6. Re-install the power cord.

7. For testing instructions, refer to

the Twinax User's Manual

(Part No. 060554-001).

INTERMEC Corporation

6001 36th Avenue West

P.O. Box 4280

Everett, WA 98203-9280

PN 060628-001

Intermec

3400-70

Keyed

Hole

Twinax

Adapter

Card

Ribbon

Cable

Guide

Rail

Twinax

Adapter

Card

I/O Board

Port

Main PCB

Ribbon

Cable
