Intermec Trakker T2090 User manual

TRAKKER T2090 Batch

Hand-Held Computer

P/N 067215-001

Getting Started Guide

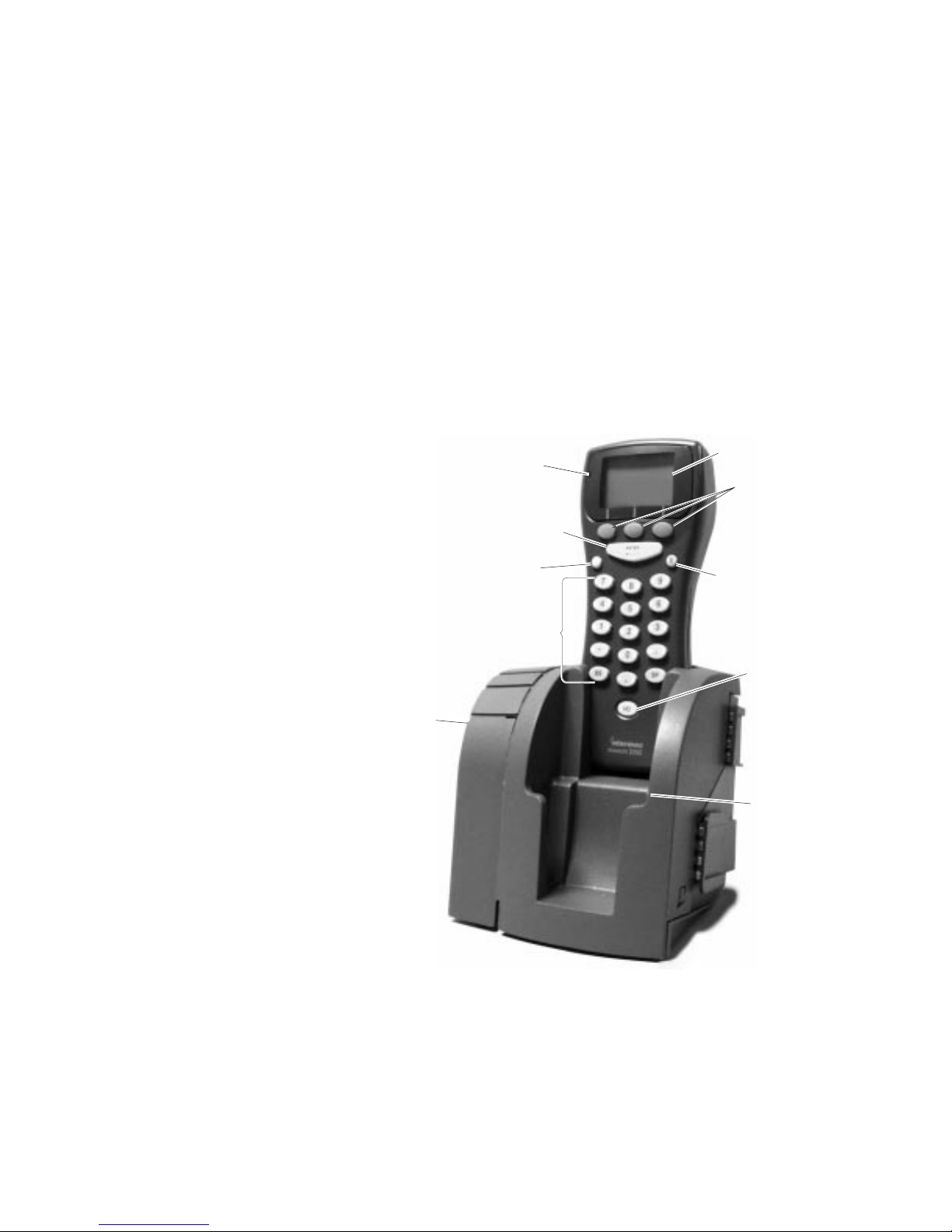

Display panel

Alphanumeric keys

EZDock

Docking

System

Power

module

Multi-function

LED

Enter key

Num/Alpha

lock key

Programmable

function keys

Backlight

control key

Power key

Two-slot

cradle

209XU.004

Introducing the TRAKKER T2090

The TRAKKER T2090 is a lightweight, pocket-sized computer

and bar code scanner. Designed for one-hand operation, the

T2090 is perfect for repetitive data collection applications, such

as inventory management, route sales, and asset tracking.

The EZDock Docking System serves as a charging and

communications dock and as a storage location for the

TRAKKER T2090. The docking system can be mounted on a

desk, wall, or rack, and multiple cradles can be linked together

for multiple-unit configurations.

Laser opening

Battery door

Power/Data

contacts

209XU.008

About this Guide

This guide contains basic information about operating and

maintaining the TRAKKER T2090. This guide assumes that the

data collection application software has been downloaded to the

unit so that it is ready to be used. For information about writing

a reader application and downloading it to the T2090, see the

TRAKKER T2090 Batch Hand-Held Computer User’s Manual

(Intermec part number 067212).

Safety at a Glance

Your safety is important. Read and follow all warnings and

cautions in this guide. Not following Intermec’s safety

recommendations can result in serious injury to you or damage

to the reader and data. Observe the following safety guidelines.

• Do not repair or adjust the device alone.

• Always obtain first aid or medical attention following an

injury.

• Begin resuscitation immediately if someone stops breathing.

• Never work on energized equipment without proper

authorization.

Charging the Battery

Before using the TRAKKER T2090, you need to fully charge the

battery pack. This takes four hours or less. For information

about replacing the battery pack, see the TRAKKER T2090 Battery

Replacement Instruction Sheet (part number 067378) included with

the battery pack.

To charge the battery:

• Place the unit (turned off) into the EZDock Docking System.

If you are charging the battery for the first time, let it charge

a full four hours.

209XU.005

While the battery is charging, the multi-function LED turns red.

Once charged, the battery continues to receive a “trickle charge”

while sitting in the dock. This is indicated by a steady green

LED. Depending on the application you are running, you can

operate the TRAKKER T2090 from 10 -20 hours on a single

charge.

Using the EZKey Keypad

The TRAKKER T2090’s EZKey keypad has 22 keys, 13 of which

you use to enter the letters A through Z, the numbers 0 through

9, the dash mark (-), period (.), and apostrophe (‘).

The three unlabeled keys just below the display are

programmable function keys. Refer to your application user

manual for information about their use.

To switch the unit on and off:

• Press the I/O power key to turn the unit on and off.

To switch between alpha and numeric modes:

• Press the ⇑key. If the unit is in numeric mode, it switches to

alpha mode, and will stay in alpha mode until you switch it

back to numeric.

When you first start up the TRAKKER T2090, you will see “123”

on the display screen. This indicates that the keypad is in

numeric mode. Pressing the ⇑keytoggles the keypad mode to

alpha and changes the display indicator to “abc.”

To turn the backlight on:

• Press the backlight key.

The backlight automatically turns off when the unit goes into

“sleep” mode, but turns back on when you press any key.

To enter a line of data:

• Press the Enter key.

See “Collecting Data” for more information on entering data into

the TRAKKER T2090.

Display panel

Backlight control key

turns backlight

on and off

Space key moves

cursor to right and

inserts space

13 Alphanumeric keys

Power key turns

unit on and off

Back space key

moves cursor to

left and erases

previous character

Num/Alpha

lock key toggles

keypad mode

Enter key activates

scanner and completes

manual data entry

LED indicates good/bad

scan and battery

charging status

Programmable

function keys

209XU.001

Collecting Data

To enter numbers:

1. If the keypad is not in numeric mode, press the ⇑key. Now

when you press any letter/number key, you will enter the

number on the key.

2. Press the key(s) labeled with the number(s) you want to

enter. The display shows the number or numbers that you

pressed.

3. Press the ENTER key to complete the data entry.

To enter letters:

1. If the keypad is not in alpha mode, press the ⇑key. Now

when you press any letter/number key, you will enter the

letter shown on the left or right side of the key.

2. Press the key labeled with the letter you want to enter,

pressing on the left or right side of the key, depending on the

letter you want. For example, to enter G, press the key

labeled with G and H, pressing on the left side of the key.

3. Press the ENTER key to complete the data entry.

Note: The ability to correct mistakes is controlled by the application

software you are running. Refer to your application user’s manual for

instructions on making on-screen corrections.

Using the Bar Code Scanner

This section applies only if your TRAKKER T2090 has an

integrated bar code scanner. The application software running

on the unit controls when the bar code scanner is activated.

To scan a bar code:

1. Hold the unit between 1-20 inches from the bar code label.

2. Press and hold the ENTER key. Make sure the red scanner

beam spans the entire bar code. (See the picture below.)

When the scanner is activated, the LED displays red.

Releasing the key prior to a successful ‘read’ will turn off the

scanner and the LED.

If the bar code is read successfully, the LED indicator turns green

for one second. You will also hear a beep if the unit’s audible

feature has been enabled. If the bar code is not read successfully,

the LED indicator turns red for one second. You will also hear a

buzz if the unit’s audible feature has been enabled.

Note: The readability of a bar code depends on the type of bar code

symbology, distance, and the condition or clarity of the printed

material.

Transmitting Data

Once you have finished collecting data, either by entering it

manually through the EZKey keypad or scanning bar codes, you

can transmit the data to a host system. To do this, all you do is

place the TRAKKER T2090 in the EZDock Docking System (as

shown in the pictures on pages 2 and 5). When you place the

T2090 in the docking system, the LED lights up and if the

audible feature is enabled, you hear a beep. Data is transmitted

very quickly. For specific information about data transmittal,

refer to your application user manual.

Maintaining the TRAKKER T2090

To keep your TRAKKER T2090 in good working condition, do

the following:

• Store the T2090 in the EZDock Docking System when you are

not using the unit.

• Clean the external case using only a dampened (water only)

chamois or clean cloth. Do not use alcohol or ammonia-based

cleaners. Avoid using fingernails or pointed, sharp objects.
