Interactive Health IJoy-105 User manual

Pats Pending and intellectual property rights enforced.

No medical claims are warranted or implied by

the use of this product. iJoy is a Trademark of Interactive Health.

www.interhealth.com

iJoy-105

USE & CARE MANUAL

PLEASE READ: To achieve the maximum results from

your iJoy-105, carefully read this manual. For additional

questions, please call our Customer Service Representatives

at (800) 742-5493.

CAUTION: Only for household use. Please read and observe

these safety instructions carefully to reduce the possibility

of fire or injury.

• Those with the following conditions should consult their physician prior to using this massage chair.

a) Malignant tumor

b) Heart Disease

c) Pregnancy

d) Conditions requiring rest

e) Back Disease or back trouble from an injury or accident

• Do not use your massage chair in an excessively humid or dusty environment.

• Your massage chair should be operated at a room temperature of between 40° and 100° F.

• Make sure all operation switches are in the OFF position before connecting the power cord to an electrical outlet.

• Do not use attachments which are not recommended by the manufacture.

• Turn the power switch on the back of the chair to the OFF position when not in use.

• If you detect a malfunction or any other abnormal condition in the operation of your chair, turn off the power

immediately and disconnect the power cord from the outlet.

• If you feel severe discomfort during the operation of your massage chair, stop using the chair and consult your physician.

• Should you have a power failure, turn the power switch to the OFF position.

• You should not use the chair for more than 15 minutes at one time.

• If the chair has gotten wet or exposed to moisture, turn the chair off, unplug it from the wall socket

and call Interactive Health®customer service.

• Keep your massage chair clean and away from humidity.

Thank you for choosing the iJoy Robotic Massage®chair from Interactive Health.

We are confident you will find this product to be among the best available.

Interactive Health®

Partners in Your Well-Being

For over decades, Interactive Health has been a leader in the field of massage products. We create

state-of-the-art products that embrace the latest technology while applying the ancient healing art of massage.

With today’s fast-paced lifestyles, balancing your physical and mental needs requires the right mix of proper

nutrition, exercise, and massage. Interactive Health®Massage Systems are vital components for achieving

balance between physical and mental well-being.

To learn more about our company and our products, we invite you to visit us on the Internet at:

www.interhealth.com.

NEW

Human Touch Technology

Your new massage chair includes the revolutionary HTT.

HTT is a true step forward in Robotic Massage®technology. The result of years of research and

development, this revolutionary system emulates the latest techniques used by massage and

chiropractic professionals for back and spinal care.

HOW DOES IT WORK? It starts with a multi-patent pending mechanism that acts like “wrists and arms”. The “hands” consist

of two, three-dimensional moving discs, which are surrounded by a firm, yet comfortable material that feels like “fingers and

thumbs”. Working together, these robotic components deliver a variety of massage functions that feel great, and really work. HTT,

RECOMMENDED BY PROFESSIONALS, DESIGNED FOR YOU.

“HTT” is the preferred technology of the ACCO.

www.accoweb.org

CONTENTS:

Important Safety Instructions 6

Important Assembly Instructions 8

Assembly Instructions

Getting the most from your iJoy-105 9

While using your massage chair...

Basic Operating Instructions 10

Turning the iJoy-105 on and off

Understanding the controller

Using your iJoy-105 11

Features

Four Massage Modes

Product Care and Storage 13

General Maintenance

Warranty & Service 14

Specifications 15

iJoy-105

USE & CARE MANUAL

DANGER: To reduce the risk

of electrical shock

Always unplug massager from the electrical outlet immediately after

using and before cleaning.

Do not reach for an appliance that has fallen into water.

Unplug immediately.

WARNING: To reduce the risk

of burns, fire, electric shock or

injury to persons

An appliance should never be left unattended when plugged in.

Unplug from outlet when not in use, and before putting on or

taking off parts.

Do not operate under blanket or pillow. Excessive heating can occur

and cause fire, electric shock, or injury to persons.

Close supervision is necessary when this appliance is used by, on, or

near children, invalids, or disabled persons.

Use this appliance only for its intended use as described in this manual.

Do not use attachments not recommended by the manufacturer.

Never operate this appliance if it has a damaged cord or plug, if it is not

working properly, if it has been dropped or damaged, or dropped into

water. Return the appliance to a service center for examination and

repair.

Always keep the power cord away from heated surfaces.

Never operate the appliance with the air openings blocked. Keep the air

openings free of lint, hair, and the like.

Never drop or insert any object into any opening.

Do not use outdoors.

Do not operate where aerosol (spray) products are being used or where

oxygen is being administered.

To disconnect, turn all controls to the OFF position, then remove plug

from outlet.

Do not massage abdomen when pain is present or if you are pregnant.

Do not massage any area of the body that is swollen, inflamed or

covered with skin eruptions. Do not use on unexplained calf pain.

Do not use massager when standing on a damp floor, or when any part

of the body is in contact with plumbing or any similar ground.

Always connect massager to a properly grounded electrical outlet.

This unit is designed to operate on standard 120 Volt 60 Hz house

current.

Do not use unit if noise above normal sound is heard.

The unit is designed for personal in-home use. Commercial use will

void warranty.

Important Safety Instructions

Read all instructions before using the iJoy-105.

WARNING: Do not put hands or fingers

near the massage mechanism or rollers while the

iJoy-105 is running. Touching the mechanism can

result in injury from the rollers squeezing together.

SAVE THESE INSTRUCTIONS

Grounding Instructions:

This product must be grounded. If it should malfunction or

breakdown, grounding provides a path of least resistance for

electrical current to reduce the risk of electric shock. This product

is equipped with a cord having an equipment-grounding conductor

and a grounding plug. The plug must be plugged into an appropriate

outlet that is properly installed and grounded in accordance with all

local codes and ordinances.

WARNING: Improper connection

of the equipment-grounding

conductor can result in a risk of

electronic shock. Check with a

qualified electrician or serviceman if

you are in doubt as to whether this

product is properly grounded. Do not

modify the plug provided with the

product – if it will not fit the outlet,

have a proper outlet installed by a

qualified electrician.

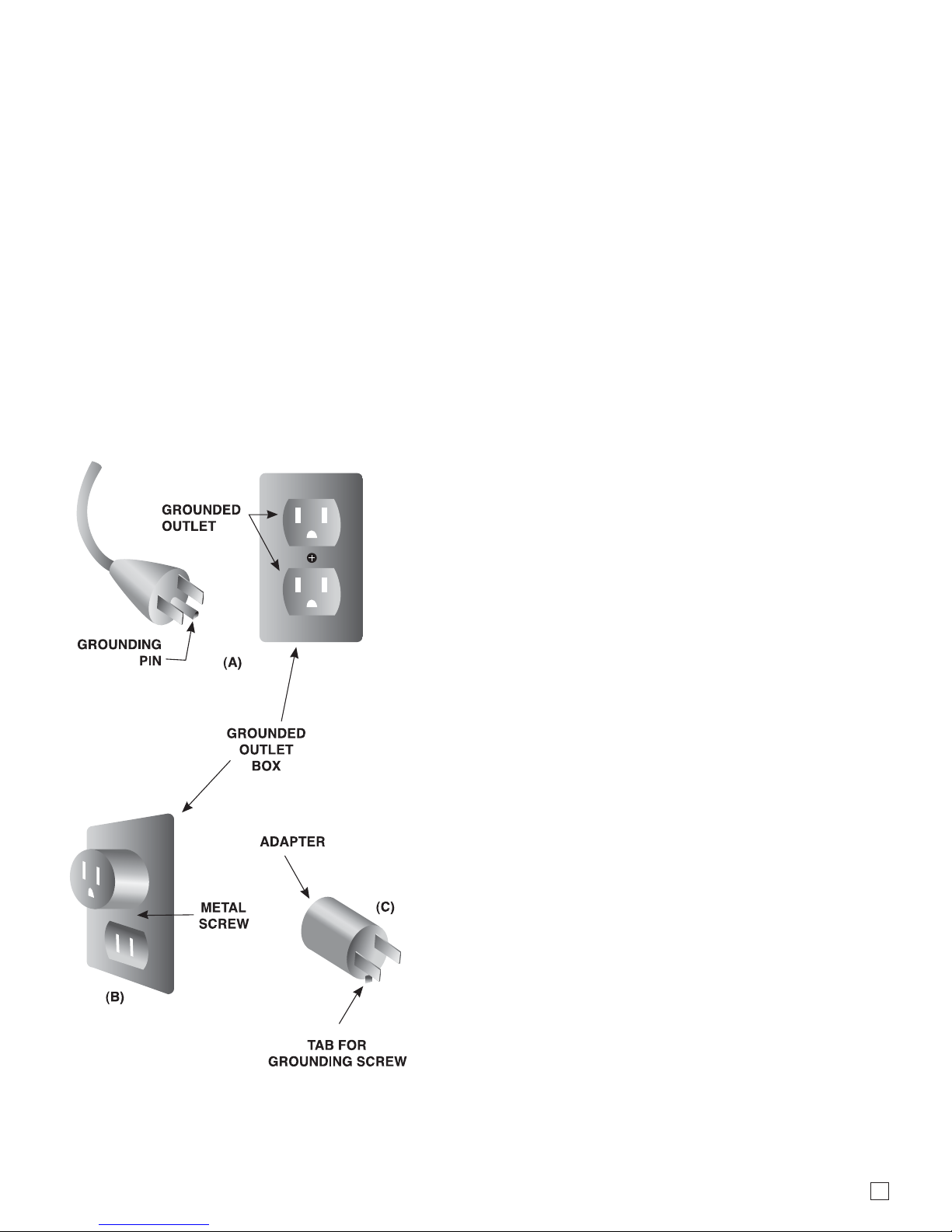

This product is for use on a normal 120-volt circuit and has a

grounding plug that looks like the plug illustrated in sketch (A).

A temporary adapter that looks like the adapter used in sketches (B)

and (C) may be used to connect this plug to a 2-pole receptacle as

shown in sketch (B), if a properly grounded plug is not available. The

temporary adapter should be used only until a properly grounded

outlet (sketch A) can be installed by a qualified electrician. The green

colored, rigid ear tab or the like extending from the adapter must be

connected to a permanent ground such as a properly grounded outlet

box cover. Whenever the adapter is used, it must be held in place by

a metal screw.

WARNING: Your chair is equipped with a thermal

resetting protection device. This is an added safety feature to protect

you and your massage chair from overheating. If the chair should

suddenly stop and will not start, turn the main power switch, located

on the back of the chair, off and do not operate the chair for at

least 30 minutes. Failure to turn the chair off may result in the chair

starting unexpectedly when the device cools.

For all grounded cord-connected products:

Grounding methods:

Important Assembly Instructions and Operation

Figure 1: Upper Backrest Pin

fig. 1

Figure 2: Chair Base with Pin Cradle

fig. 2

Figure 3: Lift Backrest and align the

upper backrest pins into the Pin Cradle

in the chair base.

fig. 3

Figure 4: Lift the Backrest upright to

assure alignment.

fig. 4

Figure 5: Pull Backrest towards the rear

to lock it into position.

fig. 5

Figure 6: Install the cable connector into

the mating connector in the chair leg.

fig. 6

5NLOCK#HILD3AFETY

,OCK

-ASTER3WITCH

,OCK

/&&

Figure 7: Raise and lower the Backrest by

pulling the Backrest Lever by your right arm.

Figure 8: For a milder massage, if desired, unzip the outer

panel on the Backrest and insert the Massage Softening Pad

into the open pocket. Close the zipper on the Backrest.

Figure 10: Plug AC Cord into a grounded wall outlet and turn

Master Switch to ON. If Master Switch will not move, slide the

child safety lock up to the unlock position

Figure 9: Slip Head Bonnet over the top

of the Backrest and pull zippers down to

make a snug fit.

fig. 7 fig. 8

Child Safety Lock:

After use keep the Child Safety Lock

feature in the locked position to prohibit

children from using the iJoy when

unattended.

fig. 9 fig. 10

Convenience Outlet:

On board convenience outlet is designed for

light duty use as with a laptop computer or

reading light.

DO NOT EXCEED 100 WATTS.

Fuse:

Fuse is 1AMP. Replace only with same

rating fuse.

Power Center

Getting the most from your iJoy-105

Safety Precautions while

using your Massage Chair

• Comfortable clothing is recommended while using your

massage chair.

• Your massage chair was meant to be used in a relaxed

position. While sitting in the chair, never force any body

part into the backrest area while the rollers are moving.

• Do not allow children to use the massage chair.

• If you feel any abnormal discomfort during the operation of

your massage chair, turn off the power immediately and do

not use the chair. Consult your physician.

• Do not sit on the controller.

• Do not pull on the AC cord.

• Always confirm that there are no obstacles behind the chair

and that there is sufficient space to recline.

• When using your massage chair after it has been in

storage, check to see that the chair is operating properly

prior to sitting in the chair.

• Do not attempt to repair your massage chair yourself.

If a malfunction occurs, please contact

Interactive Health at (800) 742-5493.

Your iJoy-105 massage chair is a quality piece of

furniture, and can be utilized and cared for like the rest

of the furniture in your home.

The HTT robotic massage®system inside your chair is a

sophisticated electro-mechanical device that requires

some special care and safety precautions.

Please follow these basic guidelines carefully. They are

provided to ensure the maximum enjoyment of your chair.

Massage Softening Pad

This pad can be used to soften the intensity

of the massage.

To Install (see fig. 3, page 6):

1. On the front side of the backrest there is a zipper.

Unzip this and you will find a pocket.

2. Insert the softening pad into this pocket and close

the zipper.

You will find the massage to be less intense when the

softening pad is installed. You can adjust the intensity

by adding or removing the softening pad. Addtional

softening pads are available for an additional charge

from Interactive Health.

Table of contents

Other Interactive Health Massager manuals

Interactive Health

Interactive Health HTT-10-CRP User manual

Interactive Health

Interactive Health iJoy ottoman 3.0 User manual

Interactive Health

Interactive Health HT-135 ROBOTIC MASSAGE User manual

Interactive Health

Interactive Health iJoy-100 User manual

Interactive Health

Interactive Health Acuvibe AV-75 User manual

Interactive Health

Interactive Health HTT-10XL-RPV User manual

Interactive Health

Interactive Health EMS.12 Get-A-Way User manual

Interactive Health

Interactive Health iJoy User manual

Interactive Health

Interactive Health HTT-7 User manual

Interactive Health

Interactive Health iJoy humanTOUCH ROBOTIC MASSAGE HT-103 User manual

Interactive Health

Interactive Health ROBOTIC MASSAGE HT-120 User manual

Interactive Health

Interactive Health Human Touch RMS-15 User manual

Interactive Health

Interactive Health iJoy-1ST User manual

Interactive Health

Interactive Health HT-104 User manual

Interactive Health

Interactive Health iJoy-200 User manual

Interactive Health

Interactive Health OTTOMAN 2.0 User manual

Interactive Health

Interactive Health OTTOMAN User manual

Interactive Health

Interactive Health iJoy 320 User manual

Interactive Health

Interactive Health iJoy human touch 250 Turbo 2 User manual

Interactive Health

Interactive Health iJoy-130 User manual

Interactive Health

Interactive Health The Perfect Chair PC-085 User manual

Interactive Health

Interactive Health Robotic Massage HT-095 User manual

Interactive Health

Interactive Health iJOY-550 User manual

Interactive Health

Interactive Health Human Touch HT-1650 User manual

Popular Massager manuals by other brands

ELEEELS

ELEEELS P2 instruction manual

Cenocco

Cenocco CC-9111 user manual

Panasonic

Panasonic EP790-C1 Service manual

Human Touch

Human Touch NOVO Assembly guide

Adler

Adler AD 2167 user manual

Taurus

Taurus Wellness TW-MC-M Assembly and operating instructions

Infinity

Infinity Syner-D Circadian Assembly guide

Hydas

Hydas LH-095 instruction manual

AEG

AEG FM 5567 instruction manual

OBH Nordica

OBH Nordica Shiatus Tunes manual

Hutech

Hutech Q9 user manual

Medisana

Medisana MM 825 user manual

SOLAC

SOLAC Therma Hydro Instructions for use

Invacare

Invacare Texas user manual

Casada

Casada Bismarck II manual

Fujiiryoki

Fujiiryoki Cyber-Relax EC-1700 user manual

Medisana

Medisana HM 886 instruction manual

HoMedics

HoMedics BA-C200 instruction manual

Interactive Health iJoy-105 User manual

Popular Massager manuals by other brands
