Panasonic EP790-C1 User manual

Service Manual

TOP NEXT

ORDER NO.HPD0011C18C1

MASSAGE LOUNGER

● EP790-C1

SPECIFICATIONS

Power source : 120V AC, 60Hz

Power consumption : 230W

Kneading speed : Approx. 28 times/min.

Tapping speed : Approx. 500 times/min.(per side)

Rolling massage speed : Approx. 1 cycle every 33 sec.

Massaging width : Shoulder/lower back section : Approx. 75mm

Back rolling width/tapping width : Narrow : Approx. 85 mm/: Wide : Approx. 110 mm

Massage heads up/down travel : Approx. 600 mm

Regional back rolling : Automatic repetition within approx. 120mm range

Intensity adjustment : Adjusts massage head protrusion steplessly within approx. 45 mm range

Shoulder position adjustment : 7 steps

Automatic shut-off : Approx. 15 min.

Leg massager - vibration : Approx. 3200 cycles/min./ Shut-off timer : Approx. 30 min.

Dimensions (H x W x D) :•Not reclined and leg rest retracted : 1,050 x 755 x 1,050 mm/ •Reclined and leg rest extended : 620 x 755 x 1,750 mm

Reclining angle : Approx. 127° to 170°

Weight : 56 kg

Accessories : Back cushion, headrest

© 2000 Matsushita Electric Works, Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.

•@

TOP NEXT

1.1 When Chair Arrives:

TOP PREVIOUS NEXT

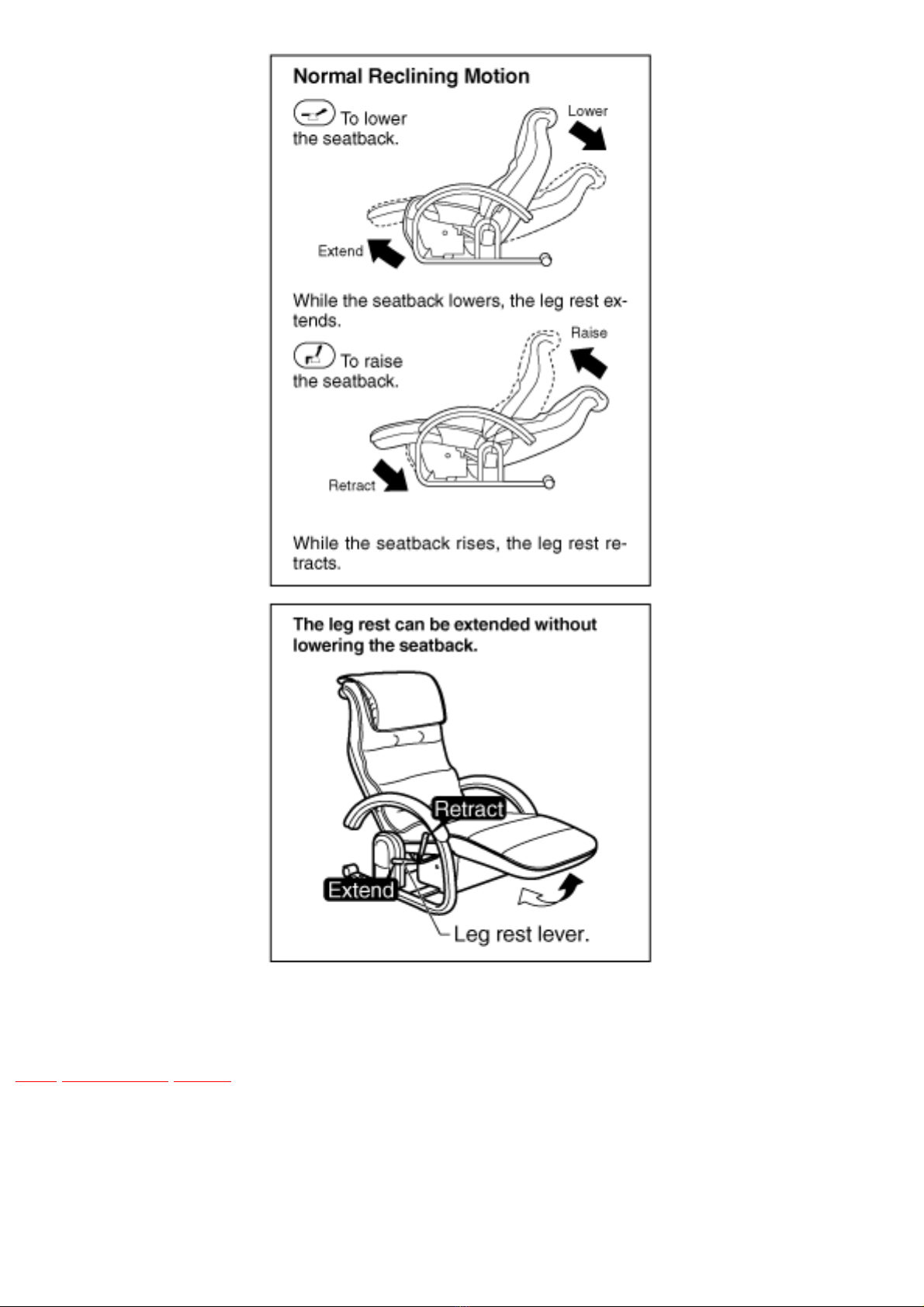

When shipped from the factory, for efficient transport, the chair is packaged in the configuration

shown in the drawing below. In this configuration, normal reclining motion is not possible. Therefore,

upon arrival of the chair, always follow thefollowing steps to initialize operating settings.

*Check that the power switch is [On] (found at the back of the hinge cover).

(1)Plug-In

(2)Push continuously the reclining button of the operation panel to raise the seatback.

(3) Continue the process until the seatback movement comes to a stop (a clink sound should be

audible)./•The reclining mechanism is set.

•@

TOP PREVIOUS NEXT

1 Installation

TOP PREVIOUS NEXT

1.1 When Chair Arrives:

1.2 Installation Position:

1.3 Returning Chair to Packaged Configuration

•@

TOP PREVIOUS NEXT

1.2 Installation Position:

TOP PREVIOUS NEXT

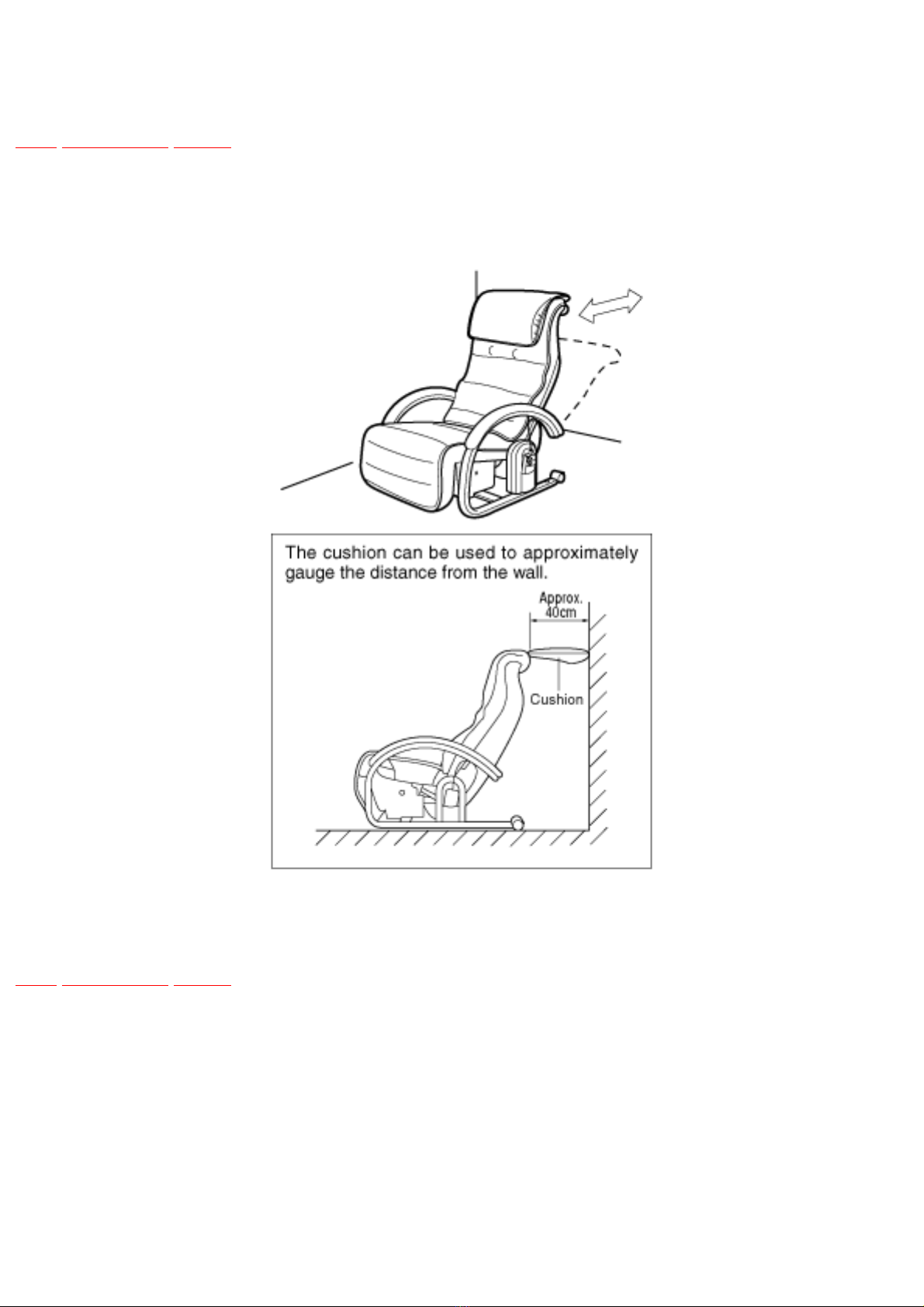

To assure that the chair has enough space to recline to the rear, please install it at least 40cm from the

wall.

•@

TOP PREVIOUS NEXT

1.3 Returning Chair to Packaged

Configuration

TOP PREVIOUS NEXT

When shipped from the factory, for efficient transport, the chair is packaged in the configuration

shown in the figure on page 2.

After competing the initial operating settings of page 2, if the chair is to be returned to the packaged

configuration, please follow the following instructions.

(1) Insert the plug into the outlet, and check that the power switch is [On].

(2) While pushing down on the link release lever, please push (continuously) the

button of the operation panel. After checking that the leg rest has not extended, remove your hand

fromthe link release lever.

* When wanting to use the chair once again, please follow the directions on page 2 for initializing

operating settings.

•@

TOP PREVIOUS NEXT

2 Hand control functions

TOP PREVIOUS NEXT

CONTROLLER

Cover closed: Programmed course massage

Cover open: Manual massage

•@

TOP PREVIOUS NEXT
