INSTEON TempLinc 2441TH User manual
INSTEON Thermostat
2441TH
Quick Start Guide
INSTEON Thermostat
SET
72
SET
Mode
Set Button
Temperature Adjust
Status LED
For the complete Owner’s Manual and
more, visit: insteon.com/support
Phillips Screwdriver
Small Phillips Screwdriver
Small Flathead Screwdriver
Tools Needed for Installation
Disconnect Power
Always disconnect power before
installation. Contact INSTEON
Support when uncertain about
installation.
1-866-243-8022
Installation
ON
ON
ON
ON
ON
ON
ON
OFF
ON ON

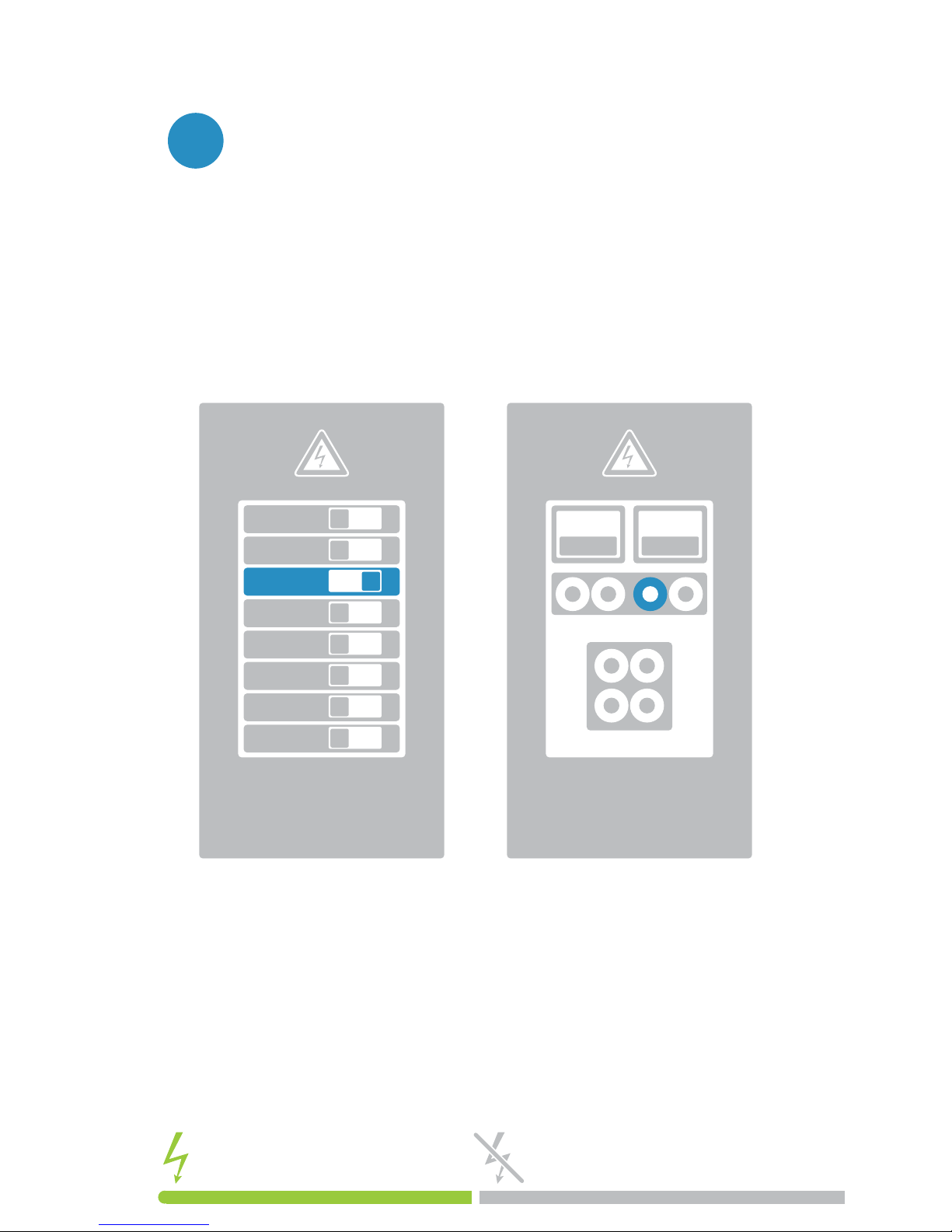

Circuit Breakers
Power is OFF
Fuse Panel
or
1Turn o power to your air conditioning
system at the electrical service panel.
Power is ON
2Remove your old thermostat. Some are
secured with screws, others tilt upwards.
W1/O/B
W2
M1SC1
RS2
M1SC3
RS+5
RS1
RS GND
Y1
G
M1SC2
CK1
CK GND
R
C
3Verify that the INSTEON Thermostat will
work with your air conditioning system.
Heat pump and line voltage systems are
incompatible.
W1/O/B
W2
M1SC1
RS2
M1SC3
RS+5
RS1
RS GND
Y1
G
M1SC2
CK1
CK GND
R
C
X
4Take a picture of your wiring and label
the wires using the included labels.
When ready, remove the old thermostat’s
mounting plate.
W1/O/B
W2
M1SC1
RS2
M1SC3
RS+5
RS1
RS GND
Y1
G
M1SC2
CK1
CK GND
R
C
W1/O/B
W2
M1SC1
RS2
M1SC3
RS+5
RS1
RS GND
Y1
G
M1SC2
CK1
CK GND
R
C
5Mount the INSTEON Thermostat and
connect the wires to the corresponding
wire terminals.
Wire color may vary
Y1
Y2
24COM
24R
W1
W2
G
Y1
Y2
24COM
24R
W1
W2
G
Y1
Y2
24COM
24R
W1
W2
G
Y1
Y2
24COM
24R
W1
W2
G
Y1
Y2
24COM
24R
W1
W2
G
Y1
Y2
24COM
24R
W1
W2
G
6Close the Thermostat cover and turn
on power from the service panel. Your
INSTEON Thermostat will calibrate and
is now ready for use.
Installation complete. You can now link
your Thermostat to the Hub.
SET
When prompted, press and hold the set
button on your Thermostat.
Follow the on-screen instructions to add the
Thermostat to your INSTEON Hub.
Linking to the Hub
+
If not using the Hub, refer to the instructions
that came with your product.
!
