InFocus SP4805 User manual

Connect Component cable

Adjust keystone

Connect power cable Remove lens cap Power on projector

Adjust zoom and focus

Connect Component cable from DVD,

VCR, TV and satellite tuners,camcorders,

or video game consoles to Video In.

Component cable may be used for

progressive and HDTV sources.

Connect the M1 computer cable from

High Definition (HD) sources to

Computer In. HD sources include HDTV,

EDTV, and Progressive devices.

See manual for detailed information and troubleshooting

Please read the Safety Card before setting up the projector

Component

Cable

S-video

Connect S-video cable from DVD,VCR, TV

and satellite tuners,camcorders, or video

game consoles to S-video. S-video should

not be used for progressive and HDTV

sources.

M1 Cable

Connect S-video cable Connect M1 cable

Adjust height

Power on video source Project from source

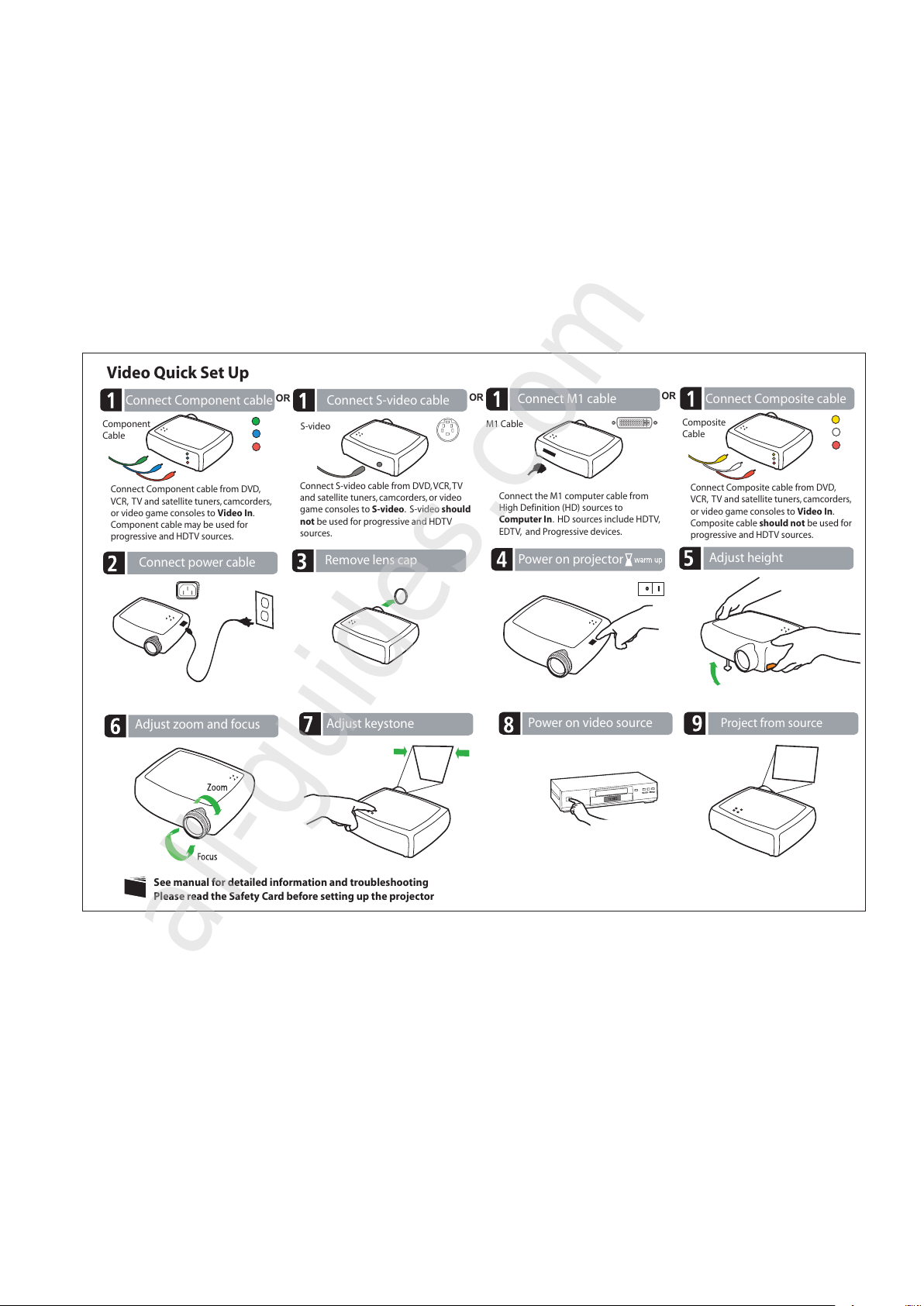

Video Quick Set Up

OR Connect Composite cable

Connect Composite cable from DVD,

VCR, TV and satellite tuners,camcorders,

or video game consoles to Video In.

Composite cable should not be used for

progressive and HDTV sources.

Composite

Cable

All manuals and user guides at all-guides.com

all-guides.com

009-0909-00 *009-0909-00*

See manual for detailed information and troubleshooting

Please read the Safety Card before setting up the projector

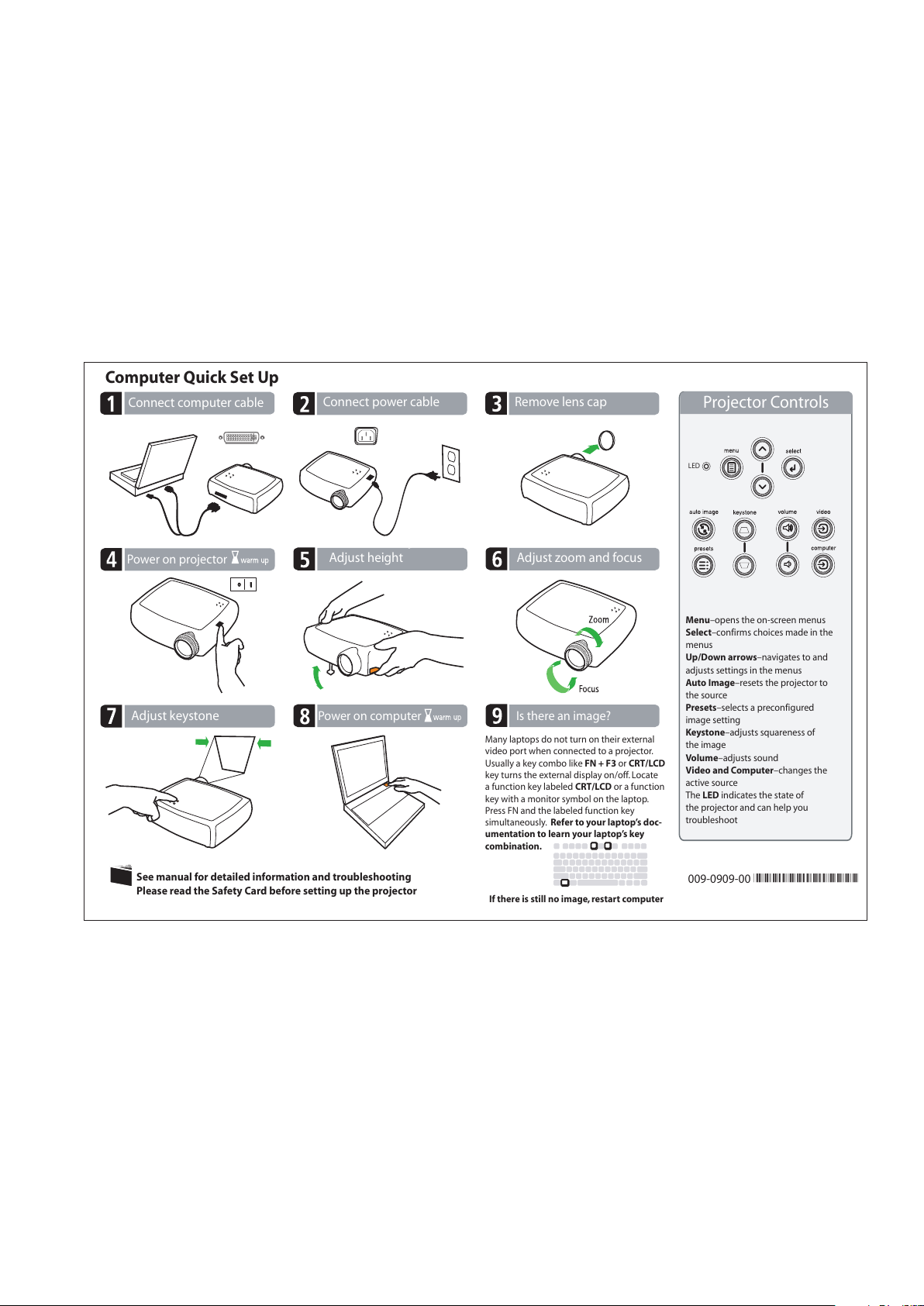

Computer Quick Set Up

Projector Controls

Menu–opens the on-screen menus

Select–confirms choices made in the

menus

Up/Down arrows–navigates to and

adjusts settings in the menus

Auto Image–resets the projector to

the source

Presets–selects a preconfigured

image setting

Keystone–adjusts squareness of

the image

Volume–adjusts sound

Video and Computer–changes the

active source

The LED indicates the state of

the projector and can help you

troubleshoot

LED

Connect computer cable Connect power cable Remove lens cap

Power on projector Adjust height Adjust zoom and focus

Adjust keystone Power on computer Is there an image?

If there is still no image, restart computer

Many laptops do not turn on their external

video port when connected to a projector.

Usually a key combo like FN + F3 or CRT/LCD

key turns the external display on/off.Locate

a function key labeled CRT/LCD or a function

key with a monitor symbol on the laptop.

Press FN and the labeled function key

simultaneously. Refer to your laptop’s doc-

umentation to learn your laptop’s key

combination.

All manuals and user guides at all-guides.com
