Indesit SIXL125SEU Operating and installation instructions

Indesit Company UK Ltd

Service

Information

INDESIT

MOON

WASHING

MACHINES

Models Comm.

Covered Code

SIXL125SEU 44033

SIXL145UK 46406

SIXL145SUK 46401

SIXL145DUK 52171

SIXL145DUK.1 55589

SIXL145KUK 60185

SIXL145SKUK 60189

5407359 Issue 6 Nov. 2008

Colours may vary

2 of 28

Service Manual UK

Indesit

Company

English

SAFETY NOTES & GENERAL SERVICING ADVICE

1. This manual is NOT intended as a comprehensive repair/maintenance guide to the appliance.

2. It should ONLY be used by suitably qualified persons having technical competence applicable

product knowledge and suitable tools and test equipment.

3. Servicing of electrical appliances must be undertaken with the appliance disconnected (unplugged)

from the electrical supply.

4. ServicingmustbeprecededbyEarthContinuity,EarthResistanceandInsulation Resistance checks.

5. Personal safety precautions must be taken to protect against accidents caused by sharp edges on

metal and plastic parts.

6. AfterServicingtheappliance mustberecheckedforElectricalSafety.In thecaseof applianceswhich

are connected to a water supply (i.e.: Washing Machines, Dishwashers & Food Centres etc.) checks

must be made for leaks from seals gaskets and pipe work and rectification carried out where

necessary.

7. It can be dangerous to attempt ‘DIY’ repairs / maintenance on complex equipment and the Company

recommends that any problem with the appliance is referred to its own Service Organisation.

8. Whilst the Company has endeavoured to ensure the accuracy of the data within this publication they

cannot hold themselves responsible for any inconvenience or loss occasioned by any error within.

SERIAL NUMBER / INDUSTRIAL CODE EXPLANATION

Serial Number Example

3 10 02 0895

Four remaining digits = Build number that day 895th built

Third two digits = Day of manufacture 2nd of month

Second two digits = Month of manufacture October

First digit = Year of manufacture 2003

Industrial Code Example

37 24455 0010

Last four digits = 0000 original production

Second five digits = COMMERCIAL CODE*

First two digits = Factory of origin

* Vital for correct model information and system identification

Other numbers denote major production changes

3 of 28

Indesit Company

Service Manual UK English

INDEX

Safety Notes & Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Serial Number / Industrial Code Information . . . . . . . . . . . . . . . . . . . . . . . . . .2

Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 7

Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 9

Wash Programmes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 10

Demo Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Door / Dispenser / Water Inlet System . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 13

Conductivity Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Vent Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Wiring Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Wiring Connection Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Power Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Eeproms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Controls Information / Main Board Programming. . . . . . . . . . . . . . . . . 19 - 20

Fault Codes / LED Indications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 - 23

Dismantling Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 - 26

4 of 28

Indesit Company

Service Manual UK English

TECHNICAL INFORMATION

Models Covered SIXL125SEU - Field Trial Machine

SIXL145UK, SIXL145SUK, SIXL145DUK, SIXL145DUK.1,

SIXL145KUK, SIXL145SKUK

Colours SIXL125SEU - Metallic Grey (Blue Door / Handle)

SIXL145UK - White (Metallic Grey Door / Handle)

SIXL145SUK - Metallic Grey (Blue Door / Handle)

SIXL145DUK - Metallic Grey (Grey Door / Handle)

SIXL145DUK.1 - Metallic Grey (Grey Door / Handle)

SIXL145KUK - White (Black Door / Handle)

SIXL145SKUK - Metallic Grey (Black Door / Handle)

Country of Origin Italy - Comunanza Factory (80)

Dimensions Height: 850 mm

Width: 595 mm

Depth: 535 mm

Weight - Net: 66 kg

Spin Speed 1400 rpm, except SIXL125SEU - 1200 rpm

Electrical Supply 220/240 Volts @ 50 Hz

Energy Consumption 1.02 kWh @ 60°C

Maximum Power Consumption 1850W

Energy Structure Energy Class: A+

Wash Class: A

Spin Class: B

Water Consumption (60°C Cotton) 65 litres

Water remaining after Spin Cycle 52%

Features Full Wash 6 kg, Cotton Whites, Mixed Coloureds, Delicates,

Rapid 30 minute / Rinse only

Wash Heater 1700W @ 230V - 30 Ωapproximately.

Water Supply Cold Fill Only. Max Pressure = 1 Mpa (10bar)

Minimum Pressure = 0.05 Mpa (0.5bar)

Drum Capacity Load size: 1 - 6 kg. Drum Volume: 52 litres. Material: Plastic.

Motor - Wash Single phase (52 mm stator)

Ceset P52 / 1400rpm - MCA 52/64.148/AD40.

Armature: 2.15 Ω@ 20°C ± 7%

Field Coil: 1.47 Ω@ 20°C ± 7%

Split Field: 0.66 Ω@ 20°C ± 7%

Tacho: 115.4 Ω@ 20°C ± 7%

Pump 2 Pole Synchronous. 220 / 240 Volt 25 Watt, Resistance = 165 Ω

Max Head 1.4 metres. Flow rate @ 0.9 metres / 30 Litres per minute

Torque Settings

Front Counterweight 30 ± 2Nm (Torx 40 bolt)

Top Counterweight 30 ± 2Nm

Pulley 35 - 40 Nm

5 of 28

Indesit Company

Service Manual UK English

INTRODUCTION OF THE INDESIT MOON WASHING MACHINE

New range of Washing Machine designed to save time without compromising the performance.

Easy selection of the correct wash programme with new circular programme selector and easily

identifiable programme symbols.

Available in various colour combinations:-

SIXL125SEU - Metallic Grey (Blue Door / Handle)

SIXL145UK - White (Metallic Grey Door / Handle)

SIXL145SUK - Metallic Grey (Blue Door / Handle)

SIXL145DUK - Metallic Grey (Grey Door / Handle)

SIXL145DUK.1 - Metallic Grey (Grey Door / Handle)

SIXL145KUK - White (Black Door / Handle)

SIXL145SKUK - Metallic Grey (Black Door / Handle)

Detergent dispenser is an integral part of the main door assembly, and can be removed easily for

cleaning / replacement by the customer.

An inner ring of LEDs indicate the programme progress, and in the event of a malfunction the LEDs

will indicate a Service fault code.

NOTES:

The appliance is Cold Fill only.

Models produced before August 2007 DO NOT have a Demo Mode.

Models produced from August 2007 have a Demo Mode - see Page 11.

If / when the Power Module is replaced, this will initiate the auto setting cycle with 5 Rinses,

which allows it to check the water alkalinity and calibrate itself.

PRODUCT TYPE

Key - For information only

SIXL125S

1st letter 2nd letter 3rd letter 4th letter 1st&2nd Number 3rd Number 5th letter

Product line Brand Type Type Max Spin Speed Specs Colour

S = Smart I = Indesit X = maxi 6 kg. L = led 8 = 800 0 S = silver unit

S = Slim D = display 10 = 1000 1 blank = white unit

14 = 1400 7

6 of 28

Indesit Company

Service Manual UK English

INSTALLATION

Unpacking

1. Unpack the washer.

2. Make sure that the machine has not been

damaged during transportation. If it has

been damaged, contact the retailer and do

not proceed any further with the installation

process.

3. Remove the 4 protective screws (used

during transportation) and the rubber

washer with the corresponding spacer,

located on the rear part of the appliance.

See Figure.

4. Close off the holes using the plastic plugs

provided.

5. Keep all the parts in a safe place as they will

be needed again if the washing machine is

moved to another location.

Packaging materials should not be used as

toys for children.

Levelling

The machine may make a considerable

amount of noise if the 2 front feet have not

been adjusted correctly.

1. Install the washing machine on a flat and

sturdy floor, without placing it against walls,

cabinets or other furniture.

2. If the floor is not

perfectly level,

compensate for any

unevenness by

tightening or loosening

the adjustable front feet

(see figure); the angle

ofinclination,measured

in relation to the

worktop, must not exceed 2°.

Levelling the machine correctly will provide

it with stability, help to avoid any vibrations

and excessive noise and prevent it from

shifting while it is operating. If it is placed on

a carpet or a rug, adjust the feet in such a

way as to allow a sufficient ventilation space

underneath the machine.

Water Connections

1. Insert seal A into the end of

the inlet hose and screw the

latter onto a cold water tap

with a 3/4 gas threaded

opening. See Figure.

Before making the

connection, allow the water

to run freely until it is

perfectly clear.

2. Connect the other end of the inlet hose to

the machine by screwing it onto the cold

water inlet of the appliance, which is

situated on the top right hand side on the

rear of the appliance. See figure.

3. Make sure there are no kinks or bends in

the hose.

NOTE: - If the machine does not fill with

water the Door Locked indicator light flashes

rapidly.

7 of 28

Indesit Company

Service Manual UK English

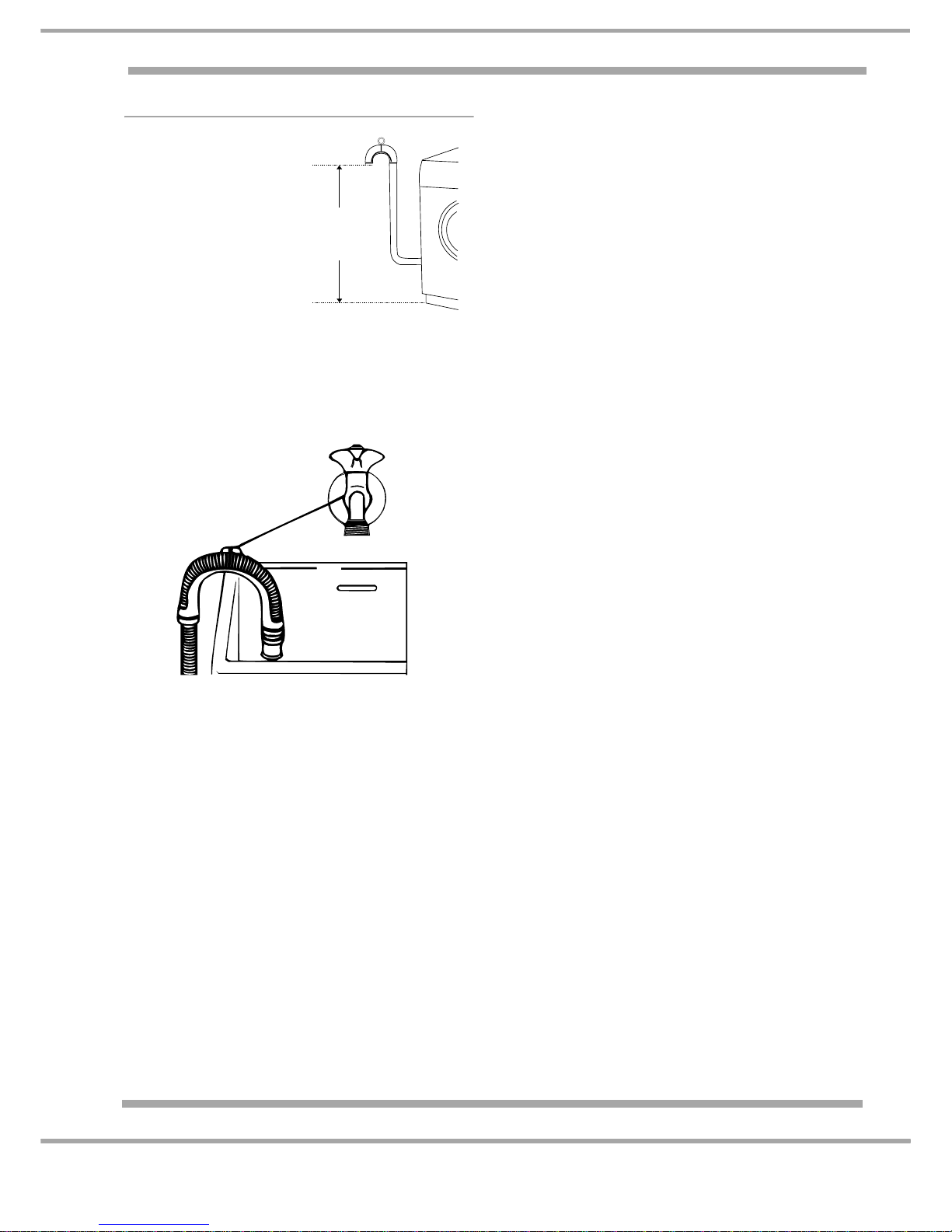

Drainage Connections

A. Connect the drain

hose, without

bending it, to a

draining duct or a

wall drain situated

between 65 and

100 cm from the

floor.

B. Alternatively, place it over the edge of a

basin, sink or tub, fastening the duct

supplied to the tap. See Figure.

The free end of the hose should not be

under water.

We advise against the use of hose

extensions. If it is absolutely necessary, the

extension must have the same diameter as

the original hose and must not exceed

150 cm in length.

Electrical Connections

Before plugging the appliance into the

mains socket, make sure that:

- the socket is able to withstand the

maximum power load of the appliance.

- the power supply voltage is falls within the

values indicated on the Technical

Information page.

- the socket is compatible with the washing

machines plug. If this is not the case,

replace the socket or the plug.

Location

! The washing machine must not be installed

outdoors, even in covered areas. It is

extremely dangerous to leave the appliance

exposed to rain, storms and other weather

conditions.

! When the washing machine is installed, the

mains socket must be within easy reach.

! Do not use extensions or multiple sockets.

! The power supply cable must never be bent

or dangerously compressed.

! The power supply cable must only be

replaced by an authorised serviceman.

WARNING!

The Company shall not be held responsible

in the event that these regulations are not

respected.

65 - 100 cm

8 of 28

Indesit Company

Service Manual UK English

CONTROLS

THE PROGRAMME SELECTOR

Circular in shape and easy to use; each button has at least two functions.

In the centre of the selector there is a ring of 12 LEDs, which indicate programme progress, and, in

the event of malfunction the LEDs will illuminate in a specific sequence indicating a fault.

A RED LED on the On /Off button indicates when the door is locked and takes approximately 1 - 2

minutes.

NOTE: - This LED will flash if the machine fails to fill with water.

SWITCHING THE APPLIANCE ON

Switch machine on by pressing the On / Off button

The symbol on the On / Off button lights up and an audible sound will be heard.

The programme buttons start flashing and the inner ring of LEDs light up one after another

At this point the machine is in stand by and is ready for use.

SELECTING / STARTING A PROGRAMME

Load the machine with laundry.

Load detergent and fabric softener.

Start the required programme by pressing the relative programme button.

The programme will start after a brief pause.

The power on button and selected programme button LED will remain lit, all other programme LEDs

and the inner ring of LEDs will switch off.

On/Off Button

Rapid 30 Minute/

Rinse

Delicate Wool/Silk

Door closure LED

Cotton White 60°C

Ring of 12 LEDs

Mixed coloureds/

Easy Iron

9 of 28

Indesit Company

Service Manual UK English

PAUSING / RE-STARTING A PROGRAMME

To activate the washing machines "Pause" function press the programme button of the programme

in progress.

The Power On button remains lit, the LED of the programme in progress flashes slowly, and the

central ring of LEDs start to flash (depending how far the appliance is into its programme will depend

on how many central LEDs are lit).

To Re-start the programme after activating the Pause function, press the programme button once.

RE-SETTING A PROGRAMME IN PROGRESS

To reset a programme in progress, press and hold down the On / Off button for more than 2 seconds,

an audible sound will be heard. At this point the programme in progress will be cancelled and the

machine will switch off. (Approximately 1 - 2 minutes from power off the door lock will disengage.)

CAUTION: - Do not switch the appliance off during the drain cycle, as this will leave the water in the

drum potentially higher than the door seal lip depending on the programme.

NOTE: - BEFORE the machine switches off it will automatically run a drain cycle. This will happen

regardless if the appliance has water in it or not. During draining, the power on button will flash.

PROGRAMME PROGRESS

The inner ring of LEDs indicates the progress of the wash programme.

These start to light up in a clockwise direction, starting from the LED at the 12 O'clock position as

more LEDs light up, the previous ones remain lit.

AT THE END OF THE SELECTED PROGRAMME

When the wash programme ends, the Power On LED and the selected programme LED remain lit,

the inner ring of LEDs will begin to flash.

WASH PROGRAMMES

The duration of the programmes indicated in the table are for guidance purposes only, and are calculated based on an average load quantity.

Button Fabrics

Max.

load

(kg)

Te m p e r a tu r e

Spin

speed

(rpm)

Cycle

duration

(minutes)

Wash cycle description

WHITE COTTON

Durable white cotton 6 60°C 1400 145 Wash cycle, rinse cycles, intermediate

and final spin cycles

COLOR MIX 40° / EASY IRON

Coloured cotton

and synthetics 4,5 40°C 1000 105 Wash cycle, rinse cycles and delicate

spin cycle

DELICATES

Wool final delicate spin

cycle) 1,5 30°C 600 50 Wash cycle, rinse cycles and delicate

spin cycle

Silk and curtains without

final spin cycle) 1,5 30°C no* 50 Wash cycle, rinse cycles and drainage

DAILY

WASH / COLD WATER RINSE

Cotton and synthetics 330°/cold

water** 800 30

Wash cycle only if the "Rapid wash"

programme activated), rinse cycles,

delicate spin cycle

145

10 of 28

Indesit Company

Service Manual UK English

PROGRAMMES

There are 4 programme buttons, which can be used to select 6 different wash programmes.

Standard 60°C Cotton Wash cycle:

Default spin setting 1200 rpm or 1400 rpm depending on model.

Mixed Coloureds Easy Iron:

Wash cycle suitable for garments of mixed colours in Cotton or Synthetic

fabric.

Wash temperature 40°C.

The spin cycle must be suitable reduced to guarantee the Easy iron faction.

Default spin setting is 1000 rpm, except for the last 20 seconds when the

appliance increases to full speed.

Delicates with Final Spin

Suitable for garments with Cotton, Synthetic Wool fabric.

Press the Delicate programme button. After approximately 3 seconds, the

Delicate and Rapid programme lights begin to flash slowly. At this point

press the Delicate programme button again to start the wash cycle which

ends with a soft spin (600 rpm).

Delicates without Final Spin

Suitable for garments in silk and viscose, curtains. Not suitable for Wool

garments.

Press the Delicate programme button. After approximately 3 seconds the

Delicate and Rapid programme lights begin to flash slowly. At this point

press the Rapid programme button again to start the wash cycle, which

ends with a drain only cycle.

Rapid 30 Minute / Rinse Only

Thewashingmachine usestheconductivitysensorbeforestartingthewash

in order to ascertain whether the user has loaded the laundry with detergent

in the drum (i.e. handwash items).

If the laundry loaded has detergent present, the machine will detect this and

activate the Rinse Only programme, performing 2 x 15 minute rinse cycles.

If the laundry loaded has NO detergent detected by the conductivity sensor,

the Rapid 30 wash will be activated. The default spin setting for this

programme is 800 rpm.

This manual suits for next models

Table of contents

Other Indesit Washer manuals

Indesit

Indesit WITL 86 User manual

Indesit

Indesit IWE 71483 User manual

Indesit

Indesit IWSC 61082 User manual

Indesit

Indesit IWC 71452 User manual

Indesit

Indesit W 83 T User manual

Indesit

Indesit WIN 102 User manual

Indesit

Indesit WIXE 127 User manual

Indesit

Indesit WITL 85 User manual

Indesit

Indesit wite WITE 87 User manual

Indesit

Indesit XWA 61051 User manual

Indesit

Indesit IWC 71051 User manual

Indesit

Indesit WIXE 127 User manual

Indesit

Indesit HOTPOINT HVL200UK Operating and installation instructions

Indesit

Indesit XWA 81283 User manual

Indesit

Indesit IWD 61430 User manual

Indesit

Indesit PWSE 6108 W User manual

Indesit

Indesit IWB 6123 User manual

Indesit

Indesit WITL 62 User manual

Indesit

Indesit IWSD 4105 User manual

Indesit

Indesit WS 642 TX User manual

Indesit

Indesit bwe 71683x w eu User manual

Indesit

Indesit WI141 User manual

Indesit

Indesit BWE 91484 User manual

Indesit

Indesit IWC 6105 User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
