Indesit IWDD 7143 S User manual

Contents

Installation, 2-3-4-5

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Description of the washer-dryer and

starting a wash cycle, 6-

Control panel

Indicator lights

Starting a wash cycle

Wash cycles, 8

Table of wash cycles

Personalisation, 9

Setting the temperature

Setting the drying cycle

Functions

Detergents and laundry, 10

Detergent dispenser drawer

Preparing the laundry

arments requiring special care

Load balancing system

Precautions and tips, 11

eneral safety

Disposal

Care and maintenance, 12

Cutting off the water or electricity supply

Cleaning the washer-dryer

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

Troubleshooting, 13

Service and Guarantee, 14-15-16

Before calling for Assistance

uarantee

IWDD 143 S

Instructions for use

WASHER-DRYER

English,1

 This symbol reminds you to read this instruction manual.

Installation

 This instruction manual should be kept in a safe

place for future reference. If the washer-dryer is sold,

transferred or moved, make sure that the instruction

manual remains with the machine so that the new

owner is able to familiarise himself/herself with its

operation and features.

 Read these instructions carefully: they contain vital

information relating to the safe installation and

operation of the appliance.

Unpacking and levelling

Unpacking

1. Remove the washer-dryer from its packaging.

2. Make sure that the washer-dryer has not been

damaged during the transportation process. If it has

been damaged, contact the retailer and do not

proceed any further with the installation process.

3. Remove the 4

protective screws (used

during transportation) and

the rubber washer with

the corresponding

spacer, located on the

rear part of the appliance

(see figure).

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need

them again if the washer-dryer needs to be moved to

another location.

 Packaging materials should not be used as toys for

children.

Levelling

1. Install the washer-dryer on a flat sturdy floor,

without resting it up against walls, furniture cabinets

or anything else.

2. If the floor is not

perfectly level, compen-

sate for any unevenness

by tightening or loosening

the adjustable front feet

(see figure); the angle of

inclination, measured in

relation to the worktop,

must not exceed 2°.

Levelling the machine correctly will provide it with

stability, help to avoid vibrations and excessive noise

and prevent it from shifting while it is operating. If it is

placed on carpet or a rug, adjust the feet in such a

way as to allow a sufficient ventilation space

underneath the washer-dryer.

Connecting the electricity and water

supplies

Connecting the water inlet hose

1. Connect the supply

pipe by screwing it to a

cold water tab using a ¾

gas threaded connection

(see figure).

Before performing the

connection, allow the

water to run freely until it

is perfectly clear.

2. Connect the inlet hose

to the washer-dryer by

screwing it onto the

corresponding water inlet

of the appliance, which is

situated on the top right-

hand side of the rear part

of the appliance (see

figure).

3. Make sure that the hose is not folded over or bent.

 The water pressure at the tap must fall within the

values indicated in the Technical details table (see

next page).

 If the inlet hose is not long enough, contact a

specialised shop or an authorised technician.

 Never use second-hand hoses.

 Use the ones supplied with the machine.

Connecting the drain hose

Connect the drain hose,

without bending it, to a

draining duct or a wall

drain situated between

65 and 100 cm from

the floor;

The drain hose may be

connected to an

under-sink trap. Before

connecting the drain

hose from the machine

ensure that any blanks

or removable ends

have been taken off

the spigot.

If it is place over the

edge of a basin or sink

be sure the free end of

the hose should not be

underwater.

 We advise against the use of hose extensions; in

case of absolute need, the extension must have the

same diameter as the original hose and must not

exceed 150 cm in length.

Ensure that if the drain hose is pushed into a

standpipe, that the end does not go down more

than 15cms (6 inches). If the hose is pushed down

too far, this may cause the machine to self -syphon

ie. continuously empty as it is filling.

Electric connection

Before plugging the appliance into the mains

socket, make sure that:

 the socket is earthed and in compliance with the

applicable law;

 the socket is able to sustain the appliance's

maximum power load indicated in the Technical

details table (see page 5);

 the supply voltage is included within the values i

ndicated on the Technical details table

(see page 5);

 the socket is compatible with the washing

machine's plug. If this is not the case, replace

the socket or the plug.

Your appliance is now supplied with a 13 amp fused

plug it can be plugged into a 13 amp socket for

immediate use. Before using the appliance please

read the instructions below.

WARNIN - THIS APPLIANCE MUST BE EARTHED.

THE FOLLOWIN OPERATIONS SHOULD BE

CARRIED OUT BY A QUALIFIED ELECTRICIAN.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA

approved fuse to BS 1362 should always be used,

and the fuse cover re-fitted. If the fuse cover is lost,

the plug must not be used until a replacement is

obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of the

correct colour as indicated by the coloured marking

or the colour that is embossed in words on the base

of the plug. Replacements can be obtained directly

from your nearest Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded plug

and you should wish to re-route the mains cable

through partitions, units etc., please ensure that

either:

the plug is replaced by a fused 13 ampere re-

wearable plug bearing the BSI mark of approval.

or:

the mains cable is wired directly into a 13 amp cable

outlet, controlled by a switch, (in compliance with BS

5733) which is accessible without moving the

appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself, you

make the pins unusable so that it cannot be

accidentally inserted into a socket.

Instructions for connecting cable to an alternative plug:

Important: the wires in the mains lead are coloured in

accordance with the following code:

Green & Yellow Earth

Blue Neutral

Brown Live

65 - 100 cm

Where it connects to

the waste water pipe

cut end off spigot or

remove the blanking cap

GREEN &

YELLOW

BROWN

BLUE

13 ampere fuse

CROSS-BAR

CORD GRIP

As the colours of the wires in the lead may not

correspond with the coloured markings identifyng

the terminals in your plug, proceed as follows:

Connect reen & Yellow wire to terminal marked E

or or coloured reen or reen & Yellow.

Connect Brown wire to terminal marked L or

coloured Red.

Connect Blue wire to terminal marked N or coloured

Black.

If a 13 amp plug (BS 1363) is used it must be fitted

with a

13 amp fuse, either in the plug or adaptor or at the

distribution board.

If you are in any doubt the electrical supply to your

machine, consult a qualified electrician before use.

How to connect an alternative plug:

The wires in this mains lead are coloured in

accordance with the following code:

BLUE NEUTRAL (N)

BROWN LIVE (L)

GREEN & YELLOW EARTH (E)

Disposing of the appliance:

When disposing of the appliance please remove the

plug by cutting the mains cable as close as possible

to the plug body and dispose of it as described

above.

 The washing machine should not be installed in an

outdoor environment, not even when the area is

sheltered, because it may be very dangerous to

leave it exposed to rain and thunderstorms.

 When the washing machine is installed, the mains

socket must be within easy reach.

 Do not use extensions or multiple sockets.

 The power supply cable must never be bent or

dangerously compressed.

 The power supply cable must only be replaced by

an authorised serviceman.

Warning! The company denies all liability if and when

these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before

you use it for the first time, run a wash cycle with

detergent and no laundry, setting the 90°C

programme without a pre-wash cycle.

Technical data

Model IWDD 7143 S

Dimensions

width 59.5 cm

height 85 cm

depth 53,5 cm

Capacity from 1 to 7 kg for the wash programme;

from 1 to 5 kg for the drying programme

Electrical

connections

please refer to the technical data plate fixed

to the machine

Wate r

connections

maximum pressure 1 MPa (10 bar)

minimum pressure 0.05 MPa (0.5 bar)

drum capacity 52 litres

Spin speed up to 1400 rotations per minute

Energy

rated

programmes

according to

regulation

EN 50229

Wash: programme 2; temperature 60°C;

run with a load of 7 kg.

Drying: first drying cycle performed with a 2 kg

lload and the DRYIN knob on the setting.

Second drying cycle performed with a 5 kg

load and the DRYIN knob on the setting.

This appliance conforms to the following

EC Directives:

- 89/336/EEC dated 03/05/89

(Electromagnetic Compatibility) and

subsequent modifications

- 2002/96/EC

- 2006/95/EC Low Voltage)

Description of the washer-dryer and

starting a wash cycle

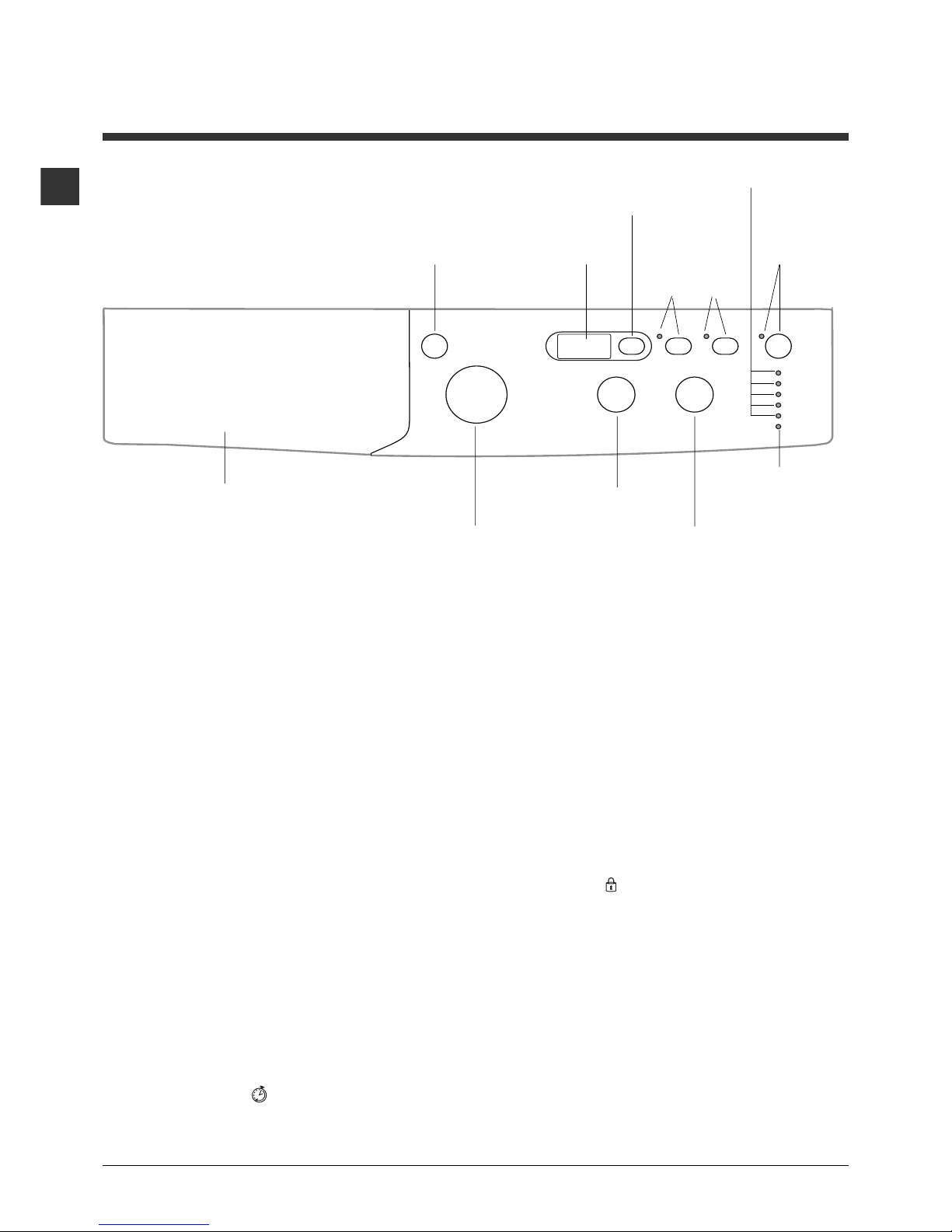

Control panel

DRYING

knob

WASH CYCLE

PROGRESS

DOOR LOCKED

indicator light

START/

PAUSE

button with

indicator light

Detergent dispenser drawer

ON/OFF

button

WASH CYCLE

knob

TEMPERATURE

knob

FUNCTION

buttons with

indicator lights

DISPLAY

DELAY TIMER

button

Detergent dispenser drawer: used to dispense

detergents and washing additives (see Detergents

and laundry).

ON/OFF button: switches the washing machine on

and off.

WASH CYCLE knob: programmes the wash cycles.

During the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to

select the available functions. The indicator light

corresponding to the selected function will remain lit.

TEMPERATURE knob: sets the temperature or the

cold wash cycle (see Personalisation).

DRYING knob: used to set the desired drying

programme (see Personalisation).

DISPLAY: used to view the duration of the various

cycles available and the remaining time of a cycle in

progress; if the DELAY TIMER option has been

selected, the countdown to the start of the selected

cycle will appear.

DELAY TMER button : press to set a delayed start

time for the selected wash cycle. The delay time will

be shown on the display.

WASH CYCLE PROGRESS

indicator light

s: used to

monitor the progress of the wash cycle.

The illuminated indicator light shows which phase is in

progress.

DOOR LOCKED indicator light: indicates whether

the door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or

temporarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this

button; the corresponding indicator light will flash

orange, while the indicator light for the current wash

cycle phase will remain lit in a fixed manner. If the

DOOR LOCKED indicator light is switched off, the

door may be opened.

To start the wash cycle from the point at which it was

interrupted, press this button again.

Standby mode

This washing machine, in compliance with new

energy saving regulations, is fitted with an automatic

standby system which is enabled after a few minutes

if no activity is detected. Press the ON-OFF button

briefly and wait for the machine to start up again.

Indicator lights

The indicator lights provide important information.

This is what they can tell you:

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has

begun, the indicator lights switch on one by one to

indicate which phase of the cycle is currently in progress.

Note: when the drying cycle has finished, the

DRYIN knob should be returned to the 0 position.

Function buttons and corresponding indicator lights

When a function is selected, the corresponding

indicator light will illuminate.

If the selected function is not compatible with the

programmed wash cycle, the corresponding indicator

light will flash and the function will not be activated.

If the selected function is not compatible with another

function which has been selected previously, the

indicator light corresponding to the first function

selected will flash and only the second function will be

activated; the indicator light corresponding to the

enabled option will remain lit.

Door locked indicator light

When the indicator light is on, the porthole door is

locked to prevent it from being opened; make sure

the indicator light is off before opening the door (wait

approximately 3 minutes). To open the door during a

running wash cycle, press the START/PAUSE button;

the door may be opened once the DOOR LOCKED

indicator light turns off.

Starting a wash cycle

1. Switch the washer-dryer on by pressing the ON/OFF button. All indicator lights will switch on for a few

seconds, then they will switch off and the START/PAUSE indicator light will pulse.

2. Load the laundry and close the door.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see Personalisation).

5. Set the drying cycle if necessary (see Personalisation).

6. Measure out the detergent and washing additives (see Detergents and laundry).

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit

in a fixed manner, in green.

To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

9. At the end of the wash cycle the indicator light will switch on. The door can be opened once the DOOR

LOCKED indicator light turns off. Take out your laundry and leave the appliance door ajar to make sure the

drum dries completely. Switch the washer-dryer off by pressing the ON/OFF button.

Wash

Rinse

Spin/Drain

Drying

End of wash cycle

Wash cycles

he information contained in the table is intended as a guide only.

For all Test Institutes:

1) Test wash y le in omplian e with regulation EN 50229: set wash y le 1 with a temperature of 60°C.

2) Long wash y le for ottons: set wash y le 1 with a temperature of 40°C.

3) Short wash y le for ottons: set wash y le 3 with a temperature of 40°C.

Wash y les

Table of wash cycles

The duration of the wash cycles can be checked on the display.

Des ription of the wash y le

Max.

temp.

(°C)

Max.

speed

(rpm)

Drying

Detergents Max. load (kg)

Cy le

duration

Wash Fabri

softener Normal E o

Time

Daily

1White Cotton: extremely soiled whites. 90° 1400 ll l 7-

1White Cotton (1): heavily soiled whites and resistant colours. 60° 1400 ll l 7-

1White Cotton (2): heavily soiled whites and delicate colours. 40° 1400 ll l 7-

2Cotton: heavily soiled whites and resistant colours. 60° 1400 ll l 73,5

3Coloured Cotton (3):

lightly soiled whites and delicate colours. 40° 1400 ll l 73,5

4Syntheti s: heavily soiled resistant colours. 50° 800 ll l 32

Special

5Wool: for wool, cashmere, etc. 40° 600 -ll

1,5 -

6Silk/Curtains: for garments in silk and viscose, lingerie. 30° 0 -ll 1-

Jeans 40° 800 ll l 3-

Sport

8Sport Intensive 30° 600 - - l3-

9Sport Light 30° 600 -ll 3-

10 Spe ial Shoes 30° 600 -ll

Max. 2

pairs -

Dry

11 Cotton - - l- - 5-

12 Syntheti s - - l- - 3-

13 Express Wash & Dry 30° 1400 ll l

0,5 -

Partial wash cycles

Rinse -1400 l-l7-

Spin -1400 l- - 7-

Drain -0- - - 7-

Specials wash cycles

Sport Intensive (wash cycle 8) is for washing heavily soiled sports clothing fabrics (tracksuits, shorts, etc.); for

best results, we recommend not exceeding the maximum load indicated in the

" able of wash cycles"

Sport Light (

wash cycle

9) is for washing lightly soiled sports clothing fabrics (tracksuits, shorts, etc.); for best

results, we recommend not exceeding the maximum load indicated in the " able of wash cycles". We recommend

using a liquid detergent and dosage suitable for a half-load.

Special Shoes (

wash cycle

10) is for washing sports shoes; for best results, do not wash more than 2 pairs

simultaneously.

Express Wash & Dry (

wash cycle

13) was designed to wash and dry lightly soiled garments quickly. This cycle may

be used to wash and dry a laundry load of up to 0.5 kg in just 35 minutes.

To achieve optimum results, use liquid detergent and pre-treat cuffs, collars and stains.

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see able of wash cycles).

The temperature may be lowered, or even set to a cold wash . The washer-dryer will automatically prevent you

from selecting a temperature which is higher than the maximum value set for each wash cycle.

Setting the drying cycle

Turn the DRYIN knob to select the desired drying

option. There are two options:

A - Based on time: From 40 minutes to 180.

B - Based on the desired laundry dryness level:

Iron dry : suitable for clothes which will need ironing

afterwards. the remaining dampness softens creases,

making them easier to remove.

Hanger dry : ideal for clothes which do not need to be dried fully.

Cupboard dry : suitable for laundry which can be put back in a cupboard without being ironed.

If your laundry load to be washed and dried is much greater than the maximum stated load (see adjacent table),

perform the wash cycle, and when the cycle is complete, divide the garments into groups and put some of them back

in the drum. At this point, follow the instructions provided for a "Drying only" cycle. Repeat this procedure for the

remainder of the load.

Drying only

Use the cycle selector knob to select a drying cycle (11-12) in accordance with the type of fabric. The desired drying

level or time may also be set using the DRYIN knob.

Functions

The various wash functions available with this washer-dryer will help to achieve the desired results, every time.

To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in

conjunction with the selected wash cycle.

Delay timer

To set a delayed start for the selected programme, press the corresponding button repeatedly until the required

delay period has been reached. When this option is enabled, the symbol lights up on the display. To remove the

delayed start option press the button until the text "OFF" appears on the display.

This option is enabled with all programmes.

Selecting this option enables you to suitably adjust drum rotation, temperature and water to a reduced load of lightly

soiled cotton and synthetic fabrics (refer to the

" able of wash cycles"

).   enables you to wash in less time

thereby saving water and electricity. We suggest using a liquid detergent suitably measured out to the load quantity.

 This function may not be used in conjunction with cycles 1, 5, 6, 7, 8, 9, 10, 11, 12, 13, , , .

1400-600

Press this button to reduce the spin speed

 This function may not be used in conjunction with cycles 6, 11, 12, 13, .

Personalisation

Fabri

type

Load type Max.

load

(kg)

Cupboard

dry

Hanger

dry

Iron

dry

Cotton Clothing of different

sizes, Terry towels 5180170140

Synthetics Sheets, Shirts, Pyjamas,

socks, etc. 3 140 120 100

Table of Drying times (guideline values)

Detergents and laundry

Detergent dispenser drawer

ood washing results also depend on the correct

dose of detergent: adding too much detergent will not

necessarily result in a more efficient wash, and may in

fact cause build up on the inside of your appliance

and contribute to environmental pollution.

 Do not use hand washing detergents because these

create too much foam.

Open the detergent

dispenser drawer and

pour in the detergent or

washing additive, as

follows.

ompartment 1: Pre-wash detergent (powder)

compartment 2: Detergent for the wash cycle

(powder or liquid)

Liquid detergent should only be poured in immediately

prior to the start of the wash cycle.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

Preparing the laundry

 Divide the laundry according to:

- the type of fabric/the symbol on the label

- the colours: separate coloured garments from

whites.

 Empty all garment pockets and check the buttons.

 Do not exceed the listed values, which refer to the

weight of the laundry when dry:

Durable fabrics: max. 7 kg

Synthetic fabrics: max. 3 kg

Delicate fabrics: max. 2 kg

Wool: max. 1,5 kg

Silk: max. 1 kg

How much does your laundry weigh?

1 sheet 400-500 g

1 pillow case 150-200 g

1 tablecloth 400-500 g

1 bathrobe 900-1200 g

1 towel 150-250 g

Garments requiring special care

Wool: all wool garments can be washed using

programme 5, even those carrying the "hand-wash

only" label. For best results, use special

detergents and do not exceed 1,5 kg of laundry.

Silk: use special wash cycle 6 to wash all silk

garments. We recommend the use of special

detergent which has been designed to wash delicate

clothes.

Curtains: fold curtains and place them in a pillow

case or mesh bag. Use wash cycle 6.

Jeans: Turn garments inside-out before washing and

use a liquid detergent. Use programme 7.

Load balancing system

Before every spin cycle, to avoid excessive vibrations

and to distribute the load in a uniform manner, the

drum rotates continuously at a speed which is slightly

greater than the washing rotation speed. If, after

several attempts, the load is not balanced correctly,

the machine spins at a reduced spin speed. If the

load is excessively unbalanced, the washer-dryer

performs the distribution process instead of spinning.

To encourage improved load distribution and balance,

we recommend small and large garments are mixed

in the load.

Other manuals for IWDD 7143 S

This manual suits for next models

Other Indesit Washer Dryer manuals

Indesit

Indesit WIDL 102 User manual

Indesit

Indesit IWDD7143S User manual

Indesit

Indesit WIDE 127 User manual

Indesit

Indesit WIDE 146 User manual

Indesit

Indesit PWDC 8127 W User manual

Indesit

Indesit WMUD 843 User manual

Indesit

Indesit IWDC 7105 User manual

Indesit

Indesit IWE 91480 User manual

Indesit

Indesit IWDC 71680 User manual

Indesit

Indesit PWDE 8148 W User manual

Indesit

Indesit PWDC 7143 W User manual

Indesit

Indesit IWDE 7168 User manual

Indesit

Indesit IWDE 126 User manual

Indesit

Indesit XWDE 961480 User manual

Indesit

Indesit WASHER-DRYER IWDC 6105 User manual

Indesit

Indesit XWDA 751480 User manual

Indesit

Indesit WIDL 86 User manual

Indesit

Indesit IWDE 126 User manual

Indesit

Indesit XWDA 751680 User manual

Indesit

Indesit IWB 6123 User manual

Indesit

Indesit BIWDIL7125 User manual

Indesit

Indesit DRYER WIDL 126 S User manual

Indesit

Indesit XWDE 861480 User manual

Indesit

Indesit IWC 71450 User manual

Popular Washer Dryer manuals by other brands

Whirlpool

Whirlpool WFC8090GX Use and care guide and installation instructions

Whirlpool

Whirlpool LTE5243DQ6 User instructions

Bosch

Bosch XQG100-WDU285H00W User manual and installation instructions

montpellier

montpellier MWD7512S Installation and operating instructions

LG FHD0905 T Series owner's manual

Midea

Midea MF200D85B owner's manual

Maytag

Maytag MGT3800XW installation instructions

Siemens

Siemens WD15G440TR Instruction manual and installation instructions

Equator

Equator Clothes Processor EZ1500 owner's manual

Splendide

Splendide WDC7100XCP Specifications

John Lewis

John Lewis JLWD 1408 instruction manual

Ariston

Ariston A1200WD Instruction booklet

Whirlpool

Whirlpool YLTE5243DQ5 installation instructions

Whirlpool

Whirlpool WFCR 75230 Health & safety, use & care and installation guide

ATT

ATT Hammer Jet v1 operating manual

AEG

AEG LAVAMAT 63742 VI Instruction booklet

Electrolux

Electrolux EWW8024P5WB user manual

GE GTD42EASJWH owner's manual
