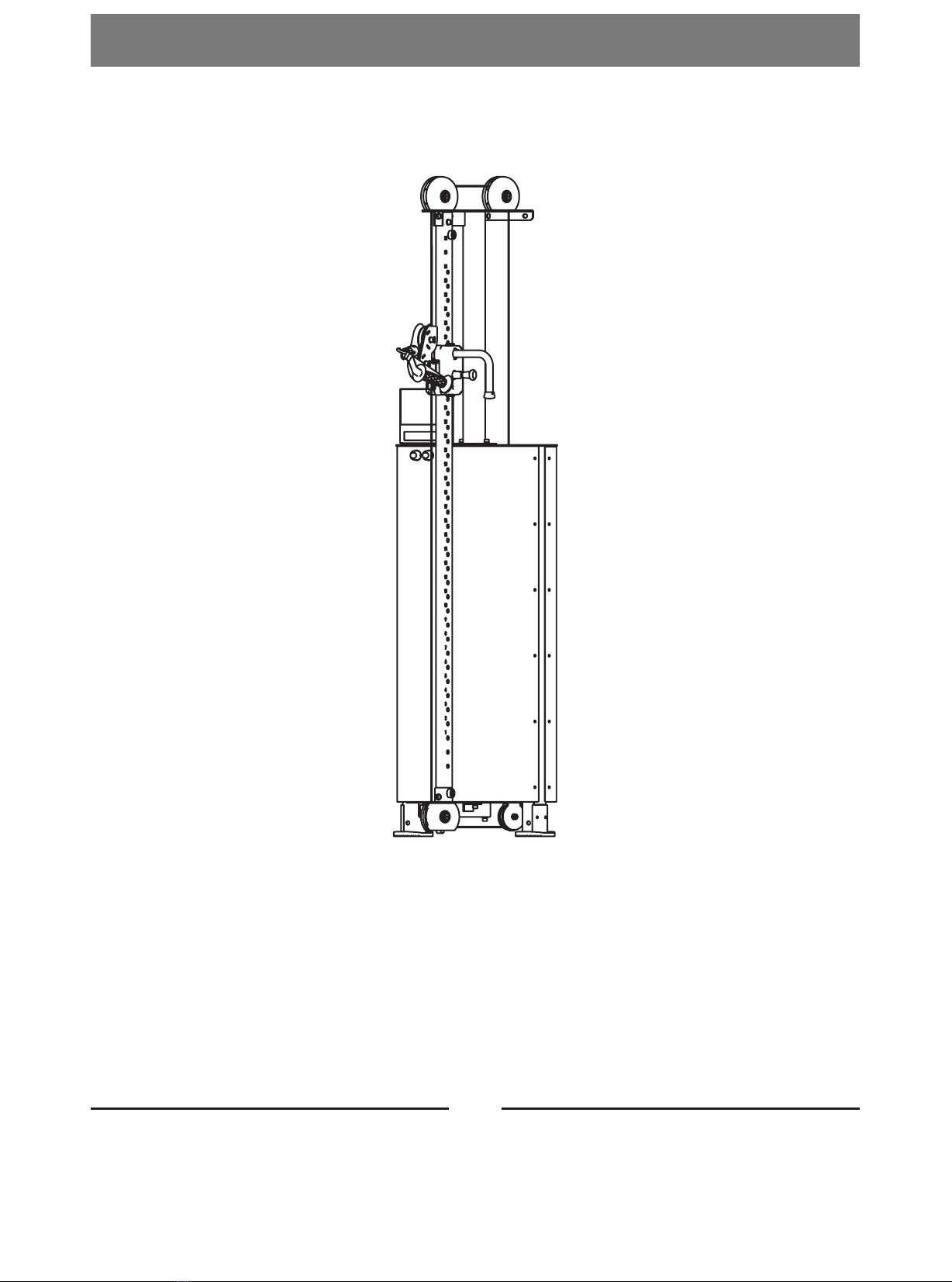

HI-LOW FUNCTIONION TRAINEROWNER'S MANUALHSP-PRO00221NCAUTION! Read all precautions and instructions in this manual before using this equipment.

Table Of ContentsCAUTION!Read all precautions and instructions in this manual before using this equipment.Important Safety Instructions----------------------------------------------------------- 3Instructions-------------------------------------------------------------------------------- 5Exploded View and Parts List------------------------------------------------------------ 6Measurement Guide---------------------------------------------------------------------- 8Assembly Instructions-------------------------------------------------------------------- 9Assembly--------------------------------------------------------------------------------- 10Adjust Instructions and Exercise Instructions---------------------------------------- 17Maintenance Schedule------------------------------------------------------------------ 18Console Panel Functions---------------------------------------------------------------- 19

Important Safety InstructionsBefore beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equipment, basic precautions should always be taken, including the following:1. Read all instructions before using the equipment. These instructions are written to ensure your safety and to protect the unit.2. Use the equipment only for its intended purpose as described in this guide. Do not use accessory attachments that are not recommended by the manufacturer: such attachments might cause injuries.3. The product should only be used on a level surface and is with 0.6 meters space around the product. Do not use the equipment outdoors.4. Do not allow children on or near the equipment. And children are not allowed to use this equipment. Teenagers should use this equipment with adult supervision.5. Do not overexert yourself or work to exhaustion. Do not attempt to lift more weight than you can control safely. If you feel any pain or abnormal symptoms, stop your workout immediately and consult your physician.6. This equipment is not used as medical apparatus and instruments.7. Never operate the unit when it has been dropped or damaged. Never drop or insert anything into any opening in the equipment. Always check the unit and its cables before each use. Make sure that all fasteners and cables are secure and in good working condition. Frayed or worn cables can be dangerous and may cause injury. Periodically check these cables for any indication of wear. Keep hands, limbs, loose clothing and long hair well out of the way of moving parts.8. Be careful when getting on or off the equipment.9. Wear proper exercise clothing and shoes for your workout, no loose clothing.3

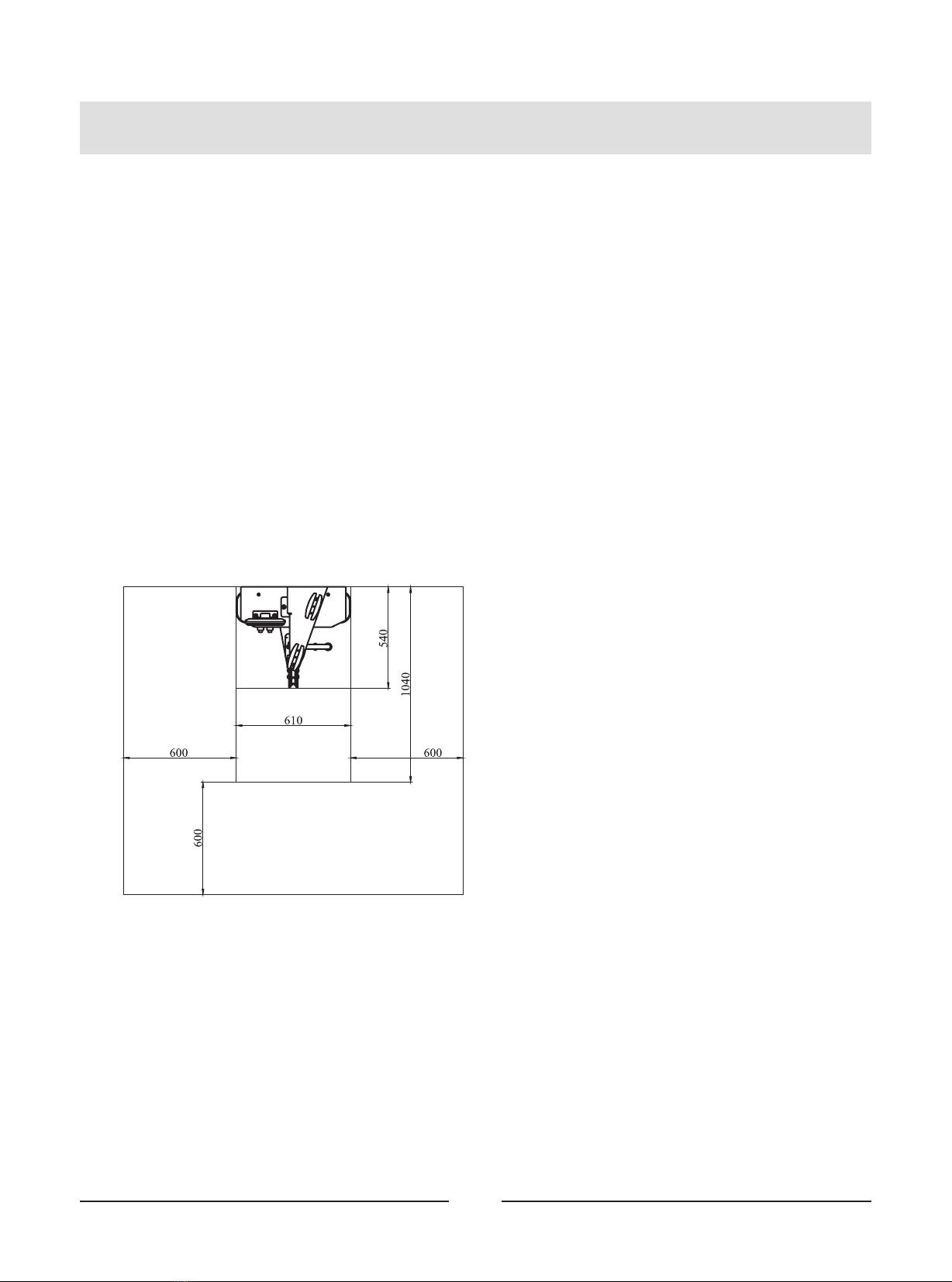

Training Area and Free Area4Important Safety InstructionsPersonal Safety During AssemblyRead each step in the assembly instructions and follow the steps in sequence. Do not skip ahead. If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment.Assemble and operate the equipment on a solid, level surface. Locate the unit a few feet from walls or furniture to provide easy access. The equipment is designed for your enjoyment. By following these precautions and using common sense, you will have many safe and pleasurable hours of healthful exercise with the equipment.SpecificationsClass: SMaximum Wt. Capacity: 37.5kg/ 83lbsProduct Dimension: 610*540*2340mmProduct Total Surface: 610*1040mmProduct Total Mass: 112.5kg/248lbsTraining AreaFree Area

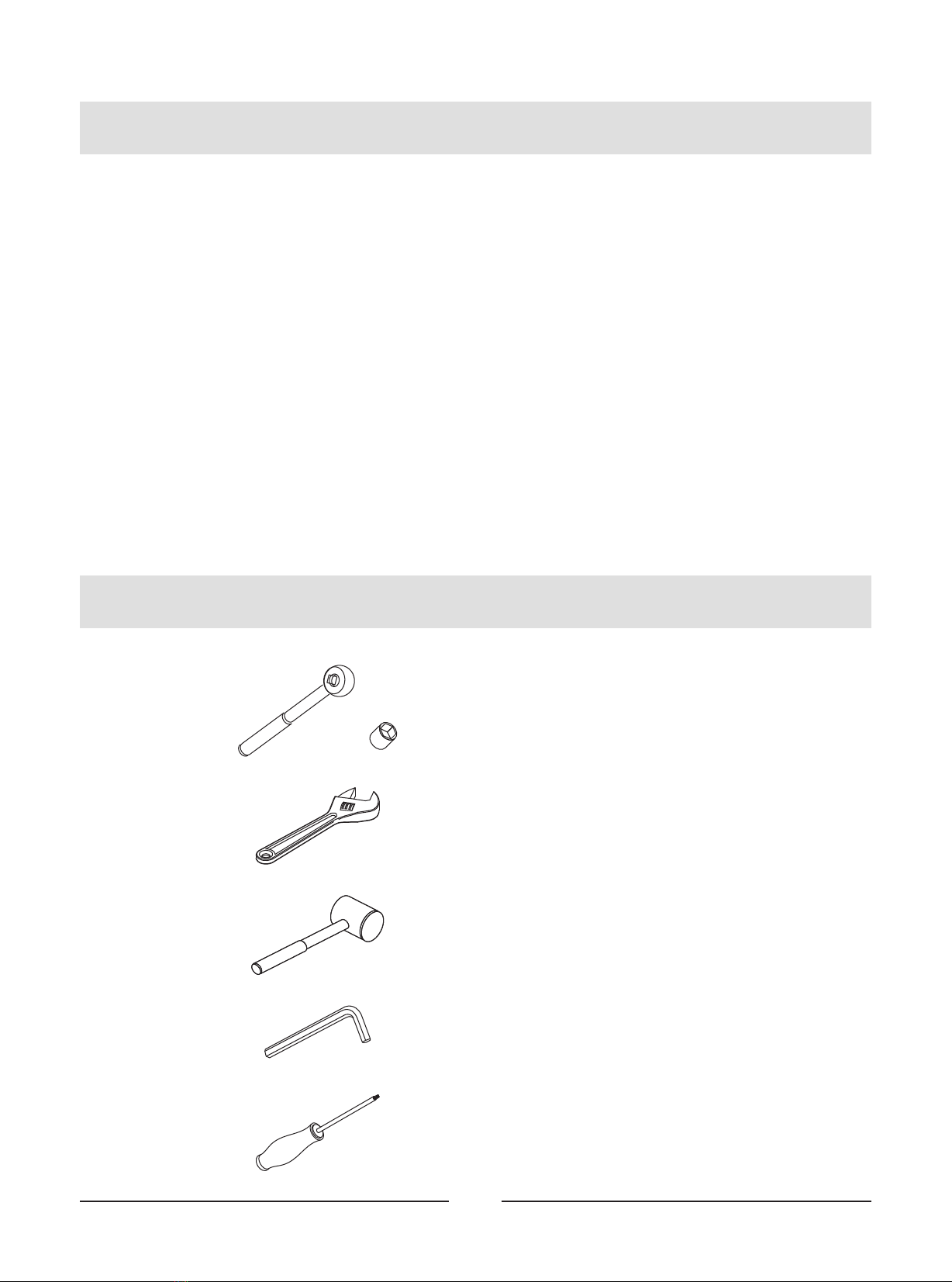

5InstructionsTools RequiredThe equipment is designed to provide the smoothest, most effective exercise motion possible. After assembly, you should check all functions to ensure correct operation. If you experience problems, first recheck the assembly instructions to locate any possible errors made during assembly. If you are unable to correct the problem, call your authorized dealer. Be sure to have your serial number and this manual when calling. When all parts have been accounted for, continue on.Ratchet Wrench and SocketAdjustable WrenchRubber MalletHex Key Wrench Set Phillips ScrewdriverBefore beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists. Use only our replacement part when servicing. Failure to do so will void your warranty and could result in personal injury.

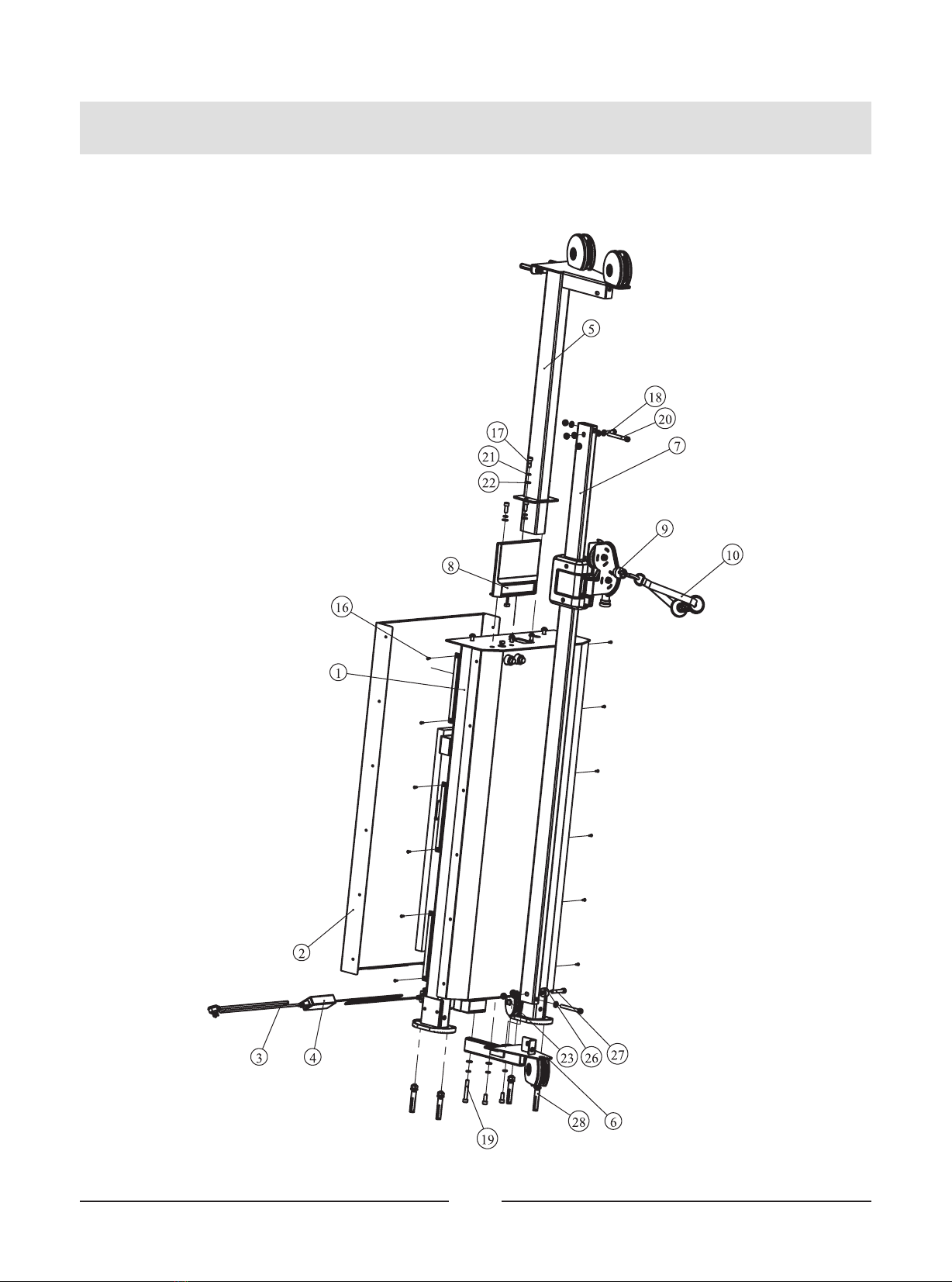

6Exploded View and Parts ListOverall

Item No. Part No.DescriptionQTY1HSP-PRO00201ASSYMain Assy12HSP-PRO0021700Back Cover13A09-5Power Cable14DQSPQ24V6AAdaptor15HSP-PRO00202ASSYUp Bracket Assy16HSP-PRO00203ASSYUnderframe Assy17HSP-PRO00204ASSYSlide Assy18HSP-PRO00205ASSYConsole Assy19HSP-PRO00229000ASSYRope Hook Assy110CG60006100V2Strap Handle116GB845ST4.2*13DHSPan Head Tapping Screws With Cross Recessed 4.2*131217GB70M10*25DS20Screw M10*25618GB70M10*50DS20Screw M10*50119GB70M10*70DS2Screw M10*70120GB70M10*90DS20Screw M10*90221GB9310DS12Spring Washer φ10722GB9510DS2Flat Washer φ101423NM10DS2Nut M10426IT95252200Nylon Bush127GB70M10*55DS20Screw M10*55128GB22795TGQM12*100DSExpansion Bolt6

7Exploded View and Parts ListOverall

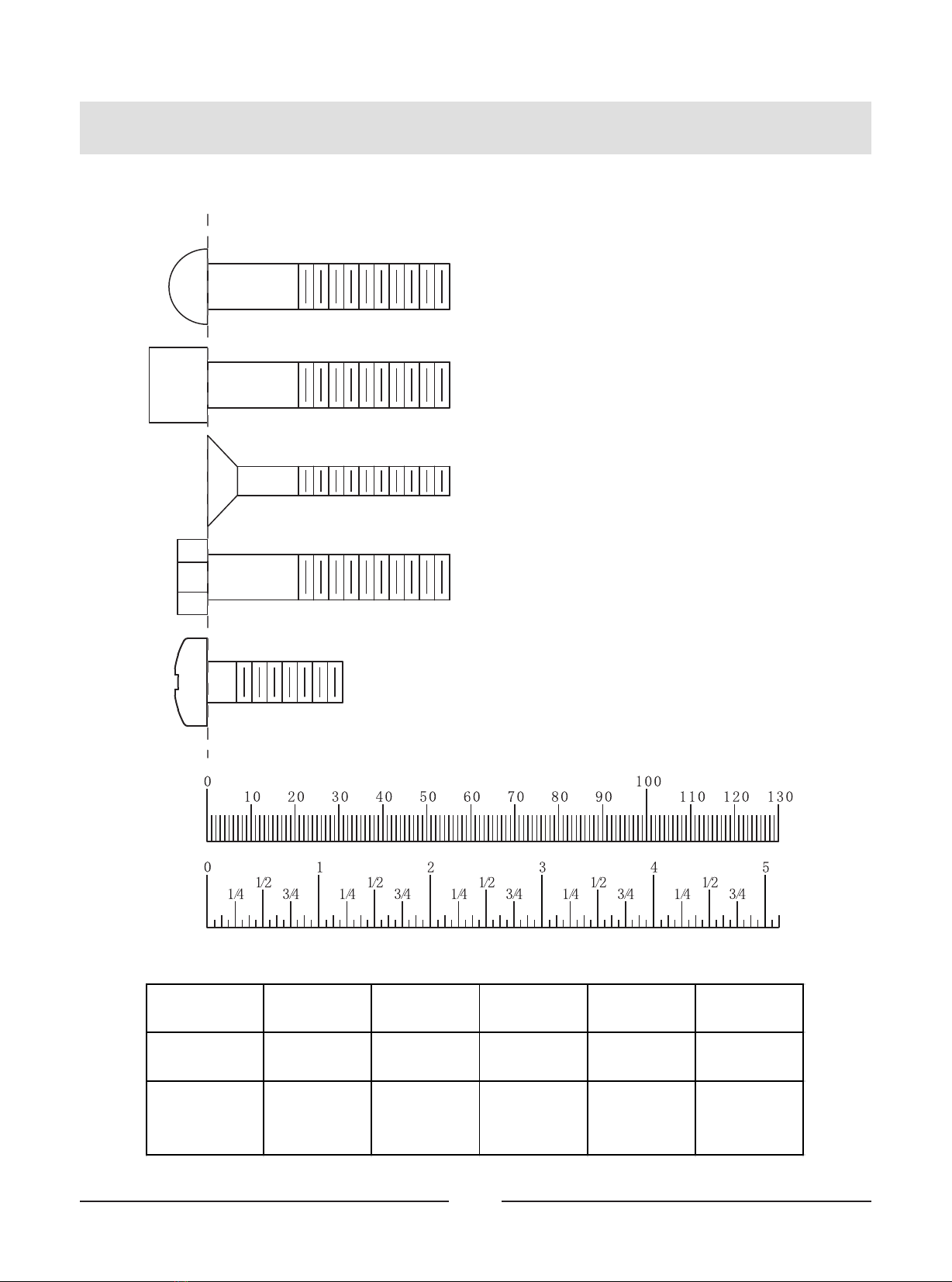

InchesMillimetersBHCS = Button Head Cap ScrewSHCS = Socket Head Cap ScrewFHCS = Flat Head Cap ScrewHHB = Hex Head BoltMeasurement Guide

Diameter of bolt(mm/inch)M6(1/4")M8(5/16")M10(3/8")M12(1/2")M16(5/8")Tighteningtorque (N.m)9~1222~3045~5978~104193~257Operationalmethods foradult menThe strength ofthe wristThe strength ofthe wrist andforearmThe strength ofthe entire armThe strength ofthe arm andupper bodywith all strength

8CRPHS = Cross Recessed Pan Head Screw

9Assembly InstructionsAssembly of the equipment takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recommended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone. It is important that you assemble your product in a clean, clear, uncluttered area. This will enable you to move around the product while you are fitting components and reduce the possibility of injury during assembly.As with any assembled part, proper alignment and adjustment is critical. While tightening the fasteners, be sure to leave room for adjustments. Do not fully tighten the fasteners until instructed to do so. Be careful to assemble the components in the sequence presented in this guide.NOTE
