IMC VENTUS V60 Owner's manual

Page | 1

Installation, Operating and Servicing

Instructions

A34/069 R4 ECN 4825 April 2021

VENTUS V60, V90 & V135 BOTTLE COOLERS

Please make a note of your product details for

future use:

Date Purchased: _________________________

Model Number: __________________________

Serial Number: __________________________

Dealer: ________________________________

________________________________

_______

Page | 2

CONTENTS

WARRANTY............................................................................................................3

DELIVERY...............................................................................................................3

INTRODUCTION.....................................................................................................4

INSTALLATION.......................................................................................................7

REMOVING WOOD DOOR VERSION DOOR FRAME ..........................................8

FITTING WOOD FRONT TO FRAME.....................................................................9

CHANGING AN LED LIGHT FITTING...................................................................10

ELECTRICITY SUPPLY CONNECTION...............................................................11

COMMISSIONING ................................................................................................11

CHANGING THE CONTROLLER SET POINT......................................................12

USING YOUR BOTTLE COOLER.........................................................................12

ECO BUTTON FUNCTION ...................................................................................13

CLEANING............................................................................................................14

CHANGING SHELF POSITION ............................................................................14

MAINTENANCE....................................................................................................15

DO’S AND DON’TS...............................................................................................16

V60 WIRING DIAGRAM........................................................................................17

V90 WIRING DIAGRAM........................................................................................18

V135 WIRING DIAGRAM......................................................................................19

SPARES IDENTIFICATION FRONT.....................................................................20

SPARES IDENTIFICATION REAR .......................................................................21

SPARE PARTS LIST.............................................................................................22

END OF LIFE DISPOSAL .....................................................................................24

MATERIAL CONTENT..........................................................................................24

ORDERING SPARE PARTS.................................................................................25

FURTHER INFORMATION...................................................................................25

Page | 3

WARRANTY

These bottle coolers are guaranteed by Lincat for 2 years from the date of

purchase from Lincat, or from one of its stockists, dealers or distributors. The

guarantee is limited to the replacement of faulty parts or products and excludes

any consequential loss or expense incurred by the purchaser. Defects which

arise from faulty installation, inadequate maintenance, incorrect use, connection

to the wrong electricity supply, or fair wear and tear, are not covered by the

guarantee.

The guarantee applies in this form to installations within the United Kingdom.

Export units carry 2 years “parts only” warranty.

Please observe these instructions carefully.

DELIVERY

The packaged machine consists of:

V60 Bottle Cooler containing:

Shelf (Full size)

Shelf (base ½ size)

Shelf clips

Sets of keys

V90 Bottle Cooler containing:

Shelf (Full size)

Shelf (base ½ size)

Shelf clips

Sets of keys

V135 Bottle cooler containing:

Shelf (Full size)

Shelf (base ½ size)

Shelf clips

Sets of keys

Instruction Booklet

Please notify both the carrier and the supplier within 24 hours of receipt if

anything is missing or damaged.

Check that the correct machine has been supplied and that the voltage, marked

on the rating plate, is suitable for the supply available. The rating plate is

located internally on the right hand side of the unit.

Page | 4

INTRODUCTION

The Ventus V60, V90 and V135 are back-bar or under-bar refrigerators

designed for the cooling and storage of beverages.

The following quantity of beverage bottles/mixers can be held in each unit:

Bottle Cooler

Capacity

(330ml Bottles / 150ml mixer cans)

V60 (900h x 600w x 500d) std

V60 (850h x 600w x 500d)

V60 (800h x 600w x 500d)

120

72 / 48

V90 (900h x 900w x 500d) std

V90 (850h x 900w x 500d)

V90 (800h x 900w x 500d)

195

117 / 78

V135 (900h x 1350w x 500d)std

V135 (800h x 1350w x 500d)

310

185 / 125

Page | 5

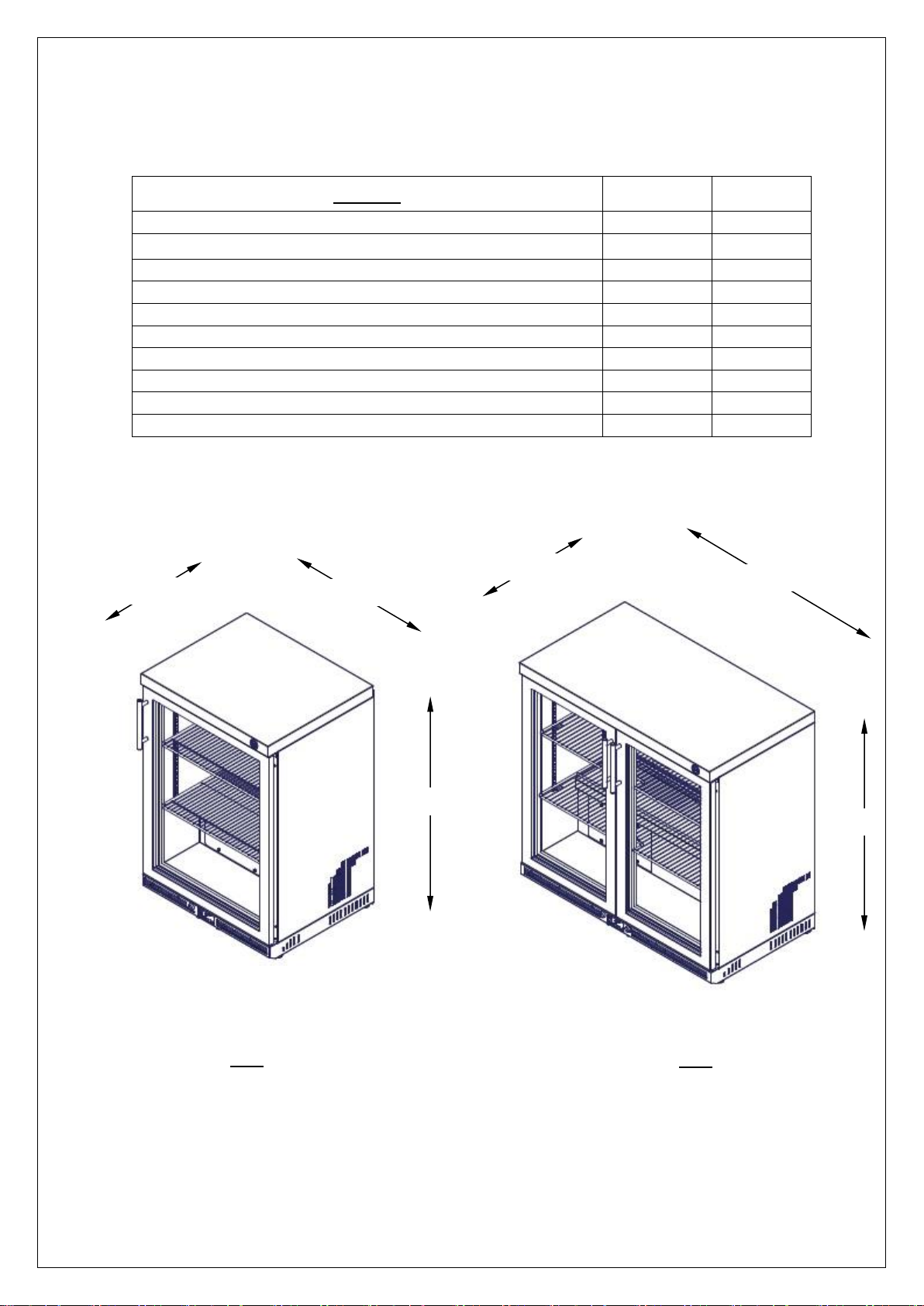

Ventus Dimensions:

MODEL

V60 STANDARD

500

900

V60 850 SHORT

500

850

V60 800 SHORT

500

800

V90 STANDARD

500

900

V90 850 SHORT

500

850

V90 800 SHORT

500

800

V135 STANDARD

500

900

V135 800 SHORT

500

800

X mm

Y mm

600mm

900mm

X mm

Y mm

V60

V90

Page | 6

X mm

Y mm

1350mm

V135

Page | 7

INSTALLATION

For the Installer

These Instructions contain important information designed to help the user

obtain the maximum benefit from their investment in a Lincat/IMC Ventus Bottle

Cooler.

Please read them carefully before starting work, and consult with the supplier in

the event of any queries.

Be sure to leave this Instruction Manual with the user after installation of the

machine is complete.

Procedure

WARNING

The following table shows the weight and the minimum quantity of

people required to lift each unit:

Bottle Cooler

Net Weight

Quantity of

People

V60 (all variants)

57.5 kg (max)

V90 (all variants)

76.5 kg (max)

V135 (all variants)

125 kg (max)

Install the unit on a flat and level floor. Ensure a minimum 10mm

clearance either side of the unit, there is to be a minimum 20mm clearance

at the top and a minimum 60mm clearance at the back.

The V135 is supplied on castors to aid installation and cleaning. Do not install

the unit close to a heat source such as a radiator or a warm air outlet. Ensure

that the unit is standing level by adjusting the feet on the base of the unit.

The unit has an automatic defrost cycle and evaporates all the condensate

water without the need for a drainage system.

NOTE!

The castors on the V135 are to aid installation only. The machine is not

designed to be used as a mobile unit.

It is important to install the Bottle Cooler on a flat surface. This ensures

that the doors are level. Adjustment is provided via the feet, to enable the

installer to level the cabinet. Engineer Call-outs in order to level Bottle

Coolers, will not be covered under warranty.

Page | 8

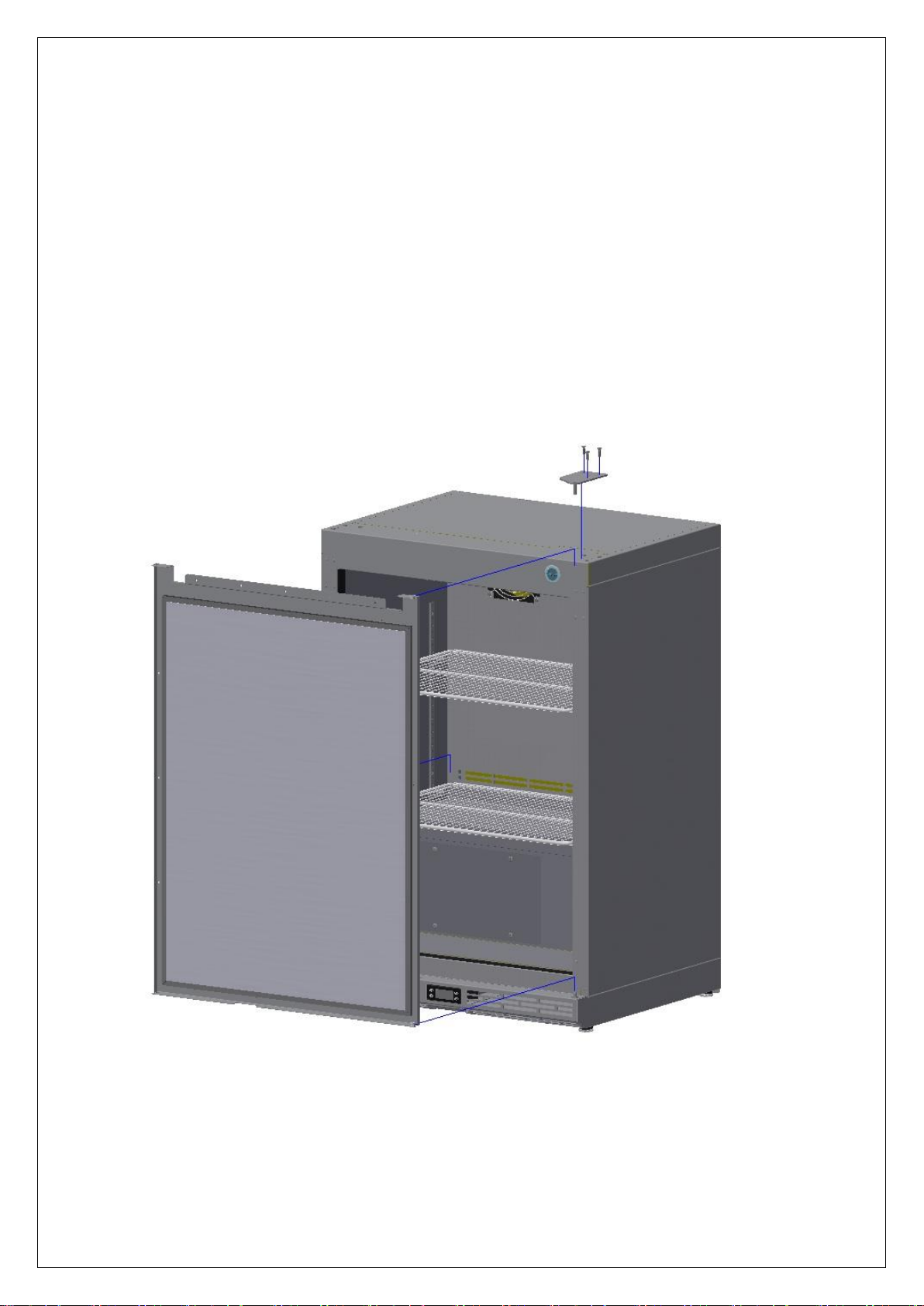

REMOVING WOOD DOOR VERSION DOOR FRAME

The door frame will require removal if you are going to fit a wood panel to the

front of the unit.

Remove the screws holding the top hinge plate on the top of the unit as shown,

and remove the hinge plate. The door frame will now lift up and off the bottom

hinge pin, once the wood door front has been fitted refitting of the door is a

reversal of removal.

Page | 9

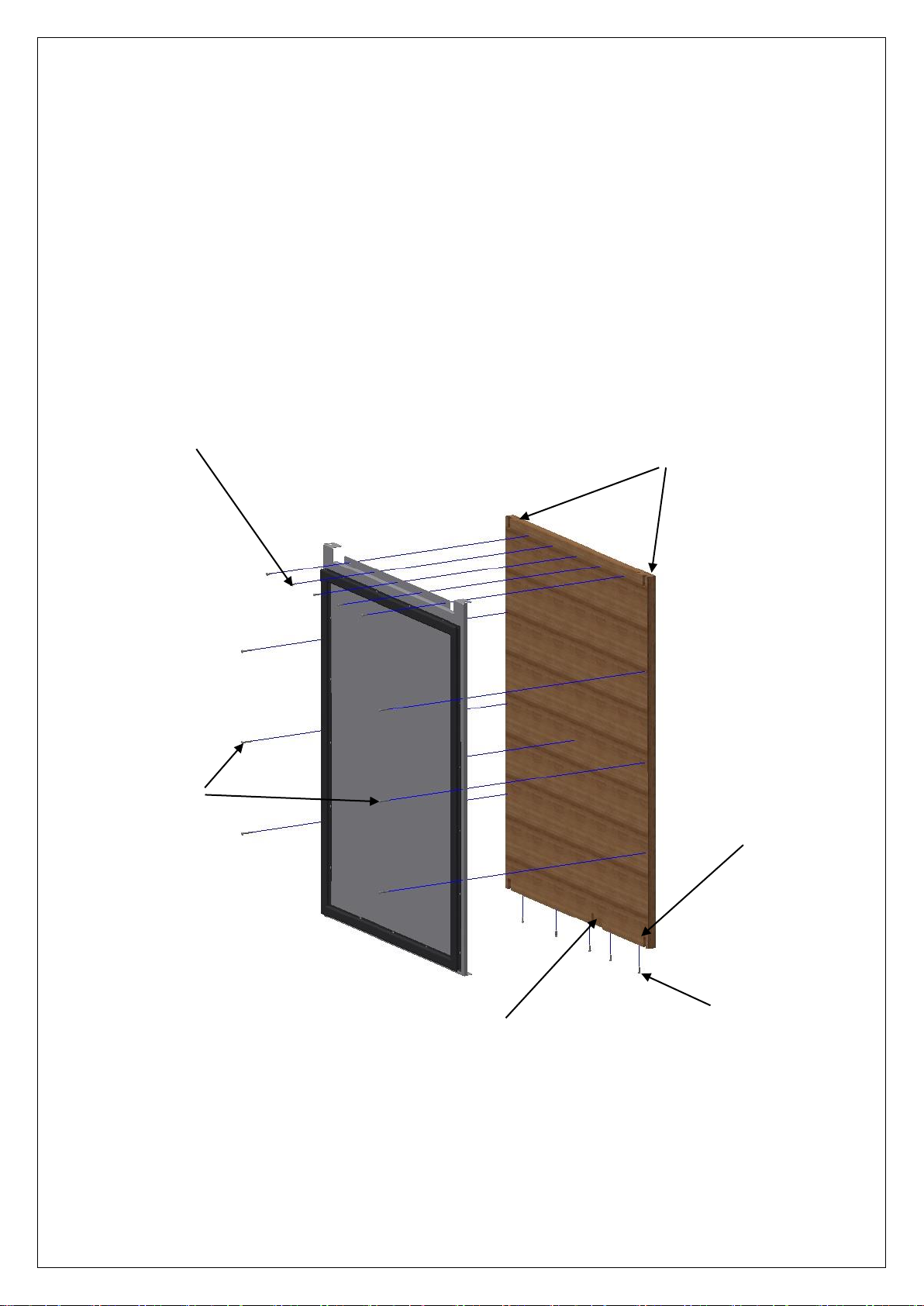

FITTING WOOD FRONT TO FRAME

The wood front panel is simply screwed to the frame using self-tapping screws

in the door fixing kit, the principle is the same for all sized doors. The wood will

require routing on the top and bottom to allow the frame to sit flush on the top

and to ensure correct operation of the door locks on the bottom. Full

dimensional drawings for the wood doors are available by contacting Lincat/IMC

if required.

Long Self Tapping

Screws on Sides

Short Self Tapping

Screws on Top &

Bottom

Short Self Tapping

Screws on Top &

Bottom

Recess For Frame to Sit

Flush & Hinge Pins

Cut Out For Lock

Recess For

Hinge Pin

Page | 10

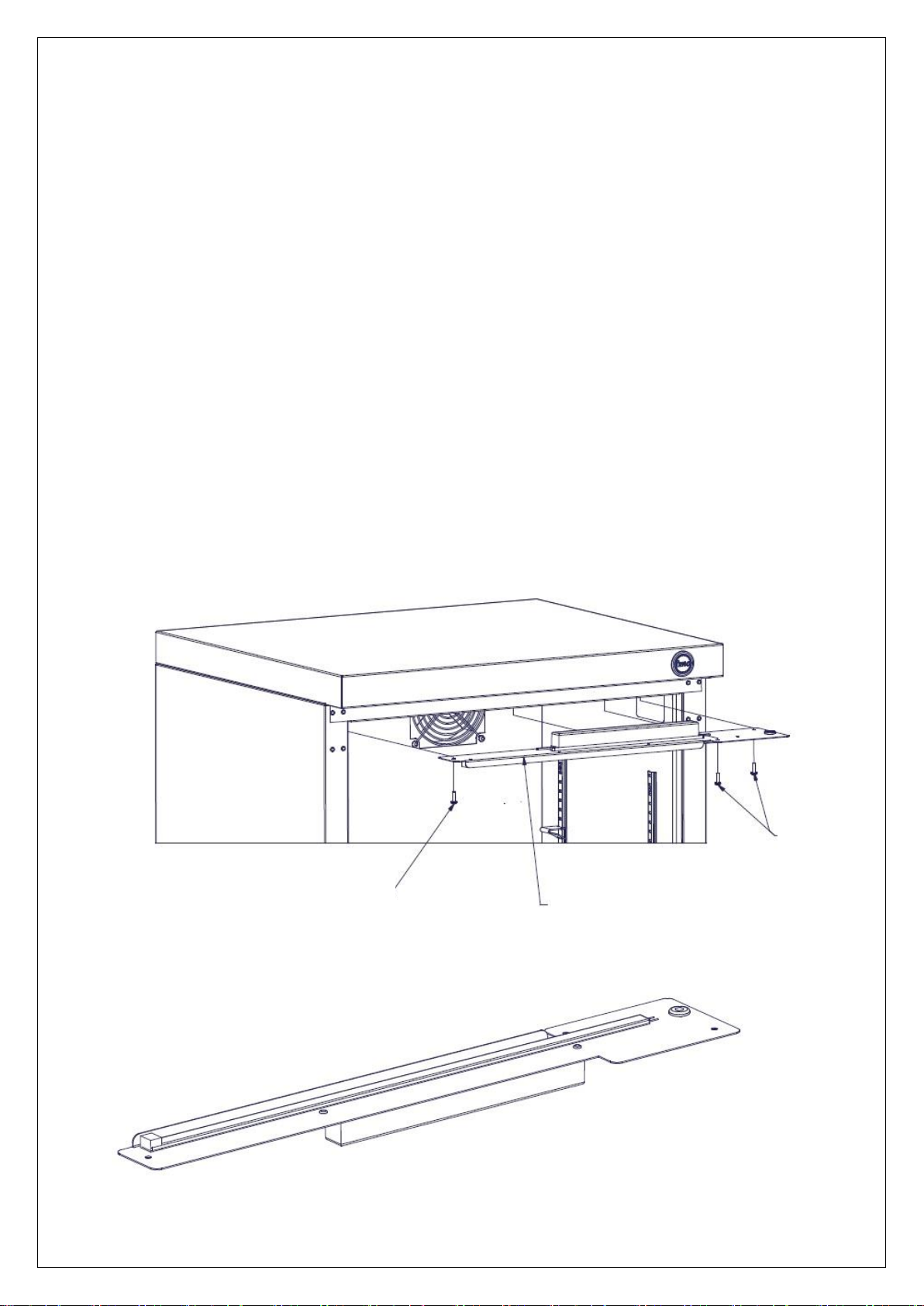

CHANGING AN LED LIGHT FITTING

The cabinet interior is illuminated by a LED light strip fitting located at the front

of the top inner panel.

To change the light assembly:

Ensure the mains power to the unit has been turned off.

Open the front cabinet door(s).

Unscrew the screws holding the LED assembly in place.

Carefully lower the LED assembly down and disconnect the 2 wires from the

unit.

The LED light assembly should now be free to fully remove from the unit.

To fit the replacement unit.

Place the new LED light assembly inside the unit, re connect the 2 wires

from the unit to the new LED light assembly.

Re fit the LED light assembly inside the unit by using the screws.

Re-connect the mains power and ensure the light illuminates by means of

the ECO switch.

LED Light

Assembly

crews

Fixing

Screws &

Washers

Fixing

Screw &

Washers

LED Light

Assembly

ews
