iLiving ILG8AF8000 User manual
Air Filtration System
Model：ILG8AF8000
Owner’s Manual
PLEASE READ AND
SAVE THESE INSTRUCTIONS
2
TABLE OF CONTENTS
Important Instructions……………………………………...........…. 3-4
Electrical Requirements……………………..…………..........…..... 5
Specifications……………………..……………………...........…….. 6
Parts of the ILG8AF8000 Air Filtration System............................ 7
Replacement Parts ……………………..…………...........……....… 8
Wiring Diagram……........……………………….……...........……...… 9
Installing Instructions ........…………………...…............….………....10-13
Remote Control………………………….……….............…….…..... 13
Cleaning the Filter……………………….……….............…….…..... 14
Maintenance …………………........................……………............... 15
3
IMPORTANT SAFETY INSTRUCTIONS
WARNING - To reduce risk of injury:
1. For your own safety, read instruction manual before operating the tool. Learn the
tool’s application and limitations as well as the specific hazards pertaining to it.
2. Keep guards in place and in working order.
3. Always wear eye protection.
4. Ground all tools. If tool is equipped with three prong plug, it should be plugged
into a three-prong electrical receptacle. If an adapter is used to accommodate a two
prong receptacle, the adapter plug must be attached to a known ground. Never
remove the third prong.
5. Keep work area clean. Cluttered areas and benches invite accidents.
6. Don’t use in dangerous environment. Don’t use power tools in damp or wet
locations, or expose them to rain. Keep work area well-lit.
7. Keep children and visitors away. All children and visitors should be kept at a safe
distance from work area.
8. Make workshop childproof. Use padlocks, master switches, or remove starter keys.
9. Don’t force tool. It will do the job better and be safer at the rate for which it was
designed.
10. Use right tool. Don’t force tool or attachment to do a job for which it was not
designed.
11. Wear proper apparel. No loose clothing, gloves, neckties, rings, bracelets, or
other jewelry to get caught in moving parts. Nonslip footwear is recommended. Wear
protective hair covering to contain long hair.
12. Always use safety glasses. Wear safety glasses (must comply with ANSI Z87.1).
Everyday eyeglasses only have impact resistant lenses; they are not safety glasses.
Also use face or dust mask if cutting operation is dusty.
13. Secure work. Use clamps or a vise to hold work when practical. It’s safer than
using your hands and frees both hands to operate tool.
14. Don’t overreach. Keep proper footing and balance at all times.
15. Maintain tools in top condition. Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and changing accessories.
16. Disconnect tools before servicing and when changing filters.
17. Use recommended accessories. The use of accessories and attachments not
recommended by manufacturer may cause hazards or risk of injury to persons.
18. Avoid accidental starting. Make sure switch is in “OFF” position before plugging
the power cord.
19. Never stand on tool. Serious injury could occur if the tool is tipped or if the fan
blade is accidentally contacted.
20. Check damaged parts. Before further use of the tool, a guard or other part that is
damaged should be carefully checked to ensure that it will operate properly and
perform its intended function-check for alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any other conditions that may affect its
4
operation. A guard or other part that is damaged should be properly repaired or
replace.
21. Never leave tool running unattended. Turn power off. Don’t leave tool until it
comes to a complete stop.
22. Drugs, alcohol, medication. Do not operate tool while under the influence of
drugs, alcohol or any medication.
23. Make sure the tool is disconnected from power supply while motor is being
mounted, connected or reconnected.
WARNING: Drilling, sawing, sanding or machining wood products generates wood
dust and other substances known to the State of California to cause cancer. Avoid
inhaling dust generated from wood product or use a dust mask or other safeguards for
personal protection.
Wood products emit chemicals known to the State of California to cause birth defects
or other reproductive harm. For more information go to
http://www.p65warnings.ca.gov.
WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any
Solid-State Speed Control Device.
READ AND SAVE THESE INSTRUCTIONS
5
Electrical Requirements
In the event of a malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This tool is equipped
with an electric cord having an equipment- grounding conductor and grounding plug.
The plug must be plugged into a matching outlet that is properly installed and
grounded in accordance with all codes and ordinances.
Do not modify the plug. If it does not fit the outlet, have the proper outlet installed by
a licensed electrician.
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. The conductor, with insulation having an outer surface that is green
with or without yellow stripes, is the equipment-grounding conductor. If repair or
replacement of the electric cord or plug is necessary, do not connect the
equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if the grounding instructions
are not completely understood, or if in doubt as to whether the tool is properly
grounded.
Use only three wire extension cords that have three-prong grounding plugs and
three-pole receptacles that accept the tool’s plug.
Repair or replace a damaged power cord immediately.
This tool is intended for use on a circuit that has an outlet that looks like the one
illustrated in Figure A below. A temporary adapter, which looks like the adapter as
illustrated in Figure B below, may be used to connect this plug to a two-pole
receptacle, if a properly grounded outlet is not available. The temporary adapter
should only be used until a properly grounded outlet can be installed by a licensed
electrician. The green colored rigid ear or tab, extending from the adapter, must be
connected to a permanent ground such as a properly grounded outlet box.
Figure A
Figure B
6
For your own safety
1. Read and understand instruction manual before installing or operating the tool.
2. To reduce the risk of injury, disconnect the air cleaner from the power source
(unplug) before servicing or changing filters.
3. If ceiling mounted, bottom of air cleaner must be at least 7 feet above the floor.
4. If ceiling mounted, mounts must be anchored to building structure which will
support a minimum of at least 100 pounds. Never mount to surfaces such as dry wall
or ceiling grids, etc.
5. To reduce the risk of electrical shock, do not expose air cleaner to water or rain.
6. Never duct a machine directly into the air cleaner.
7. To avoid a potentially dangerous situation, do not use this equipment to filter
flammable vapors or smoke. This air cleaner is designed and intended for the filtration
of air borne wood dust only. It is neither designed nor intended for any other purpose
whatsoever.
8. Failure to comply may result in serious injury and / or property damage.
The above specifications were current at the time this manual was published, but
because of our policy of continuous improvement, iLiving reserves the right to change
specifications at any time and without prior notice, without incurring obligations.
Specifications
Overall Dimensions(LxWxH/in)
W24-1/2 X D29-1/2 X H12-19/32
Sound Rating @ 3ft (dB)
High
70 dB
Medium
60 dB
Low
55 dB
Air Flow(CFM)
High
1025
Medium
870
Low
720
Outer Filter
5 Microns
Inner Filter
1 Micron
Filter Cycle(min.)
3 min
Cycles per Hour (20’x20’x8’)
19.5
Motor
120V/60HZ, 1/3HP, 1PH
Wattage
265W
AMPS
2.2A
Net Weight(lbs)
69 lbs
7
Parts of the ILG8AF8000 Air Filtration System
A
Outer Filter
B
Cover
C
Handle
D
Control Panel
E
Air Outlet Guard
F
Power OFF Button
G
Power ON/Speed Button
H
Fuse
I
Power Cord Outlet
A
B
C
D
E
F
G
H
I
8
Replacement Parts
9

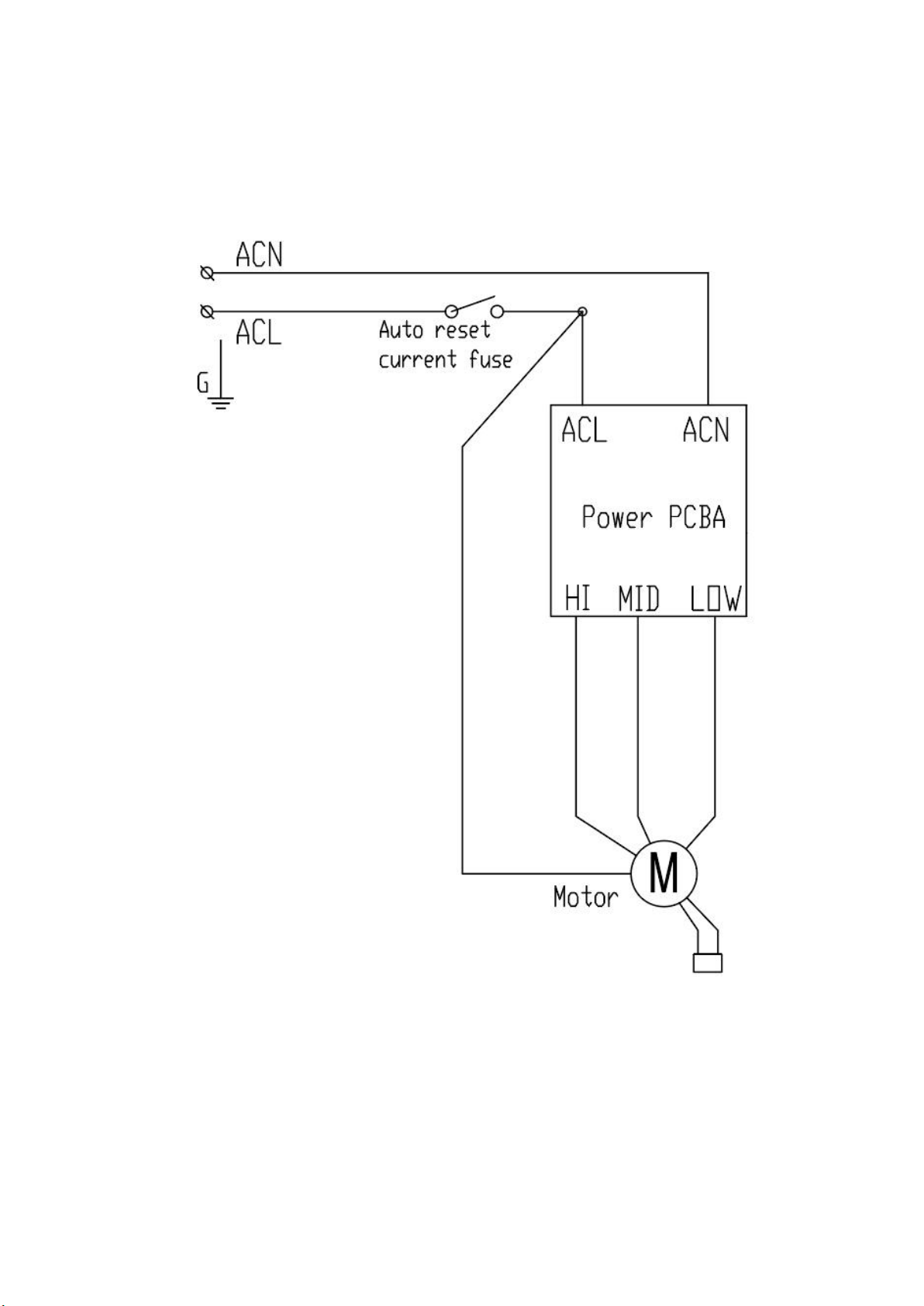

Wiring Diagram
10
Installation Instructions
The air filtration unit does not require much assembly. You should take into
consideration how and where you will place this unit. It can be mounted
horizontally and vertically. This unit will work best if it is located away from
corners, and heating/cooling vents. If using on sawhorses the air filtration unit
should be clamped in place. This unit is specifically designed to circulate and
filter non-metallic dust, which is generated throughout the work area.
WARNING: Unplug or disconnect the appliance from the power supply before
servicing.
Tools / Materials Needed（Not Included）:
• No.2 Cross Point Screwdriver
• 10mm Wrench
Contents of Shipping Carton
•Air Filtration System
•Owner’s Manual
•Screw Kit
Screw Kit Contents
Description
Qty
Chain
4
Eyebolt M6x30
4
Eyebolt wood screw
ST6x30
4
Caster
4
Rubber Feet
4
