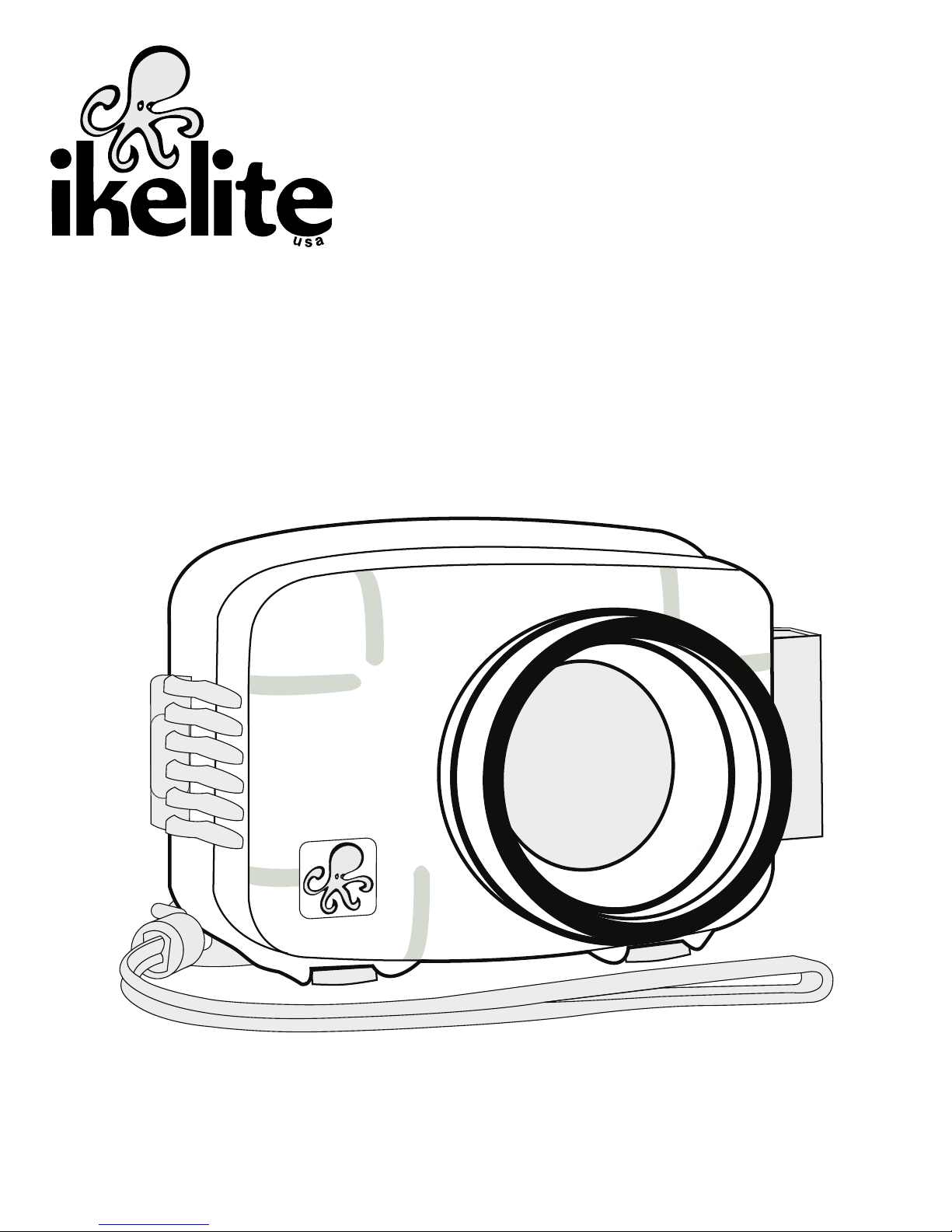

Ikelite Canon Elph 340 HS Owner's manual

Digital Housing

Supplemental Instructions

6243.34 Canon Elph 340 HS, IXUS 265

Thank you for your purchase of Ikelite equipment. Please read the

“Instruction Manual” and “Supplemental Instructions” completely before

attempting to operate or dive with this product.

Housing Specifications

Controls ............................All camera functions

Width ................................5.9 in (150 mm) including controls

Height ..............................4.5 in (114 mm) including controls

Depth ................................4.2 in (107 mm) including controls

Weight ..............................1.2 lb (544 g)

Buoyancy..........................Slightly positive in freshwater

Depth Rating ....................200 ft (60 m)

Built-in Flash ....................Yes

Strobe Connection............Slave or Fiber ptic

Main -Ring ....................0132.45

Port -Ring ......................0119.2

Port uter Diameter ........3.0 in (76 mm)

Use 46mm Lenses............No

Use 67mm Lenses............Yes (moderate vignetting present with W/A lenses)

Use Bayonet Lenses ........No

Supplied Accessories

- 0200 Vinyl Port Cover

- 0321.10 Safety Lanyard

- Flash Diffuser

- Flash Deflector

- 0184.1 Silicone Lubricant

- Extra Control Tips and Sleeves

ULTRA

compact

Made in USA

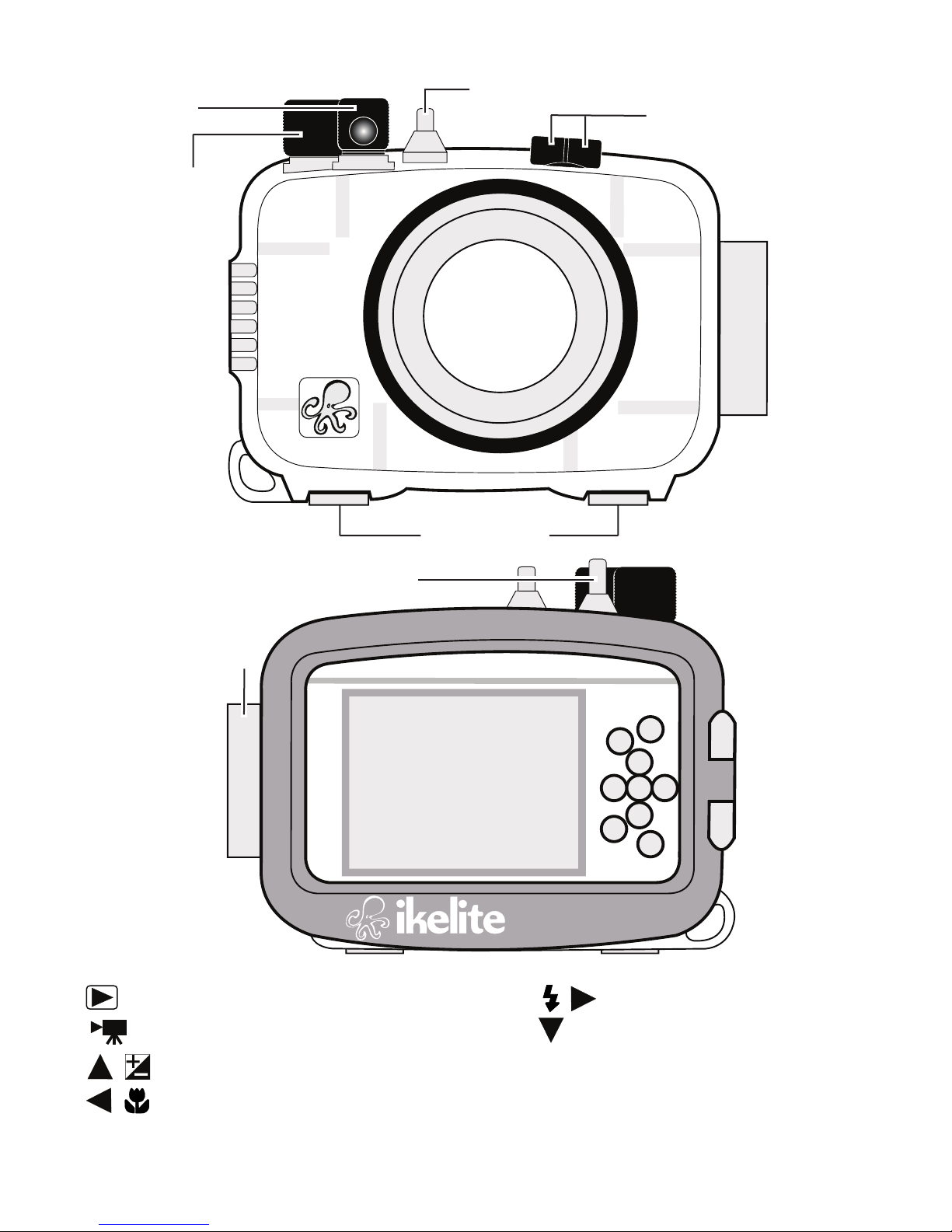

Parts of the Housing

Back iew

Power Button

1. Playback Button

2. Movie Button

3. Exp. Comp./Wi-Fi/UP Button

4. Macro/LEFT Button

5. FUNC./SET Button

Latch

6. Flash / Right Button

7. DISP. Display / Down Button

8. Mobile Device Connect Button

9. MENU Button

Mode Switch

Front iew Lens Port

Shutter-release Button

Tray Mounts

Fiber Optic Ports

Zoom Lever

Initial Camera Settings (before placing camera in housing)

- Insert a fully charged battery. Due to the power required to operate the

camera and LCD screen, start each dive with a fully charged camera

battery.

- Slide Mode Switch to icon.

- In FUNC./SET:

Set Rec./Shooting Mode to “P” Program.

Set Drive Mode to Single Shot.

Set Image Recording Size to “L” 16M and Quality to “S” Superfine.

Set Movie Quality to “HD” or “FHD.”

Set Light Metering to “ Center Weighted Avg.”

Set White Balance to Auto “AWB.” For best results, set to Custom “ ”

and reset for each working depth.

Set IS to “200.”

- In MENU Shooting Settings:

Set AF Frame to “Center” and Frame Size to “Normal.”

Set Digital Zoom, AF-Point Zoom and Servo AF to “ ff.”

Set Continuous AF to “ n.” A strobe focusing light is recommended to

assist AF underwater.

Set AF-assist Beam to “ ff.”

In Flash Settings, set Red-Eye Lamp and Red-Eye Corr. to “ ff.”

Set Review Image after shooting to “8 Seconds.”

Set Blink Detection and Grid Lines to “ ff.” Set IS Mode to “Continuous.”

- In MENU Camera Settings:

Set Date/Time and Time Zone.

Set Eco Mode to “ ff.”

In Power Saving, set Auto Power Down to “ ff”; Display ff to “3 min.”

Insert and Format an SCHD memory card.

- Set Flash to “ n Flash always fires.”

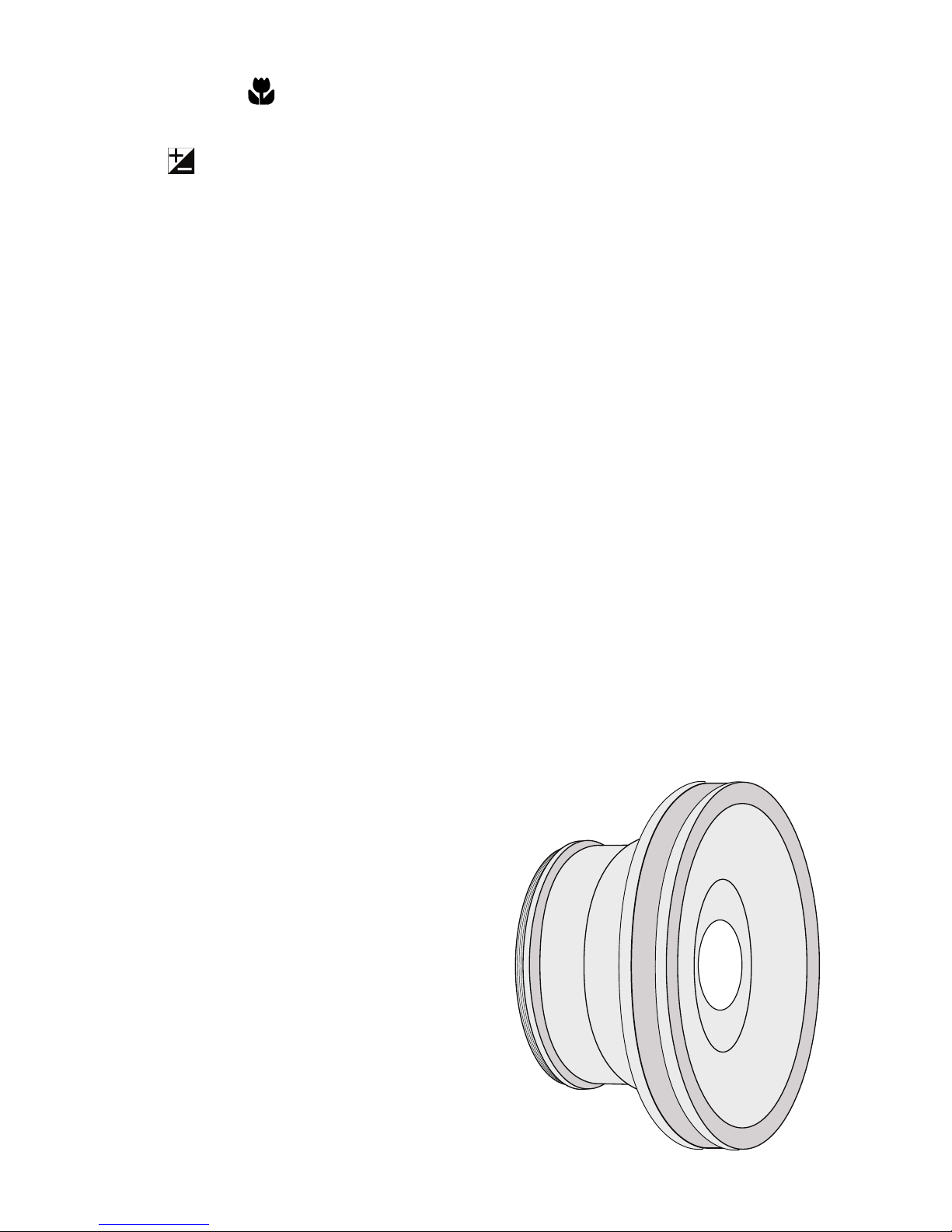

W-20 and W-30 Wide-Angle Conversion Lenses

The front of the lens port accepts the Ikelite 6420 W-20, 6430 W-30, and

other 67mm threaded wide angle or macro lenses without the need for

an adapter. An external wide angle conversion lens increases angle of

coverage so you can get closer to the subject while still fitting everything

in the frame. Moderate vignetting will likely occur at widest angle camera

lens setting with these lenses. Zoom in to eliminate, or crop the image in

post processing.

Bayonet mount lenses cannot be used with this housing.

External Accessory Lenses

6430 W-30 Conversion Lens

Please visit www.ikelite.com for additional information.

Initial Camera Settings - continued

- Enable Macro mode when shooting close-up subjects. If

overexposure occurs, back away from the subject and zoom in, and/or

use “-” exposure compensation.

- Camera functions not mentioned should be set to user’s desired setting.

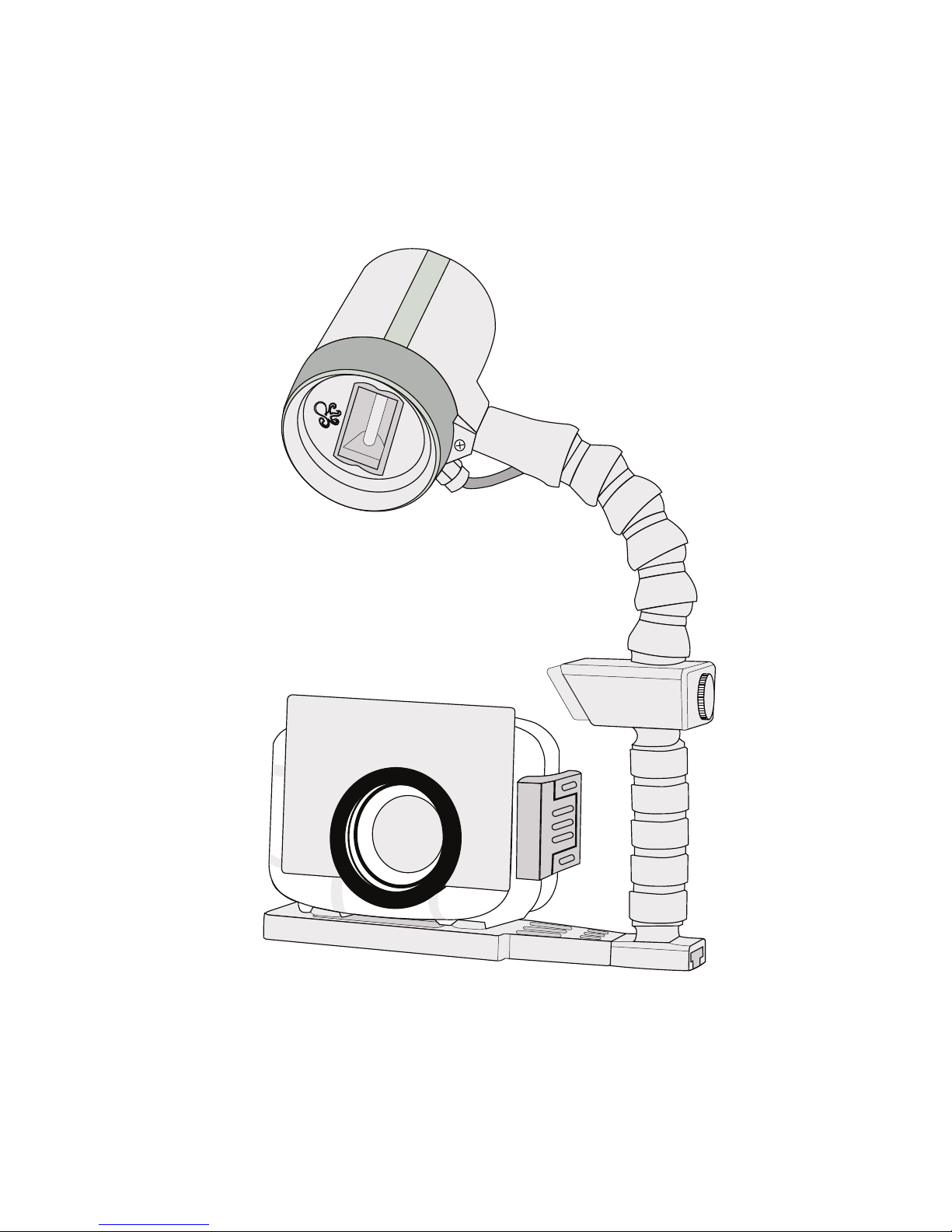

AF35 Strobe Package 4035

The AutoFlash AF35 kit is a great compliment, and an effortless,

affordable way to add a flash to your new Ikelite point and shoot camera

system. Everything you need to get started is in the box. Just attach it to

the bottom of your housing and start taking pictures!

The AF35 Strobe Package is available to support your housing along

with a full range of accessories. Please visit www.ikelite.com to see the

most current information about recommended accessories for your

housing.

ikelite

AUTOFLASH

Limited Warranty

This Ikelite product is warranted against any manufacturing defects for a

period of one (1) year from the original date of purchase. Defective

products should be returned to Ikelite postage paid. Ikelite will, at its sole

discretion, repair or replace such products, and will return to customer

postage paid. All other claims of any nature are not covered. Except as

mentioned above, no other warranty expressed or implied applies to this

Ikelite product.

Customer Support

Please read the troubleshooting section of the “Instruction Manual”

before contacting Ikelite.

6243.34_ Canon_Elph_340_HS_1-0614

Ikelite Underwater Systems

50 West 33rd Street

Indianapolis, IN 46208 USA

www.ikelite.com
