Ikan TRD Beholder MS1 User manual

TRD Beholder MS1

Camera Stabilizer

Table of Content

Product Description

Kit Includes

Battery Setup and Charging

Camera Setup and Balancing

How to Use

Other Features

Supported Cameras

Licensing and Trade Mark

Specifications

Product Description

The Beholder MS1 Camera Stabilizer is designed to support

professional videographers of all levels. The stabilizer is easy to use and

small enough to travel with. The Beholder MS1 Stabilizer is intuitive and

offers a greater range of camera movement.

Attention 7

Battery Setup and Charging

Battery Setup

a. Install batteries positive side up into battery holder. Connect the Micro

USB cable to the Battery Holder Micro USB port. Connect USB cable

to 1.5- 2 amp power supply.

b. Battery Charging time 4- 5 hours.

c. Green light means fully charged. Red light means charging. Flashing

Red and Green lights means almost fully charged.

d. Warning using a charger that does not support 1.5- 2 amps will result

in batteries failing to charge.

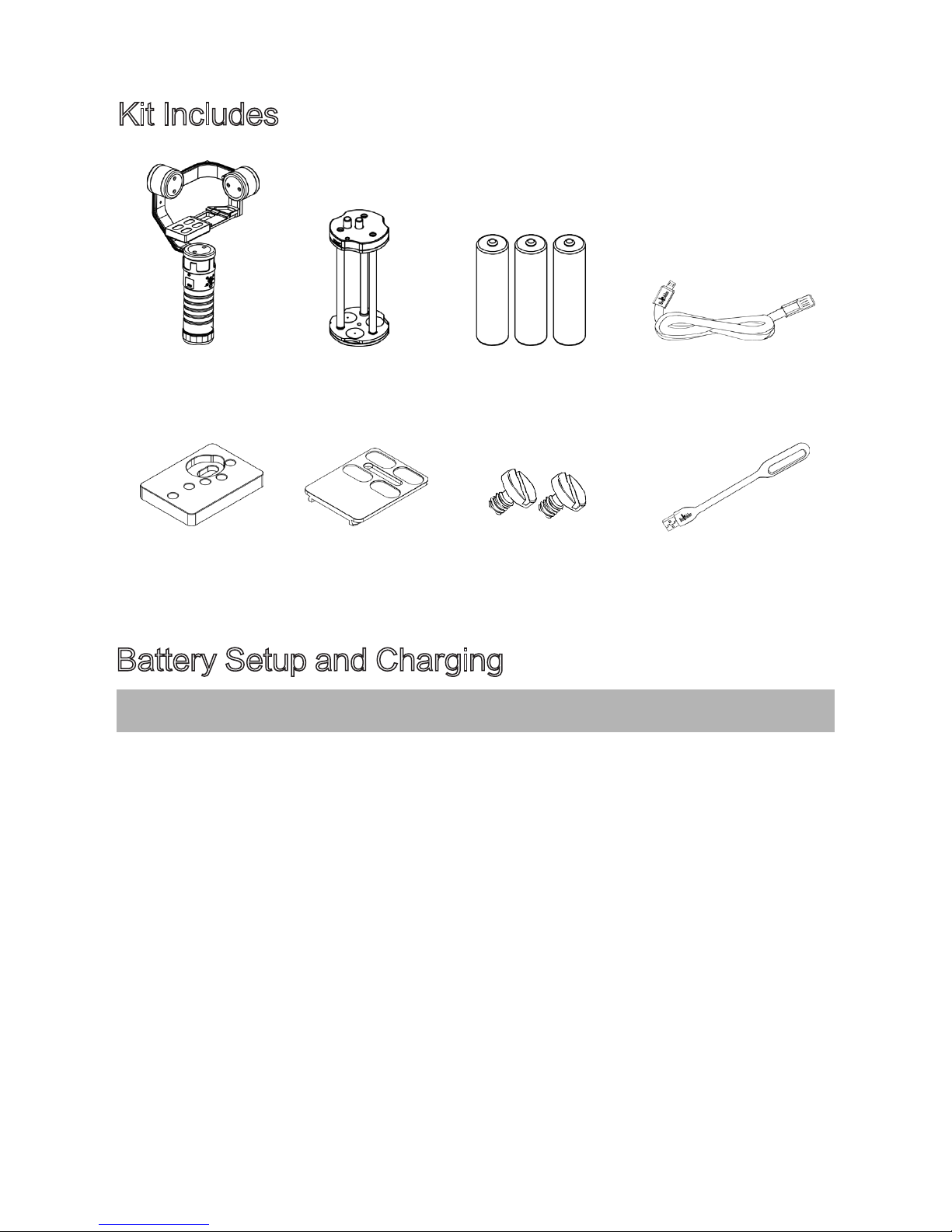

Kit Includes

MS1

Adapter plate Quick Release Plate Two 1/4 Lanyard USB- LED Light

Battery Holder Three Batteries 18650 Micro USB Cable

Battery Holder

a. Battery Holder positive side up.

b. Insert Battery Holder into handle, positive side first.

c. Screw on battery cap and make sure the cap is secured snuggly.

Camera Setup and Balancing

1. Attach the quick release plate as

shown with the longest slide pointing

out towards the direction of the lens.

Snuggly tighten the camera screw.

4. Adjust the front and rear balance.

Once gimbal is balanced, tighten

the quick release lock. If the camera

does not balance perfectly, don’t

worry the MS1 will usually be able to

maintain stability.

2. Attach the camera with plate to

stabilizer. Adjust the camera’s

position so that the gimbal remains

level.

3. Adjust the left-right balance of the

camera. Small adjustments maybe

needed.

How to Use

A: To start the stabilizer with the camera and gimbal level on a flat

surface at 90 degrees and then press the power button.

Note: Starting the stabilizer in a

position other than 90 degrees will

result in performance issues.

B . Joystick mode selection.

a. Press once for Lock Mode this mode will make the

stabilizer hold a position.

b. Press again to change to Follow Mode which will

make the stabilizer follow the pan and tilt of your

hand.

Installation for small cameras

Camera less than 400g such as Sony NEX5R and BMPCC will need an

adapter plate. The adapter plate will allow cameras that cannot mount

properly to be mounted on the gimbal.

Installation steps:

1. Put the adapter plate on the camera,

then tighten the screw.

2. According to your camera select an

appropriate mounting position.

3.Check the position of the adapter plate,

ensure the camera does not come in

contact with the gimbal.

Battery Status

Other Features

A.The stabilizer can be mounted to a tripod, selfie

stick, and more.

B. LED USB light is great for shooting at night.

C.Charge a cellphone from stabilizer. Note stabilizer

must be off.

Supported Cameras

Sony A7S, NEX series, Panasonic DMC, GH4, BMPCC, RX100, A6000,

Canon G7x, A7ii, and more.

d. Use the joystick to pan and tilt the camera.

c. Press and hold the joystick for 3 seconds to calibrate the gyro. The

gyro controls the horizontal level. During calibration the MS1 must not

be touched and the gimbal must be level.(When the system Automatic

movement or unbalance use this function. Just keep the system

steady on the table during the calibration process and prevent any

movement or vibration.)

Power LED Indicator Status

Solid Green

Solid Red

Red Flashing

Normal

Low battery

Batteries need to be charged. Also

the MS1 will shut down to protect

the batteries.

Licensing and Trade Mark

Beholder® is the licensed trademark of TRD Beholder.

Website: http://www.teamrebeldesign.com/

Email: [email protected]

Attention

A. It need you Gyro Calibration if your MS1 Automatic movement or

unbalance. Gyro calibration: Place the MS1 on a flat surface. Make

sure the camera is balanced in the gimbal. Press and hold the joystick

in for 3 sec. If balance is not correct try again calibrating. Keep the

MS1 steady on the table during the calibration process and prevent

any movement or vibration.

B. USB Ports:

The USB located on the handle is a 5V 0.5A power output.

The Micro USB located on the handle is for remote control.

The Mini USB located on the gimbal is for accessing the 8- Bit board

PID settings through Simple BGC 8- Bit 2.40b7.

Height:

Width: 123mm 4.8 Inches.

Yah:

Roll:

Weight W Battery:

Packaging Dimensions:

Battery Life:

168mm 6.6 Inches.

Weight W/O Battery: 720g

Unit with Packaging: 1580g

Maximum Supported

Camera Weight：

Range of Motion: 90-180°

P i t c h :

Battery: 3* 3.7v Li-ion 18650 2600mAh

E l e c t r o n i c s :

268mm 10.5 Inches.

860g

355+-180°

355+-60°

3 Hours.

355°

8-Bit board 2.40b7: 3-Axis

Stabilizer gyro system

Supported Camera Models:

Specifications:

Length:

Sony A7S, NEX series,

Panasonic DMC, GH4,

BMPCC, RX100, A6000,

Canon G7, A7ii, and more.

1000g

390x200x100mm,

15.4x7.9x3.9 Inches.
