IKA C-MAG HS7 User manual

C-MAG HS 7 control

584

122

154

106

138

170

130

162

114

146

/// БЪЛГАРСКИ/// ENGLISH

/// EESTI

/// LATVISKI

/// SLOVAK

/// DANSK

/// MAGYAR

/// NORSK

/// SVENSKA

/// ČEŠTINA

/// SUOMI

/// NEDERLANDS

/// SLOVENSKI

/// ΕΛΛΗΝΙΚΆ

/// LIETUVOS

/// ROMÂNĂ

ENGLISH

Declaration of conformity

We declare under our sole responsibility that this product corresponds to the directives

2014/35/EU, 2014/30/EU and 2011/65/EU and conforms with the following standards

or standardized documents: EN 61010-1, EN 61010-2-010, EN 61010-2-051,

EN 61326-1, EN 60529 and EN ISO 12100.

/// DEVICE SETUP

› C-MAG HS 7 control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

› Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

/// SAFETY INSTRUCTIONS

› About our warning symbols. . . . . . . . . . . . . . . . . . . . . . . 12

› General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

› device design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

› Permissible medium / contaminants / side reactions . . . . . 14

› Procedures during sample runs . . . . . . . . . . . . . . . . . . . . 15

› Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

› Power supply / switching off . . . . . . . . . . . . . . . . . . . . . . 16

› About protecting your device. . . . . . . . . . . . . . . . . . . . . . 17

/// PROPER USAGE

› Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

/// UNPACKING

› Scope of delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

/// ASSEMBLING THE SUPPORT ROD

› Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

/// START UP

› Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

›Setting the safety temperature limit . . . . . . . . . . . . . . . . 24

›Controlling the medium temperature

limit via contact thermometer . . . . . . . . . . . . . . . . . . . . . 26

/// MAINTENANCE AND CLEARING

›Correct handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

/// ACCESSORIES

›An overwiew. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

/// ERROR CODES

›Troubleshoot correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . 51

/// WARRANTY

› Regulations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

/// TECHNICHAL DATA

›C-MAG HS 7 control in detail. . . . . . . . . . . . . . . . . . . . . . 56

/// INTERFACES AND OUTPUTS

›USB- and RS 232 interfaces . . . . . . . . . . . . . . . . . . . . . . . 43

/// MENU

›Menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

›Operating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

›Temperature control mode. . . . . . . . . . . . . . . . . . . . . . . . 33

›Intermittent mode / rotation direction . . . . . . . . . . . . . . . 34

› Beep. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

›Error 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

›Timer expired . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

›Safe / Visc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

›Factory reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

›External probe calibration . . . . . . . . . . . . . . . . . . . . . . . . 37

›Software version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

›Timer / Counter (F, 4). . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

›Lock (G, 15) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

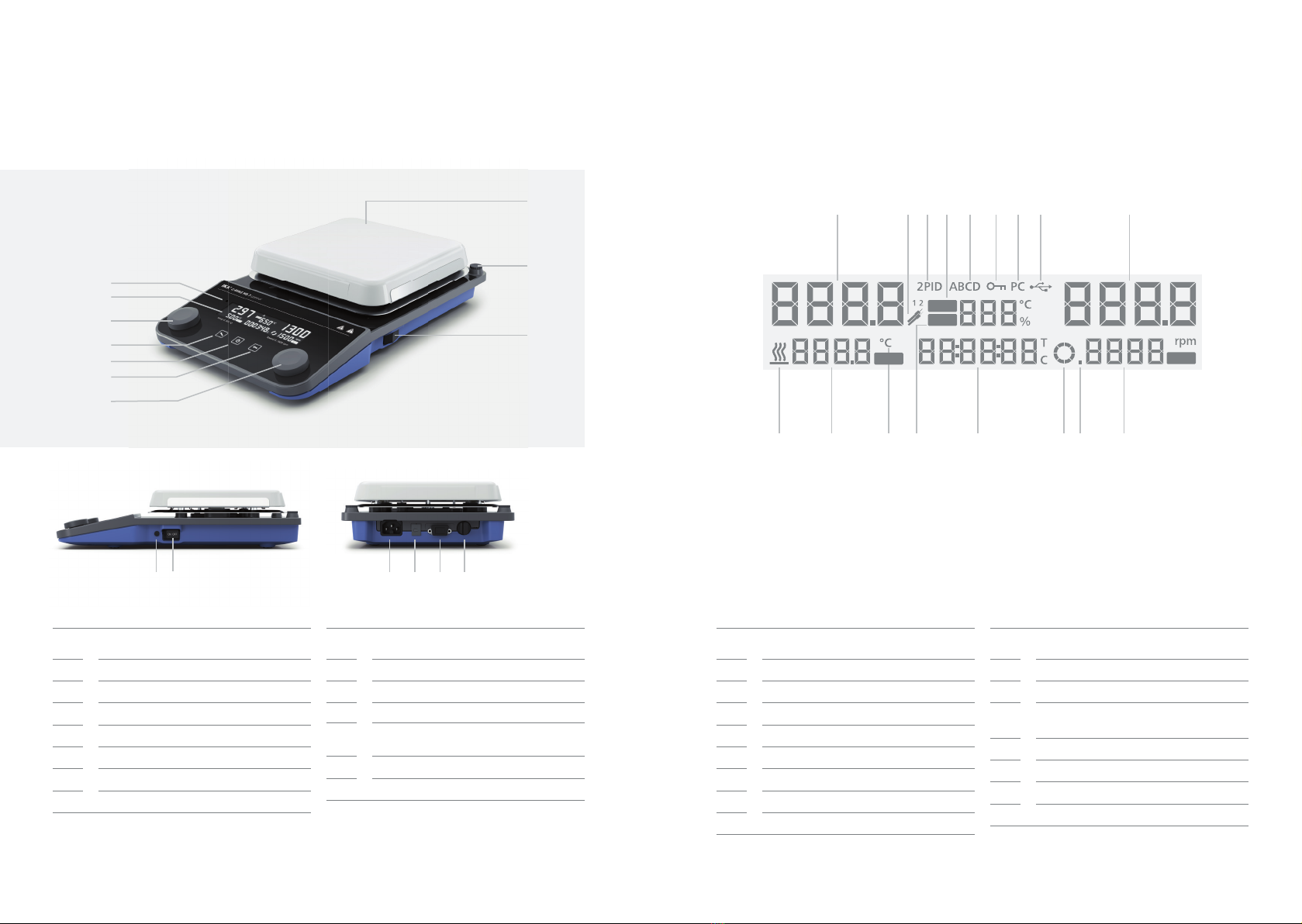

Device setup 1110 Device setup

APower button (left » on, right » off)

BAdjustable safety circuit

CRotating knob „temperature“

DRotating knob „speed“

E„Menu“ button

F„Timer“ button

G„Lock“ button

HDisplay

Explication of symbols

Device setup

/// C-MAG HS 7 control

IStandby LED

JPower socket

KUSB interface

LRS 232 interface

MConnection for PT 1000 temperature sensor

series, temperature probes or contact plugs

NHeating plate

OThreaded hole for stand

/// Display

07 11 0809 10 15 1713 | 14

06 02 05 04 0112

SET

SAFE

VISC

01 Set speed value

02 Set temperature value

03 Motor running / rotation direction

04 Timer / counter

05 Temperature value

06 Heating function activated

07 Actual hotplate temperature

08 Actual speed value

09 Temperature control mode

Display

10 Operating mode

11 Safety circuit temperature

12 Viscosity trend value

13 |

PT 1000 temperature sensor connected

ETS-D5 / ETS-D6 connected

15 All parameters locked

16 USB connection with PC

17 Connection with PC etablished

18 Intermittent mode activated

MLKA J

03 18

Safety instructions 1312 Safety instructions

/// General information

› Read the operating manual in its entirety before using

the IKA Plate (RCT digital) and follow the safety instructions.

› Keep the operating manual in a location that is easily

accessible by everyone in the laboratory.

› Ensure that only trained staff operates the device.

› Follow the safety instructions, (laboratory) guidelines, occupational

health and safety and accident prevention regulations (OSHA).

› Electrical outlet must be grounded (protective ground contact).

Attention – Magnetism! ()

Effects of the magnetic ﬁeld have to be taken into

account (e.g. data storage media, cardiac pacemakers ...).

Risk of burns! ( )

Exercise caution when touching parts of the housing and the heating plate.

The heating plate can reach dangerous temperatures. Pay attention to the

residual heat on the heating plate after switching off the stirrer.

The device must only be transported when the heating plate

has cooled off and is no longer hot to the touch!

/// Device design

Danger! ( )

Do not operate the device in explosive atmospheres,

with hazardous substances or under water.

› Set up the device in a spacious area on an even,

stable, clean, non-slip, dry and ﬁreproof surface.

› The feet of the device must be clean and undamaged.

› Ensure that the power cord does not touch the heating plate.

› Check the device and accessories for damage before each use.

Do not use damaged components.

Safety instructions

/// About our warning symbols

Indicates an imminently hazardous situation, which,

if not avoided, will result in death, serious injury.

Indicates handling, which, if not avoided,

can result in equipment damage.

Indicates a potentially hazardous situation, which,

if not avoided, can result in death, serious injury.

Indicates a potentially hazardous situation, which,

if not avoided, can result in injury.

Attention!

Indicates the risks of magnetism.

Danger!

Indicates the exposure to a hot surface.

Safety instructions 1514 Safety instructions

Caution! ( )

Device surface is partially made of glass!

› Glass surface can be damaged by impact.

› If glass surface is damaged it could cause injury, don‘t use

the device anymore and contact your IKA Service team.

/// Permissible medium /

contaminants / side reactions

Caution! ( )

Only process and heat media that has a ﬂash point higher than the adjusted

safe temperature limit that has been set. The safety temperature limit must

always be set to at least +25 °C lower than the ﬁre point of the media used.

Warning! ( )

Beware of hazards due to:

› ﬂammable materials.

› combustible media with a low boiling temperature.

› glass breakage.

› incorrect container size.

› overﬁlling of media.

› unsafe condition of container.

› Process pathogenic materials only in closed vessels under

a suitable fume hood.

Please contact IKA if you have any questions.

Danger! ( )

Only process media that will not react dangerously to the extra energy pro-

duced through processing. This also applies to any extra energy produced in

other ways, e.g. through light irradiation.

› The heating plate can heat up due to the action of the magnets

at high motor speeds, even if the heater is switched off.

› Please consider any possible contaminations and unwanted

chemical reactions.

› It may be possible for wear debris from rotating accessory parts

to reach the material being processed.

› When using PTFE-coated magnetic bars, the following has to be noted:

Chemical reactions of PTFE occur in contact with molten or solute alkali metals

and alkaline earth metals, as well as with ﬁne powders of metals in groups

2 and 3 of the periodic system at temperatures above +300 °C to +400 °C.

Only elementary ﬂuorine, chlorotriﬂuoride and alkali metals attack it;

halogenated hydrocarbons have a reversible swelling effect.

(Source: Römpps Chemie-Lexikon and ”Ulmann”, Volume 19)

/// Procedures during sample runs

Warning! ( )

Wear your personal protective gear in accordance with the hazard

category of the media to be processed. There may be a risk from:

› splashing and evaporation of liquids.

› ejection of parts.

› release of toxic or combustible gases.

Reduce speed if:

› medium splashes out of vessel because the speed is too high.

› device is not running smoothly.

› container moves on the heating plate.

› an error message is displayed.

Safety instructions 1716 Safety instructions

/// Accessories

› Safe operation is only guaranteed with the accessories

described in the ”Accessories” chapter.

› Always disconnect the plug before attaching accessories.

› Observe the operating instructions of the accessories.

› Ensure that the external temperature sensor is inserted into

the medium to a depth of at least 20 mm when connected.

› Accessories must be securely attached to the device and

cannot come off by themselves. The centre of gravity of the

assembly must lie within the surface on which it is set up.

/// Power supply / Switching off

› The voltage stated on the type plate must correspond to

the mains voltage.

› The outlet for the mains plug must be easily accessible.

› The device can only be disconnected from the mains outlet

by pulling out the power cord or the connector plug.

Warning! ( )

› The device will automatically restart in mode B following

any interruption to the power supply.

› After continuously running for 100 hours the device will limit

the maximum heating power by 10% for self-protection.

> 100 mm

/// About protecting your device

› The stirrer may only be opened by qualiﬁed and IKA approved experts.

› Do not cover the device, even partially e.g. with

metallic plates or ﬁlm. This may result in overheating.

› Protect the device and accessories from bumps and impacts.

› Keep base plate clean.

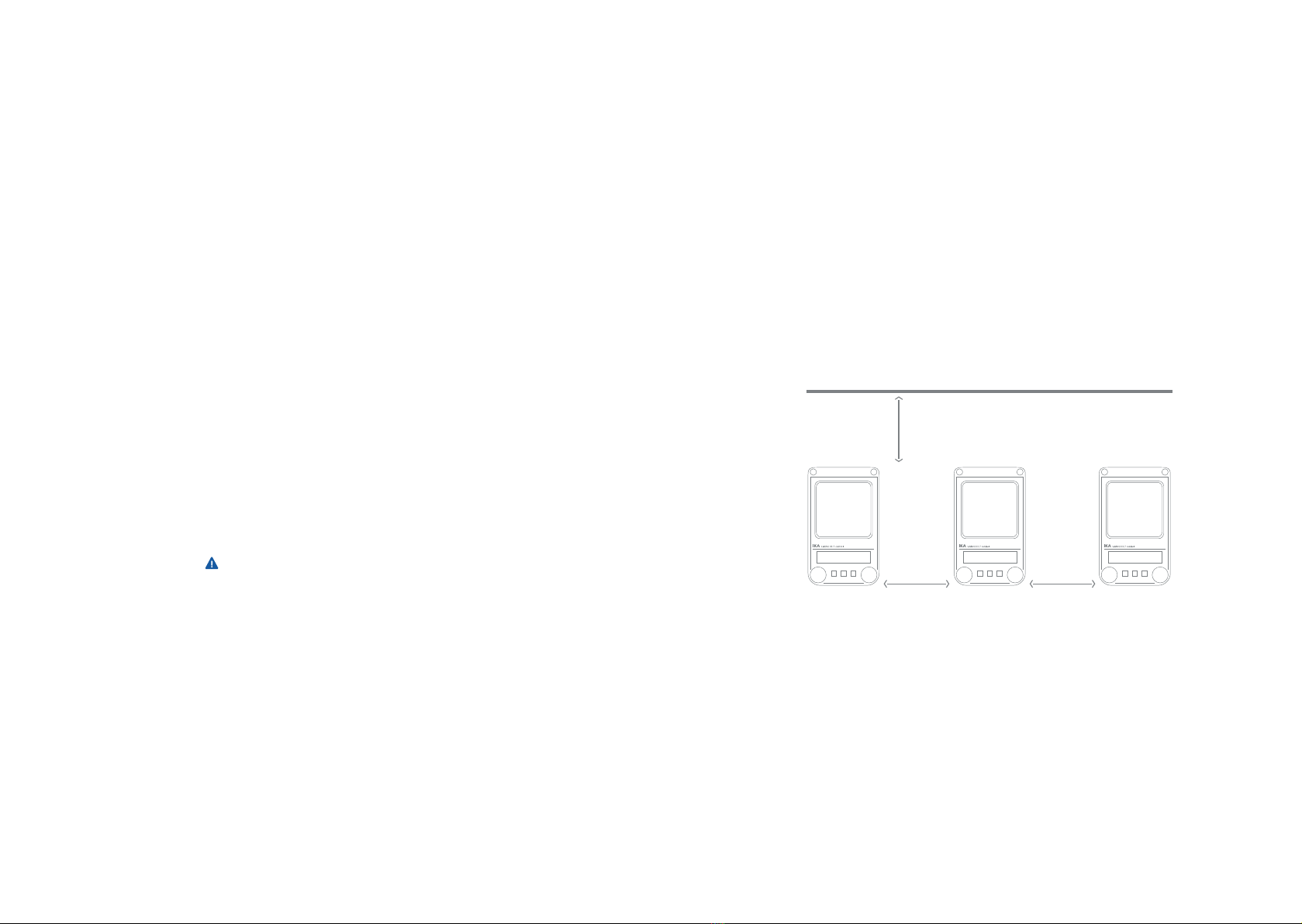

› Observe the minimum distances:

between devices min. 100 mm,

between device and wall min. 100 mm,

above the device min. 800 mm.

18 Proper usage Unpacking 19

Proper usage

/// Basics

Usage

› The magnetic stirrer has been designed for mixing

and / or heating liquids.

Area of use (only indoors)

› laboratories

› pharmacies

› universities

› schools

This device is suitable for use in all areas except

› residential areas.

› areas that are connected directly to a low-voltage

supply network that also supplies residential areas.

The safety of the user cannot be guaranteed

› if the device is operated with accessories that are not

supplied or recommended by the manufacturer.

› if the device is operated improperly or contrary to

the manufacturer’s speciﬁcations.

› if the device or the printed circuit board are modiﬁed

by third parties.

Unpacking

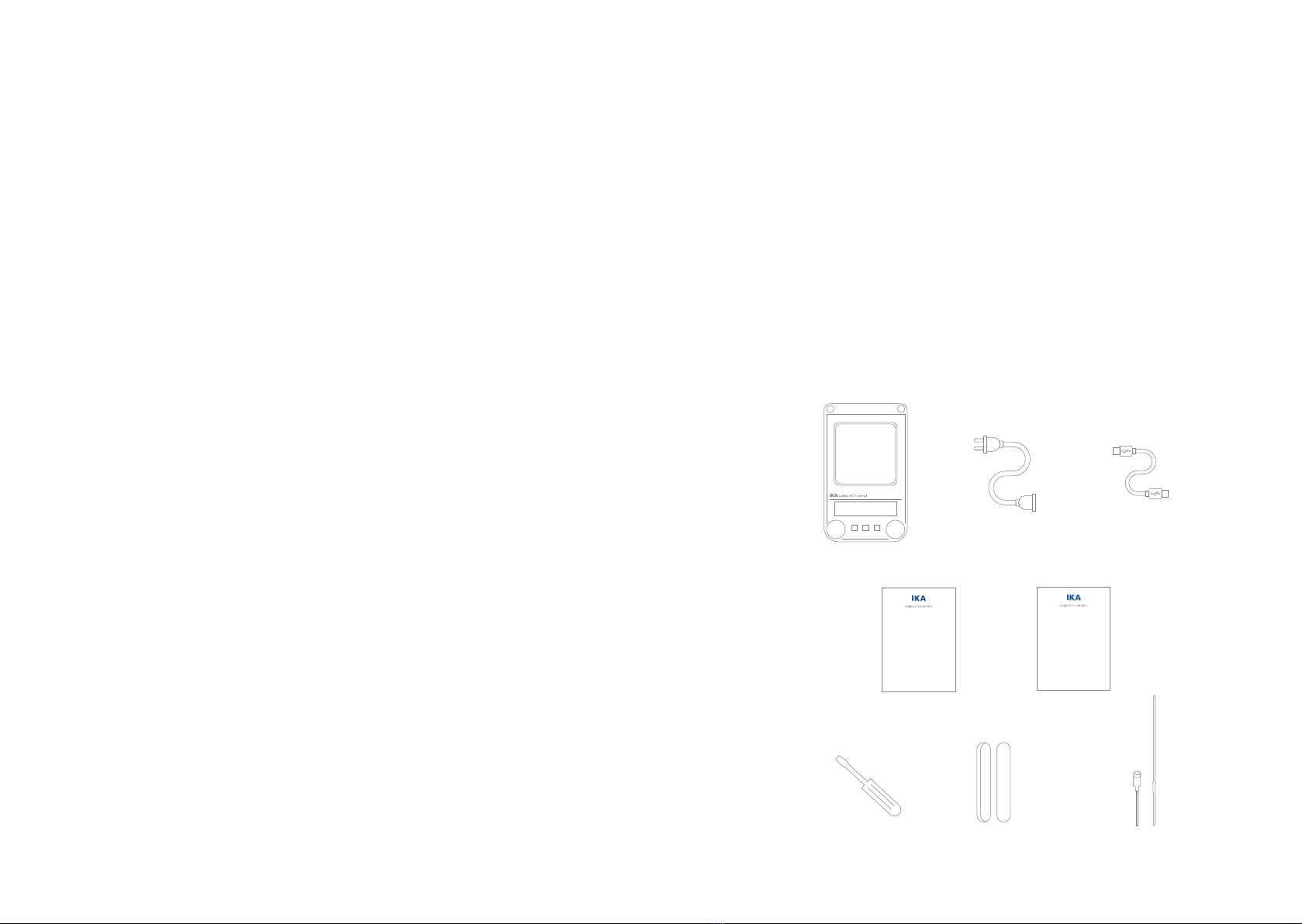

/// Scope of delivery

Unpack the device carefully. Any damage should immediately be

reported to the carrier (mail, rail or freight forwarding company).

Scope of delivery

› C-MAG HS 7 control

› power cord

› USB cord

› operating manual

› warranty card

› screwdriver (safety circuit)

› magnetic stir bar IKAFLON 30 and 40 mm

› temperature sensor PT 1000.60

C-MAG HS 7 control Garranty

+ +

Other manuals for C-MAG HS7

This manual suits for next models

Table of contents

Popular Laboratory Equipment manuals by other brands

Qiagen

Qiagen DML 3000 user manual

Queensgate

Queensgate NANOSCAN OP400 Quick start instructions

Conviron

Conviron GEN1000-GE Operator's manual

Parr Instrument

Parr Instrument 4560 Operating instructions manual

Integra

Integra DOSE IT operating instructions

Agilent Technologies

Agilent Technologies 5800 ICP-OES user guide

Endress+Hauser

Endress+Hauser Cleanfit CPA875 operating instructions

NI PXI-5422 CALIBRATION PROCEDURE

Collomix

Collomix Aqix operating instructions

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series operating manual

Ocean Insight

Ocean Insight FLAME-NIR+ Installation and operation manual

Parker

Parker ALIGN-MG-NA Installation, operation and maintenance manual

BD 644787 user guide

DENTAURUM

DENTAURUM Compact Megaplus Instructions for use

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 instruction manual

VWR

VWR SAS Super IAQ instruction manual

illumina

illumina MiSeqDx reference guide

Yamato

Yamato BM510 instruction manual
