Icop BYT-35-N2930 User manual
User Manual
BYT-35-N2930
A 3.5” embedded solution on
Intel® Quad-core processor
(Bay Trail Family)
Version 1.1
BYT-35-N2930 User Manual
ICOP Technology Inc. I
Copyright
The information in this manual is subject to change without notice for continues
improvement in the product. All rights are reserved. The manufacturer assumes no reasonability
for any inaccuracies that may be contained in this document and makes no commitment to
update or to keep current the information contained in this manual.
No part of this manual may be reproduced, copied, translated or transmitted, in whole or in
part, in any form or by any means without the prior to written permission of ICOP Technology
Inc.
Copyright ⓒ 2019 ICOP Technology Inc
Trademarks Acknowledgement
Intel® is the registered trademark of Intel Semiconductor Manufacturing Company. Other
brand names and product names that appear in this document are the properties and registered
trademarks of their respective owners. All names mentioned herewith are served for
identification purpose only.
BYT-35-N2930 User Manual
ICOP Technology Inc. II
Revision History
Revision Date Remark
1.0 June 3, 2019 First version release
1.1 June 25, 2019 Block diagram modified
BYT-35-N2930 User Manual
ICOP Technology Inc. III
Contents
1 General Information ........................................................................................................................ 1
1.1 Overview ........................................................................................................................................... 1
1.2 Block diagram ................................................................................................................................... 1
1.3 Specifications .................................................................................................................................... 2
1.4 Ordering Information ..................................................................................................................... 3
1.4.1 BYT-35-N2930 .......................................................................................................................... 3
2 Hardware Information ..................................................................................................................... 4
2.1 Dimension ......................................................................................................................................... 4
2.2 Board Outline ................................................................................................................................... 5
2.3 Connector, Header, and Jumper Summary .................................................................................. 6
2.4 Pin Assignments & Jumper Settings ............................................................................................. 7
JP1: Voltage Select for LVDS ........................................................................................................... 7
JP2: Voltage Select for LVDS Inverter ........................................................................................... 7
JP3: Function Select for Pin 9 on COM4 ....................................................................................... 7
JP4: Function Select for Pin 9 on COM3 ....................................................................................... 7
JP5: Function Select for Pin 9 on COM2 ..................................................................................... 15
JP6: Function Select for Pin 9 on COM1 ..................................................................................... 15
JP7: Security Measurement Selector .............................................................................................. 15
JP8: Voltage Select for eDP LCD .................................................................................................. 15
JP9: Voltage Select for eDP Backlight ........................................................................................... 15
JBAT: BIOS Clearing ....................................................................................................................... 15
COPEN: Case Open Message Display ......................................................................................... 16
AT Mode: AT Mode Select ............................................................................................................. 16
Audio Header .................................................................................................................................... 16
COM Port Header ............................................................................................................................ 16
BYT-35-N2930 User Manual
ICOP Technology Inc. IV
CPU Fan Header .............................................................................................................................. 17
eDP Wafer ......................................................................................................................................... 17
PWR_RST: Power Button, Reset Button, Power LED, and Hard Disk LED Header ......... 18
GPIO Port Header ........................................................................................................................... 18
LAN LED.......................................................................................................................................... 18
LVDS Header .................................................................................................................................... 18
PS/2 Header ...................................................................................................................................... 19
SPDIF Out Header .......................................................................................................................... 19
SMBus Header .................................................................................................................................. 19
USB2.0 Header ................................................................................................................................. 19
LVDS Inverter .................................................................................................................................. 19
SATA Connector .............................................................................................................................. 20
SATA Power Connector ................................................................................................................. 20
3 BIOS ................................................................................................................................................. 21
3.1 Entering BIOS Setup .................................................................................................................... 21
3.2 Main ................................................................................................................................................. 22
3.3 Advanced......................................................................................................................................... 23
3.4 Chipset ............................................................................................................................................. 31
3.5 Security ............................................................................................................................................ 33
3.6 Boot ................................................................................................................................................. 34
3.7 Save & Exit ..................................................................................................................................... 35
Technical Support Directly from ICOP ................................................................................................ 36
User Manual Feedback ............................................................................................................................. 36
Warranty ..................................................................................................................................................... 37
BYT-35-N2930 User Manual
ICOP Technology Inc. 1
1 General Information
1.1 Overview
BYT-35-N2930, a standard 3.5” embedded solution for industrial application based on
Intel® Bay Tail Quad-Core CPU with DDR3L RAM support up to 8GB, provides stable and
powerful computing performance.
BYT-35-N2930 supports 2x Gigabit LAN, 4x COM, 8x USB, SMBus, 8-bit GPIO, 2x
MiniPCIe, eDP, LVDS, VGA, and 2 storage options SATA interface and mSATA interface for
development use.
1.2 Block diagram
* Native USB port. See page 5 for detail.
BYT-35-N2930 User Manual
ICOP Technology Inc. 2
1.3 Specifications
Processor Intel® Bay Trail N2930 2.16GHz (Burst) 1.83GHz Quad Core
System Memory DDR3L 1333MHz memory support up to 8GB in SO-DIMM slot x1
BIOS AMI BIOS
Display Intel® HD Graphics with MultiDisplay support
VGA: resolution support up to 1920 x 1200
eDP: resolution support up to 1920 x 1080
LVDS: resolution support up to 1920 x 1080, dual channel 24-bit mode
Audio Realtek ALC662 HD Audio
LAN Realtek 8111G Gigabit Ethernet Controller
Expansion MiniPCIe (full-size, share with mSATA) x1 MiniPCIe (half size) x1
Disk Support mSATA x1 (share with MiniPCIe) SATA interface x1
I/O Interface 8-bit GPIO x1
GigaLan x2
PS/2 interface x1
USB (ver. 3.0) x1
COM x4 (RS232/422/485 x1)
Line-out & MIC-in
SMBus x1
VGA x1
eDP x1
LVDS x1
USB (ver. 2.0) x7
Connectors 2-pin header for SPDIF x1
4-pin header for SMBus x1
4-pin wafer for SATA power output x1
6-pin header for PS/2 interface x1
7-pin SATA connector for SATA interface x1
9-pin header for COM x4
9-pin header for Line-out, MIC-in x1
9-pin heade for USB2.0 x2
10-pin header for 8-bit GPIO x1
15-pin D-ub connector for VGA x1
30-pin header for LVDS x1
40-pin header for eDP x1
Phone jack for Line-out x1
Power jack for Power input x1
RJ45 connector x2
USB connector for USB2.0 x3
USB connector for USB3.0 x1
Power
Requirement 9 to 24VDC standard input from DC-in jack support for ATX/AT mode
Operating Temp.
0°C to 60°C
Dimensions 148 x 102 mm
O/S Support Windows 10 Windows 7 Linux
BYT-35-N2930 User Manual
ICOP Technology Inc. 3
1.4 Ordering Information
1.4.1 BYT-35-N2930
Product Name
BYT-35-N2930
Processor Intel® Bay Trail N2930
2.16GHz (Burst) 1.83GHz Quad Core
System
Memory
DDR3L 1333MHz memory support up to 8GB
in SO-DIMM socket x1
Expansion MiniPCIe (full size, share with mSATA) x1,
MiniPCIe (half size) x1
Disk Support mSATA (shared with MniPCIe),
SATA device
Display VGA, LVDS, eDP
Audio Line-out, MIC-in
GigaLAN 2
COM 4
(RS232/422/485x 1)
USB3.0 1
USB2.0 7
SMBus 1
8-bit GPIO 1
PS/2 interface 1
BYT-35-N2930 User Manual
ICOP Technology Inc. 4
2 Hardware Information
2.1 Dimension
BYT-35-N2930 User Manual
ICOP Technology Inc. 5

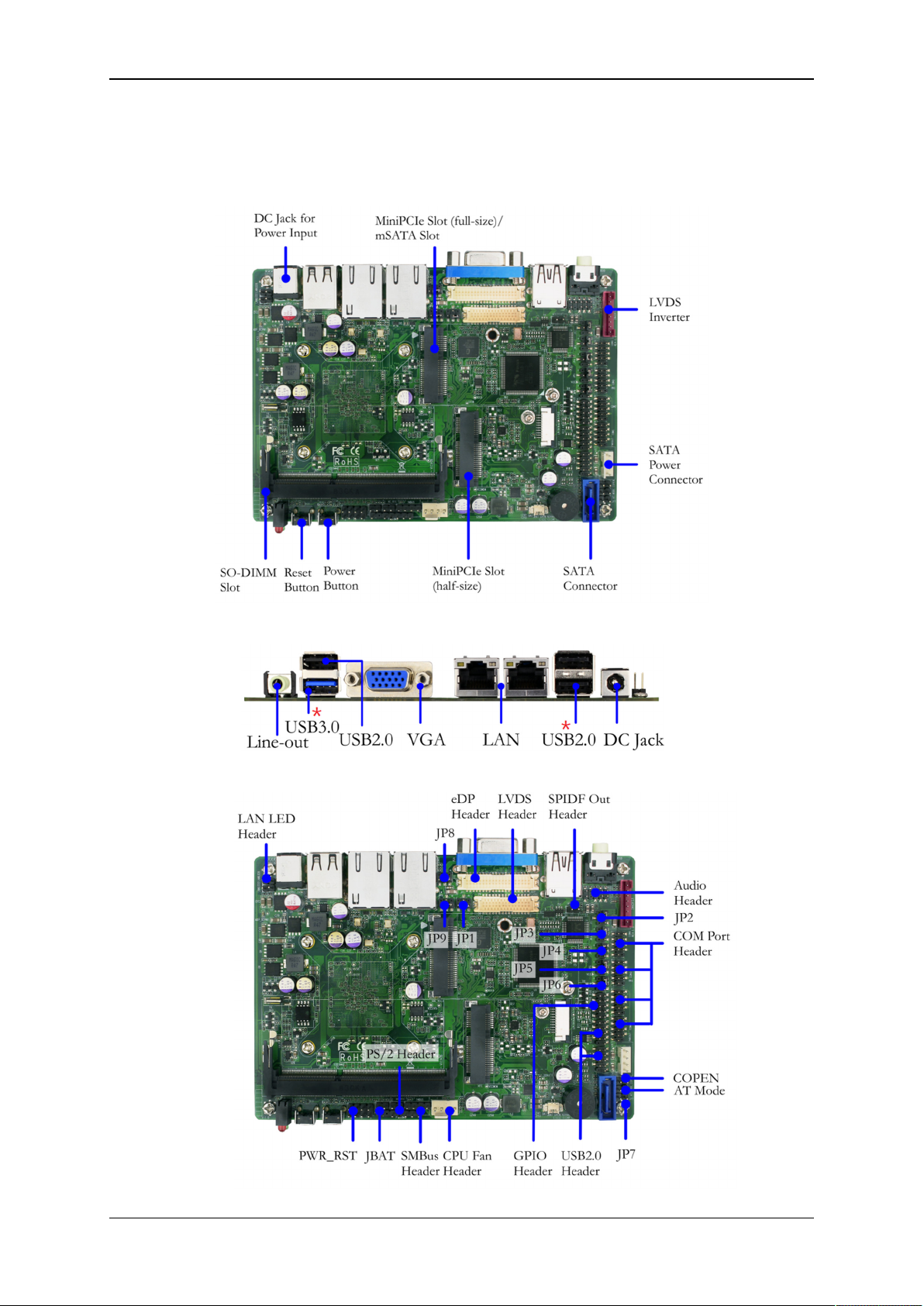

2.2 Board Outline
* Native USB port
