Iconasys 360 Ring Photography Mount Kit User manual
1
© Imagen Labs, LLC DBA Iconasys 2013-2021
Iconasys 360 Ring Photography Mount Kit
Set-up Guide

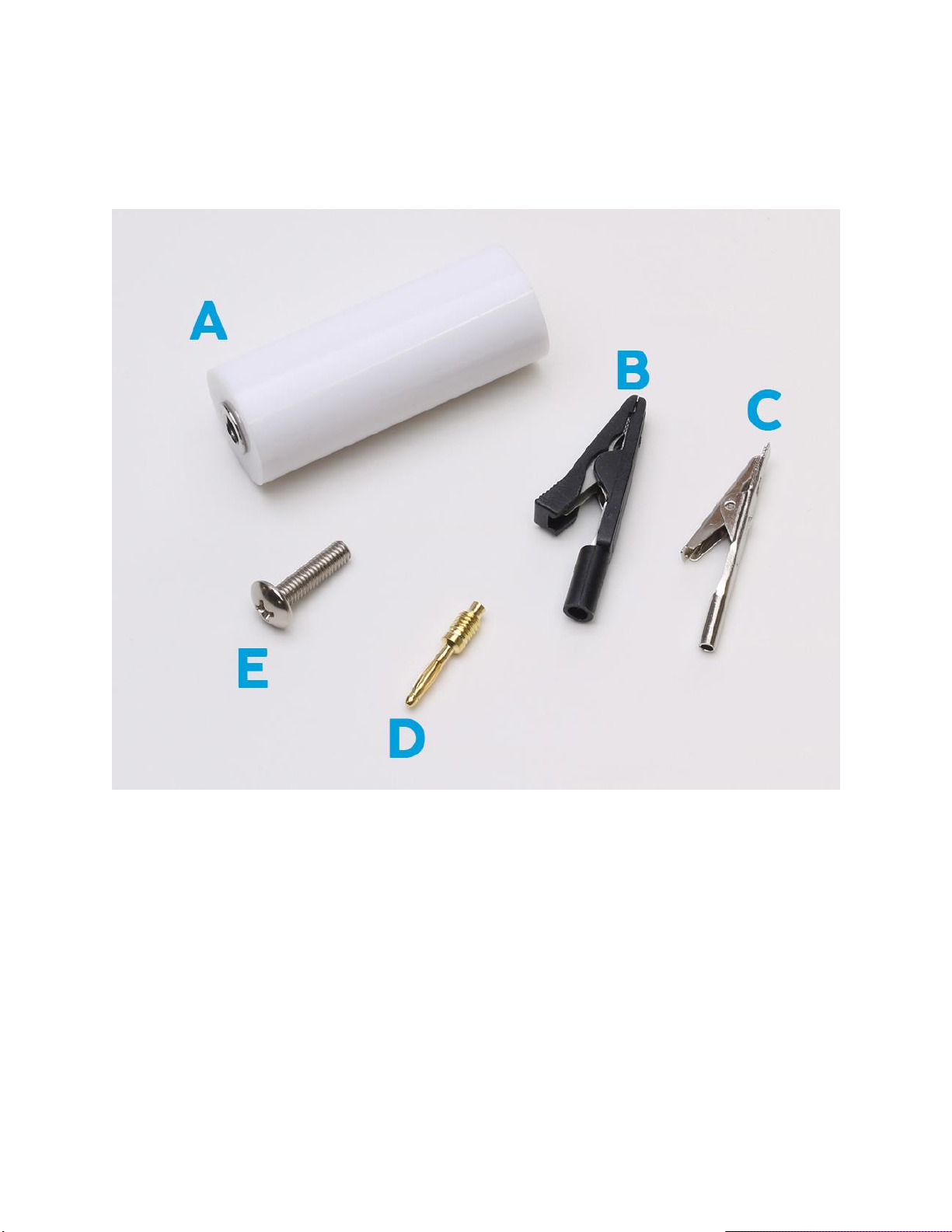

With your purchase of the 360 Ring Photography Mount Kit, you would have
received:
A. Stem Riser (mounts via magnet to center of turntable)
B. Black Alligator Clamp
C. Silver Alligator Clamp
D. Silver Alligator Clamp Mount
E. Stem Riser Screw Mount (if used with turntable collar mount included with
360 Hanging Kit)
2
© Imagen Labs, LLC DBA Iconasys 2013-2021
Getting Started with the 360 Ring Photography Mount Kit
A. Mount via Magnet:
On the bottom of the turntable stem is a magnet that can be connected and
secured to the center stem of the Jewelry Turntable or the motor collar on the Silver
MID, LRG or XL Turntables.
3
© Imagen Labs, LLC DBA Iconasys 2013-2021
B. Mount via Turntable Collar Mount on Silver MID, LRG and XL Turntables
(collar mount piece only available with purchase of 360 Hanging Kit):
1. Remove Turntable top from Silver MID, LRG, XL Turntable:
4
© Imagen Labs, LLC DBA Iconasys 2013-2021
2. Connect the ‘Stem Riser’ to the ‘Turntable Collar Mount’ via center screw
(insert screw in through bottom of the Turntable Collar Mount):
5
© Imagen Labs, LLC DBA Iconasys 2013-2021
3. Connect Turntable Collar Mount to Turntable Collar (using 3 screws):
Connecting Alligator Clip to Stem Riser:
A. Black Alligator Clamp
Simply insert the black end into the Stem Riser Hole:
6
© Imagen Labs, LLC DBA Iconasys 2013-2021
B. Silver Alligator Clamp
Screw the Silver Alligator Clamp Mount into the Stem Riser, then insert the Silver
Alligator Clamp into the mount:
7
© Imagen Labs, LLC DBA Iconasys 2013-2021
After connecting Alligator Clamp, insert ring or object to secure in place.
