Hussmann FW User manual

IMPACT EXCEL

Medium Temp Display Cases

Impact Excel Medium Temp …

From Hussmann

Impact Excel is an advanced line of display

fixtures that is redefining the standard in display

case merchandising and performance. Case

features have been uniquely optimized for the

medium and low temp ranges. This brochure

focuses on the Excel medium temp family.

Changing the Game

Impact Excel is packed with new features and

benefits to help you increase your profits. But

Excel is also much more.

Impact Excel is really an industry game-changer

… delivering a complete package of 7 key

values that will produce measurable benefits for

your business. These values are:

Superior Styling to Improve

Merchandising

Lower Energy Costs

Superior Freshness and

Shelf Life

Lower Labor Costs

Superior Reliability and

Performance

Lower Ownership Costs

Greater Financial Leverage

Excel dairy case

with three front options:

glass, rail light, standard rail

Optional integrated night

curtain

Illuminated canopy for

backlit signs

Full vision glass ends now

available

Clean, new exterior

styling

No tools removal of interior

panels and return air grills

Flexible refrigerant piping

top, bottom or rear

Adjustable feet

Narrower footprint, same

merchandising space

Increased clearance under

case - easier to clean

- Low energy “E” coil standard

- Optional E-Plus coil available

(most efficient)

- Optional modular defrost

Well-trained nationwide service

organization helps

- Reduce down time

- Reduce food loss

- Reduce repair costs

- Protect your investment

- More stable product temps with

modular coils

- Off-time defrost reduces thermal

shock

- Optional modular defrost

further stabilizes product temps

2’ honeycomb easier to clean

Repositioned shelf wiring for

total shelf placement flexibility

Improved ledge lighting

(optional)

not shown

Easy to clean bathtub bottom:

lift up fan, no coil in bottom

Easier to install splashguard

Better access to hinged raceway

Pre-set expansion valves

cannot be misadjusted

Clog-resistant...two

connected drain locations

5 year modular coil warranty

Through IR Financial Services

- Guaranteed cold air programs

- Custom loans

- Custom leases

Illuminated canopy panels

for backlit signs that can

promote specials, particular

brands, seasonal items, food

categories, freshness, etc.

(optional) Solid canopy

panels are standard. Canopy

panels with price tag

molding also available.

Clean, new exterior styling.

Full view glass ends now

available for better product

visibility (optional).

Repositioned shelf wiring

harness now allows lighted

shelves to be placed in any

shelf position on the shelf

brackets, top to bottom.

A narrower footprint with

the same merchandising

capacity provides greater

floor space for shopper

traffic or for additional

merchandising.

Improved lower deck lighting

with a repositioned ledge

light (optional).

Energy efficient “E” coil is

standard on Excel, making it

about 8% more efficient

than standard Impact.

The optional “E-Plus” coil

makes Excel about 19% more

efficient than standard

Impact.

Optional integrated night

curtain cuts energy use by

about 41% while the curtain

is down or by 12.6% overall if

curtain is used 6 hrs. per day.

(Integrated channel conceals

curtain when retracted).

Modular coils maintain

better, more stable product

temperatures than full length

coils, even during defrost.

The off-time defrost used in

all medium temp models

reduces “thermal shock” to

food.

Hussmann’s optional modular defrost further reduces energy

use by about 5%.

Hussmann’s patented “modular defrost” is optionally avail-

able to further stabilize product temperatures.

Superior Styling to

Improve Merchandising





Lower Energy Costs

Superior Freshness and Shelf

Life

Clean bathtub bottom … lift up fan

plenum and no coils in bottom for

easy cleaning.

2’ honeycomb sections are easier

and quicker to clean.

Increased clearance under the case

(no full length skids) simplifies

access for cleaning, plumbing, etc.

Adjustable feet simplify and speed

installation.

Pre-set Hussmann expansion valves

for quicker installation.

Better access to hinged electrical

raceway for easier installation and

service.

Easier to install and remove splash-

guard – no tools needed.

Easily removable interior panels and

return air grilles- no tools needed.

5 year modular coil warranty, best

coil warranty available.

Two drain locations in each case

with connecting channel makes

Excel cases extremely clog-resist-

ant.

Pre-set Hussmann expansion valves

cannot be misadjusted. They have

been tested to always hold optimal

temperatures, providing better per-

formance throughout the life of the

case. (They also provide faster

startup).

Flexible refrigerant piping access on

top, bottom or rear can reduce piping

time.



Lower Labor Costs

(Including Easier Installation)

Superior Reliability and

Performance

Company-trained, nationwide service

organization to help

Reduce downtime through fast response systems

and preventive maintenance

Reduce food loss with quick repairs and regular

maintenance

Reduce repair costs through preventive maintenance

and well-trained, experienced technicians

Protect the value of your investment

IR Financial Services provides a wide

variety of financial options and will help

streamline the entire financing process.

Each package is tailored to your specific

needs, so you get maximum benefits and

financial leverage.

IR Financial Services Offerings

Guaranteed Cold Air Programs (one monthly

payment does it all... pre-planning, products,

installation, service, maintenance)

QQWe help you select equipment and engineer the

refrigeration, HVAC and related systems

QQOur certified technicians install, service and

maintain your equipment

QQIR Financial Services assumes the risk of

ownership

QQYour Operating Income reflects a steady and

manageable operating expense

QQYour cash flow is freed from a large capital

investment

Various Loan Options Available

Various Lease Options Available

Benefits of Working With IR Financial

Services

Improved capital utilization

Balance sheet maintains its current capital

structure

Operating income easier to forecast

Convenience of one-stop shopping (we can

finance a complete package)

Competitively priced financing

Streamlined application and credit approval

process

Professional service

Lower Ownership

Costs (Through Superior Service)IR Financial

Services to Help

Maximize Your

Competitive Position

(Through Superior Service)

Providing equipment and services to manage controlled-temperature environments for food and other perishables, our

Climate Control Technologies sector encompasses both transport and stationary refrigeration solutions. Our product

brands include Thermo King®, a world leader in transport temperature control systems, and Hussmann®, a manufacturer

of refrigeration and food merchandising equipment.

www.thermoking.com www.hussmann.com www.ingersollrand.com

Hussmann Corporation

12999 St. Charles Rock Rd.

Bridgeton, MO 63044

Ph: 314-291-2000

Fax: 314-298-4756

Other manuals for FW

This manual suits for next models

Other Hussmann Merchandiser manuals

Hussmann

Hussmann IMPACT ED1 User manual

Hussmann

Hussmann NM1G User manual

Hussmann

Hussmann SMB Instruction Manual

Hussmann

Hussmann Impact C2EC-XLGE Instruction Manual

Hussmann

Hussmann Specialty Products CR3HTO-HTB Operating instructions

Hussmann

Hussmann RI3-N Instruction Manual

Hussmann

Hussmann MWGE User manual

Hussmann

Hussmann FG Instruction Manual

Hussmann

Hussmann ESBDHV Instruction Manual

Hussmann

Hussmann GGSM Quick guide

Hussmann

Hussmann RED Instruction Manual

Hussmann

Hussmann RHR-HEX Operating instructions

Hussmann

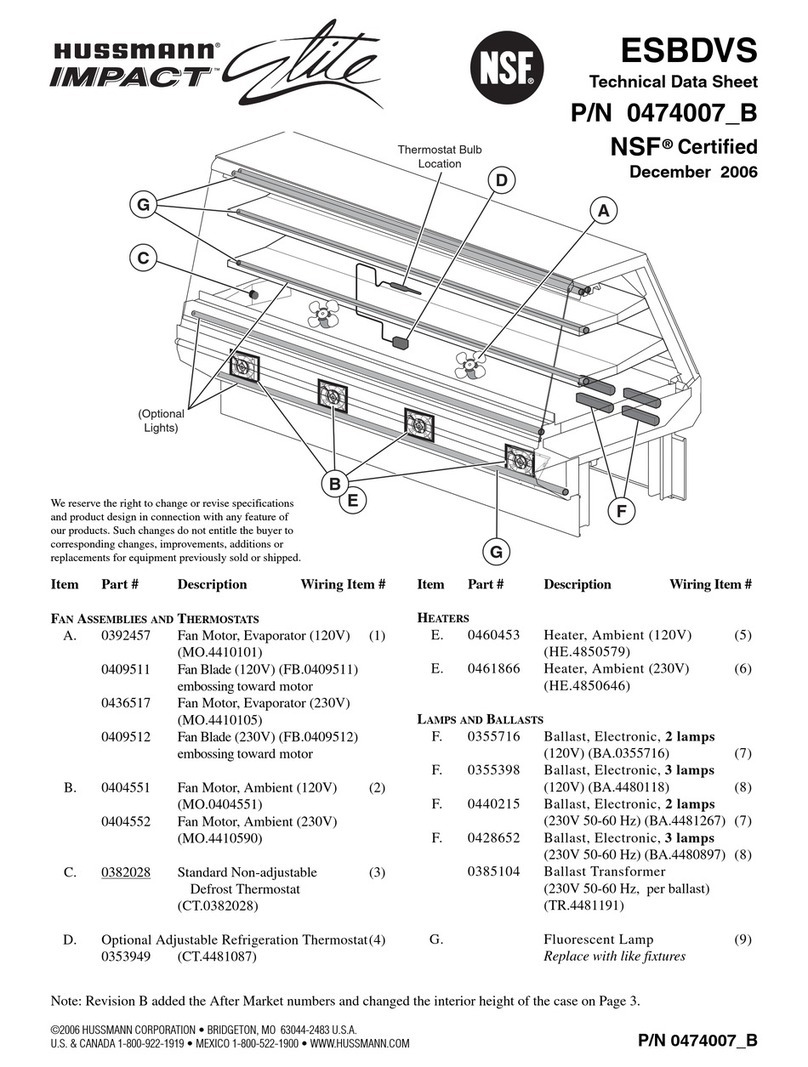

Hussmann ESBDVS Instruction Manual
