Hussmann IMPACT Elite E2SPH User manual

P/N 0453532

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Note: Changed items have been underlined.

E2SPH

Data Sheet Set

P/N 0453532

NSF®Certified

October 2005

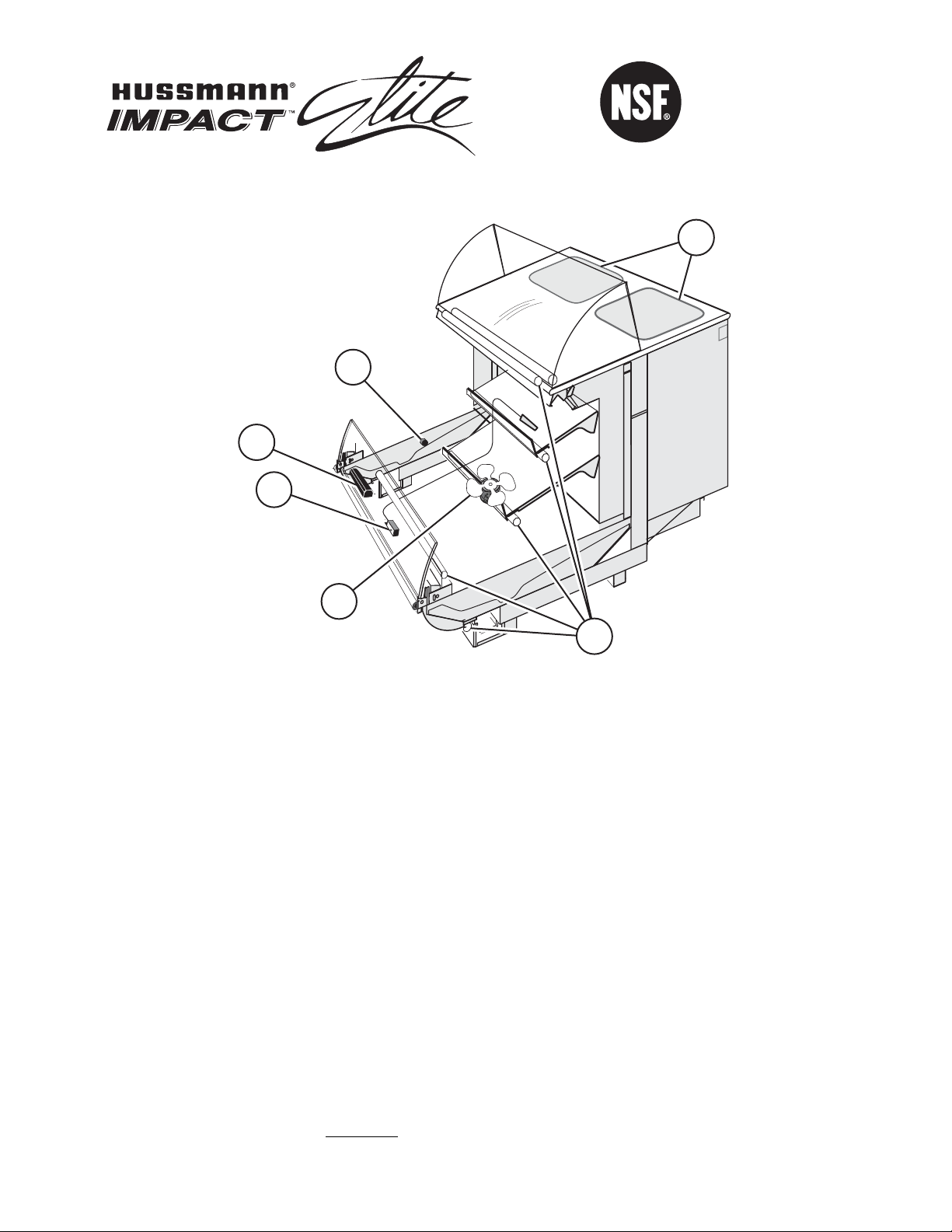

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 12W Fan Assembly (1)

0047000 Fan Motor, Evaporator

0124150 Fan Blade,

embossing toward motor

12W Energy Efficient Fan Assembly (1)

0441749 Fan Motor, Evaporator

0124150 Fan Blade,

embossing toward motor

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

C. 0353949 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0466234 Ballast, Electronic

2 lamps (4)

D. 0466235 Ballast, Electronic

3 lamps (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

OTHER

F. 0464718 Hot Well Assembly (6)

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

E2SPH

Meat, Delicatessen

Precut & Packaged

Produce

—

with 2 Hot Wells

4 ft

General

Case Length (without ends or partitions) 48 1/8(1222)

Maximum O/S dimension back to front (with bumper) 63 (1600)

Back of case to front of front panel 35 (889)

Back of case to O/S edge of front skid rail 29 3/4 (756)

Width of skid rail 4 1/2 (114)

RH end of case to outside edge of external support 1 3/8(35)

Stub-up area between front skid rail and front panel 5 3/4(146)

Electrical Service (Electrical Field Wiring connection point)

RH End of case to LH end of connection box 42 1/8 (1070)

Back of storage to connection box,

center of knockout 11 (279)

Waste Outlet

RH End of case to the center of waste outlet 24 1/4 (616)

LH End of case to the center of waste outlet 23 7/8 (606)

Back O/S of case to center of waste outlet 28 1/8 (714)

Water Seal

Edge of water seal to center of waste outlet 4 (102)

Outside diameter of the drip pipe 1 1/2 (38)

NOTE: Water seal outlet must clear front skid rail;

water seal rotation in forward direction only due to low base.

Refrigeration Outlet

Back of case to center of refrigeration outlet 31 1/4 (794)

RH end of case to center of refrigeration outlet 8 3/8 (213)

2 of 8 E2SPH Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

Plan Views

Dimensions shown as inches and (mm).

10-2005

(606)

Connection Box

(Field Connection Point)

4 Ft Case

Front

Waste

Outlet

Water

Seal

(1070)

(152)

Ballast Tray

(1222)

(616)

8 (213)

(279)

(406)

(714)

(794)

(1194)

(1600)

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75 (°F) and 55% R.H.

E2SPH

Meat Deli

Discharge Air (°F) 25 28

Evaporator (°F) 18 21

Unit Sizing (°F) 16 19

Btu/hr/ft* E2SPH

Parallel 900 890

Conventional 1000 980

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

E2SPH

Frequency (hr) 6

Defrost Water 8 lb/ft/day

(± 15% based on case configuration and product

loading).

OFFTIME E2SPH

Temp Term (°F) 48

Failsafe (minutes) 40

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F – open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control CI/CO**

E2SPH Meat Deli

Temp (°F) 11 / 6 14 / 4

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)** 48°F

**Use a Temperature Pressure Chart to determine

PSIG conversions.

PHYSICAL DATA

Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)*** E2SPH

4 ft 0.9

6 ft 1.8

8 ft 1.9

12 ft 2.9

***This is an average for all refrigerant types actual

refrigerant charge may vary by approximately half a

pound.

Length Added to Lineup by Each

End or Insulated Partition 1 in.

3 of 8

P/N 0453532 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Refrigeration

Outlet FAN

Hot

Wells

(2)

Control

Box

Electrical

Connection

(305)

(559)

40 1/4

(1022)

(889)

9 3/4 (248)

(305)

19 1/8

(486)

(787)

E2SPH

31 1/4

(794)

28 1/8

(714)

(508)

Standard Curved

Sneeze Guard

53 3/4

(1365)

(1194)

(1600)

4 3/4 (121)

9 1/4

(235)

(914)

(406)

8 5/8

(219)

Impact Elite E2SPH

Meat, Delicatessen

Precut & Packaged Produce

Elite Specialty Merchandiser Multi-deck, 2 Display Levels, Prep Top, Hot

Wells

Dimensions shown as in. & (mm).

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

See Page 8 for

shelf arrangement.

4 of 8 E2SPH Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact Elite E2SPH

Meat, Delicatessen

Precut & Packaged Produce

Electrical Data

4 ft

Number of Fans — 12W 1

Amperes Watts

Merchandiser 4 ft 4 ft

Fans

120V 60Hz Standard 0.70 55

120V 50Hz Standard 0.81 59

230V 60Hz Export 0.33 54

230V 50Hz Export 0.38 57

120V 60Hz Energy Efficient 0.38 25

230V 60Hz Energy Efficient 0.19 25

Cycling Anti-sweat Heaters NA

Minimum Circuit Ampacity

120V 60Hz Standard 0.90

120V 50Hz Standard 1.01

230V 60Hz Export 0.53

230V 50Hz Export 0.58

120V 60Hz Energy Efficient 0.58

230V 60Hz Energy Efficient 0.39

Maximum Over Current Protection (120V) 20

Maximum Over Current Protection (230V) 15

Hot Wells

208V 60 Hz One Hot Well 5.8 1200

240V 60 Hz One Hot Well 6.7 1600

208V 60 Hz Two Hot Wells 11.6 2400

240V 60 Hz Two Hot Wells 13.4 3200

Standard Lighting

1 Row Canopy 0.51 62

Optional Lighting

1 Row Rail Lights 0.51 62

1 Row Ledge Lights 0.51 62

Optional Shelf Lighting

1 Row of Shelves 0.51 62

2 Rows of Shelves 0.51 62

Optional Overhead Lighting

1 Row of Incandescent Lamps (2 lamps) 1.26 150

1 Row of Heat Lamps (2 lamps) 2.92 350

5 of 8

P/N 0453532 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

Fan Wiring

Offtime Defrost

1 Fan

120V NEUTRAL

BROWN BAND

120V POWER

BROWN BAND Fan 1

Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

BL G

Shelf Harness

Shelf Light Circuits

Shelf Lighting

Connector

4 ft case has 1 Fan

4 ft

Connector

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

R = Red G = Green BL = Blue LB = Light Blue DB = Dark Blue B = Black W = White

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

120V NEUTRAL

MAROON

BAND

120V POWER

N.E.C.

TAGS

MAROON

BAND

Electric Service Receptacle Receptacles

Optional Lighting: 1 Row Ledge or 1 Row Rail

Light Circuits

Standard Lighting 1 Row Canopy

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120V POWER = 120V NEUTRAL

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

4 ft case has 1 Lamp

Optional Lighting: Overhead 75W Incandescent or 175W Heat Lamp

4 ft case has 2 Lamps

Connector

Connector G

120 V

Power

Connector

Overhead

Light

Switch

ORANGE OR TAN

BAND

6 of 8 E2SPH Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

7 of 8

P/N 0453532 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Water Level

Solenoid

Valve

L2 H2

Hot Well

Heating Elements

Probe

Common

Indicator Light

Thermostat

LH or RH Well Marker

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER

= 120V NEUTRAL = Field GROUND

= Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= 208V POWER

Hot Well Wiring

Hot Wells

208V / 240V POWER

4 ft case has 2 Hot Wells

Field Ground

Control Box

Notes: 1. Hot Wells must be grounded.

8 of 8 E2SPH Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

SHELF CONFIGURATION

This merchandiser is designed for two

shelves.

This illustration shows recommended

shelf depth and shelf angle for the two

locations.

It is critical to case performance that no

product, shelf or stop extend beyond the

load limit, as shown in this illustration.

This configuration supports the air

curtain and provides optimal case

performance.

Check with Hussmann engineering

before using a different configuration.

Load Limit

12 in.

10°

Recommended

Angle

Shelf

Size

18 in.

0°

Impact Elite E2SPH

Meat, Delicatessen

Precut & Packaged Produce

Table of contents

Other Hussmann Merchandiser manuals

Hussmann

Hussmann C3X-LGEP Instruction Manual

Hussmann

Hussmann SSGV User manual

Hussmann

Hussmann ESH Operating instructions

Hussmann

Hussmann impact Excel C5NX-LE Instruction Manual

Hussmann

Hussmann HGM-1BS Quick guide

Hussmann

Hussmann ESBD Instruction Manual

Hussmann

Hussmann IMPACT Elite ES1S Instruction Manual

Hussmann

Hussmann ASCS Instruction Manual

Hussmann

Hussmann Specialty ProductsCR3FO Instruction Manual

Hussmann

Hussmann Impact C2-LGEP Instruction Manual

Hussmann

Hussmann Impact Excel M5X-GEP Instruction Manual

Hussmann

Hussmann VSG Instruction Manual

Hussmann

Hussmann P4NX-E Instruction Manual

Hussmann

Hussmann SPECIALTY TY3-3X4.5E-R User manual

Hussmann

Hussmann ENTYCE TY3 User manual

Hussmann

Hussmann RI2 Instruction Manual

Hussmann

Hussmann MWI User manual

Hussmann

Hussmann ESGMVS Instruction Manual

Hussmann

Hussmann P/N 0420057_B User manual

Hussmann

Hussmann ARL User manual

Hussmann

Hussmann Impact Excel M1X-XGE Instruction Manual

Hussmann

Hussmann C6L-EP User manual

Hussmann

Hussmann C3X-LGE Instruction Manual

Hussmann

Hussmann SI1 Instruction Manual

Popular Merchandiser manuals by other brands

FRIGOGLASS

FRIGOGLASS Flex 20 HC user manual

EPTA

EPTA COSTAN RHINO MULTI User instructions

CASCO

CASCO Nano Cube owner's manual

True

True GDIM-26 installation manual

Structural Concepts

Structural Concepts Oasis Mobile Series Installation & operating manual

Haussmann

Haussmann RL Installation & operation manual

Howard McCray

Howard McCray R-CDS32E-4 Specifications

EPTA

EPTA iarp Cool Emotions Delight Lite User instructions

VALERA

VALERA BC 85 datasheet

HL Display

HL Display 3eBin Assembly instructions

Dixie Narco

Dixie Narco DNCB 501E Technical manual

APW Wyott

APW Wyott Racer DMXD-30H Installation and operating instructions

Hoshizaki

Hoshizaki KD-90C Service manual

Summit

Summit SCR1006 instruction manual

Delfield

Delfield Shelleyspeed SPM-28E Specifications

EPTA

EPTA iarp Cool Emotions GLEE 40 User instructions

Kysor/Warren

Kysor/Warren GranBering KW TECHNICAL MANUAL & USER INSTRUCTIONS

Crane

Crane BevMAX Refresh 6 Media Operation guide
