Huck 4540-10 User manual
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
\\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4540_10-01-en-010.doc - 1 -
AAssembly Instructions
Mini M-Swing
Art. 4540-10
Operator: _____________________________________________________
Location: _____________________________________________________
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
2 \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4540_10-01-en-010.doc
Contents
AAssembly Instruction .................................................................................................................... 1
1 Introduction Assembling............................................................................................................... 3
2 Datasheet........................................................................................................................................ 5
3 Delivery contents (parts list with part numbers)........................................................................ 7
4 Erection instructions................................................................................................................... 10
5 Post installation checks.............................................................................................................. 15
BMaintenance Instructions............................................................................................................ 17
6 Introduction Maintenance........................................................................................................... 18
7 General maintenance information.............................................................................................. 19
8 Specific maintenance advice...................................................................................................... 23
9 Maintenance timetable ......................................................................Error! Bookmark not defined.
10 Monthly maintenance .................................................................................................................. 24
11 Quarterly maintenance................................................................................................................ 24
12 Annual maintenance.................................................................................................................... 25
13 Maintenance printout................................................................................................................... 26
14 Hand over document ................................................................................................................... 26
List of Tables
Table 3-1: Delivery contents, in words .................................................................................................... 7
Table 3-2: Delivery contents, in symbols................................................................................................. 8
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
\\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4540_10-01-en-010.doc - 3 -
1 Introduction Assembling
1.1 General information
This equipment should be installed, inspected, maintained and operated in
accordance with EN1176-7 guidelines.
Before installation work commences, please check that you have all of
the equipment and fixation components in the parts list provided (see
Tables 3-1 and 3-2).
Please consider that the installation has to be carried out only on even
terrain (max.slope up to 3%).
Any spare parts that may be required can be obtained directly from your
supplier.
Please do not hesitate to call your supplier if you have any problems during
installation or in case of any other questions.
Following installation, complete assembly instructions, maintenance
instructions and a maintenance record must be sent to the operator who
must confirm receipt in writing. See the last page of this document.
All nuts and bolts are hot-dip galvanised or stainless steel.
One of the characteristics of stainless steel is that uncontrolled cold
welding may occur when the nuts are tightened. To prevent this, it is
necessary to spray the nuts and bolts with Teflon spray or another similar
lubricant.
We hereby confirm that this play equipment has been tested and
certified in accordance with the play equipment standard EN 1176.
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
4 \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4540_10-01-en-010.doc
Drawings / Views
All optical drawings are showing only the measurements/dimensions and
are no mandatory technical views of the complete item.
We reserve the right to change technical details of our articles which are
serving for the further development of our articles and are reasonable for
the customer.
Measurement tolerances
Because of the properties and characteristics of the components, minor
measurement tolerances compared to the indication on the sketches are
possible.
This concerns all shown measurements except the foundation
measurements resp. measurements below upper edge ground level/play
area.
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
\\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4540_10-01-en-010.doc - 5 -
2 Datasheet: Mini M-Swing, Art. 4540-10

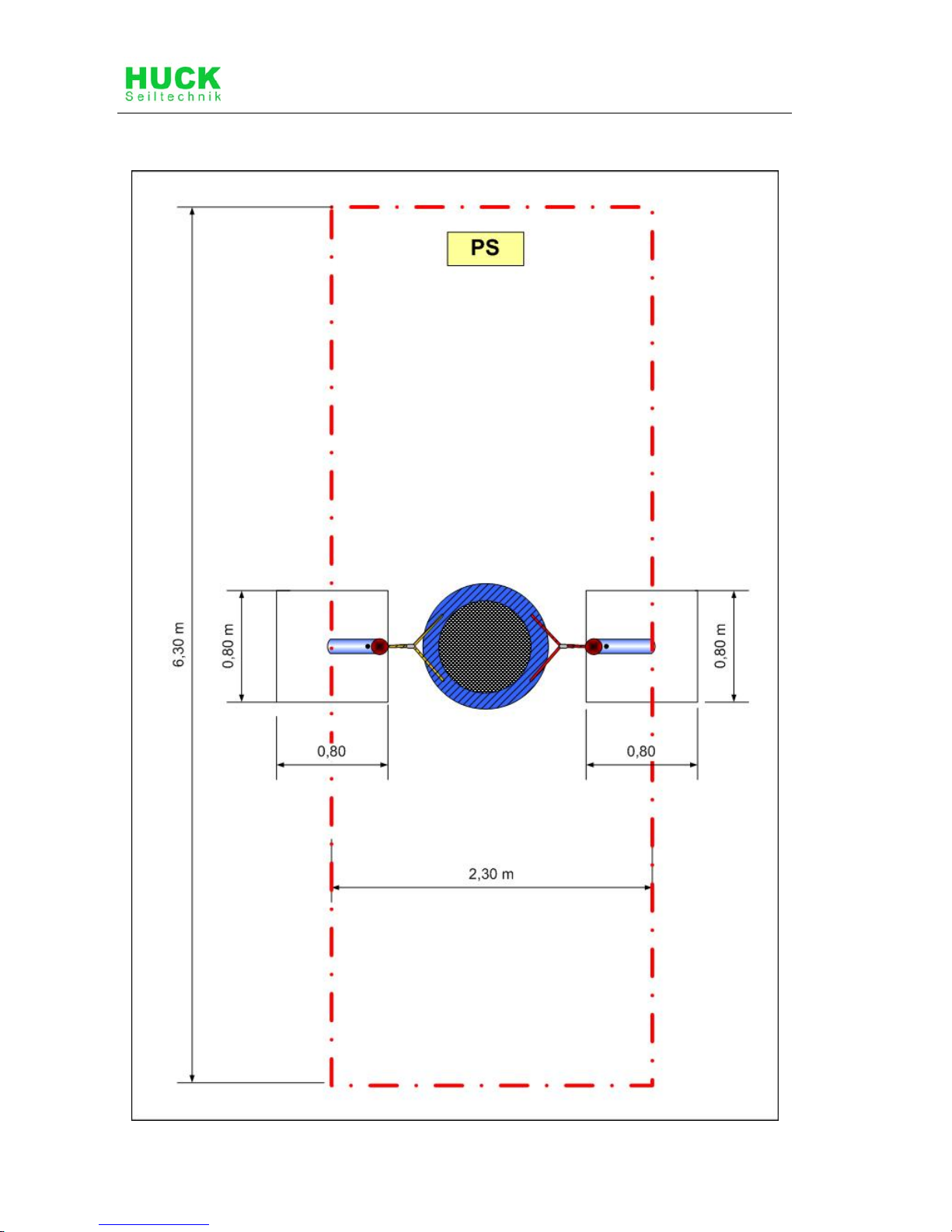

1. Space requirement: 3.00 m x 0.80 m and/or 2,30 m x 6,30 m including safety
zone, height of fall 1,45 m
2. Required safety surface:
Surface material
Description
mm Minimum
thickness of
layer
mm
Maximum
height of fall
mm
Topsoil grass <= 1000*
Chipped bark 20 – 80 grain size 300/400 <= 2000/3000
Wood chippings 5 – 30 grain size 300/400 <= 2000/3000
Sand 0.2 – 2 grain size 300/400 <= 2000/3000
Gravel 2 – 8 grain size 300/400 <= 2000/3000
Other ground
materials As recommended by
manufacturer
3. Name and overall dimension of the largest component:
Steel post (2 pieces) length 2.40 m, ø 100 mm
4. Name and weight of the heaviest component:
Steel posts (1 piece), approx. 18 kg
5. Intended age group: 2 years and over
6. Please note that this equipment is set in concrete.
Concrete: C25/30
Required concrete: 0.8 m3
Foundations/area to be excavated:
2 x 0.80 m long x 0.80 m wide, total depth 1.00 m including 10 cm drainage
Top edge of concrete 40 cm below ground level
Foundation size:
2 x 0,80 m long x 0,80 m wide, 0,60 m high
Round off foundation edges (min.R = 100 mm)! Sizes of fundations are “4-5”
(natural ground).
Soil class 4: soft to medium plasticity, interleave bound, with minor portion of
stone (portion < 30% with bigger diameter of 63 mm grain size).
Soil class 5 : ground with soil class 3 and 4 with big portion of stones
(portion > 30% with bigger diameter of 63 mm grain size).
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
6 \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4540_10-01-en-010.doc
In case of sandy and soft soils, the surface measure of foundations have to be
enlarged for about 50%!
7. Assembly time, once foundations completed: 1/2 hour.
Required assistants: 1 person.
8. Any spare parts which may be required can be obtained directly from
your supplier.
9. We hereby confirm that this item of play equipment has been tested and
certified in accordance with the play equipment standard EN 1176.
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
\\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4540_10-01-en-010.doc - 7 -
3 Delivery contents (parts list with part numbers)
3.1 In words
Table 3-1: Delivery contents, in words
Pos. Quantity Element /
Description Size O.K. Missing
1 1 Swing part
2 2 Steel post Ø 100 mm - 2.40 m lg
100 2 Ring shackles for Ø 100 mm
101 2 Threaded bolts M10 x 110 mm galv.
102 4 Nut M10 galv.
103 2 Caps for Ø 100 mm
104 6 Self drilling pias screws 5.5 x 25 mm
105 0,33 Liter Blue paint
107 2 Blue/yellow caps for M12
108 2 Washer Ø 13
109 2 Lock nut M12, galv.
110 2 4602 M12 x 125 mm
111 2 Schackle M8 pre-assembled
112 2 Schackle cambered Pre-assembled
113 2 PE bearing bushing small f. M8 shackle
pre-assembled
113A 2 Hole plug
114 2 Hexagonal nut M12
2 Sidewalk fllagstone
on site / by the customer
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
8 \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4540_10-01-en-010.doc

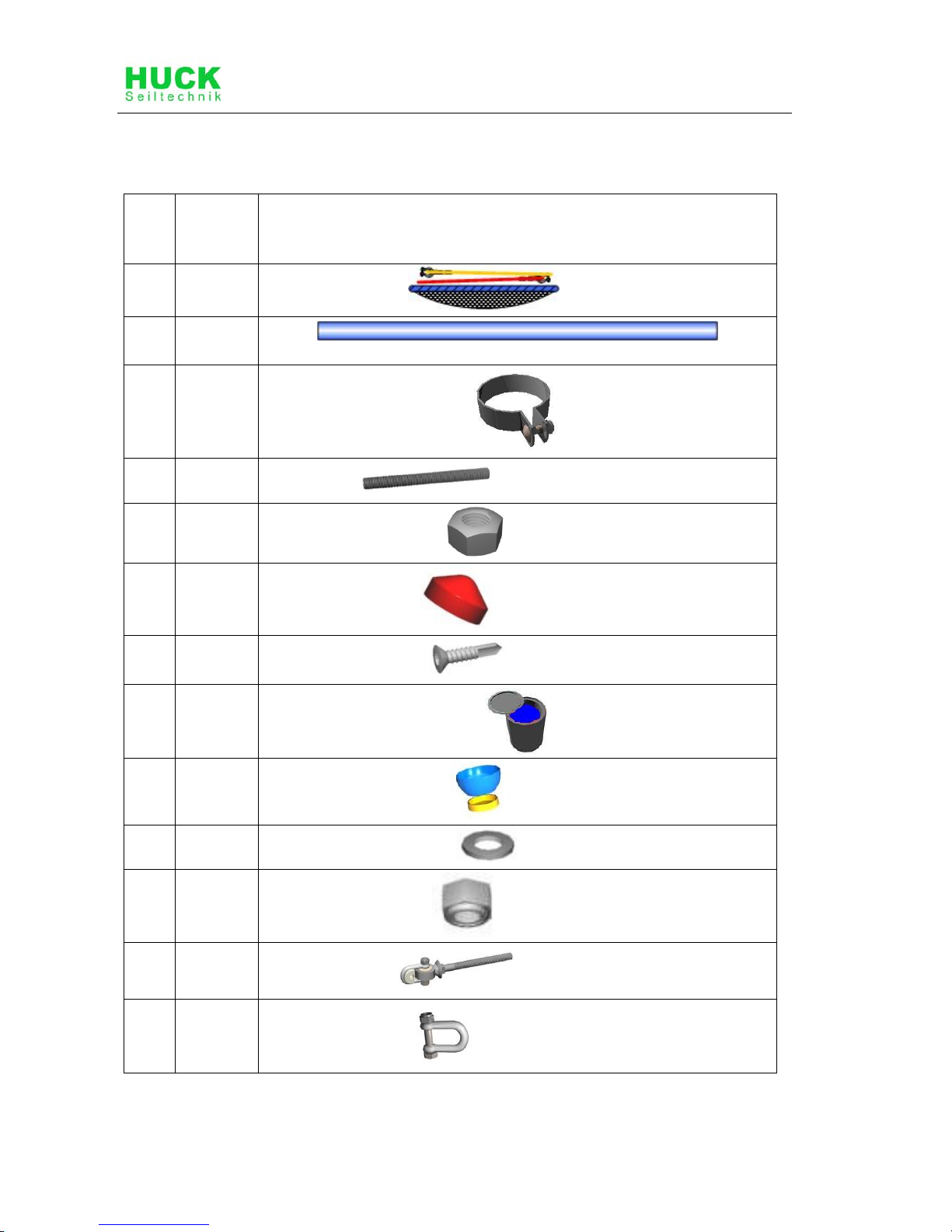

3.2 In symbols
Table 3-2: Delivery contents, in symbols
Pos. Quantity Symbol
1 1 Ø0,90m
2 2
Ø 100 mm - 2.40 m lg
100 2
for Ø 101.6 mm
101 2 M10 x 110 mm galv.
102 4
M10 galv.
103 2
for Ø 100 mm
104 6 5.5 x 25 mm
105 0,5 Liter
107 2
for M12
108 2 Ø 13
109 2
M12, galv.
110 2 M12 x 120 mm
111 2
M8 pre-assembled
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
\\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4540_10-01-en-010.doc - 9 -
Pos. Quantity Symbol
112 2
M8 Pre-assembled
113 2
for M8 shackle pre-assembled
113A 2
114 2
M12
115 2
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
10 \\Fileserver\text\PLAY\Play Installation Instructions\Installation Instructions 2012-2013\4540_10-01-en-010.doc
4 Erection Instructions
