Huawei EG8147X6 User manual

Huawei OptiXstar EG8147X6

Quick Start

Issue 01

Date 2021-12-20

HUAWEI TECHNOLOGIES CO., LTD.

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specied in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees

or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every eort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: https://www.huawei.com

Email: [email protected]

Contents

1 Placing the Device................................................................................................................... 1

2 Connecting Cables................................................................................................................... 4

3 Indicator Description.............................................................................................................. 7

4 Technical Specications......................................................................................................... 9

5 FAQs..........................................................................................................................................10

Huawei OptiXstar EG8147X6

Quick Start Contents

1 Placing the Device

NO TE

● Do not install the ONT outdoors or in an outdoor cabinet.

● The ONT can be mounted onto a wall or placed on a desk. Do not install the ONT in

other modes, such as ceiling.

● Keep 10 cm clearance on all sides to ensure adequate ventilation.

● It is recommended that the computer and ONT be put far away from electric appliances

that generate strong magnetic or electric elds, such as microwave ovens.

Mounting an ONT on the desk

The gure below shows an ONT that is horizontally placed on a desk.

Huawei OptiXstar EG8147X6

Quick Start 1 Placing the Device

NO TE

The appearance shown in this document may be dierent from the actual appearance of

the product. The actual product prevails.

Mounting an ONT onto the wall

1. Mark two positions with the same spacing as that between the two mounting

holes of the ONT using a marker on a wall.

2. Select a proper drill bit according to the outer diameter of the screws. Use a

hammer drill to drill the marked positions on the wall. Then clean the holes

and install two expansion bolts.

3. Use a screwdriver to fasten the screws into the expansion bolts, reserving 5

mm ends out of the wall, and mount the ONT onto the screws.

Huawei OptiXstar EG8147X6

Quick Start 1 Placing the Device

NO TE

It is recommended that the screw be about 4 mm in diameter and longer than 20 mm. The

screw head should be between 6 mm and 9 mm in diameter.

Huawei OptiXstar EG8147X6

Quick Start 1 Placing the Device

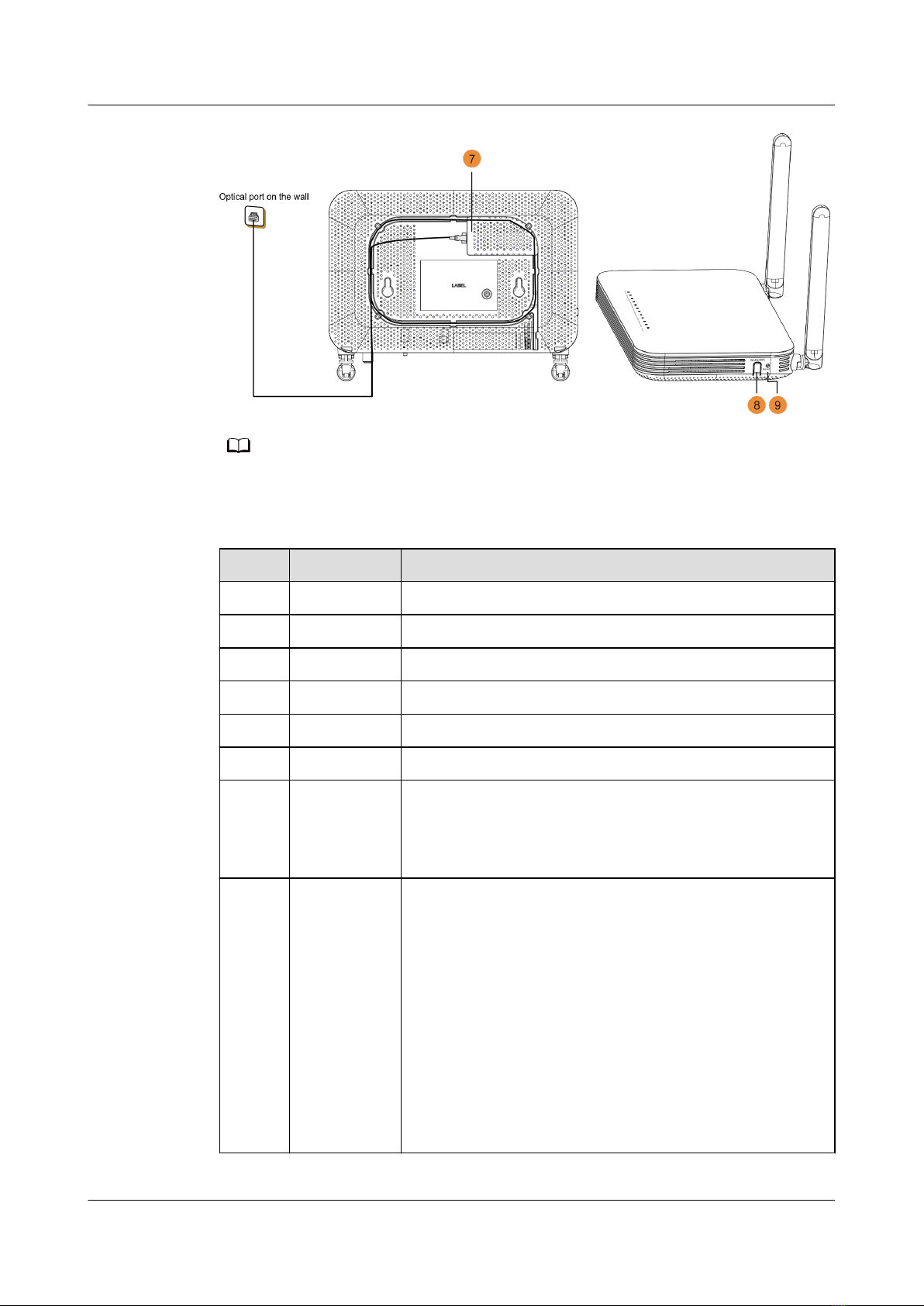

2 Connecting Cables

Huawei OptiXstar EG8147X6

Quick Start 2 Connecting Cables

NO TE

● The ber connector connected to the optical port on the wall varies depending on

actual conditions.

● To ensure normal use of bers, make sure that the ber bending radius is larger than 30

mm.

No. Item Description

1 TEL Connects to the ports on a telephone or fax machine.

2 LAN1-LAN4 Connects to PCs or IP set-top boxes (STBs).

3 USB Connects to USB storage devices.

4 Power Connects to a power adapter.

5On/O Powers the ONT on or o.

6 CATV Connects to a TV.

7 Optical port The optical port is equipped with a rubber plug and

connected to a ber for upstream transmission.

The type of the optical connector connected to the

optical port can be SC/APC.

8 WLAN/WPS ● When the wireless function (WLAN) is enabled, press

the WLAN/WPS switch for 1s to 5s to start Wi-Fi

protected setup (WPS) negotiation.

● When the wireless function (WLAN) is enabled, press

and hold the button WLAN/WPS switch for more

than 5s to turn o the wireless function (WLAN).

● When the wireless function (WLAN) is disabled, tap

the WLAN/WPS switch for more than 1s to turn on

the wireless function (WLAN).

NOTE

If the WLAN indicator is steady on or blinks, the wireless

function is enabled. If the WLAN indicator is o, the

wireless function is disabled.

Huawei OptiXstar EG8147X6

Quick Start 2 Connecting Cables

No. Item Description

9 Reset Press the button for a short time to reset the device, or

press the button for a long time (longer than 10s) to

restore the device to the default settings and reset the

device.

NOTE

Reset Huawei ONTs with caution. Otherwise, the ONTs may

fail to access the Internet. If an ONT cannot access the

Internet after a reset, contact your Internet service provider.

Huawei OptiXstar EG8147X6

Quick Start 2 Connecting Cables

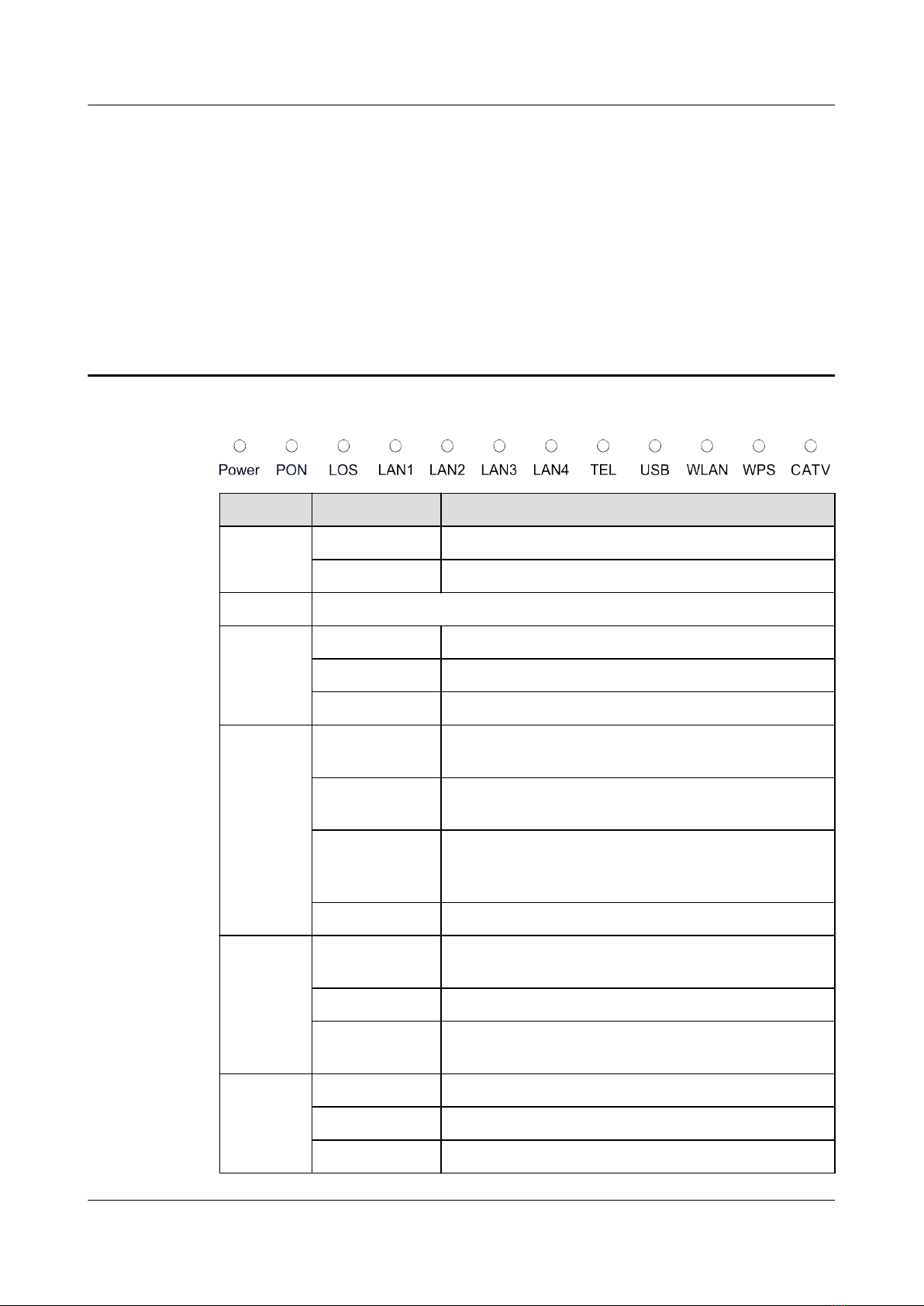

3 Indicator Description

Indicator Status Description

Power Steady on The ONT is powered on.

O The power supply is cut o.

PON/LOS See the following table.

LAN1-

LAN4

Steady on The Ethernet connection is in the normal state.

Blinking Data is being transmitted over the Ethernet port.

O The Ethernet connection is not set up.

TEL Steady on The ONT is registered with the softswitch but no

service ows are transmitted.

Blinks twice a

second

The ONT is registered with the softswitch, and

data is being transmitted onthe port.

Blinks once

every 2

seconds

The ONT fails to be registered with the softswitch.

O The POTS port is disabled.

USB Steady on The USB port is connected and working in the

host mode, but no data is transmitted.

Blinking Data is being transmitted on the USB port.

O The system is not powered on or the USB port is

not connected.

WLAN Steady on The WLAN function is enabled.

Blinking Data is being transmitted over the WLAN port.

O The WLAN function is disabled.

Huawei OptiXstar EG8147X6

Quick Start 3 Indicator Description
