Huawei VCN520 User manual
VCN520&
VCN540
V100R002C30
Video Cloud Node
Quick Start
Issue: 02
Copyright © Huawei Technologies Co., Ltd. 2019All rights reserved.
Default login IP/user name/password of the C/S client:
Adresse IP/nom d'utilisateur/mot de passe de connexion par défaut du client C/S:
IP accesso predefinito/nome utente/password C/S client:
192.168.2.101/Admin/Change_Me
Default login URL/user name/password of the OMU Portal:
URL/nom d'utilisateur/mot de passe de connexion par défaut du portail OMU:
URL accesso predefinito/nome utente/password Portale OMU:
https://192.168.2.101:8443/Admin/Change_Me
BOM: 31508624
Qualification Card
1.Safety Precautions
WARNING:
Do not touch the connectors of the power cable or communication cable. Otherwise, you will be
injured by the electric shock caused by the current flow.
Wear an electrostatic discharge (ESD) gloves or wrist strap and antistatic clothing when performing
operations on the device.
Insert filler panels into vacant slots when hard disks are not fully configured.
Connect ground cables to the subrack properly to ensure personnel and device safety.
Replacing a battery incorrectly might result in an explosion. Replace a battery only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries according to the
manufacturer's instructions.
As VDR bridged primary and earth. This built-in type power supply only can be used in permanently
connected equipment, pluggable type B equipment or pluggable type A equipment provided with a
permanently protective earthing terminal.
This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment
may cause radio interference.
CAUTION:
Disconnect the power cord before serving to avoid electric shock.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
Double pole/neutral fusing.
NOTE:
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
ATTENTION:
Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile
de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées
conformément aux instructions du fabricant.
Débranchez le cordon d'alimentation avant de servir afin d'éviter tout risque d'électrocution.
Double pole/fusible sur le neutre.
1
2.VCN520/VCN540 At-a-Glance
3.Front and Rear View of the Device
Huawei VCN520/VCN540 is integrated intelligent video surveillance products that provide a wide
range of services including live video viewing, video retrieval, video playback, alarm linkage,
pan-tilt-zoom (PTZ) control, voice intercom, and electronic map. Huawei VCN520/VCN540 delivers
secure, efficient, and purpose-built video surveillance solutions for government agencies,
transportation departments, educational institutions, and enterprises of all sizes.
2
Front view of VCN520
Power health indicator
GE port LINK indicator
Disk status indicator
Power health indicator
GE port LINK indicator
Disk status indicator
Front view of VCN540
Specification Description
Networking performance A maximum of 16 VCN520/VCN540 in a stack
Media performance A VCN520/VCN540 supports access from cameras that comply with
the HWSDK, ONVIF or DHSDK protocol.
A VCN520 supports 32-channel cameras，the ingress bandwidth
does not exceed 320 Mbit/s, and the egress bandwidth does not
exceed 320 Mbit/s.
A VCN540 supports 64-channel cameras, the ingress bandwidth
does not exceed 320 Mbit/s, and the egress bandwidth does not
exceed 320 Mbit/s.
Hard disk A single VCN520 can be configured with four hard disks.
A single VCN540 can be configured with eight hard disks.
A maximum of 8 VCN520/VCN540 in a cluster
3
Rear view of VCN520
4.Packing List
AC power cable 1PCS
Mounting ear 2PCS
Bottom cap 4PCS
Phoenix connector
OT terminal
Quick Start
2PCS
2PCS
1PCS
No.
1
2
3
4
5
6
7
Accessory Quantity
8
M4*6 screw 8PCS
Power cable retention clip 1PCS
Ground terminal
Alarm input
interface
Alarm output
interface
GE1 port
USB2.0 USB3.0 VGA port HDMI port Audio output interface
Audio input interface GE2 port
Power button
Power port
COM port
KB
interface
RS-485
interface
Rear view of VCN540
Ground terminal
Alarm input
interface
Alarm output
interface
GE1 port
USB2.0 USB3.0 VGA port HDMI port Audio output interface
Audio input interface GE2 port
Power button
Power port
COM port
KB
interface
RS-485
interface
Note:
The VCN520 or VCN540 has two USB interfaces: USB2.0 and USB3.0 interfaces. Both USB
interfaces can connect to USB flash drives and USB mice. However, the USB3.0 can connect to
removable hard disks while the USB2.0 cannot.
5.2 Desktop Installation
Stick and fix four bottom caps at the bottom of the device, as shown in the following figure.
1
2
Place the device horizontally on a desktop.
4
5.Device Installation
5.1 Disk Installation
Push the hard disk into the slot along the disk guide rail until the hard disk locks into the place, as
shown in step 3 in the following figure.
2
3
Lower the ejector lever to ensure that the hard disk is completely in the subrack, as shown in step 4
in the following figure.
Use a screwdriver to fasten the new hard disk onto the front panel, as shown in step 1 and step 2 in
the following figure.
1
Note
By default, the VCN520 or VCN540 does not carry disks when being delivered. First install disks
and then install the device on the desktop, or in a cabinet.
After the VCN520 or VCN540 is delivered to the site, disk filler panels are installed in slots where
disks are not installed, by default. You are not advised to remove the filler panels from the slots
where disks are not installed, because removing the filler panels will affect the heat dissipation of
fans and generate some noises.
Note: Before closing the disk ejector level, ensure that the disk has been pushed into the subrack and
cannot be moved. Otherwise, after the ejector level is closed, the disk cannot be completely
pushed into the subrack, resulting in incorrect disk installation.
First confirm the installation location of the guide rail in the cabinet. Install the floating nuts used to fix the
guide rail in the installation location. There are two and three floating nuts at the front and rear of the
cabinet respectively, as shown in the lower left figure.
1
2
For details about how to install floating nuts, see the lower right figure. As shown in step 1 in the
lower-right figure, insert one leg of the floating nut into the square holefrom inside of the cabinet,
so that the leg hooks over the lower frame of the square hole. Asshown in step 2 in the lower-right
figure, use the floating nut hook to catch the other leg of thefloating nut. Pull the hook forward until
the leg hooks over the upper frame of the square hole.
5.3 Cabinet Installation
5
5.3.1 Single-Device Deployment Scenario
Note:
Before installing the VCN520 or VCN540 in the cabinet, install the mapping guide rail to bear the
device. If a guide rail has been installed in the cabinet, check whether the guide rail matches the
device. The device is equipped with right-to-left airflow. Therefore, check whether the guide rail
may block the air exhaust vent. If yes, replace the guide rail with a matched one.
Huawei provides the guide rail for the VCN. The stretching range of the guide rail ranges from
500 mm to 800 mm, which is used for cabinet installation when the distance between the front and
rear mounting bars is within the range. You need to purchase the guide rail based on the site
requirements.
When the VCN is installed in a cabinet, do not install the rubber foot which will occupy the cabinet
space.
1U
Front of the cabinet
Rear of the cabinet
2
Install the guide rail. Horizontally place the guide rail to the installation location through the positioning block
at the front of the guide rail and the positioning hook at the rear of the guide rail, as shown in the lower left
figure. Use four M6 screws (two on each side) to fix the front end and six M6 screws (three on each side)
to fix the rear end, as shown in the lower right figure.
3
Front of the cabinet
Rear of the cabinet
Note: Before installing the guide rail, you can view the mark (F/L, F/R) on the guide rail to differentiate
the left, right, front, rear ends of the guide rail to avoid reverse installation. F/L indicates the front end
of the guide rail on the left side. F/R indicates the front end of the guide rail on the right side.
Positioning
block Positioning
hook
1
6
Install mounting ears. Take eight M4*6 screws. Use four screws to configure one mounting
ear on the left of the front panel and the same way to configure the other ones on the right side.
Then use a Phillips screwdriver to fasten the screws to fix the mounting ears, as shown in the
following figure.
Install the filler panel of the guide rail. Install the M6 screws used to fix the filler panel of the guide rail,
as shown in the following figure.
5
Install the floating nuts used to fix the VCN520/VCN540. The floating nuts are installed in the first
and sixth holes along the guide rail from bottom to up.
4
6
Install the VCN520/VCN540 in the cabinet. Carry the device to install from both sides. Slowly move
it to the front of the cabinet.Lift the subrack to a position higher than the slide rail . Gently place the
subrack on the slide rail and push it into the cabinet along the slide rail, as shown in the lower-left
figure. Keep pushing the subrack until the mounting ears of the subrack are close to the mounting
bar at the front of the cabinet.
7
8
Connect the M6 screws (prepared by users) through the holes of the mounting ears. Use a Phillips
screwdriver to tighten the M6 screws on the mounting ears. Use two M6 screws to configure each
mounting ear. Separately secure the mounting ears on both sides of the subrack on the mounting
bar at the front of the cabinet, as shown in the lower-right figure.
7
5.3.2 Multi-Device Deployment Scenario
Note
When multiple VCN520s or VCN540s are deployed, a guide rail needs to be installed for each device.
A VCN520 or VCN540 requires 2 U space. A guide rail requires 1 U space. Therefore, installing a
single device requires a total of 3 U space. Before installing devices, properly plan the cabinet space.
For details about how to install a device in the cabinet, see the single-device deployment scenario.
This section introduces how to install multiple devices in the cabinet.
If multiple VCN520s or VCN540s are installed, a guide rail needs to be installed for each device, as
shown in the following figure.
8
6.Connecting Cables
Note:
To use the LDU to configure and run surveillance services, connect the LDU to a display, video
output cable, mouse, audio output device, and audio output cable. To use the alarm linkage
function, connect the LDU to an alarm input device and an alarm output device.
Huawei VCN520/VCN540 is not delivered with peripheral devices, users can purchase these
peripheral devices as required.
The LDU supports display resolution of 1440 x 900 and 1920 x 1080. When setting the LDU
resolution to 1920 x 1080, ensure that the resolution of the connected monitor is higher than
1920 x 1080.

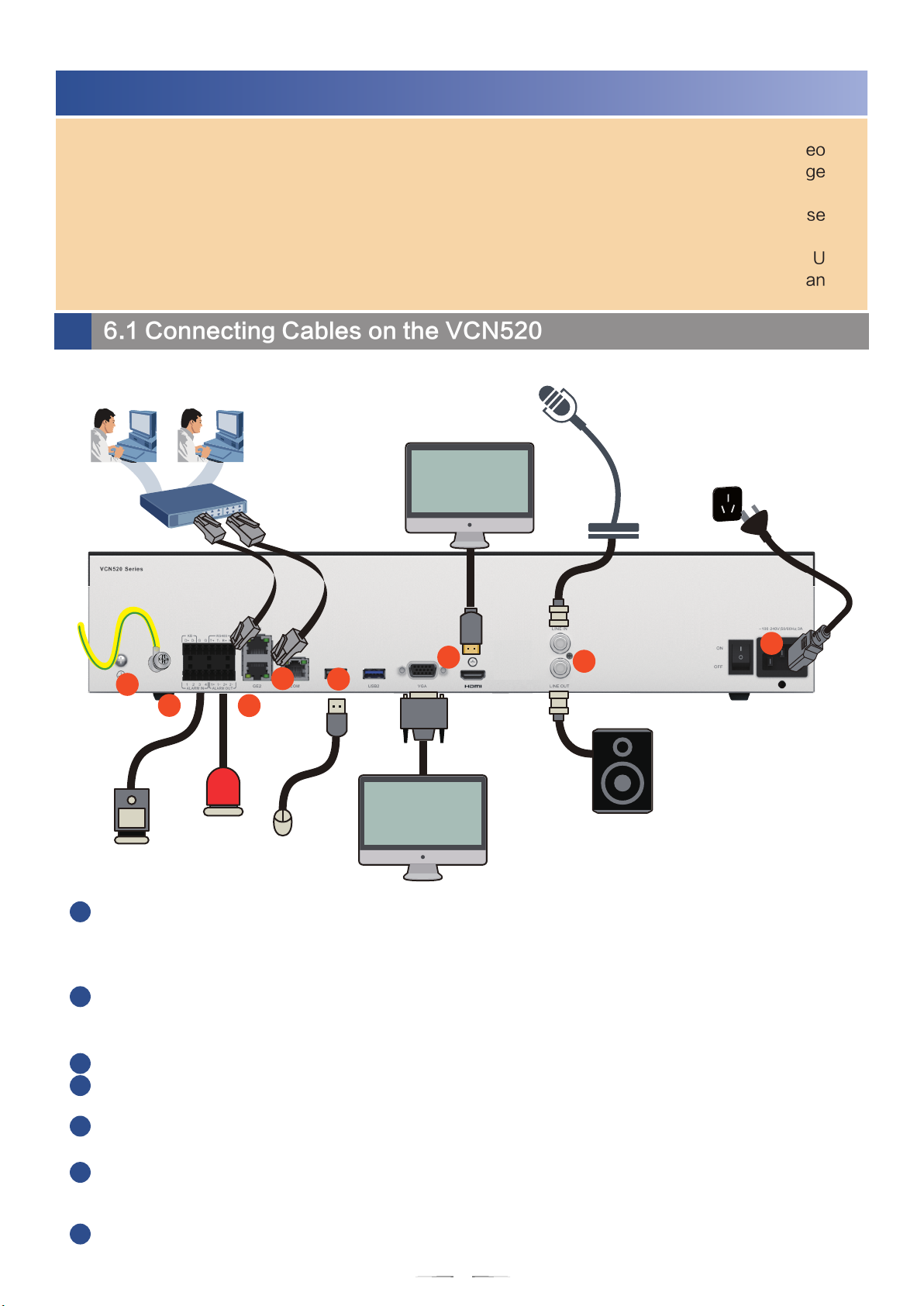

6.1
Connecting Cables on the VCN520
Audio output device
Display
Mouse
Alarm input device
Alarm output
device
5
8
2
3
4
67
1
GE1
Display
Audio input device
Switch
1
2
3
4
5
6
7
Use a Phillips screwdriver to connect one end of the PGND cable to the ground terminal of the
device, and connect the other end to the ground point of the cabinet or work station. The ground
screw uses M4 screws. The PGND cable is prepared by the customer. The PGND cable is green
and yellow, and its diameter must range from 16 AWG to 18 AWG.
The GE ports on a device are bonded in load balancing mode by default. You can use two network
cables to connect the two GE ports to a switch (the two ports on the switch connected to the
network cables require link aggregation), or you can connect any one of the GE ports to the switch.
Connect a display to the VGA or HDMI port as required.
Connect a USB port to a mouse. The VCN provides a USB port on the rear panel and two USB
ports on the left mounting ear of the front panel. Users can select one for connecting a mouse.
(Optional) To use audio device such as headsets and speakers, connect the BNC audio input
device and audio output device.
(Optional) To use alarm input devices such as smoke sensors, infrared sensors, and access
control devices, insert the cable terminal of an alarm input device into the alarm input port. Ensure
that the alarm input device and VCN are both grounded.
(Optional) To use alarm output devices such as alarm bells, insert the cable terminal of an alarm
output device into the alarm output port.
GE1
9
1
2
3
4
5
6
7
8
Use a Phillips screwdriver to connect one end of the PGND cable to the ground terminal of the
device, and connect the other end to the ground point of the cabinet or work station. The ground
screw uses M4 screws. The PGND cable is prepared by the customer. The PGND cable is green
and yellow, and its diameter must range from 16 AWG to 18 AWG.
The GE ports on a device are bonded in load balancing mode by default. You can use two network
cables to connect the two GE ports to a switch (the two ports on the switch connected to the
network cables require link aggregation), or you can connect any one of the GE ports to the switch.
Connect a display to the VGA or HDMI port as required.
Connect a USB port to a mouse. The VCN provides a USB port on the rear panel and two USB
ports on the left mounting ear of the front panel. Users can select one for connecting a mouse.
(Optional) To use audio device such as headsets and speakers, connect the BNC audio input
device and audio output device.
(Optional) To use audio device such as headsets and speakers, insert the cable terminal of an
alarm input device into the alarm input port. Ensure that the alarm input device and VCN are both
grounded.
(Optional) To use alarm output devices such as alarm bells, insert the cable terminal of an alarm
output device into the alarm output port.
Insert one end of the power cable to the power supply interface of the device and the other end to
the power outlet.
6.2
Connecting Cables on the VCN540
Note:
If users do not need to externally connect alarm input or output devices temporarily, it is recom-
mended that the Phoenix connectors be inserted into the alarm input and output ports to pre-
vent Phoenix connector losses.
8
Insert one end of the power cable to the power supply interface of the device and the other end to
the power outlet.
Note:
If users do not need to externally connect alarm input or output devices temporarily, it is recom-
mended that the Phoenix connectors be inserted into the alarm input and output ports to pre-
vent Phoenix connector losses.
Audio output device
Display
Mouse
Alarm input device
Alarm output
device
5
8
2
3
4
67
1
GE1
Display
Audio input device
Switch
GE1
This manual suits for next models
1
Table of contents
Other Huawei Network Hardware manuals
Huawei
Huawei RT-FIC-8SAE User manual
Huawei
Huawei PowerCube 500 V200R001C10 User manual
Huawei
Huawei FusionModule 500 User manual
Huawei
Huawei EN83CTLC User manual
Huawei
Huawei BBU3900 User manual
Huawei
Huawei CR-P4CF User manual
Huawei
Huawei PDU8000 Series User manual
Huawei
Huawei FusionModule5000 Operating manual
Huawei
Huawei NE-FIC-ATM-E3 User manual
Huawei
Huawei RRU3804 User manual
Huawei
Huawei BBU3806 User manual
Huawei
Huawei NE-HIC-2xSTM1/POS-SFP User manual
Huawei
Huawei EchoLife HG8245 User manual
Huawei
Huawei OptiXstar EN8245X6s-8N User manual
Huawei
Huawei RT-FIC-1CPOS User manual
Huawei
Huawei SmartAX MT880a User manual
Huawei
Huawei CR-A2HFF User manual
Huawei
Huawei SmartAX MA5800-X7 User manual
Huawei
Huawei FusionDC1000A User manual
Huawei
Huawei NIP6320 User manual
Popular Network Hardware manuals by other brands
Matrix Switch Corporation
Matrix Switch Corporation MSC-HD161DEL product manual
B&B Electronics
B&B Electronics ZXT9-IO-222R2 product manual
Yudor
Yudor YDS-16 user manual
D-Link
D-Link ShareCenter DNS-320L datasheet
Samsung
Samsung ES1642dc Hardware user manual
Honeywell Home
Honeywell Home LTEM-PV Installation and setup guide
