Huawei EA380-135 Technical specifications

eA380-135 CPE

Product Description

Issue V2.3

Date 2017-02-06

HUAWEI TECHNOLOGIES CO., LTD.

Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential

Page 2 of 21

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: [email protected]

eLTE2.3 eA360 Series CPEs

Product Description

Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential

Page 3 of 21

Contents

1 Product Overview .........................................................................................................................4

2 Application Scenarios ..................................................................................................................6

3 Technical Specifications ..............................................................................................................9

3.1 Hardware.......................................................................................................................................................... 9

3.1.2 Antenna Specifications...................................................................................................................... 10

3.2 Software ......................................................................................................................................................... 11

3.3 User Interfaces ............................................................................................................................................... 13

4 Services and Applications .........................................................................................................15

5 Adopted Standards .....................................................................................................................16

6 Packing List ..................................................................................................................................17

7 Acronyms and Abbreviations...................................................................错误！未定义书签。

eLTE2.3 eA360 Series CPEs

Product Description

Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential

Page 4 of 21

1 Product Overview

Introduction

The Huawei eA380-135 V1R1 CPE is the Long Term Evolution (LTE) customer premises

equipments (CPE). As a wireless gateway, the eA380-135 can be deployed outdoors to

provide services such as data collection and video surveillance.

The eA380-135 V1R1 CPE supports LTE Release 11/12. The eA380-135 provides the

following functions:

Data service

Wi-Fi Service

Security service

Local and remote maintenance and management

Data routing

Product Features

The eA380-135 is developed based on the same hardware and software platform. The

eA380-135's main features are as follows:

Multiple LTE band connectivity

Support multiple LTE TDD Band:

eA380-135:3.5GHz（B43）

1T4R for B43

2CC CA (Intra-band Contiguous)

4×4 MIMO

High speed experience

LTE DL Category12,UL Category 13

5MHz,10MHz,15MHz,20MHz bandwidth

Wireless LANAccess Point

For wireless LAN connectivity with integrated 802.11b/g/n access point,support

maximum 4 different SSID. Wireless security features including standard WLAN

WEP,WPA,WPA2 encryptions.

Soft SIM

Frequency lock(band,frequency,cell)

eLTE2.3 eA360 Series CPEs

Product Description

Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential

Page 5 of 21

Flexible networking capabilities

Provide high-speed routing capability.Comprehensive set of networking and IP protocols

such as bridging,routing,DNS, DHCP server,and NAT.

Support Routing behind MS and DHCP relay.

GRE transparent ethernet bridging (L2VPN over GRE).

UE direct connect.

Support L2TP

Dual APN,one for voice and the other for data

Flexible security services

Support packet filtering firewall.Provide instant protection to block potential security

risks and intrusion attempts.

Web-based Configuration

Built-in web based configuration supports local administration and management with

User-friendly Web interface.

TR069-Based Device management

Support the CPE WAN Management Protocol (CWMP) as specified in Broadband

Forum TR-069 Amendment II.Support remote software installation, setting of

configuration and status parameters.

Antenna

Built-in LTE and WLAN high gain antenna with high performance.

Outdoor adaptability

IP65 dust and water proof

Surge protection in outdoor environments

Others

User-friendly design of LED indicator shows the status of equipment.

Supports Windows XP,Windows Vista,Windows 7,Linux,MAC.Compatible with

Browser include Internet Explorer, Firefox,Chrome,Safari.

Appearance

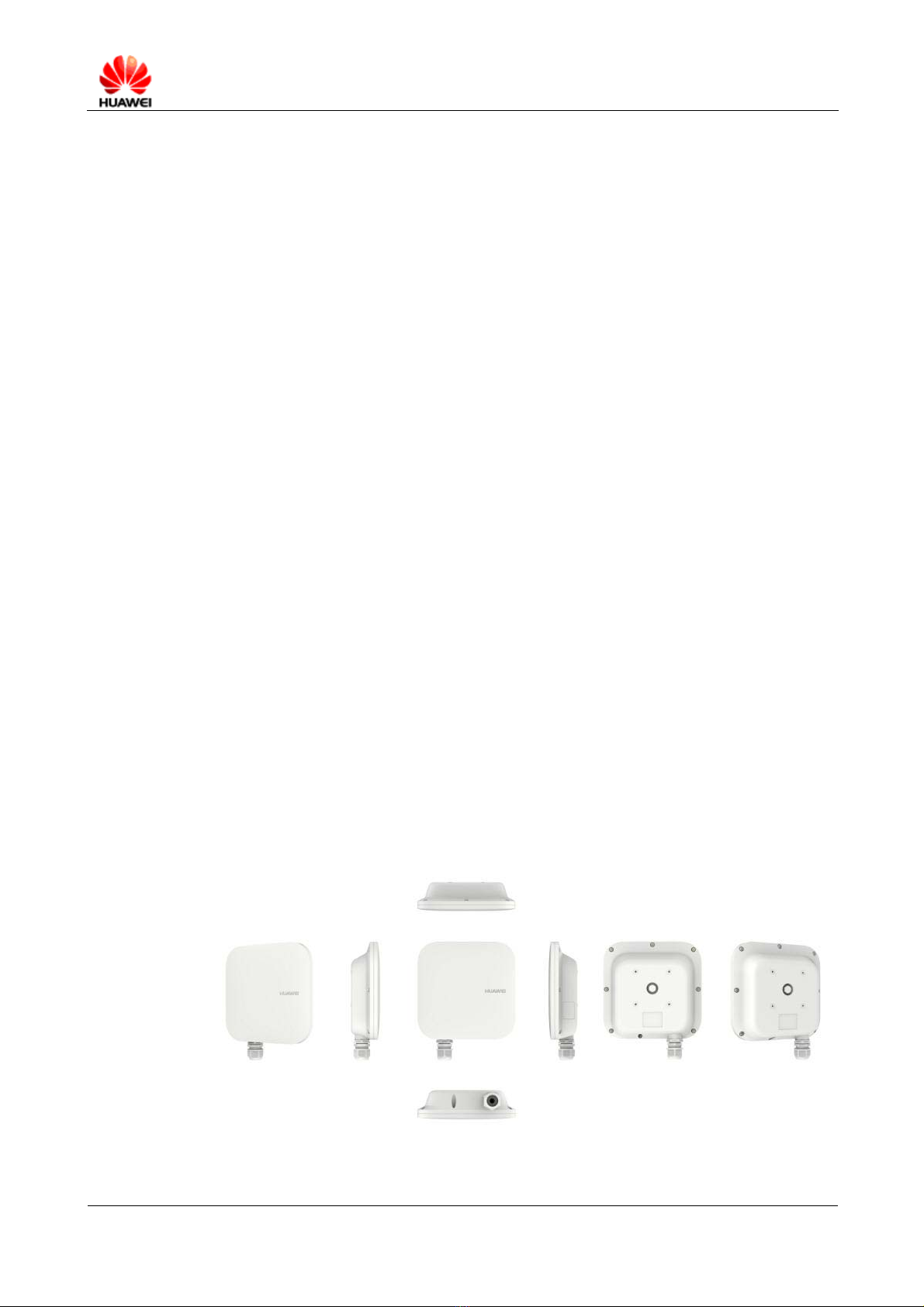

Figure 1-1 Appearance of eA380-135

eLTE2.3 eA360 Series CPEs

Product Description

Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential

Page 6 of 21

2 Application Scenarios

The eA380-135 is specially designed for outdoor deployment to obtain better wireless access

performance to the LTE network.

The eA380-135 is intended to be deployed in wISP network. They can also be deployed in

industrial,public security and enterprise network if the performance is acceptable to the

network operator.

LTE access function:The eA380-135 adopt the LTE access technology at the WAN side.

LAN access function:One 1000Mbps high-speed Ethernet interfaces are provided at the

LAN side.

AP function: An 802.11 b/g/n-compliant WLAN AP interface is provided,used for

wireless networking at home. The interface is compliant with the IEEE802.11 b/g/n

standard and the WEP-OPEN,WEP-SHARED,WPA-PSK(TKIP),WPA-PSK(AES),

WPA2-PSK(TKIP),WPA2-PSK(AES) security authentication.

DHCP/DNS: The DHCP server dynamically allocates IP addresses to PCs.

WEB management: You can configure, modify and query the configuration information

of the eA380-135.

IP route protocol and NAT:High-speed routing capability. With the built-in NAT,the

eA380-135,together with LTE terminals,can provide flexible broadband access solutions

and networking schemes.

eLTE2.3 eA360 Series CPEs

Product Description

Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential

Page 7 of 21

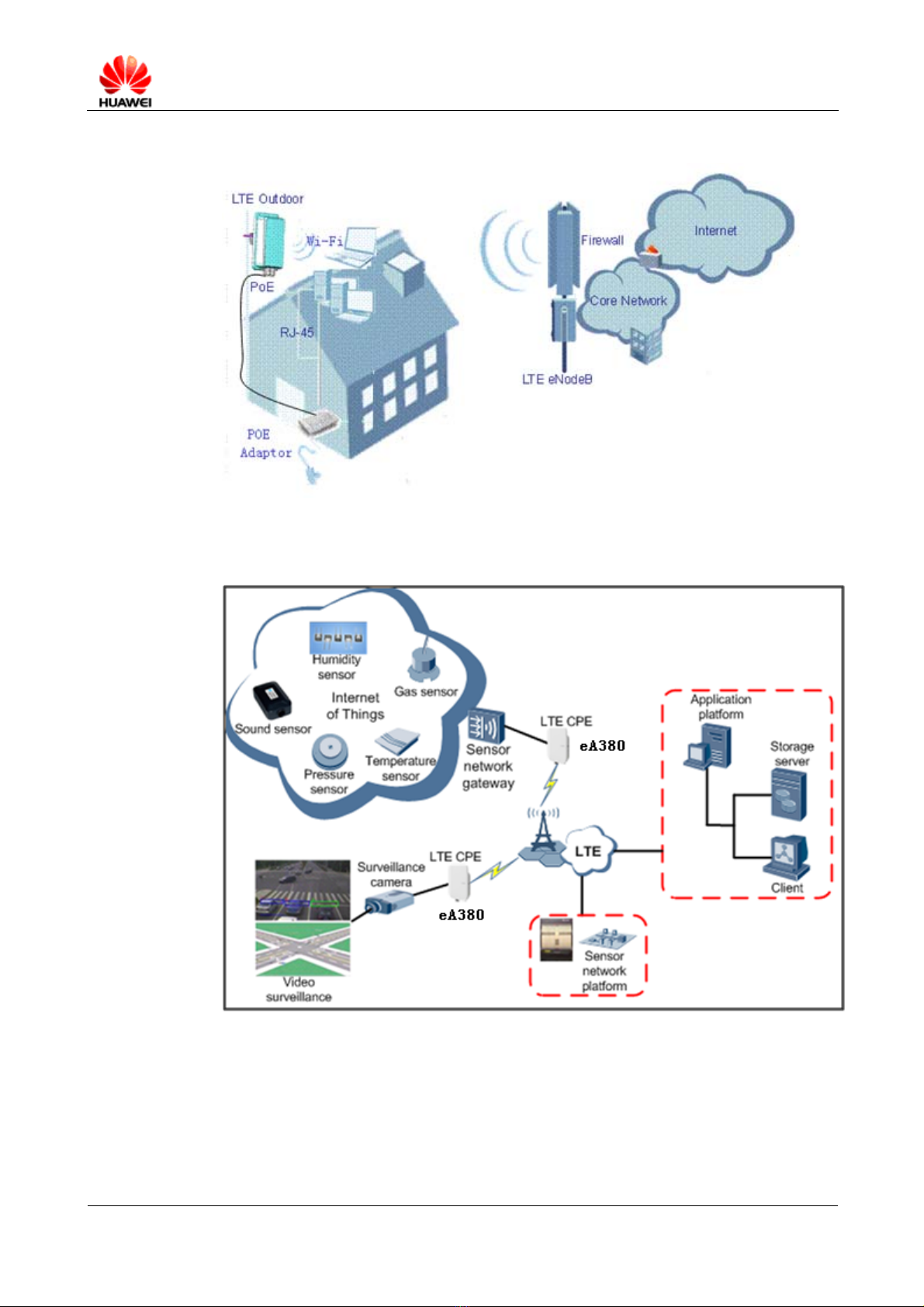

Figure 2-1 The eA380-135 deployed in wISP network

Figure 2-2 The eA380-135 deployed in industrial network

eLTE2.3 eA360 Series CPEs

Product Description

Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential

Page 8 of 21

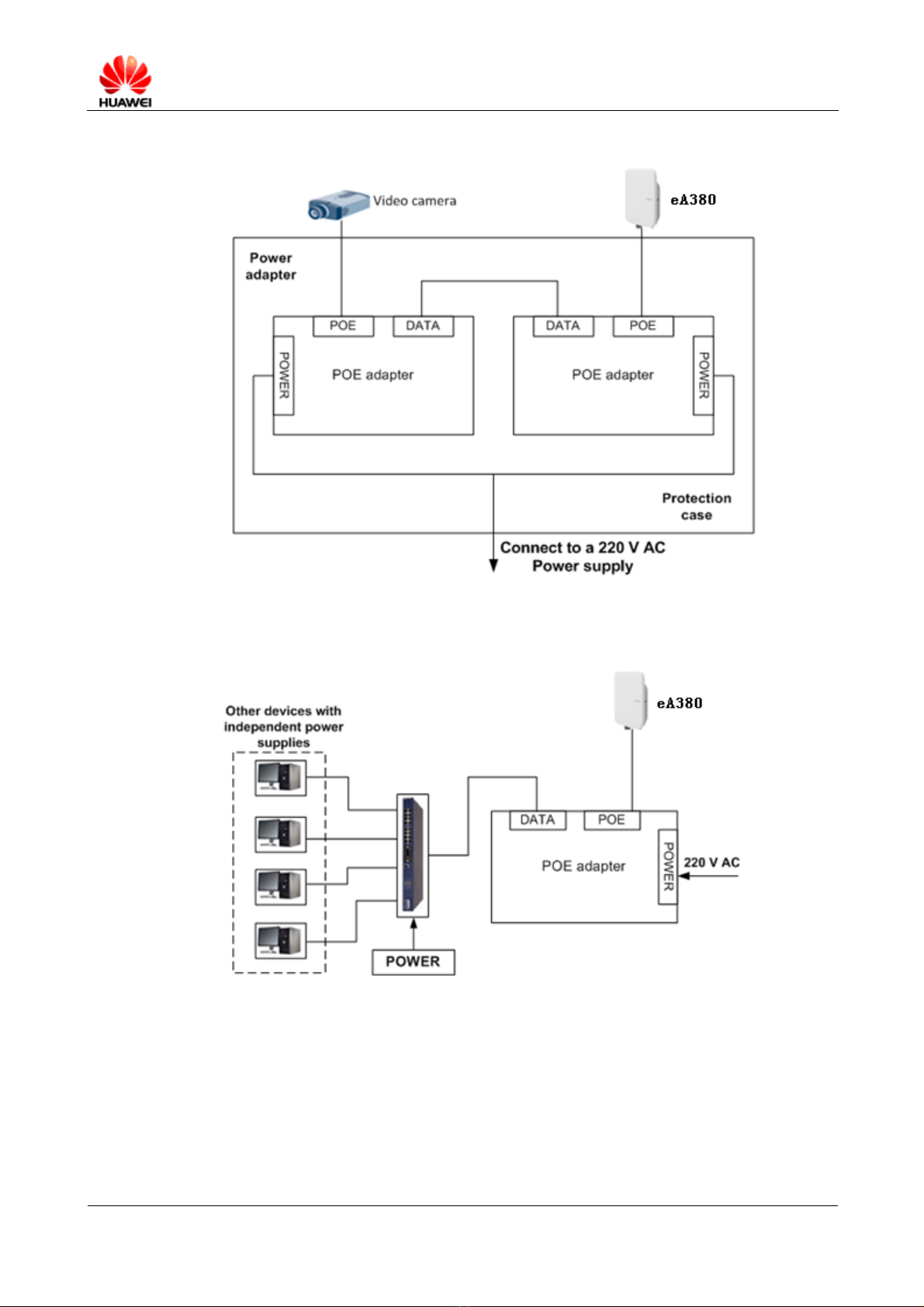

Figure 2-3 The eA380-135 connected to a video camera.

Figure 2-4 The eA380-135 connected to multiple devices

eLTE2.3 eA360 Series CPEs

Product Description

Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential

Page 9 of 21

3 Technical Specifications

3.1 Hardware

Table 3-1 Technical specifications of eA380-135

Category Description

Technical standard WAN:LTE 3GPP Release 11

LAN:IEEE 802.3/802.3u

WLAN:IEEE 802.11b/g/n

Working

frequency band

LTE eA380-135: LTE TDD (3600 MHz to 3800 MHz)

WLAN 2.400 GHz ~ 2.4835 GHz[2]

External

interface

1 Ethernet and voice interface (RJ45): 10/100/1000Base-TX Ethernet,

POE combined

1 USB interface(for local maintenance only)

1 SIM card slot

LED indicator One POWER indicator

One LAN indicator

Three LTE signal strength indicators

Maximum

transmit power

LTE 23 dBm (±2)

WLAN 16dBm(±2 dB)

EIRP LTE

37 dBm

Receiving

sensitivity

LTE eA380-135

B43:

< -99 dBm/5 MHz

< -96 dBm/10 MHz

< -93 dBm/20 MHz

eLTE2.3 eA360 Series CPEs

Product Description

Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential

Page 10 of 21

Category Description

WLAN 802.11b: -92 dBm@1 Mbps,

-85 dBm@11 Mbps

802.11g: -88 dBm@6 Mbps

-73 dBm@54 Mbps

802.11n:

HT20: -87 dBm@MCS0

-71 dBm@MCS7

HT40: -84 dBm@MCS0

-68 dBm@MCS7

Power

consumption

<9W when heater off

<25W when heater works

Power supply POE (should be powered by CAT-5e cable eight line ); AC

100V~240V,DC 48V/650mA

Dimensions

(W×D×H)

258mmx220mmx66mm

Weight About 1kg (The power supply adapter is not included)

Water and dust

proof

IP65

Temperature Working temperature:-40℃~ +55℃

Storage temperature:-40℃~ +70℃

Humidity 5% ~ 95%

Installation Mounted on poles or walls

Tip: Within three months after the arrival,it is recommended to use the equipment,or store in

the following environment:

Temperature:-10 ℃to 35 ℃

Relative humidity (RH):30% RH to 85% RH

Storage environment should be equipped with temperature and humidity equipments and

dehumidification equipment to monitor and adjust the temperature and humidity.

3.1.2 Antenna Specifications

Table 3-2 eA380-135 LTE antenna specifications

Item eA380–135

Band 3600 to 3800 MHz (Band 43)

Gain 13±1 dBi

Input 50 ohm
