HPE FlexNetwork NJ5000 5G PoE Plus Walljack User manual

HPE FlexNetwork NJ5000 5G PoE+

Walljack Switch(JH237A)

Quick Start Guide

The information in this document is subject to change without notice.

Part number: 5998-7330R

Version:6PW102-20161009

Hewlett Packard Enterprise 3000 Hanover Street Palo Alto, CA 94304

5998-7330R

This quick start guide shows you how to install and get started with the HPE

FlexNetwork NJ5000 5G PoE+ Walljack Switch (RMN HNGZA-HA0025, the

Regulatory Model Number) JH237A, hereafter referred to as the switch.

▌Overview

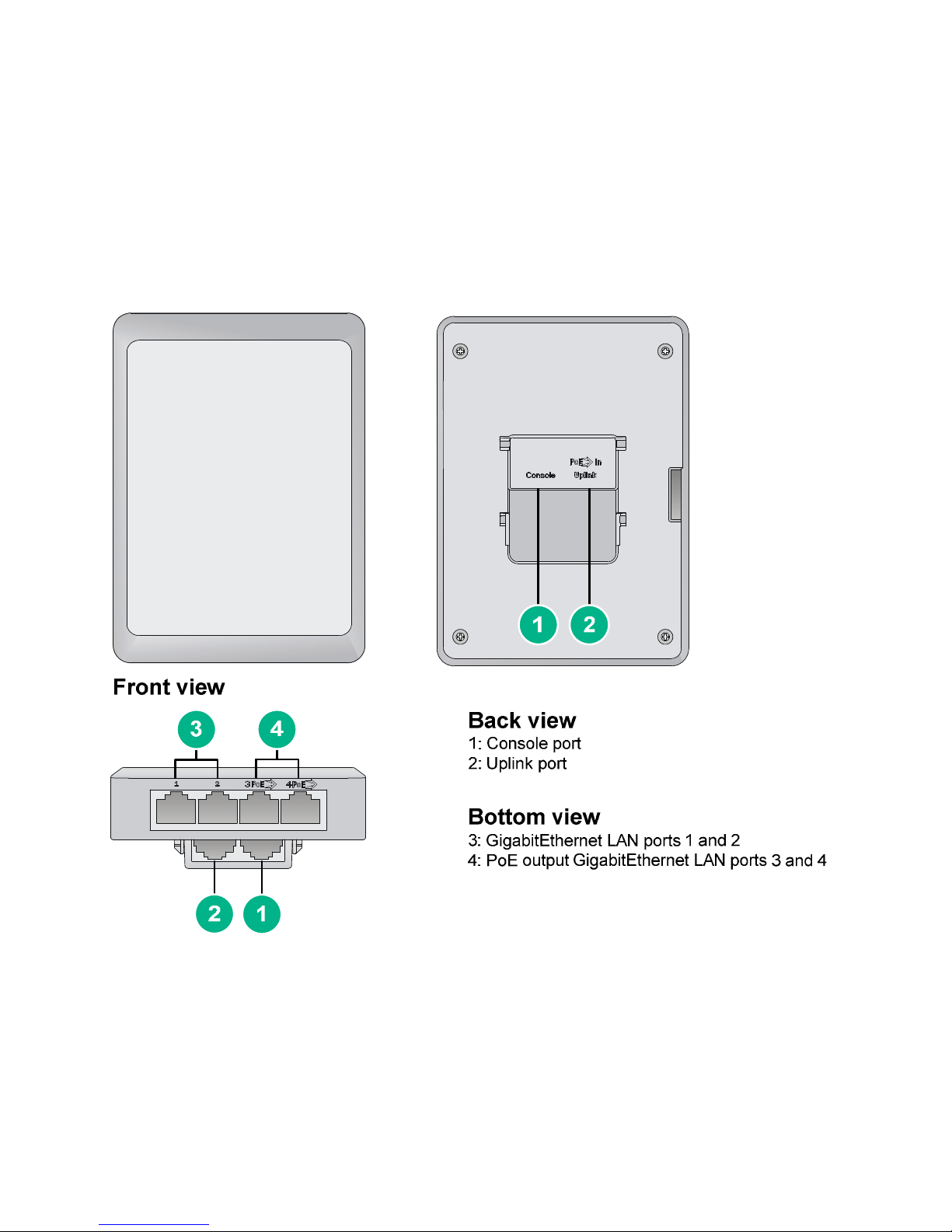

Figure 1 shows the front, back, and bottom views of the switch.

Figure 1 Switch views

Package contents

The product package includes the following items:

•HPE NJ5000 5G PoE+ switch.

•A mounting bracket.

•An Ethernet network cable.

•A pair of mounting screws (3.5 × 25) for sides (for EU) and a pair of mounting

screws (3.5 × 12) for top and bottom (for US).

•Two secure screws: one Phillips head screw and one security-head Torx-10

screw.

•Documentation.

Ports

•Four Gigabit Ethernet LAN ports (bottom of unit)—Auto-sensing 1000BASE-T

Ethernet ports with RJ-45 connectors. Two ports can provide IEEE 802.3af or

802.3at power over Ethernet (PoE) to supply power to PoE Powered Devices

(PDs).

•One Gigabit Ethernet uplink port (back of unit)—Auto-sensing 1000BASE-T

Ethernet port with an RJ-45 connector.

•One console port (back of unit).

Reset button

The reset button is accessible through a hole on the side panel of the switch.

To reboot the switch:

1. Insert a pin or paper clip into the reset button hole.

2. Press and hold the button for 1 to 5 seconds.

3. Release the button.

To change the operation mode for the switch:

1. Insert a pin or paper clip into the reset button hole.

2. Press and hold the button for 7 to 12 seconds until the management mode LED

flashes (10 times per second).

3. Release the button. The management mode LED enters the target mode. If the

LED is on, the switch operates in managed mode. If the LED is off, the switch

operates in unmanaged mode.

To reset the switch to factory defaults:

1. Insert a pin or paper clip into the reset button hole.

2. Press and hold the button for more than 15 seconds until the status LEDs (Power

and Uplink) flash.

3. Release the button.

LEDs

Figure 2 shows the status LEDs on the switch.

Figure 2 LED view

Table 1 LED status descriptions

LED Status Description

Power status LED

Steady green The switch is powered by 802.3at PoE+ and

the power supply is operating correctly.

Flashing green The switch is powered on and is performing

a self-test.

Slow flashing

green

The switch is powered by 802.3af PoE and

the power supply is operating correctly.

Off The switch is not powered on or the power

supply is faulty.

Steady red A failure has occurred.

LAN port LED

Steady green A link is present.

Flashing green The port is receiving or sending data.

Off No link is present.

LED Status Description

PoE output port

LED

Steady green A link is present (no PoE).

Steady amber A link is present (PoE).

Flashing green The port is sending or receiving data (no

PoE).

Flashing amber The port is sending or receiving data (PoE).

Slow flashing

amber The PoE power supply is faulty.

Off No link is present.

Uplink port LED

Steady green A link is present.

Flashing green The port is sending or receiving data.

Off No Link is present.

Management

mode LED

On The switch is operating in managed mode.

Off The switch is operating in unmanaged

mode.

▌Installing the switch

The switch is designed to be mounted on a standard NEMA-WD6 (US) or BS 4662

(International) in-wall electrical outlet box.

You can also install the switch by using the optional HPE unified wired-WLAN

walljack table/flush wall mount kit (JL022A). This kit, which is purchased separately,

lets you install the switch on a horizontal surface or wall.

Restrictions and guidelines

This equipment must be installed in compliance with local and national building

codes, regulatory restrictions, and FCC rules. For the safety of people and equipment,

only professional network personnel should install the device.

To avoid possible bodily injury or equipment damage, read the following safety

recommendations before you install the switch. The recommendations do not cover

every possible hazardous condition.

•Install with six inches or more of clearance around the device.

•Keep the device clean and dust-free.

•Make sure the ground is dry and flat and anti-slip measures are in place.

•Do not place the device in a moist area and avoid liquid surrounding the device.

•Keep the device and installation tools away from walkways.

Installing the switch over an electrical outlet box

1. Place the mounting bracket, with the UP arrow pointing up, on the electrical outlet

box, and then use two of the supplied mounting screws to secure the bracket to

the box.

The two long mounting screws are for an EU electrical outlet box. The two short

mounting screws are for a US electrical outlet box.

Figure 3 Securing the mounting bracket to an electrical outlet box (EU)

Figure 4 Securing the mounting bracket to an electrical outlet box (US)

2. Connect the network cable from the electrical outlet box to the RJ-45 uplink port

on the back of the switch.

Figure 5 Connecting the network cable

3. Align the installation hole in the rear of the switch with the standout on the

mounting bracket.

Figure 6 Aligning the installation hole

4. Push the switch onto the mounting bracket, and then slide it down until it is fully

engaged. Then secure the switch to the bracket by using the Phillips-head screw

or security-head security Torx-10 screw. Do not release the switch until you

confirm that it is secured in place.

Figure 7 Securing the switch

Other mounting options using optional Mounting Kit

Additional mounting configurations are possible by using the JL022A HPE Unified

Wired-WLAN Walljack Table/Flush Wall Mount Kit. Please contact your Hewlett

Packard Enterprise sales representative to purchase this part. Detailed mounting

instructions are provided with the kit.

Figure 8 Securing the switch

Using the kit, one can attach the switch to a wall without an electrical junction box.

The optional mounting kit is installed first. Then the mounting bracket attaches to the

mounting kit. Finally, the unit attaches to the mounting bracket as previously

described.

Note: Before installing the switch on a wall, make sure the surface of the wall can

support a minimum weight of 0.9 kg (2 lbs) and the weight of the extra cables.

Using the kit, one can install the switch unit on a desktop. The optional mounting kit is

installed first on a flat surface. Then the mounting bracket attaches to the mounting

kit. Finally, the unit attaches to the mounting bracket as previously described.

▌Powering the Switch

The switch can be powered by a PoE-enabled switch or by a compatible PoE Power

Injector.
