Manual version: 6PW108-20180130 BOM: 3123A0XN
iii
Module Central
wavelength Connector
type Cable
specifications
Maximum
transmission
distance
SFP-GE-LX-SM1310-D
1310 nm LC 9/125 µm SMF 10 km (6.21 miles)
1310 nm LC 50/125 µm MMF 550 m (1804.46 ft)
1310 nm LC 62.5/125 µm MMF 550 m (1804.46 ft)
SFP-GE-LH40-SM1310 1310 nm LC 9/125 µm SMF 40 km (24.86 miles)
SFP-GE-LH40-SM1310-D 1310nm LC 9/125 µm SMF 40 km (24.86 miles)
SFP-GE-LH40-SM1550 1550 nm LC 9/125 µm SMF 40 km (24.86 miles)
SFP-GE-LH80-SM1550 1550 nm LC 9/125 µm SMF 70 km (43.50 miles)
SFP-GE-LH80-SM1550-D 1550nm LC 9/125 µm SMF 70 km (43.50 miles)
SFP-GE-LH100-SM1550 1550 nm LC 9/125 µm SMF 100 km (62.14 miles)
SFP-GE-LX-SM1310-BIDI RX: 1490 nm
TX: 1310 nm LC 9/125 µm SMF 10 km (6.21 miles)
SFP-GE-LX-SM1490-BIDI RX: 1310 nm
TX: 1490 nm LC 9/125 µm SMF 10 km (6.21 miles)
NOTE:
•BIDI modules use different central wavelengths in transmit and receive directions, in order to
implement bidirectional transmission of optical signals over the same fiber.
•The BIDI modules must be used in pairs. For example, if you install the
SFP-GE-LX-SM1310-BIDI in the local port, you must install the SFP-GE-LX-SM1490-BIDI in the
peer port.

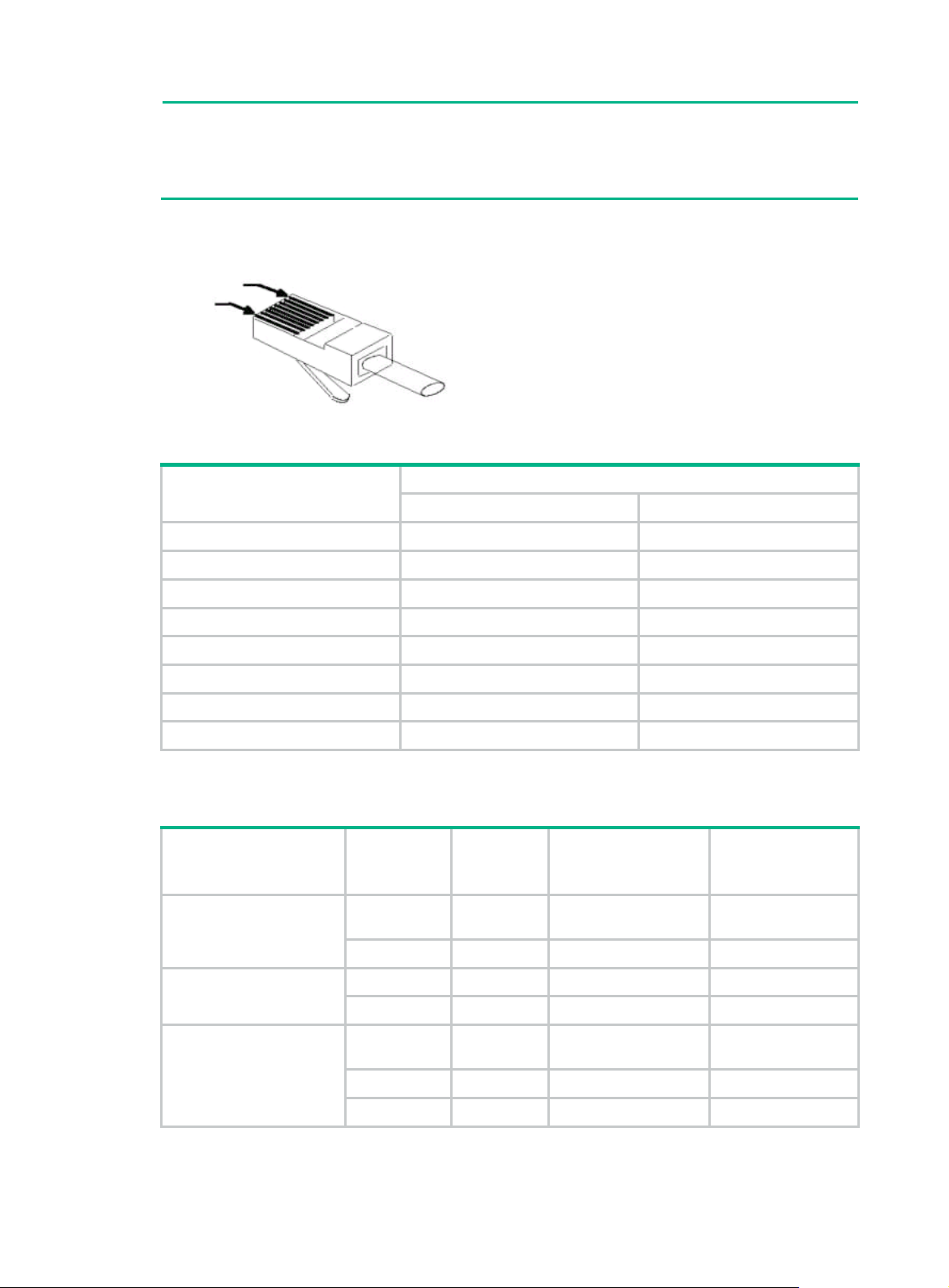

Table 4 describes the QSFP+ transceiver modules available for the QSFP+ ports on the card.
Table 4 QSFP+ transceiver module specifications
Module Central
wavelength Connector Fiber
specifications
Maximum
transmission
distance
QSFP-40G-SR4-MM850
850 nm MPO 50/125 µm MMF 100 m (328.08 ft)
850 nm MPO 50/125 µm MMF 150 m (492.13 ft)
QSFP-40G-SR4-MM850-N
DDM
850 nm MPO 50/125 µm MMF 100 m (328.08 ft)
850 nm MPO 50/125 µm MMF 150 m (492.13 ft)
QSFP-40G-CSR4-MM850
850 nm MPO 50/125 µm MMF 300 m (984.25 ft)
850 nm MPO 50/125 µm MMF 400 m (492.13 ft)
QSFP-40G-CSR4-MM850-
NDDM
850 nm MPO 50/125 µm MMF 300 m (984.25 ft)
850 nm MPO 50/125 µm MMF 400 m (492.13 ft)
QSFP-40G-BIDI-SR-MM850 850 nm LC 50/125 µm MMF
100 m (328.08 ft)
150 m (492.13 ft)
