HP StorageWorks 8B - FC Entry Switch User manual

installation and

reference guide

hp surestore fc 1Gb/2Gb entry

switch 8B and fc 1Gb/2Gb switch 8B

www.hp.com

Notice

Edition: E1201

Hewlett-Packard Company makes no warranty of any kind with

regard to this material, including, but not limited to, the implied

warranties of merchantability and fitness for a particular purpose.

Hewlett-Packard shall not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance, or use of this material.

This document contains proprietary information, which is protected

by copyright. No part of this document may be photocopied,

reproduced, or translated into another language without the prior

written consent of Hewlett-Packard. The information contained in

this document is subject to change without notice.

Use, duplication, or disclosure by government is subject to

restrictions as set forth in subdivision (c) (1) (ii) of the Rights in

Technical Data and Computer Software Clause at DFARS

252.227.7013.

Warranty

If you have any questions about the warranty for this product,

contact your dealer or local Hewlett-Packard sales representative

Trademarks

BROCADE, the Brocade B weave logo, Brocade: the Intelligent

Platform for Networking Storage, SilkWorm, and SilkWorm

Express, are trademarks or registered trademarks of Brocade

Communications Systems, Inc. or its subsidiaries in the United

States and/or in other countries.

All other brands, product or service names are or may be trademarks

or service marks of, and are used to identify products of services of

their respective owners.

Safety notices

Any servicing, adjustment, maintenance, or repair must be

performed only by authorized service-trained personnel.

Installation and Reference Guide iii

Contents

Preface

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Related Publications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Getting Software Updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Chapter 1 Introducing the Switch

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

The SFP Media Side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

The Fan Side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Monitoring and Managing the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Chapter 2 Installing and Configuring the Switch

Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Installing the Switch as a Stand-Alone Unit. . . . . . . . . . . . . . . . . . . . . . 2-2

Installing the Switch in a Rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Configuring and Connecting the Switch . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Saving the System Configuration Files . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Backing up the Switch Configuration Settings. . . . . . . . . . . 2-19

Restoring the System Configuration Settings. . . . . . . . . . . . 2-20

Next Steps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Setting QuickLoop Mode on Ports. . . . . . . . . . . . . . . . . . . . 2-20

Setting Up Speed Negotiation . . . . . . . . . . . . . . . . . . . . . . . 2-21

Configuring Supported Devices . . . . . . . . . . . . . . . . . . . . . . 2-21

iv Installation and Reference Guide

Chapter 3 Operating the Switch

Turning the Switch On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Interpreting LED Activity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

LEDs on the SFP Media Side . . . . . . . . . . . . . . . . . . . . . . . 3-2

LEDs on the Fan Side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Interpreting POST Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Maintaining the Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Appendix A Product Specifications

Switch Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Weight and Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Facility Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Power Supply Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Memory Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

Optical Port Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

Serial Port Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

POST Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7

Glossary

Index

Installation and Reference Guide v

Preface

About This Guide

This guide provides the following information about the HP Surestore FC 1Gb/2Gb Entry Switch

8B and FC 1Gb/2Gb Switch 8B:

Related Publications

Related product information can be found in the following publications. Those publications with

part numbers are provided as printed copies with your product. The FC Entry Switch 8B and FC

Switch 8B Documentation CD contains all publications listed in the table below and is also

provided with your product. These publications are also available at

http://www.hp.com/support/fc8B.

Chapter 1

Introducing the Switch Overview information about the switch.

Chapter 2

Installing and Configuring the Switch Instructions for installing and configuring the

switch.

Chapter 3

Operating the Switch Instructions for operating the switch and

interpreting system activity.

Appendix A

Product Specifications Description of switch components, physical

specifications, environmental and other facility

requirements, memory, and standards

compliance.

Title Part Number

HP Surestore FC 1Gb/2Gb Entry Switch 8B and FC 1Gb/2Gb

Switch 8B Getting Started Guide A7346-96002

HP Surestore FC 1Gb/2Gb Entry Switch 8B and FC 1Gb/2Gb

Switch 8B Documentation CD A7346-11001

HP Surestore FC 1Gb/2Gb Entry Switch 8B and FC 1Gb/2Gb

Switch 8B Installation and Reference Guide Available on CD

Fabric OS Reference Manual, version 3.0 Available on CD

Fabric OS Procedures Guide, version 3.0 Available on CD

Fabric OS Version 3.0.1b Release Notes Available on CD

Fabric Watch User’s Guide, version 3.0 Available on CD

QuickLoop User’s Guide, version 3.0 Available on CD

vi Installation and Reference Guide

Information about Fibre Channel standards and Fibre Channel in general can be found on the Fibre

Channel Industry Association Web site, located at http://www.fibrechannel.com.

Getting Help

For the most current technical support information for the FC Entry Switch 8B and FC Switch 8B,

visit the HP Web site at http://www.hp.com/support/fc8B. This includes hardware and software

support, all repairs, and spare components.

Be prepared to provide the following information to the support personnel:

•Switch serial number

•Switch world wide name

•Output from the supportShow telnet command

•Detailed description of the problem

•Topology configuration

•Troubleshooting steps already performed

Getting Software Updates

For information on obtaining software updates contact your HP account representative.

Web Tools User’s Guide, version 3.0 Available on CD

Distributed Fabrics User’s Guide, version 3.0 Available on CD

Zoning User’s Guide, version 3.0 Available on CD

MIB Reference Manual, version 3.0 Available on CD

ISL Trunking User’s Guide, version 3.0 Available on CD

Advanced Performance Monitoring User’s Guide, version 3.0 Available on CD

Merging Heterogeneous Fabrics Instructions Available on CD

Title Part Number

Installation and Reference Guide 1-1

Chapter

Introducing the Switch

This chapter provides the following information:

•Overview on page 1-1

•Monitoring and Managing the Switch on page 1-3

Overview

The FC Entry Switch 8B and FC Switch 8B are eight-port Fibre Channel fabric switches that

support link speeds up to 2 Gbps. Both switches include Fabric OS version 3.0.1b or later, and are

compatible with the entire HP installed base of Fibre Channel hubs, bridges, and switches. Each

product can operate in a fabric containing multiple switches or as the only switch in a fabric.

The switch has an air-cooled chassis, and can be set up as a stand-alone unit or mounted in a 1U,

19-inch rack. It includes the following features:

•Eight optical ports, with the following characteristics:

-Two LEDs (light-emitting diodes), one to indicate port status and one to indicate link

speed

-Automatic negotiation to the highest common speed of all devices connected to the

port.

-SFP (small form factor pluggable) interface

-Universal and self-configuring

-Capable of becoming an F_Port (fabric enabled), FL_Port (fabric loop enabled), or

E_Port (expansion port)

•One serial port with an RS-232 connector

•One 10/100 Mbps Ethernet port with an RJ-45 connector and two LEDs, one to indicate

port status and one to indicate link speed

•A switch status LED on the SFP media side and fan side, indicating the overall status of

the switch

•One power supply

•Five fan assemblies

1-2 Installation and Reference Guide

Introducing the Switch

The SFP Media Side

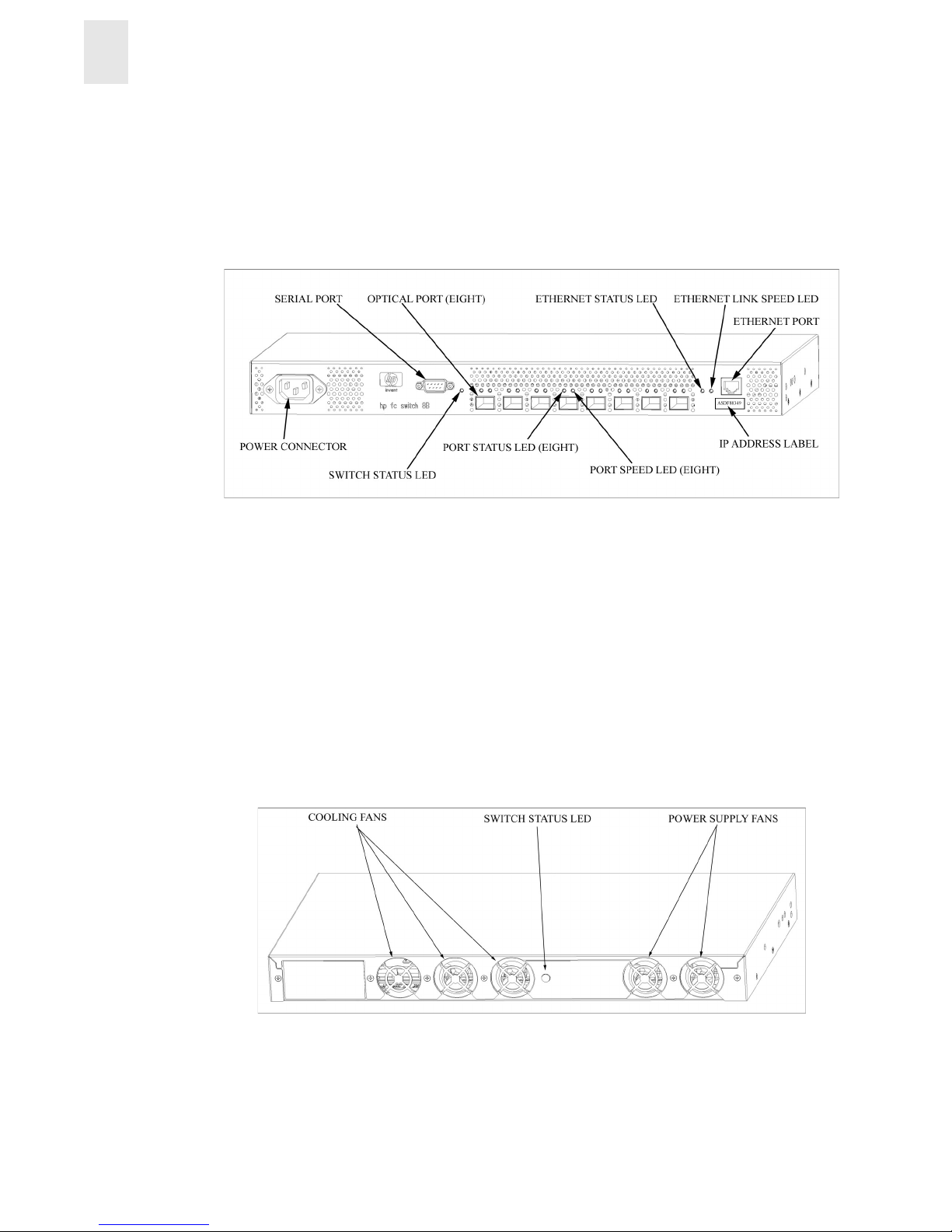

Figure 1-1 shows the SFP media side of the switch, which contains the power connector, IP label,

serial port, switch status LED, fiber optic ports and their corresponding LEDs, and the Ethernet port

and its corresponding LEDs.

Figure 1-1 The SFP Media Side of the FC Entry Switch 8B and FC Switch 8B

The switch ports are color-coded into two groups of four, to indicate which ports can be used in the

same ISL Trunking group.

Note: ISL Trunking is a Fabric OS feature that enables distribution of traffic over the combined

bandwidth of up to four ISLs between two directly adjacent switches, while preserving

in-order delivery. For information about ISL Trunking, refer to the ISL Trunking User’s

Guide.

The Fan Side

Figure 1-2 shows the fan side of the switch, which contains the fans and the switch status LED.

Figure 1-2 The Fan Side of the FC Entry Switch 8B and FC Switch 8B

Installation and Reference Guide 1-3

Introducing the Switch 1

Monitoring and Managing the Switch

The switch can be managed in-band using Fibre Channel protocol, or out-of-band by connecting to

the Ethernet port. The management functions allow the administrator to monitor fabric topology,

port status, physical status, and other information to aid in system debugging and performance

analysis.

Note: The switch performs POST (power on self-test diagnostics) by default each time the switch

is powered on or reset, and any errors are recorded in the error log. For more information

about POST, see Interpreting POST Results on page 3-4.

The switch is compatible with the following management interfaces:

•Command line interface through a telnet connection

Only one telnet session can be active at a time. For more information refer to the Fabric

OS Procedures Guide and the Fabric OS Reference Manual.

•Web Tools

For more information refer to the Web Tools User’s Guide.

•Standard SNMP applications

For more information refer to the MIB Reference Manual.

All these management methods can be used either in-band (Fibre Channel) or out-of-band

(Ethernet).

In addition, the switch supports the following software:

•Zoning

For information refer to the Zoning User’s Guide.

•QuickLoop

For information refer to the QuickLoop User’s Guide.

•Fabric Watch

For information refer to the Fabric Watch User’s Guide.

•Advanced Performance Monitoring

For information refer to the Advanced Performance Monitoring User’s Guide.

•Extended Fabrics

For information refer to the Distributed Fabrics User’s Guide.

•Remote Switch

For information refer to the Distributed Fabrics User’s Guide.

•ISL Trunking

For information refer to the ISL Trunking User’s Guide.

1-4 Installation and Reference Guide

Introducing the Switch

Other manuals for StorageWorks 8B - FC Entry Switch

This manual suits for next models

Table of contents

Other HP Switch manuals

HP 1810 series User instructions

HP 5130 48G 4SFP+ XI Assembly instructions

HP 3600 v2 Series Installation manual

HP 5920 User manual

HP 316095-B21 - StorageWorks Edge Switch 2/24 User manual

HP 12500 Series User manual

HP 316095-B21 - StorageWorks Edge Switch 2/24 User manual

HP ProCurve 2510G Series User manual

HP 316095-B21 - StorageWorks Edge Switch 2/24 User manual

HP ProCurve 6120G/XG Programming manual

HP FlexFabric 5940 User manual

HP ProCurve 1600M Assembly instructions

HP ProCurve J4863A User manual

HP HP ProCurve Series 6600 Installation guide

HP ProCurve 3500-48-PoE Assembly instructions

HP 376227-B21 - ProLiant InfiniBand 4x Fabric Copper... Quick reference guide

HP FlexFabric 12900 series User manual

HP 316095-B21 - StorageWorks Edge Switch 2/24 Instruction Manual

HP 6125G User manual

HP A7533A - Brocade 4Gb SAN Switch Base Instruction Manual

HP FlexNetwork 7500 Series Installation manual

HP 10GbE Pass-Thru Module User instructions

HP OfficeConnect 1920S Series User manual

HP E3800-24G-2SFP+ User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
