HP ProCurve 2510-24 User manual

Installation and

Getting Started Guide

www.procurve.com

ProCurve Series

2510-24 Switch

ProCurve Series 2510 Switch

Installation and Getting Started Guide

Hewlett-Packard Company

8000 Foothills Boulevard, m/s 5552

Roseville, California 95747-5552

http://www.procurve.com

L.P. The information contained herein is subject to change

without notice.

This document contains proprietary information, which is

protected by copyright. No part of this document may be

photocopied, reproduced, or translation into another language

without the prior written consent of Hewlett-Packard.

Publication Number

5991-3833

July 2006

Applicable Products

Disclaimer

HEWLETT-PACKARD COMPANY MAKES NO

WARRANTY OF ANY KIND WITH REGARD TO THIS

MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard

shall not be liable for errors contained herein or for incidental or

consequential damages in connection with the furnishing,

performance, or use of this material.

The only warranties for HP products and services are set forth in

theexpresswarrantystatementsaccompanyingsuchproductsand

services. Nothing herein should be construed as constituting an

additionalwarranty.HPshallnotbeliablefortechnicaloreditorial

errors or omissions contained herein.

Hewlett-Packard assumes no responsibility for the use or

reliability of its software on equipment that is not furnished by

Hewlett-Packard.

Warranty

See the Customer Support/Warranty booklet included with the

product.

A copy of the specific warranty terms applicable to your Hewlett-

Packardproductsandreplacementpartscanbeobtainedfromyour

HP Sales and Service Office or authorized dealer.

Safety

Before installing and operating these products, please read

the “Installation Precautions” in chapter 2, “Installing the

Switch”, and the safety statements in appendix B, “Safety

and EMC Regulatory Statements”.

ProCurve Switch 2510-24 (J9019A)

iii

Contents

1 Introducing the Switch

Front of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Network Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

LED Mode Select Button and Indicator LEDs . . . . . . . . . . . . . . . . . . . . 1-4

Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Back of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

2 Installing the Switch

Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Installation Precautions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2. Installing or Removing mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

3. Verify the Switch Passes Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

LED Behavior: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

4. Mount the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Rack or Cabinet Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Rack Mounting the Switch 2510-24 . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Horizontal Surface Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

5. Connect the Switch to a Power Source . . . . . . . . . . . . . . . . . . . . . . 2-15

6. Connect the Network Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Using the RJ-45 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Connecting Cables to mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

7. (Optional) Connect a Console to the Switch . . . . . . . . . . . . . . . . . . 2-17

Terminal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Direct Console Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Sample Network Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

As a Desktop Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

As a Segment Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Connecting to a Backbone Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

Stacking the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23

3 Configuring the Switch

Recommended Minimal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Using the Console Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Where to Go From Here . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Using the IP Address for Remote Switch Management . . . . . . . . . . . 3-5

Starting a Telnet Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Starting a Web Browser Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

4 Troubleshooting

Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Diagnosing with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Proactive Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Hardware Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Testing the Switch by Resetting It . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Checking the Switch LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Checking Console Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Testing Twisted-Pair Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Testing Switch-to-Device Network Communications . . . . . . . . . . . . 4-10

Testing End-to-End Network Communications . . . . . . . . . . . . . . . . . 4-10

Restoring the Factory Default Configuration . . . . . . . . . . . . . . . . . . 4-11

Downloading New Switch Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

ProCurve Customer Support Services . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Before Calling Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

A Switch Specifications

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Lasers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

B Switch Ports and Network Cables

Switch Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Twisted-Pair Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Mode Conditioning Patch Cord for Gigabit-LX . . . . . . . . . . . . . . . . . B-3

Installing the Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

Twisted-Pair Cable/Connector Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . B-5

Straight-Through Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . B-6

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6

Crossover Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connection . . . . . . . . . . . . . . . . . . . . . B-7

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7

C Safety and EMC Regulatory Statements

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

Informations concernant la sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2

Hinweise zur Sicherheit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3

Considerazioni sulla sicurezza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4

Consideraciones sobre seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5

Safety Information (Japan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6

Safety Information (China) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-7

EMC Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

U.S.A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Australia/New Zealand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Korea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-9

Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-9

European Community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-10

D Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements D-1

Index

1-1

Introducing the Switch

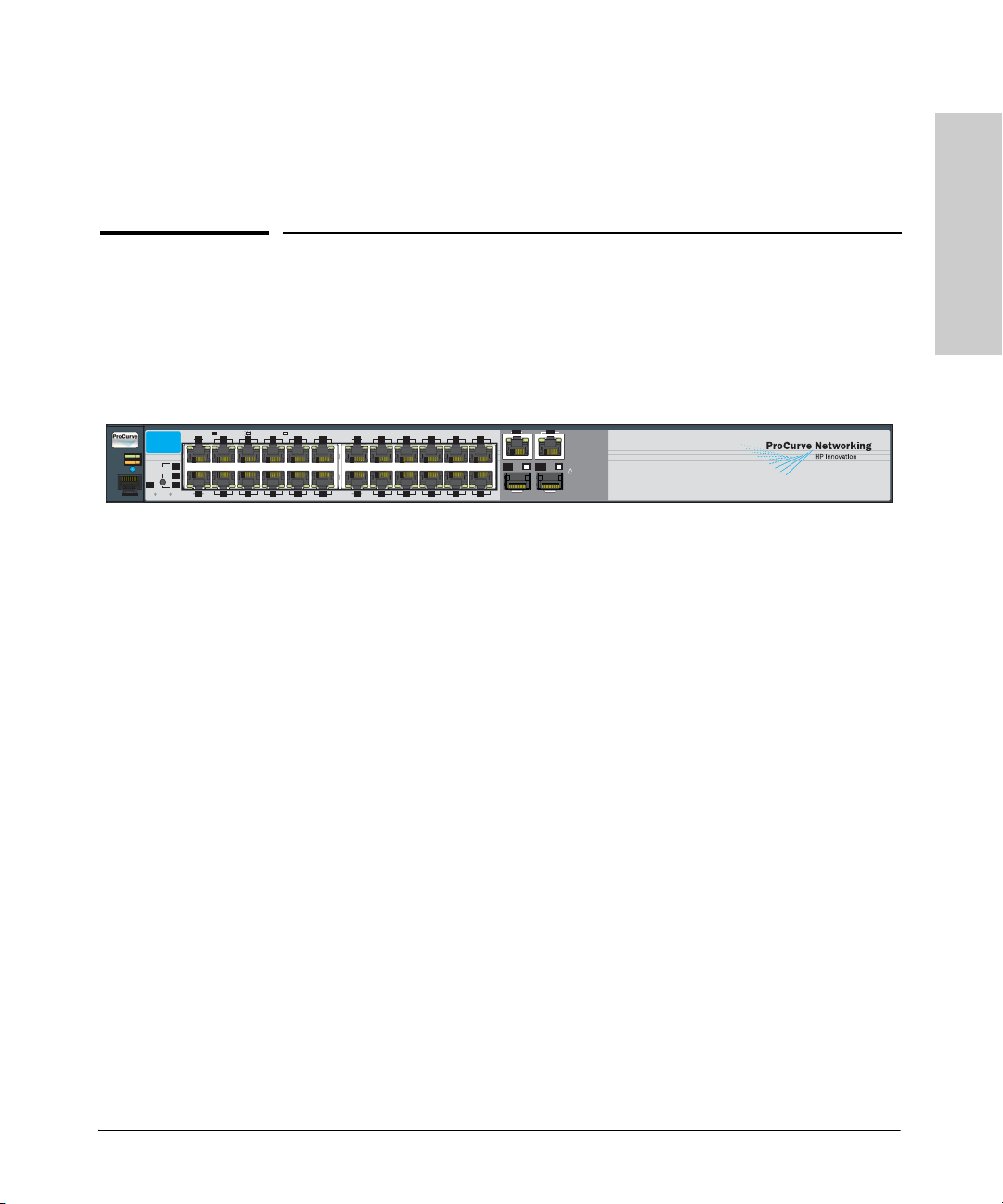

The ProCurve Switch 2510-24 is a multiport switch that can be used to build

high-performance switched workgroup networks. These switches are store-

and-forward devices offering low latency for high-speed networking.

The Switch 2510-24 has 24 auto-sensing 10/100Base-TX RJ-45 ports, two dual-

personality ports—either auto-sensing 10/100/1000Base-T RJ-45 or mini-

GBIC.

The dual-personality ports have either auto-sensing 10/100/1000Base-T RJ-45,

or mini-GBIC connectivity. If any of the mini-GBIC ports are used the corre-

sponding RJ-45 port will be disabled.

These switches are designed to be used primarily as a high-density wiring

closet or desktop switch. These switches can directly connect computers,

printers, and servers to provide dedicated bandwidth to those devices, and

can build a switched network infrastructure by connecting the switch to hubs,

other switches, or routers. In addition, the Series 2510 Switch offer full

network management capabilities.

This chapter describes the ProCurve Switch 2510-24, including:

■front and back of the switch

■LEDs

■switch features

Power

Fault

Locator

Console

10/100Base-T Ports (1 - 24)  Ports are HP Auto M I-X

ual-Personality Ports:

10/100/1000-T (T)

or Mini-GBIC (M)

!Use only one (T or M)

for each Port

25M

*Spd mode: off = 10 Mbps, flash = 100 Mbps, on = 1000 Mbps

864

Link Mode

Link Mode 24

222018

2119

Link Mode

Mode

Clear

Reset

Test

F x

Spd

Act

ProCurve Switch

2510-24

J9019A

26M

25T26T

Link Mode

ProCurve Switch 2510-24 (J9019A)

1-2

Introducing the Switch

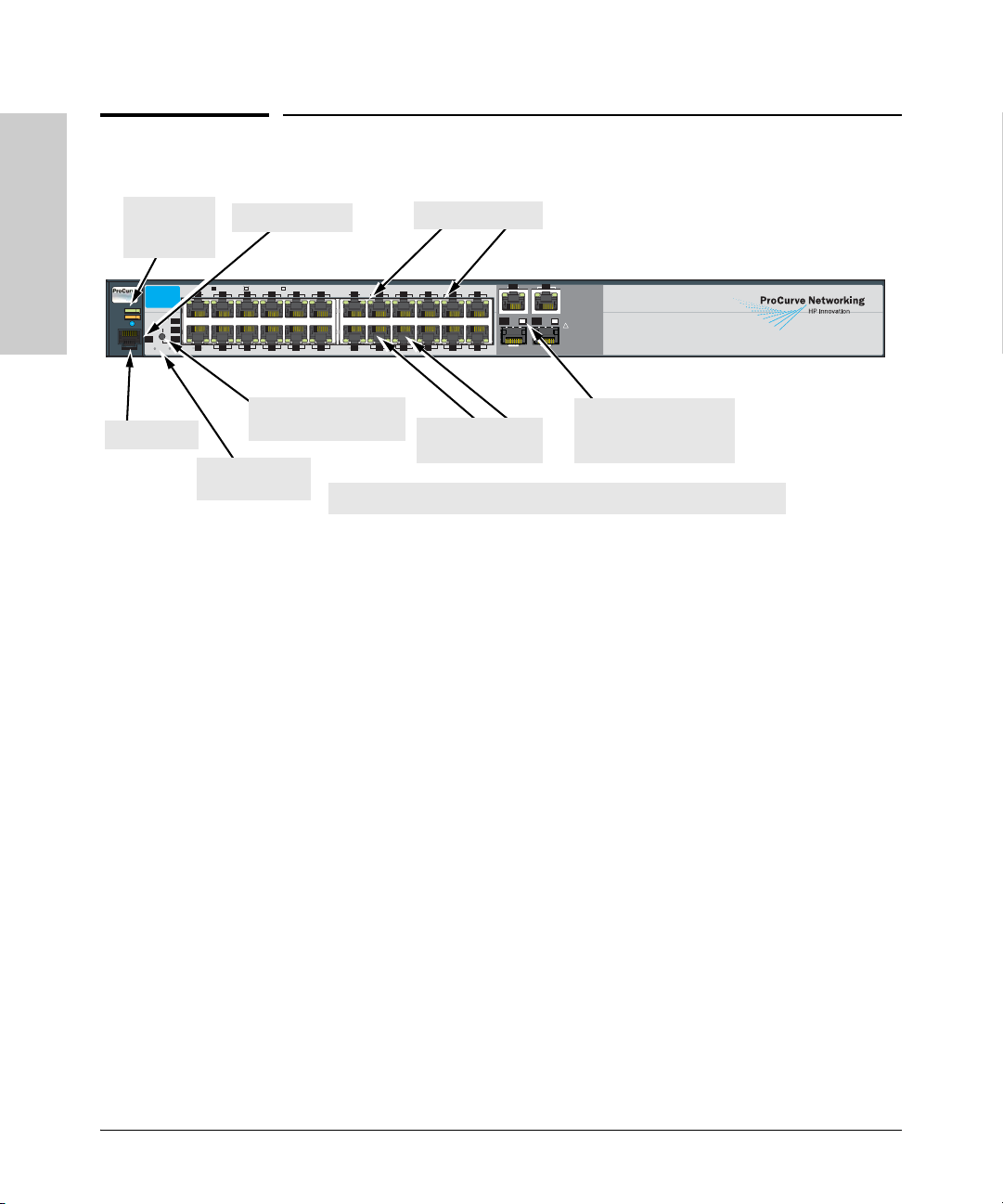

Front of the Switch

Introducing the Switch

Front of the Switch

Network Ports

■24 auto-sensing 10/100Base-TX ports.

All these ports have the “IEEE Auto MDI/MDI-X” feature, which means

you can use either straight-through or crossover twisted-pair cables to

connect any network devices to the switch.

■Two dual-personality ports. Use either the 10/100/1000Base-T RJ-45

connector, or install a supported ProCurve mini-GBIC for fiber-optic

connections.

The RJ-45 connectors support the IEEE Auto MDI/MDI-X feature, which

means you can use either straight-through or crossover twisted-pair

cables to connect any network device to the switch.

Dual-Personality Port Operation. By default, the RJ-45 connectors are

enabled. If a mini-GBIC is installed in a slot, it is enabled and the associated

RJ-45 connector is disabled and cannot be used. If the mini-GBIC is removed,

the associated RJ-45 port is automatically re-enabled.

Console Port

This port is used to connect a console to the Series 2510 Switch by using the

supplied cable with the switch. The console port is located on the front of the

Switch. This connection is described under “Connect a Console to the Switch”

in chapter 2, “Installing the Switch.” The console can be a PC or workstation

running a VT-100 terminal emulator, or a VT-100 terminal.

Power

Fault

Locator

Console

10/100Base-T Ports (1 - 24)  Ports are HP Auto M I-X

ual-Personality Ports:

10/100/1000-T (T)

or Mini-GBIC (M)

!Use only one (T or M)

for each Port

25M

*Spd mode: off = 10 Mbps, flash = 100 Mbps, on = 1000 Mbps

864

Link Mode

Link Mode 24

222018

2119

Link Mode

Mode

Clear

Reset

Test

F x

Spd

Act

ProCurve Switch

2510-24

J9019A

26M

25T26T

Link Mode

ProCurve Switch 2510-24

* 10/100/1000Base-T ports have the IEEE Auto MDI/MDI-X feature.

Power, Fault

and Locator

LEDs

Test Status LED Switch port LEDs

Console port

LED Mode select button

and indicator LEDs

Reset and Clear

buttons

Dual-personality ports

(10/100/1000Base-T* or

mini-GBIC)

10/100Base-TX RJ-

45 ports*

Table of contents

Other HP Switch manuals

HP 445860-B21 - 10Gb Ethernet BL-c Switch User manual

HP Aruba 6300F24G 4SFP56 Assembly instructions

HP 5810-48G User instructions

HP 3500 Series User manual

HP 438031-B21 - 1:10Gb Ethernet BL-c Switch User guide

HP 316095-B21 - StorageWorks Edge Switch 2/24 User manual

HP 86060C Series User manual

HP FlexFabric 7900 Series Installation manual

HP HPE 5140 Assembly instructions

HP 6125XLG Installation manual

HP 5130 48G 4SFP+ XI Assembly instructions

HP StorageWorks 8/40 - SAN Switch Quick user guide

HP J3128A AdvanceStack 10Base-T Hub-8E Installation and operating manual

HP 316095-B21 - StorageWorks Edge Switch 2/24 Instruction Manual

HP 2615 series How to use

HP ProCurve Series 2810 User manual

HP StorageWorks edge switch 2/32 User manual

HP 3600 v2 Series Installation manual

HP 5830 series User manual

HP 10504 User manual

HP invent ProCurve J4908A User manual

HP 400338-001 - KVM Switch User manual

HP 6127XLG Blade Series Installation manual

HP StorageWorks 2/16 - SAN Switch User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
