HP A3724A - SureStore E Hub S10 User manual

FC-AL Hub Rackmount Kit

Installation Guide

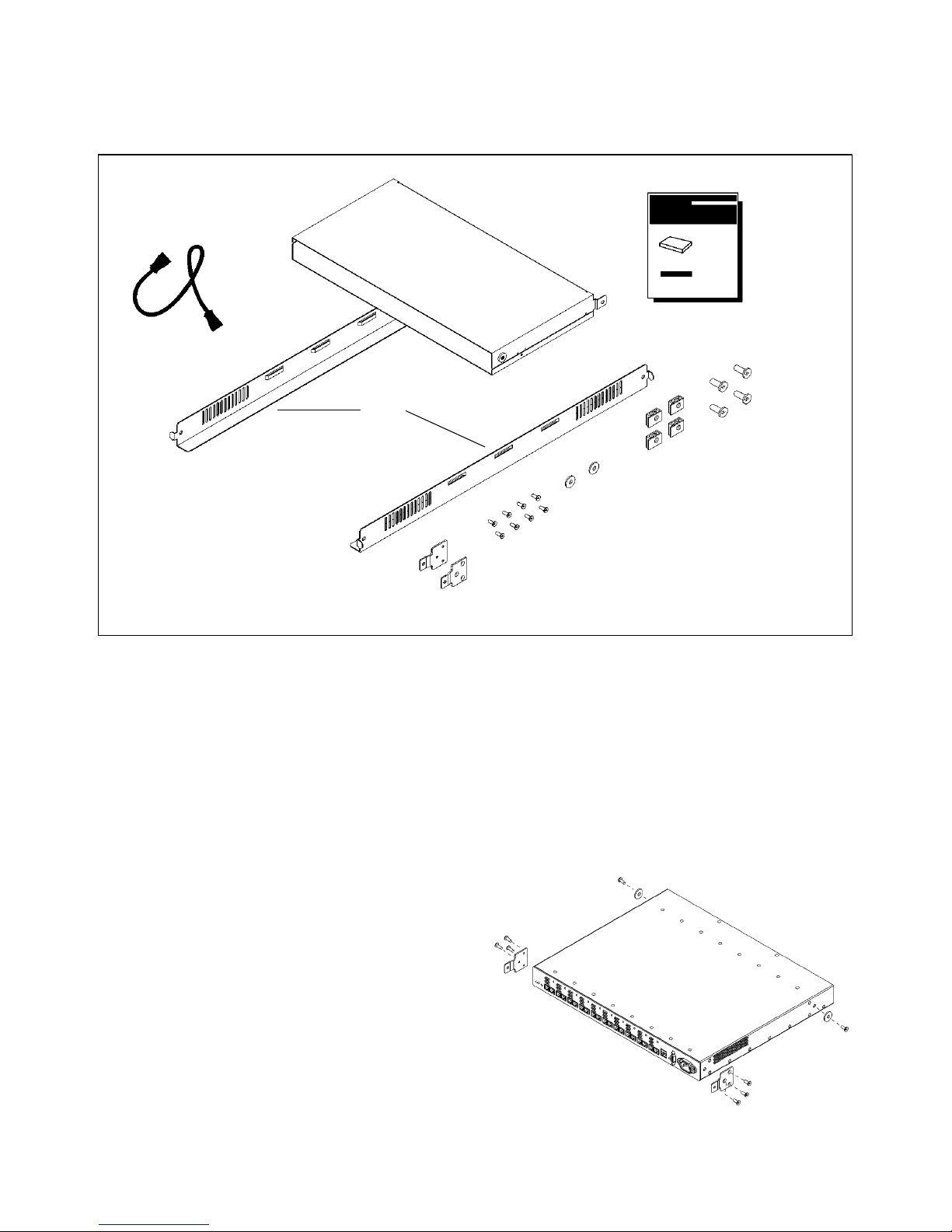

Figure 1

Select a secure location in the rack. The FC-AL hub requires only one EIA of rack space. Remove filler panels as needed

and mount the hub as follows:

Plenum shroud

FC-AL Hub Rackmount

Rails

Sheet metal

M3x.5

PDU cable Kit Installation Guide

Nylon nuts

retainers

10-32x.625

screws

Mounting

ear brackets

Step 1: Unpack the rackmount kit.

Unpack the rackmount kit and check the contents

for the parts shown in Figure 1. If parts are

missing, contact an HP sales representative.

Step 2: Prepare the hub for mounting.

•For a new hub, unpack the hub and discard the

rubber feet from hub contents.

•For a hub that has been used as a standalone:

1. Move the hub to its new location and peel

off the rubber feet attached to the bottom of

the hub.

2. Replace missing mounting ear brackets.

Attach the brackets to the outside front

corners of the hub using three M3x.5 screws

for each and turning the angled end of the

bracket outward. See Figure 2.

3. Replace missing nylon retainers on the left

and right sides of the hub. Insert one M3x.5

screw through the center of the retainer and

into the hole on each side of the hub. See

Figure 2.

•For a new or existing hub, record the MAC

address located below the 10Base-T port on the

hub. This unique address identifies the hub.

Figure 2

Customer Order No.

A3724-90005 Copyright • 1997

Printed in USA 8/97

A3724-96002



KS+



Step 3: Verify hub operation.

Before racking the FC-AL hub, make sure it is

operationa1.

1. Plug one end of the PDU cable into the hub

and the other into an appropriate power source

(100 VAC or 240 VAC).

2. At the completion of the hub self test (15 sec.),

the Power LED should be on and the Fault

LED off.

• If the hub passes the self test, unplug the

cable and continue with the installation.

• If the self test fails, see the troubleshooting

section of the HP Fibre Channel Arbitrated

Loop Hub Service and User Manual.

Step 4: Mount the rails.

1. Slide a sheet metal nut on the outer back

column at the selected rack location. Insert the

tab of the left rail in the adjacent slot so that the

holes on the rack, nut, and rail are aligned.

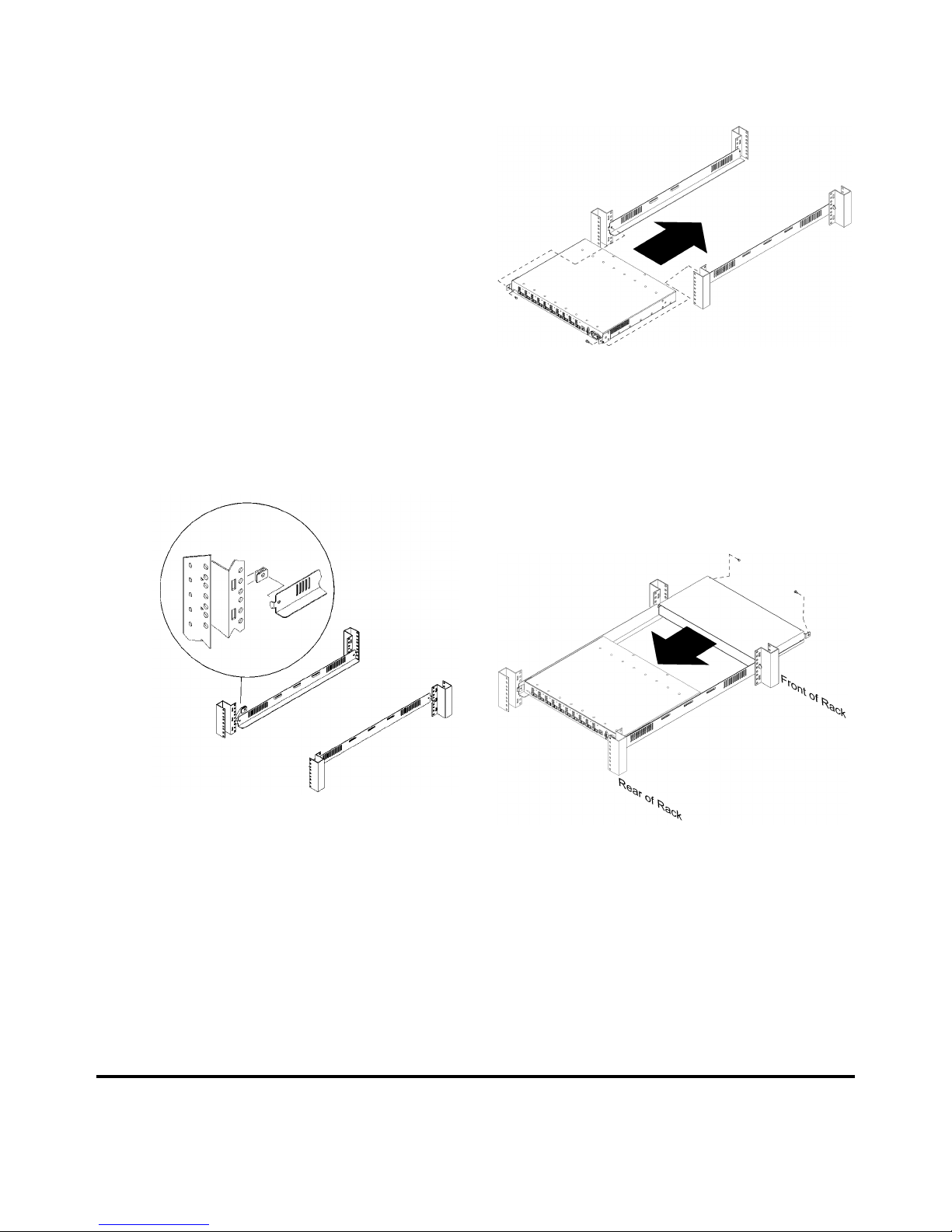

Figure 3

2. Attach the other end of the rail to the inner

front column using another sheet metal nut and

the same procedure.

NOTE: Do NOT attach screws at this time.

3. Repeat items 1 and 2 to install the right rail.

Step 5: Mount the hub on the rails.

1. Slide the hub into the rails with the FC ports

facing the rear of the cabinet.

2. Align the mounting ear brackets on the hub

with the rear holes in the assembled rails, and

fasten with two 10-32 x .625 screws.

Figure 4

Step 6: Install the plenum shroud.

1. Slide the plenum shroud onto the rails from the

front of the rack.

2. Align the plenum shroud brackets with the

front holes in the assembled rails and secure

with the two remaining 10-32 x .625 screws.

Figure 5

Step 7: Plug in the hub.

Attach the PDU cable to the receptacle on the hub

and to the cabinet power source (PDU). Verify

that the hub passes the self test.

Replace filler panels over the plenum shroud to

complete the installation.

To attach FC-AL devices, refer to the Hewlett-Packard Fibre Channel

Arbitrated Loop Service and User Manual (A3724-90006).
