HP xp8010 series User manual
HP recommends that a com-
petent carpenter or electrician
install this ceiling mount.
Three Bracket Screws
vMount the projector to the ceiling mount
bracket with the three bracket screws.
4Ceiling Mounting Procedure:
Before installation, refer to the
user manual for the projection
distance based upon the desired
image size. Use this projection
distance to locate the ceiling
mount.
Drill four holes into the structural ceiling
member.
Attach the ceiling rod to the ceiling with
the four cylinder screws.
Structural Ceiling
Ceiling Rod
Cylinder Screw
Be sure to install the projector
into a solid, structural ceiling
member:
u
Ceiling Mount
Installation Card
hp
xp8010 series
digital projector
!
!
H
Candela Ceiling Mount_En.p65 92/8/22, PM 04:301

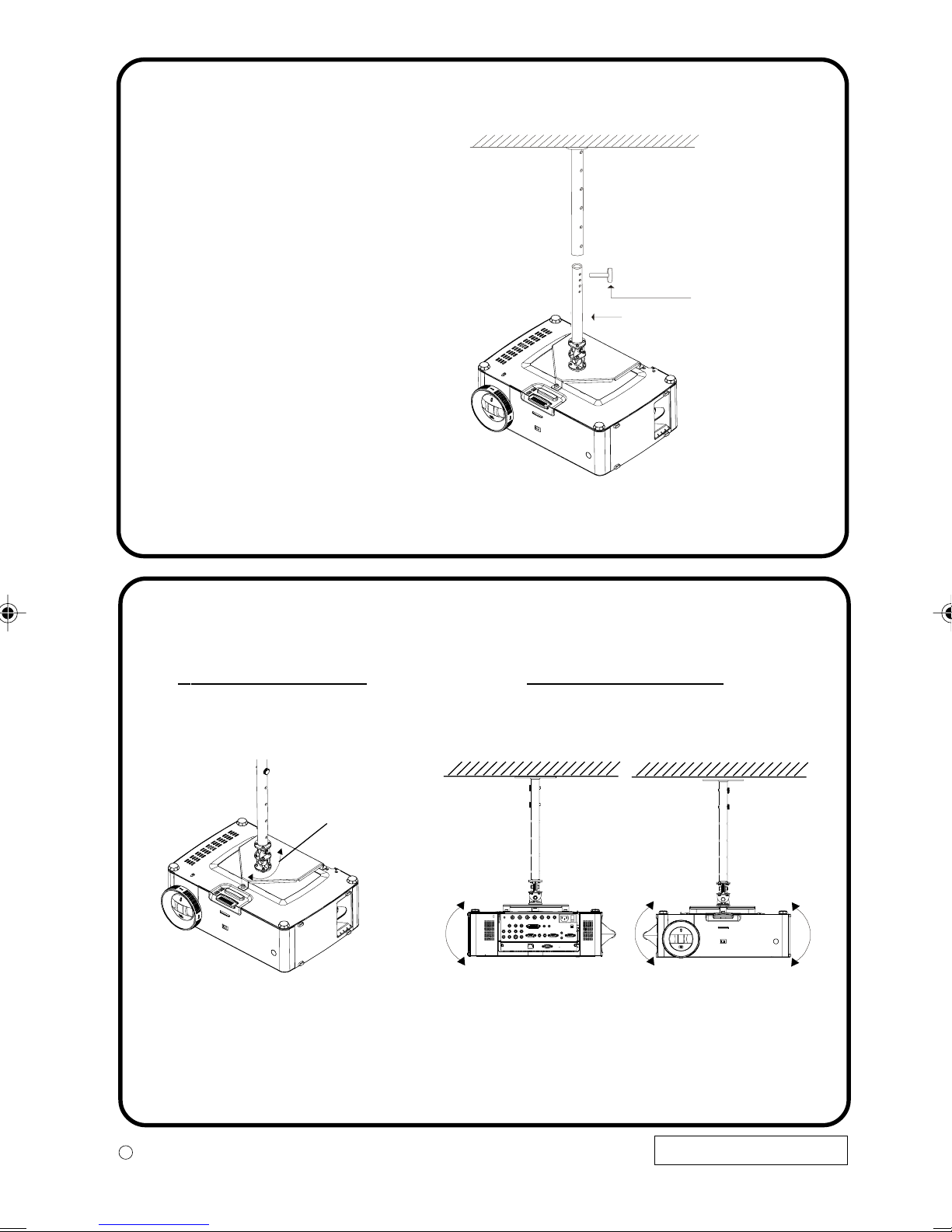

Make necessary roll and yaw adjustments to the projector.
180°
(YAW ADJUSTMENT)
v v
v v
v Open the on-screen menu and select Setup > Projector Position. Select the
appropriate ceiling option.
x
(ROLL ADJUSTMENT)
±60° ±20°
P/N 36.87108.001-A
w
Attach the ceiling bracket to the ceiling rod with
the round thumbscrew. Height adjustments can
be made by using different holes on the ceiling
rod and ceiling bracket.
v v
v v
v The total adjustment range is15.75 to 25.6
inches (40~65cm). Adjusments can be
made in one inch (2.5cm) increments.
Ceiling Bracket
Round Thumbscrew
Copyright Hewlett-Packard Company 003
First Edition (August 003)
Printed in Taiwan
C
Candela Ceiling Mount_En.p65 92/8/22, PM 04:302
