HP Designjet 8000s Take-Up Reel Kit Installation Guide

iK l

eR pU-ekaT s0

08 te

ngiseD PH

uG noitallatsnI

.P.L ,ynapmoC tnempoleveD drakcaP-ttelw

H 60

moc.ph.ww

Printed in Japan

HP Designjet 8000s Take-Up Reel Kit

Installation Guide

Legal notices

The information contained in this document

is subject to change without notice.

Hewlett-Packard makes no warranty of any

kind with regard to this material, including,

but not limited to, the implied warranties of

merchantability and fitness for a particular

purpose.

Hewlett-Packard shall not be liable for errors

contained herein or for incidental or

consequential damages in connection with

the furnishing, performance, or use of this

material.

No part of this document may be photocopied

or translated to another language without the

prior written consent of Hewlett-Packard

Company.

Installing the take-up reel

This Installation Guide contains information necessary to install and set up the HP Designjet 8000s Take-

up Reel Kit (Model Q6681A). For information about using the take-up reel, refer to the HP Designjet 8000s

Printer User's Guide.

Two people will be required to install the take-up reel. Make sure there is enough space to access the front

and the rear of the printer. All mechanical installation takes place from the front of the printer and electrical

connections are made at the rear.

The tool you need to install the take-up reel is included in the box, and consists of a cross-head (Phillips)

screwdriver.

To install the take-up reel:

1. Open the box and remove all parts.

1. Left end plate. 4. Take-up reel assembly.

2. Right end plate. 5. Motor cable.

3. Media sensor assembly. 6. Tension bar.

ENWW 1

Installing the take-up reel

2. Install the right end plate as follows:

a. Insert the lip (1) on the right end plate into the slot (2) on the right leg on the printer stand.

b. Install three screws (1) to fix the right end plate to the right printer leg stand.

3. Install the left end plate as follows:

a. Insert the lip on the left end plate into the slot on the left leg on the printer stand.

b. Install three washers (1) and screws (2) to fix the left end plate to the left printer leg stand.

NOTE The left end plate allows for vertical movement so that the take-up reel height

can be adjusted even with the screws fully inserted.

2 Installing the take-up reel ENWW

Installing the take-up reel

4. Install the take-up reel assembly as follows:

a. Place the take-up reel assembly (3) onto the printer stand crossbar.

b. Rest the ends of the support bar (2) on the ledges (1) on each end plate.

5. Install the holding bracket (1) at each end to secure the support bar as follows:

ENWW 3

Installing the take-up reel

a. Install the bottom of the holding bracket into the slot (2) on the end plate.

b. Install one screw (1) into each holding bracket to secure it to the end plate.

6. Turn the take-up reel stop screws (1) anti-clockwise to release the right and left assemblies.

4 Installing the take-up reel ENWW

Installing the take-up reel

7. Slide the left (1) and right (2) take-up reel assemblies to the right and left ends of the support bar.

Remove the assembly packaging (3).

8. Turn the take-up reel stop screws (1) clockwise to lock the right and left take-up reel assemblies.

9. Install one screw (2) to secure the take-up reel media sensor assembly (1) to the right stand.

ENWW 5

Installing the take-up reel

10. At the rear of the printer, insert the following connectors into the rear of the right take-up reel assembly

and secure them with the cable clip (3):

a. Insert the media sensor connector (1).

b. Insert the take-up reel motor cable connector (2).

11. Insert the connector on the other end of the motor cable (1) into the rear of the printer.

12. Secure the motor cable with the three cable clips (1) on the rear of the printer.

6 Installing the take-up reel ENWW

Installing the take-up reel

13. Load the tension bar (1) into the take-up reel.

The height of the take-up reel may require adjustment as it must be horizontally aligned to the media output

from the printer. Refer to the next section to verify alignment of the take-up reel height.

Take-up reel horizontal alignment

The height of the take-up reel may require adjustment as it must be horizontally aligned to the media output

from the printer. To verify alignment of the take-up reel height you need to print the take-up reel test print.

The printer will print a line across the width of the media. Use this line to check the alignment of the right

side of the take-up reel with the left side. Use the take-up reel tension bar as the horizontal reference for

alignment.

Print the take-up reel pattern on roll media to ensure that there is sufficient length to feed the media to the

tension bar on the take-up reel.

Print the take-up reel print as follows:

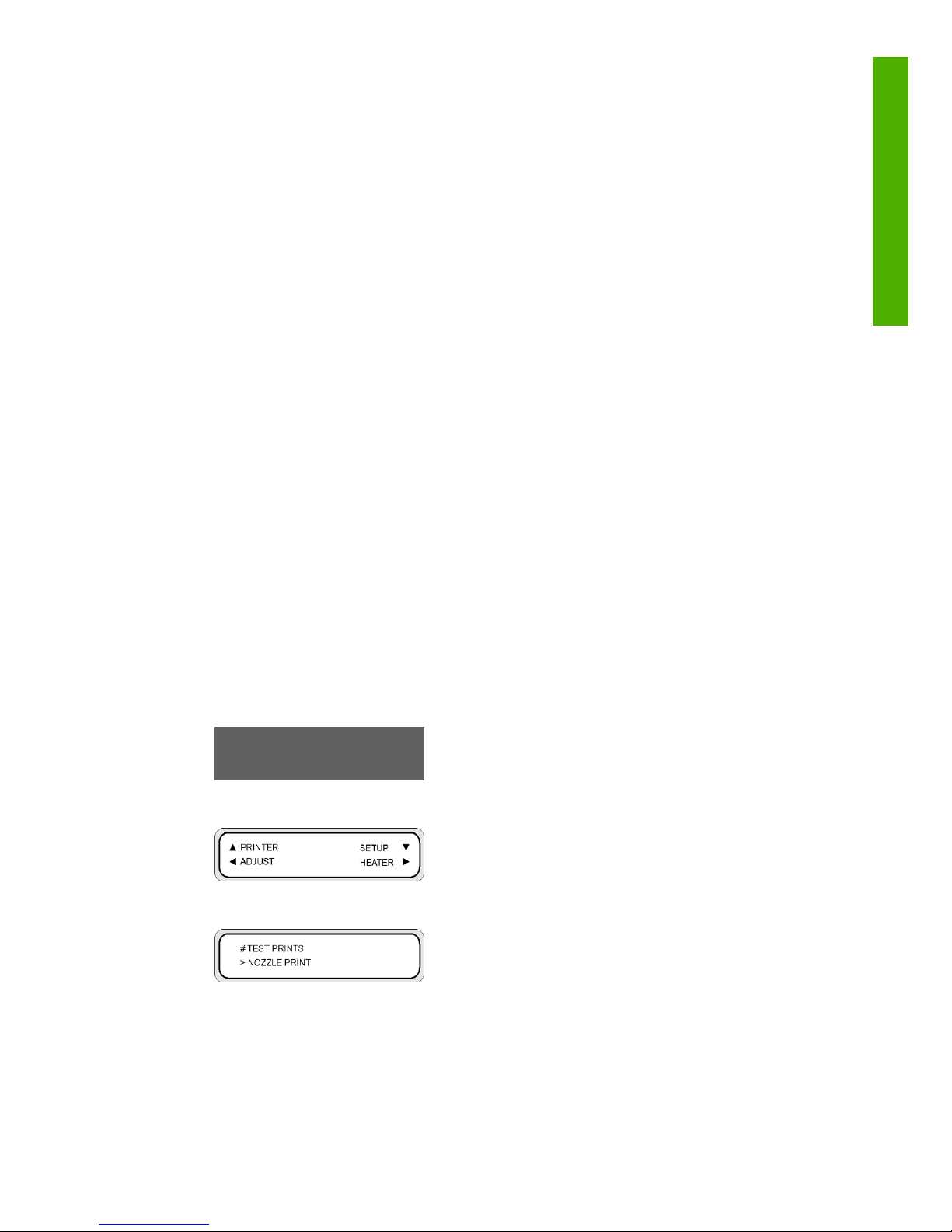

1. When the "Printer Ready" message appears on the Front Panel, press the ONLINE key to take the

Printer offline.

2. Press the SHIFT key twice and select the ADJUST menu using the ◄key.

3. In the ADJUST submenu, scroll to TEST PRINTS and press the ENTER key.

ENWW Take-up reel horizontal alignment 7

Installing the take-up reel
