1 Identifying hardware

To see a list of hardware installed in the computer, follow these steps:

1. Select Start >Computer >System properties.

2. In the left pane, click Device Manager.

NOTE: Windows® includes the User Account Control feature to improve the security of your

computer. You may be prompted for your permission or password for tasks such as installing

applications, running utilities, or changing Windows settings. Refer to Windows online Help for

more information.

You can also add hardware or modify device configurations using Device Manager.

ENWW 1

2 Components

Top components

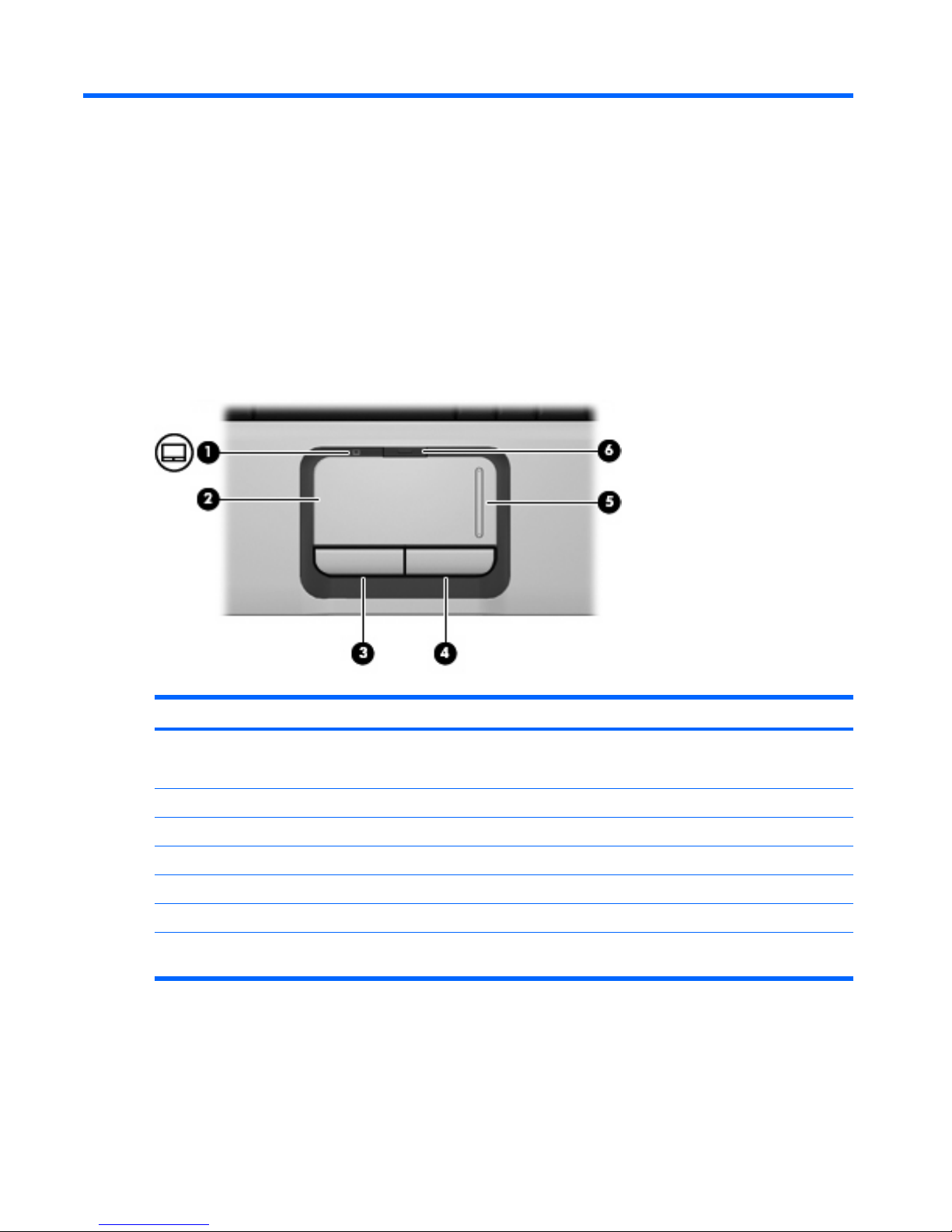

TouchPad

Component Description

(1) TouchPad light ●Blue: TouchPad is enabled.

●Amber: TouchPad is disabled.

(2) TouchPad* Moves the pointer and selects or activates items on the screen.

(3) Left TouchPad button* Functions like the left button on an external mouse.

(4) Right TouchPad button* Functions like the right button on an external mouse.

(5) TouchPad scroll zone* Scrolls up or down.

(6) TouchPad on/off button Enables/disables the TouchPad.

*This table describes factory settings. To view and change pointing device preferences, select Start >Control Panel >

Hardware and Sound >Mouse.

2 Chapter 2 Components ENWW

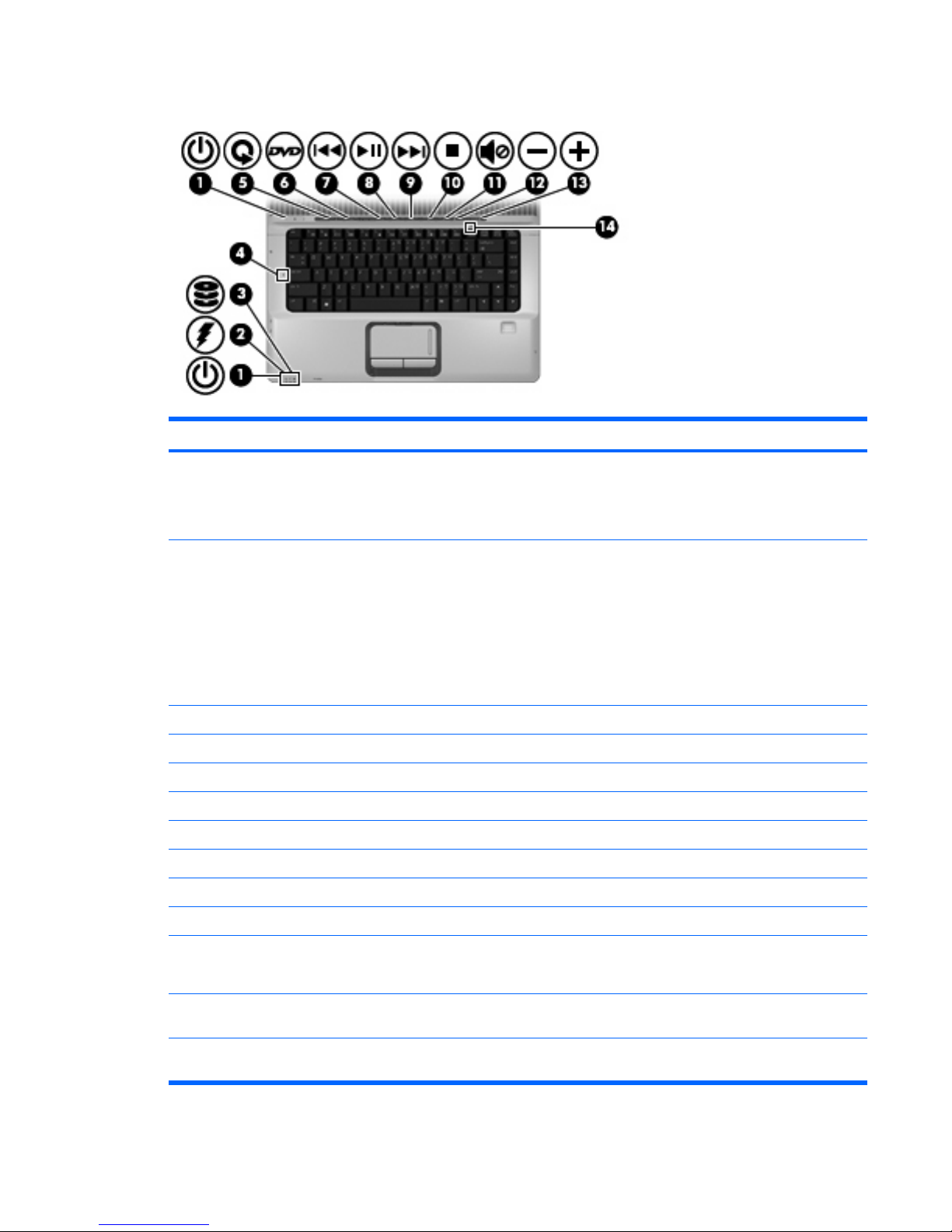

Lights

Component Description

(1) Power lights (2)* ●On: The computer is on.

●Blinking: The computer is in the Sleep state.

●Off: The computer is off or in Hibernation.

(2) Battery light ●On: A battery is charging.

●Blinking: A battery that is the only available power source has

reached a low battery level or a critical battery level.

●Off: If the computer is plugged into an external power source,

the light is turned off when all batteries in the computer are

fully charged. If the computer is not plugged into an external

power source, the light stays off until the battery reaches a

low battery level.

(3) Drive light Blinking: The hard drive or optical drive is being accessed.

(4) Caps lock light On: Caps lock is on.

(5) Media button light Blinks once when the media button is pressed.

(6) DVD button light Blinks once when the DVD button is pressed.

(7) Previous/rewind light Blinks once when the previous/rewind button is pressed.

(8) Play/pause light Blinks once when the play/pause button is pressed.

(9) Next/fast forward light Blinks once when the next/fast forward button is pressed.

(10) Stop light Blinks once when the stop button is pressed.

(11) Volume mute light ●Blue: Computer sound is turned on.

●Amber: Computer sound is turned off.

(12) Volume down light Blinking: The volume scroll zone is being used to decrease speaker

volume.

(13) Volume up light Blinking: The volume scroll zone is being used to increase speaker

volume.

ENWW Top components 3

Component Description

(14) Num lock light On: Num lock is on or the embedded numeric keypad is enabled.

*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The

power light on the front of the computer is visible whether the computer is open or closed.

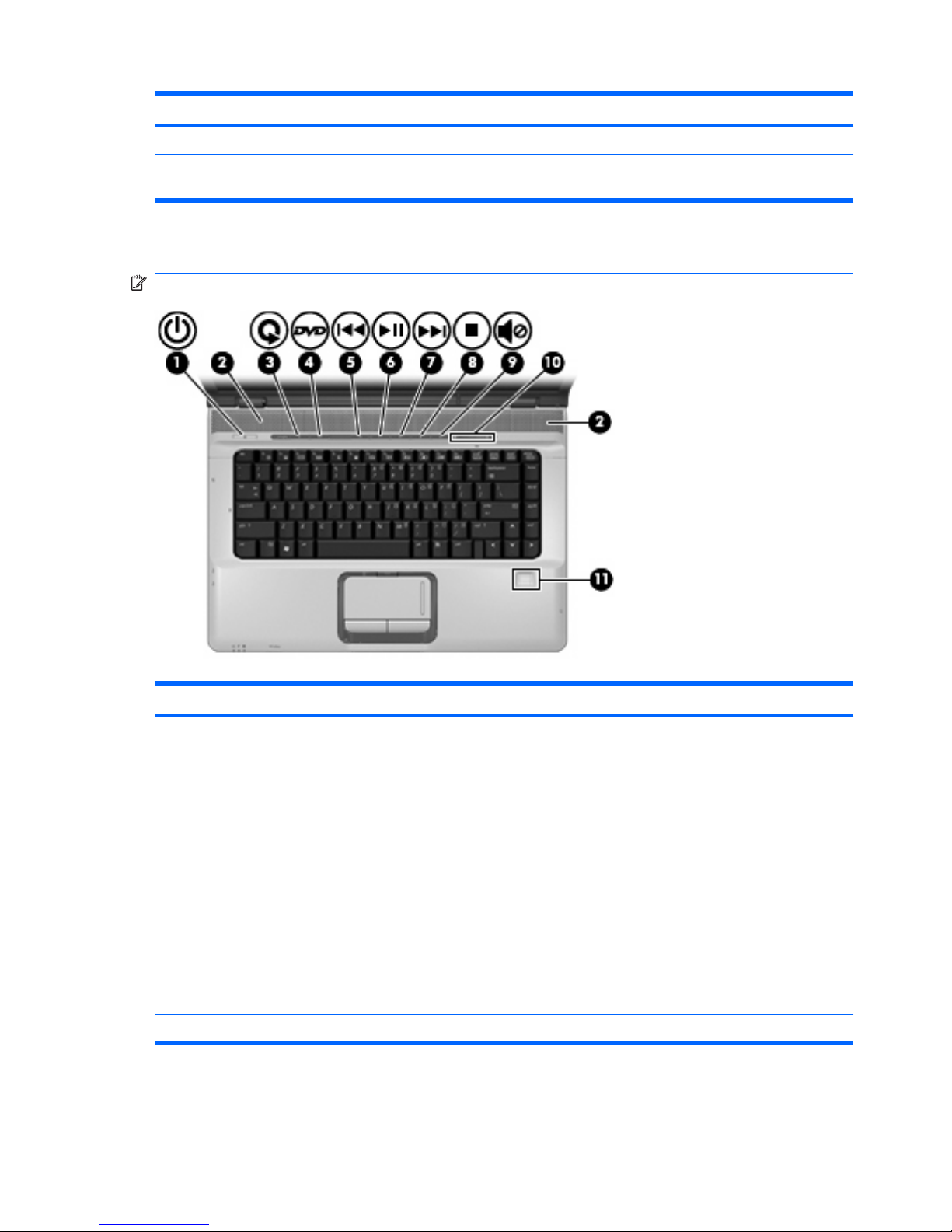

Buttons, speakers and fingerprint reader

NOTE: Refer to the illustration that most closely matches your computer.

Component Description

(1) Power button* ●When the computer is off, press the button to turn on the

computer.

●When the computer is on, press the button to initiate Sleep.

●When the computer is in the Sleep state, press the button

briefly to exit Sleep.

●When the computer is in Hibernation, press the button briefly

to exit Hibernation.

If the computer has stopped responding and Windows® shutdown

procedures are ineffective, press and hold the power button for at

least 5 seconds to turn off the computer.

To learn more about your power settings, select Start >Control

Panel >System and Maintenance >Power Options.

(2) Speakers (2) Produce sound.

(3) Media button Launches the QuickPlay program.

4 Chapter 2 Components ENWW
