HP SIC-4G-LTE-V User manual

HP MSR 4G SIC Module USIM Card and

Antenna Installation Guide

SIC-4G-LTE-V

SIC-4G-LTE-A

SIC-4G-LTE-G

Part number: 5998-5199

Installing a USIM card

Correct installation

1 2

3 4

5 6

Incorrect installation

Installing a 4G extender cable

Correct installation

M3 M6

M2.9

Installing a 4G antenna

One 4G extender cable is provided with the interface module. Purchase 4G extender

cables as required. Table 1 lists 4G extender cables provided by HP. You can also use

4G extender cables from other vendors, for any consequences resulting from which HP

assumes no liabilities.

Table 1 HP 4G extender cables

J number

4G extender cable

JG522A

HP MSR 4G 2.8m Extender Cable

JG666A

HP MSR 4G 6m Extender Cable

JG667A

HP MSR 4G 15m Extender Cable

Installing 4G antennas on a router (JG742A/JG744A)

Installing a 4G antenna on a router (JG743A)

When you connect a 4G antenna to a JG743A interface module, ensure a minimum

distance of 25 cm (9.84 in) between the 4G antenna and any other antenna on the

router. If an extender cable is used, ensure a minimum distance of 25 cm (9.84 in)

between the 4G antenna and the router.

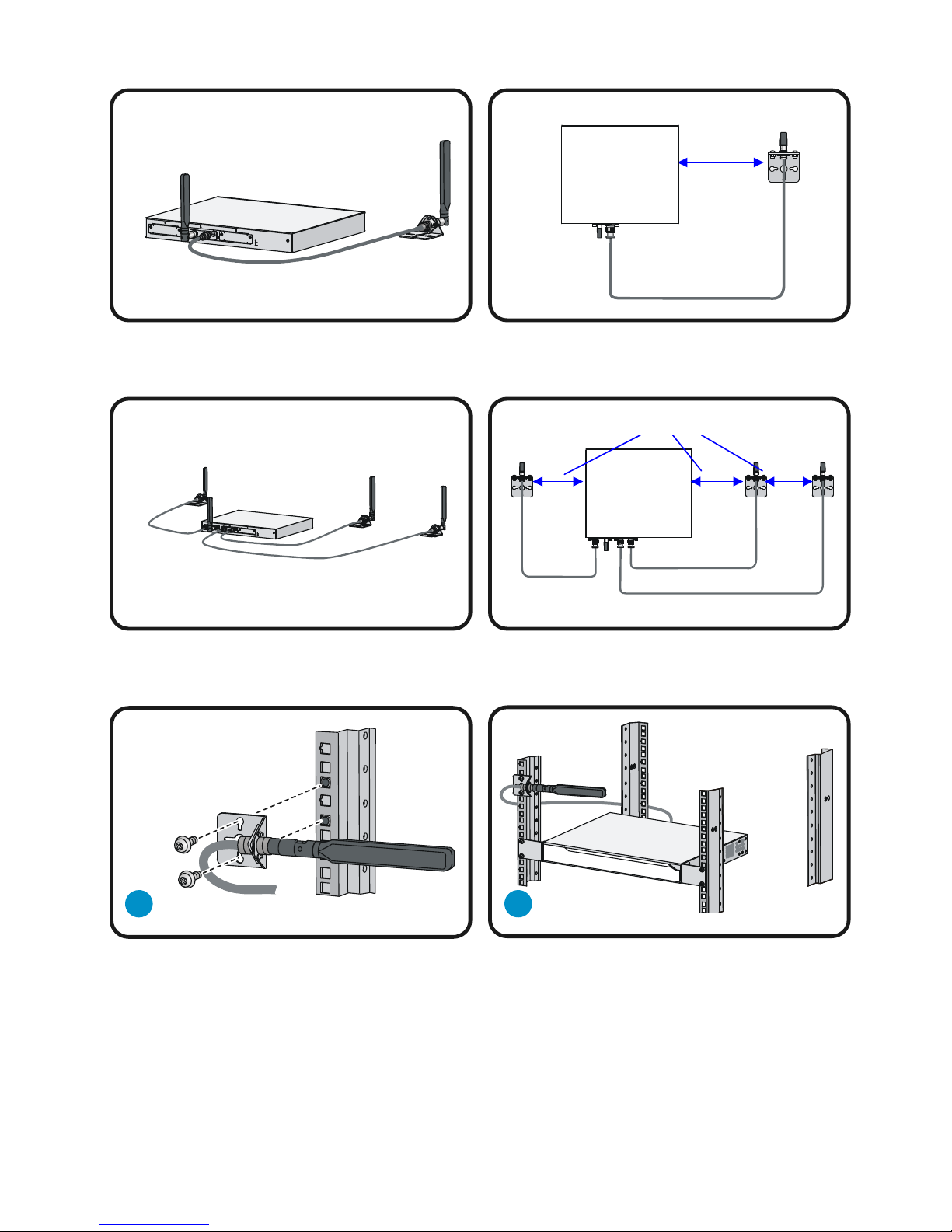

One 4G Module on the router

Two 4G Module on the router

Installing a 4G antenna on a rack

Installing a 4G antenna on a wall

Prepare M2.9 self-tapping screws yourself.

>25cm(9.84in)

Installing a GPS antenna

When you connect a GPS antenna to a JG743A interface module, ensure a minimum

distance of 25 cm (9.84 in) between the GPS antenna and any other antenna on the

router, and between the GPS antenna and the router.

1 2

>25cm(9.84in)

Regulatory Compliance Information

The module must be installed and used in strict accordance with the manufacturer’s

instruction as described in the user documentation that comes with this product.

Regulatory compliance standards

Table 2 Regulatory compliance standards

Discipline

Standards

EMC

FCC Part 15 Subpart B (SIC-4G-LTE-A and SIC-4G-LTE-V)

ICES-003 (SIC-4G-LTE-A and SIC-4G-LTE-V)

EN 55022 (SIC-4G-LTE-G)

EN 55024 (SIC-4G-LTE-G)

EN 301 489-1 (SIC-4G-LTE-G)

EN 301 489-7 (SIC-4G-LTE-G)

EN 301 489-24 (SIC-4G-LTE-G)

EN 300386 (SIC-4G-LTE-G)

EN 61000-3-2 (SIC-4G-LTE-G)

EN 61000-3-3 (SIC-4G-LTE-G)

FCC part22 (SIC-4G-LTE-A and SIC-4G-LTE-V)

FCC part24 (SIC-4G-LTE-A and SIC-4G-LTE-V)

FCC part27 (SIC-4G-LTE-A and SIC-4G-LTE-V)

FCC OET 65 MPE(SIC-4G-LTE-A and SIC-4G-LTE-V)

RSS-132 (SIC-4G-LTE-A and SIC-4G-LTE-V)

RSS-133 (SIC-4G-LTE-A and SIC-4G-LTE-V)

RSS-102 (SIC-4G-LTE-A and SIC-4G-LTE-V)

EN 301 511 (SIC-4G-LTE-G)

EN 301 908 (SIC-4G-LTE-G)

EN 62311 (SIC-4G-LTE-G)

Safety

UL 60950-1

CSA 22.2 No. 60950-1

EN 60950-1

IEC 60950-1

AS/NZS 60950-1

European Directives compliance

R&TTE Directive

The most up to date copy of the signed EU Declaration of Conformity can be

downloaded from:

http://www.hp.eu/certificates

WEEE Directive–2002/96/EC

The products this manual refers to are covered by the Waste Electrical & Electronic

Equipment (WEEE) Directive and must be disposed of in a responsible manner.

USA regulatory compliance

FCC Part 15

US Federal Communications Commission (FCC) EMC Compliance

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in

a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

This product complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that

may cause undesired operation.

If the customer modifies the equipment without the authorization of HP, which directly

or indirectly contribute to the equipment incompliance with FCC requirements for Class

A digital devices, HP is not liable for such interference problem and the expenses

incurred there from shall be covered by the customers.

RF Requirements

RF exposure Hazard Warning

This device generates and radiates radio-frequency energy. To ensure compliance with

the requirements of FCC radio-frequency exposure, a minimum body to antenna

distance of 20cm (8 inch) must be maintained when the device is installed and operated,

and a minimum distance of 25 cm between the 3G antennas and between the 3G

antenna and the WiFi antenna is required to maintain compliance and receiver

reliability.

Antennas

Only use the supplied antenna. Unauthorized antennas, modifications or change to the

antennas could violate FCC regulations and void the user’s authority to operate the

equipment.

Canada regulatory compliance

ICES-003

This Class A digital apparatus complies with Canadian Standard ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

RF Compliance

Operation is subject to the following three conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference

that may cause undesired operation of this device, and (3) a minimum distance of 25

cm between the 3G antennas and between the 3G antenna and the WiFi antenna is

required to maintain compliance and receiver reliability.

L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne

doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter

tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de

compromettre le fonctionnement du dispositif.

The term "IC" before the equipment certification number only signifies that the Industry

Canada technical specifications were met.

To reduce potential radio interference to other users, the antenna type and its gain

should be so chosen that the equivalent isotropically radiated power (EIRP) is not more

than that required for successful communication. To prevent radio interference to the

licensed service, this device is intended to be operated indoors and away from windows

to provide maximum shielding. Equipment (or its transmit antenna) that is installed

outdoors is subject to licensing.

Pour empecher que cet appareil cause du brouillage au service faisant l'objet d'une

licence, il doit etre utilize a l'interieur et devrait etre place loin des fenetres afin de

Fournier un ecram de blindage maximal. Si le matriel (ou son antenne d'emission) est

installe a l'exterieur, il doit faire l'objet d'une licence.

This device must not be co-located or operated in conjunction with any other

unauthorized antenna or transmitter.

Brazil regulatory compliance

Este produto está homologado pela ANATEL, de acordo com os procedimentos

regulamentados pela Resolução 242/2000 e atende aos requisitos técnicos aplicados.

Para maiores informações, consulte o site da ANATEL –www.anatel.gov.br

Documentation

To find related documents, browse to the Manuals page of the HP Business Support Center

website:

http://www.hp.com/support/manuals
