Howdens Lamona LAM8606 User manual

LAM8606

Installation Instructions

Dishwasher

(To be used in conjunction with User Instructions)

lPlease read these Installation Instructions to ensure safe,

 correctttingofthisappliance.

lThedishwashershouldbettedbyasuitablycompetent, 

 qualiedperson.

lPleasekeeptheseinstructionsinasafeplaceforfuturereference.

lDangerofsuffocationkeeppackagingmaterialawayfromchildren.

Warningforhazardous

situationswithregardto

lifeandproperty.

Warningfor

electricshock.

Warningfor

riskofre.

Throughoutthismanualthe

followingsymbolsareused.

2www.howdens.com

Riskofdamageto

appliance:

Donotattemptto

movetheappliance

bythedoor.

NOTE:Donotleavethe

dishwasherdooropen.

Becarefulnottotrip

overopendoor.

Warning:

Be aware of the

instabilityofthe

appliancepriortobeing

ttedintoposition.

Riskofdamageto

property:

Takecareofsurrounding

areawhenmovingthe

appliancetoprevent

damagetoooring,wall

coverings,pipesetc..

Twopersonlift. Riskofinjury:

Bewareofsharpmetal

edges.Usegloveswhen

handling.

NOTE:Iftheelectricity

cableisdamagedit

mustbereplacedbya

competentperson.

Dishwashermust

bexedsecurelyand

level.

Ensurethatallpacking

andtransitprotectors

havebeenremoved

fromtheappliance

beforepositioning.

Thisapplianceisnot

designedforstacking

withotherappliances.

Installation

Safety Information

Fitting guide

1. Dimensions......................................................p.4

2. Dishwasherconnections....................................p.4

3. Fitfeetandraise10mmbelow

 worktopheight.....................................................p.6

4. Locatesecuringbrackets...................................p.6

5. Protectionstripfortimberworktops..................p.7

6. Positioningthedishwasher.................................p.7

7. Adjust feet and raise dishwasher to

 undersideofworktop(level)...............................p.8

8. Remove‘H’frame................................................p.8

9. Standarddecordoorpreparation......................p.9

10. Decordrawerfrontalspreparation....................p.9

11. Fit decor door / decor drawer frontals..............p.10

12.Finaladjustmentandsecuredishwasher.........p.11

13.Fitplinth................................................................p.12

14. Connectwater/plumbing/electric......................p.12

www.howdens.com

B(4x43mm)x1 C(4x36mm)x1

A(3.5x14)x1x1 x4

+50mm

DO NOTusehigh

speedimpact

powertools.

24mmopen

endedspanner

T20,atand

cross head

screwdrivers

Parts supplied

Tools required

4www.howdens.com

min

15mm

818mm

(+100)

550mm 598mm

820-920mm

min

570mm

600mm(+1)

min

500mm

min

300mm

max

1000mm

max.

100mm

min

500mm min

300mm

max

1000mm

1- Dimensions

*Ensuretheoorislevelandstrongenough

tosupportafullyloadeddishwasher.

2- Dishwasher connections

Position the dishwasher

relativetoserviceconnections.

Alldimensionsaretotheoor. DO NOT insertthehosetoodeepintothewastepipe,

(Maximum hose length, 3.5 metres).

www.howdens.com

Cold water supply

10-80 lpm.

REMOVE

CAP/END

WARNING!Thisappliance

mustbeearthed.

(Socket must be accessible

after tting).

WARNING!Donotuseextension

cables/adapters.

Ensure water is turned on and

theisolatorvalveis accessible

after tting.

Hoseconnection-3/4”.

Coldwaterpressure-

0.1–1Mpa(0.3-1.0Bar)

Incorrectwastepipeconguration. Correctwastepipeconguration.

Ensurecap/endisremovedfrom

wastepipespigot.

NOTE: Ensure hoses are not

kinked or trapped behind the

dishwasher.

NOTE: Ifnecessaryloosenand

rotate the water hose towards

thewatersupplyandre-tighten.

(Always use the new hose

supplied with the dish er).

6www.howdens.com

DO NOTusehighspeed

impactpowertools.

DO NOTdamagethe

plasticscrewheads.

Flat head

screwdriver

Plus foot

addition

+50mm

Foot,

max

50mm

10-15mm

For standard installation

extensionfeetneedto

betted.

3- Fit feet and raise to 10-15mm below worktop height

Front feet Rear feet

Insertbracketsandfold.

4- Locate securing brackets

Do not position

in cabinet run at

thisstage.

www.howdens.com

5- Protection strip for timber worktops to avoid condensation damage

6- Positioning the dishwasher

NOTE: Ensure hoses are

not kinked or trapped

behind the dishwasher.

NOTE: Ifnecessaryloosen

and rotate the water hose

towardsthewatersupply

andre-tighten.

Alwaysusethenew

hosesuppliedwiththe

dishwasher.

Ensure a clean and

dustfreesurface. Cuttot.

NOTE:Thisstripmustbettedtotimberworktopsto

avoiddamage.Ensureprotectionstripissettoedgeof

squareedgedworktops.

8www.howdens.com

DO NOTusehighspeed

impactpowertools.

DO NOTdamagethe

plasticscrewheads.

Cross head

A(3.5x14)x2

Flat head

screwdriver

LEVEL

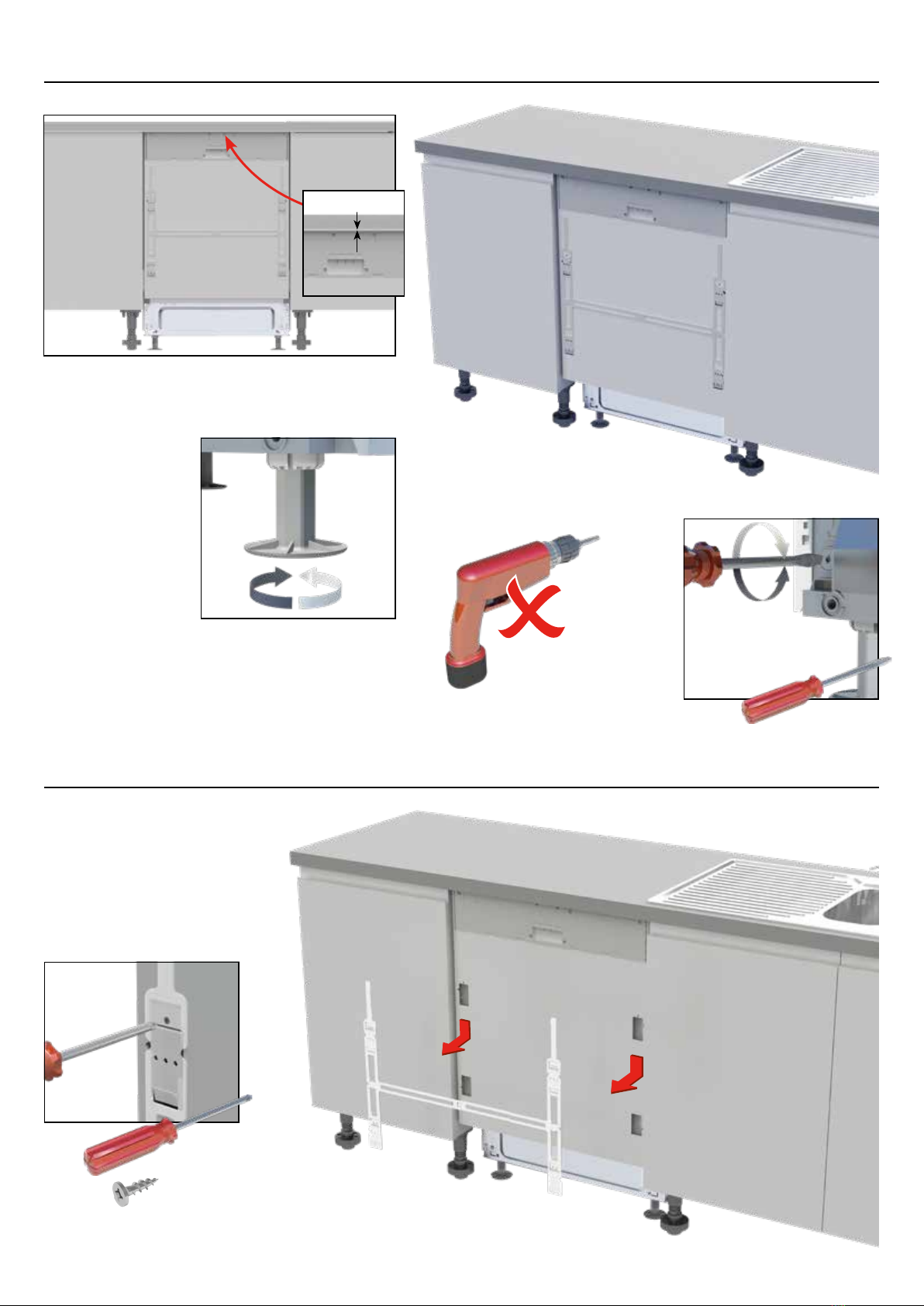

7- Adjust feet and raise dishwasher to underside of worktop (level).

Front feet

Rear feet

8- Remove ‘H’ frame

Unscrewthetwoscrewsandremove

theplastic‘H’bracket.Retainthe

screws for stage 9/10.

www.howdens.com

A(3.5x14)x4

60mm

130mm

267mm

2x356mmdrawerfronts=712mm

Normaldoorheight=716mm

Thereforespacebetween

drawer fronts = 3-4mm

TOP

Centre

TOP

Centre line

267mm

517mm

267mm

517mm

267mm

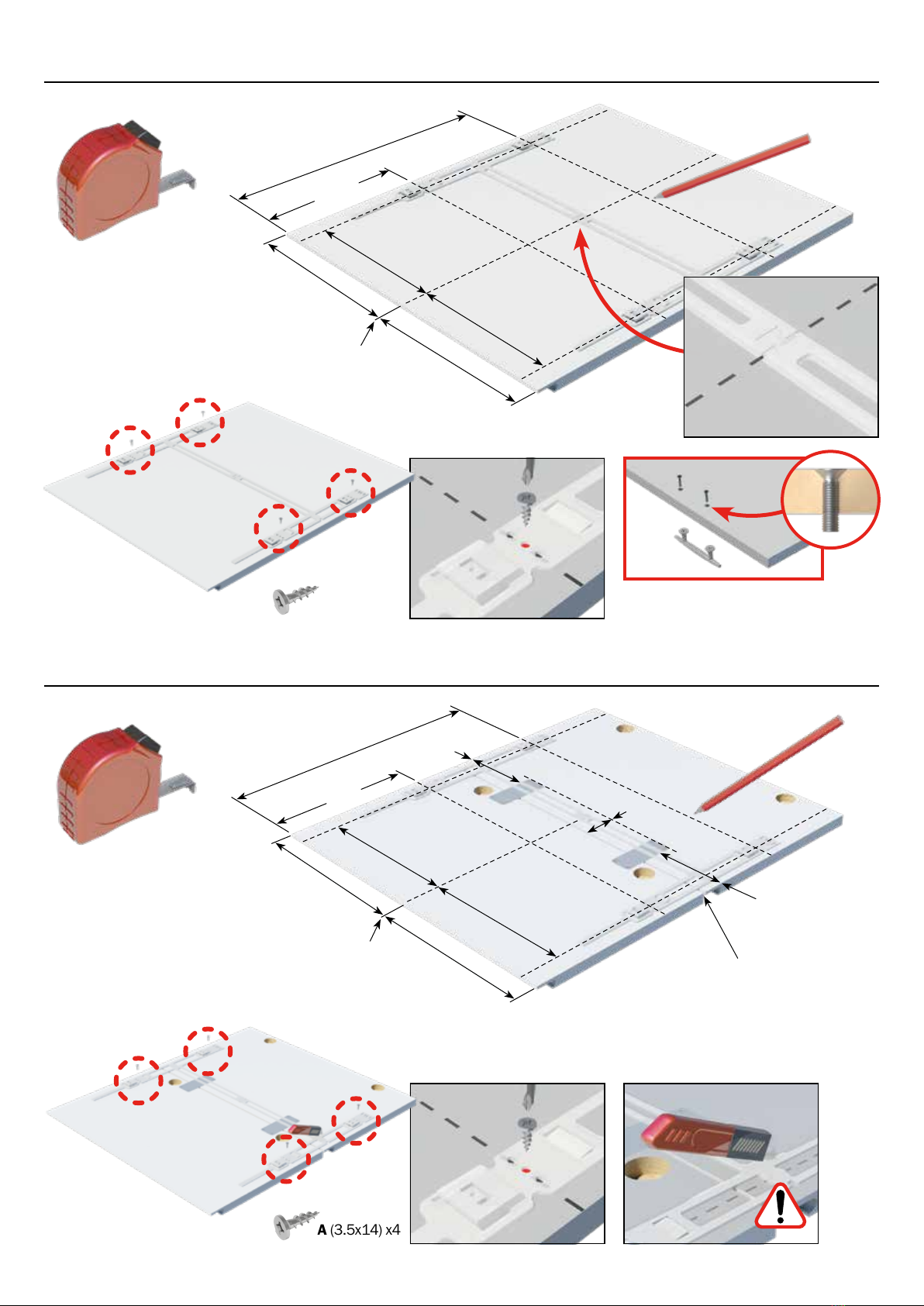

9- Standard decor door preparation

10 - Decor drawer frontals preparation

Secure with the screws

retainedfromstage 8

plustwoadditionalscrews

fromtheaccessorybag.

Secure with the screws

retainedfromstage 8

plustwoadditionalscrews

fromtheaccessorybag.

Removecentrerail.

Fithandle(ifapplicable)atthis

stageandCOUNTER-BORE

SCREWS.

10 www.howdens.com

B(4x43mm)x4(x6)

2mm

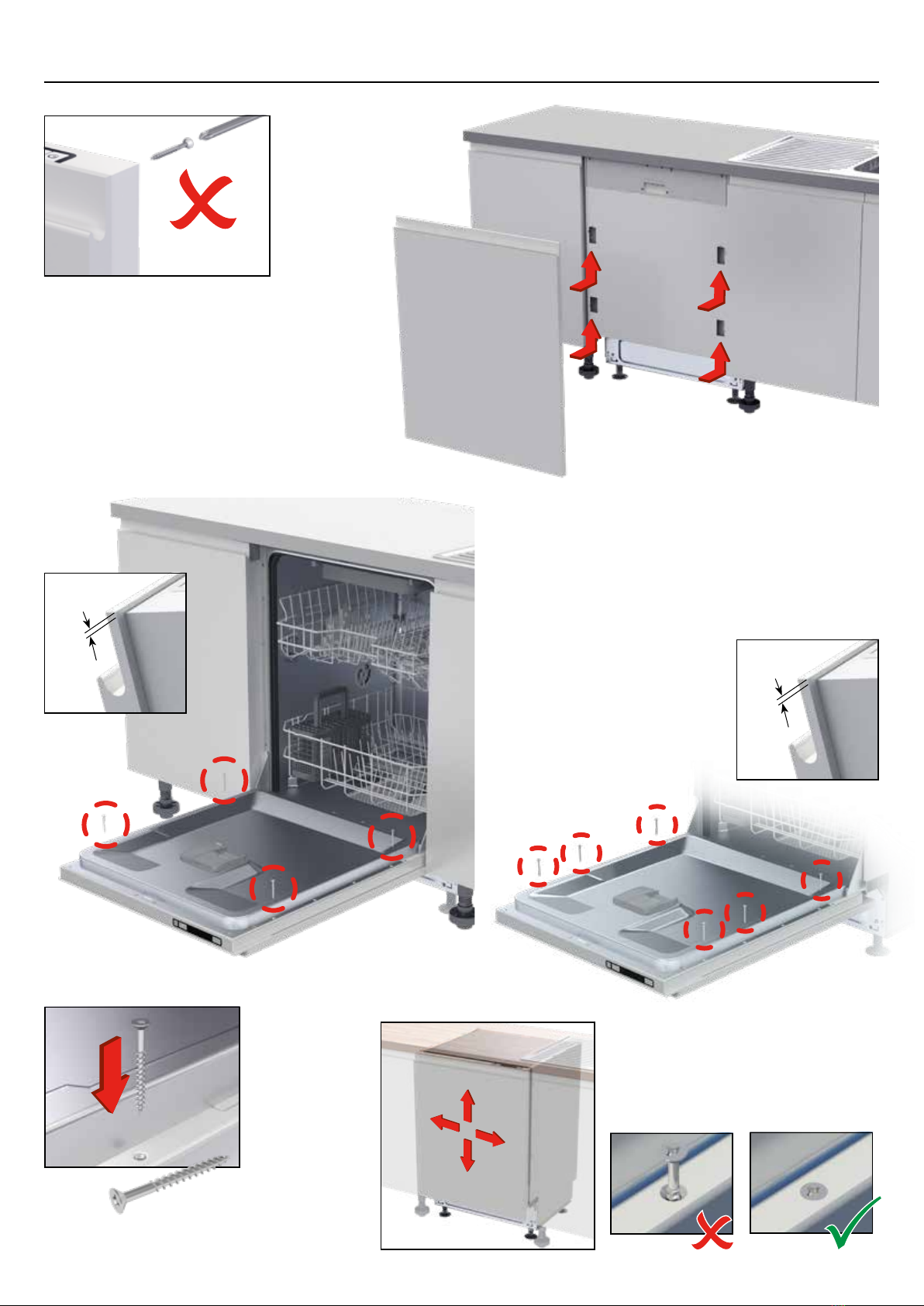

11 - Fit decor door / decor drawer frontals

Fixing for standard decor door.

Removetheexistingxingsandusingthe

43mmscrewssupplied,secureatpositions

2and 5.Ensurecorrectalignmentwiththe

topofthedoor,(2mmoverlapattop).

DO NOT usehole1,especially

whenttinganintegrated

handle decor door.

Fixing for decor drawer

frontals.

Removetheexistingxings

andusingthe43mmscrews

supplied,secureatpositions

2, 3 and 5.Ensurecorrect

alignmentwiththetopofthe

door,(2mmoverlapattop).

DO NOTfullytighten

thescrews.

234

Ifnecessarymakenalalignment

andfullytightenthescrews.Make

surescrewsarefastenedushbut

DO NOTover-tighten.
