Hotpoint HOTPRINT VWSR4150BWW User manual

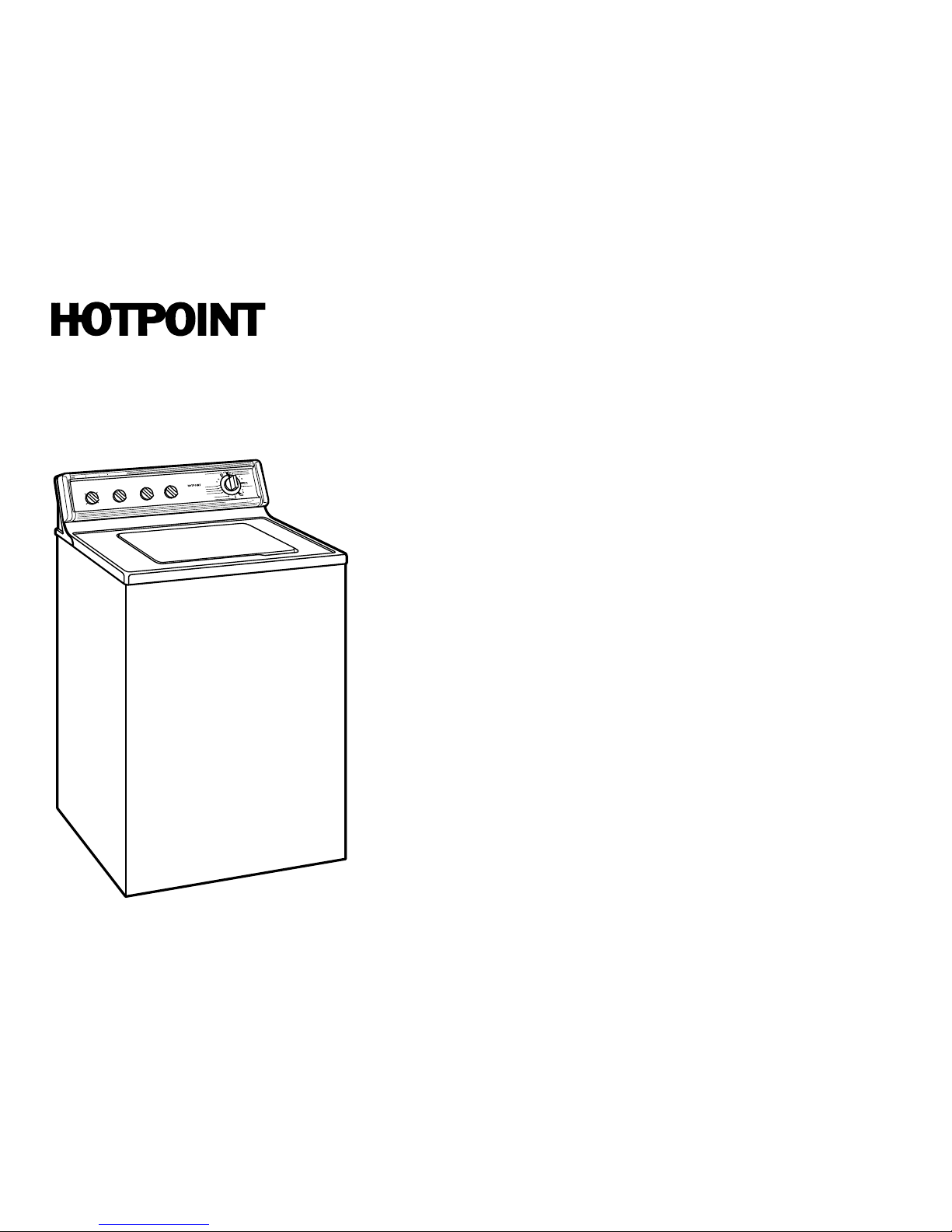

VWSR4150BWW - Hotpoint 3.2 Cu. Ft. Super Capacity Washer

Listed by

Underwriters

Laboratories

Specification Created 10/01

Washer Dimensions (in inches)

25-1/2

42 51

Side View

Rear View

Circuit Requirements: An individual, properly-grounded branch circuit,

with a three-prong grounding-type receptacle, protected by a 15 or 20 amp

circuit breaker or a time-delay fuse, is required.

Electrical Rating: 115V, 60Hz, 10 Amps

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

Washer Note: Washer wall outlet must be located within 36” of service

cord entry. Wall outlet must not be located behind dryer.

Specification Created 10/01

VWSR4150BWW - Hotpoint 3.2 Cu. Ft. Super Capacity Washer

NORMAL

LIGHTSOIL

OPTIONALEXTRARINSE

SMALLSUPER

MEDIUM

GENTLE

SLOW

NORMAL

FAST

GENTLE

FAST

WASH

SPINWASH

RINSE

LARGE

LOAD SIZE

SPEEDTEMPERATURE

heavydutysupercapacity11cycle3speedcombinations

HEAVY

SUPERCYLE

AUTOSOAK/30MIN

AUTOSOAK/15MIN

PULLKNOB TO START - PUSHTO STOPRINSESPIN

OFF

PERMPRESS

WRINKLEFREECOTTON

KNITS

DELICATES

COLD

HOT

COLD

WARM

COLD

WARM

EXTRARINSE

SET

OFF

Features and Benefits

•Super 3.2 Cu. Ft. Capacity

•4 Wash/Spin Speed Combinations and 4 Wash/Rinse Temperature Settings

•15 Cycles: Cotton Cycle with Extra Heavy Soil, Heavy Soil, Normal Soil and Light Soil

with PreSoak (15/30 Min.), Extra Rinse & Rinse and Spin Options;

Wrinkle Free Cycle with Heavy Soil, Normal Soil and Light Soil with Extra Rinse & Rinse

and Spin; Delicates Cycle with Normal Soil Cycle

•GentlePower™Agitator with Variable Water Levels

•Quick Rinse (Prewash) and Extra Rinse Option

•Fabric Softener and Bleach Dispenser

•TufTub™Basket

•Quiet-By-Design™Sound Package

•Front Serviceable

•Model VWSR4150BWW–White on White
