Hotpoint Ariston ARGF 129 X User manual

English, 1

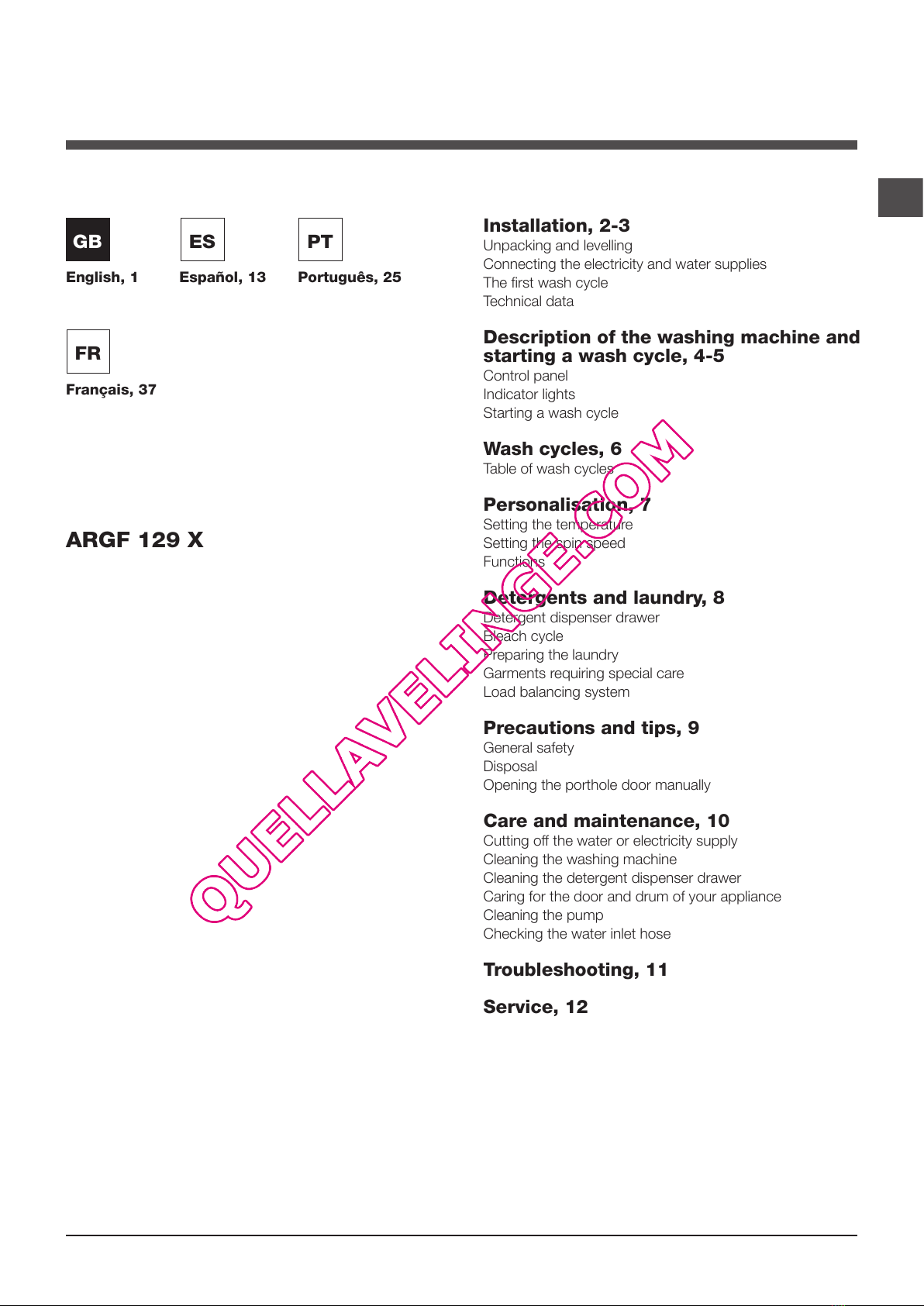

Contents

Installation, 2-3

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Description of the washing machine and

starting a wash cycle, 4-5

Control panel

Indicator lights

Starting a wash cycle

Wash cycles, 6

Table of wash cycles

Personalisation, 7

Setting the temperature

Setting the spin speed

Functions

Detergents and laundry, 8

Detergent dispenser drawer

Bleach cycle

Preparing the laundry

Garments requiring special care

Load balancing system

Precautions and tips, 9

General safety

Disposal

Opening the porthole door manually

Care and maintenance, 10

Cutting off the water or electricity supply

Cleaning the washing machine

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

Troubleshooting, 11

Service, 12

ARGF 129 X

Instructions for use

WASHING MACHINE

ES PT

Português, 25Español, 13

Français, 37

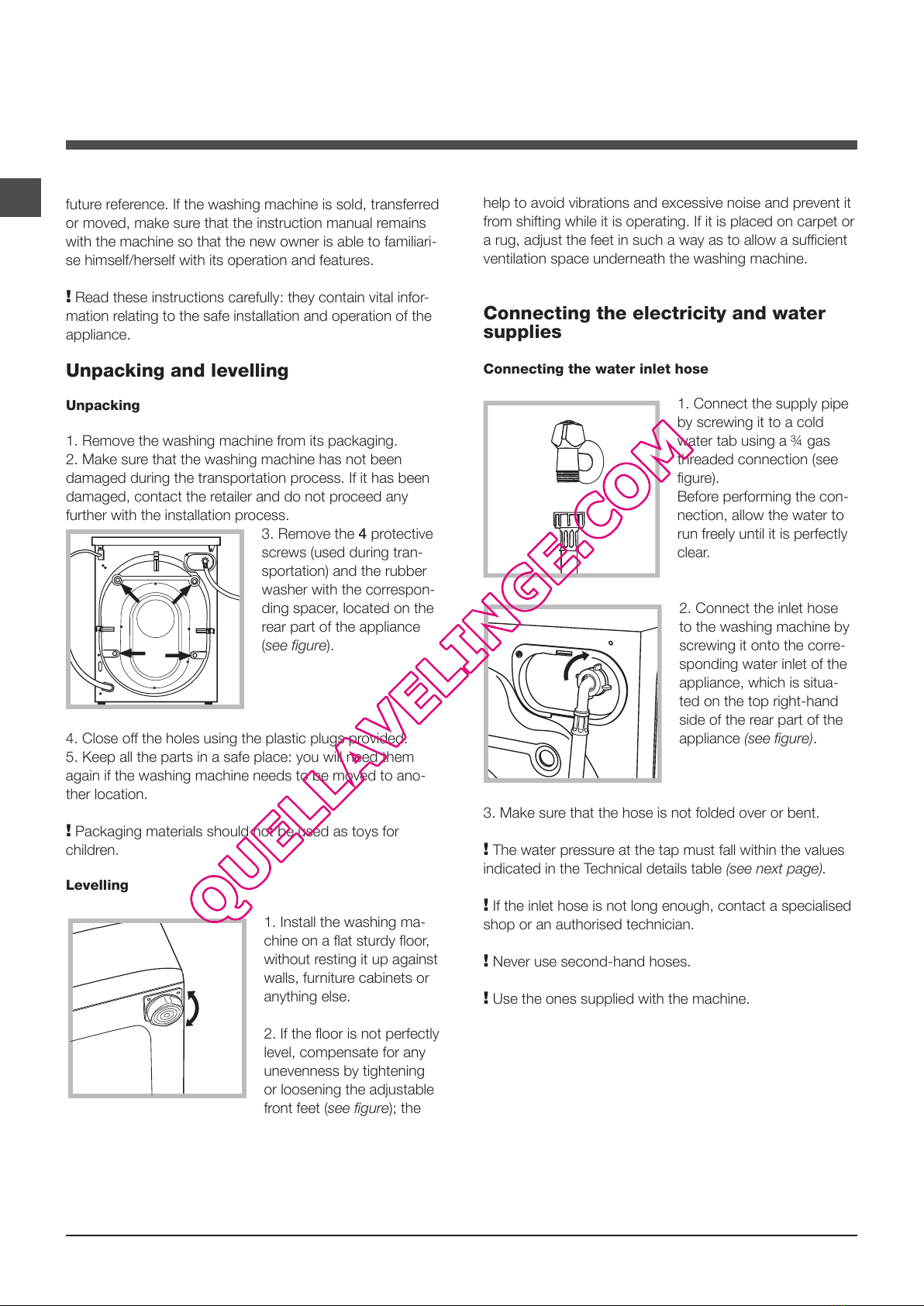

Installation

!This instruction manual should be kept in a safe place for

future reference. If the washing machine is sold, transferred

or moved, make sure that the instruction manual remains

with the machine so that the new owner is able to familiari-

se himself/herself with its operation and features.

!Read these instructions carefully: they contain vital infor-

mation relating to the safe installation and operation of the

appliance.

Unpacking and levelling

Unpacking

1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has not been

damaged during the transportation process. If it has been

damaged, contact the retailer and do not proceed any

further with the installation process.

3. Remove the 4protective

screws (used during tran-

sportation) and the rubber

washer with the correspon-

ding spacer, located on the

rear part of the appliance

(see figure).

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them

again if the washing machine needs to be moved to ano-

ther location.

!Packaging materials should not be used as toys for

children.

Levelling

1. Install the washing ma-

chine on a flat sturdy floor,

without resting it up against

walls, furniture cabinets or

anything else.

2. If the floor is not perfectly

level, compensate for any

unevenness by tightening

or loosening the adjustable

front feet (see figure); the

angle of inclination, measured in relation to the worktop,

must not exceed 2°.

Levelling the machine correctly will provide it with stability,

help to avoid vibrations and excessive noise and prevent it

from shifting while it is operating. If it is placed on carpet or

a rug, adjust the feet in such a way as to allow a sufficient

ventilation space underneath the washing machine.

Connecting the electricity and water

supplies

Connecting the water inlet hose

1. Connect the supply pipe

by screwing it to a cold

water tab using a ¾ gas

threaded connection (see

figure).

Before performing the con-

nection, allow the water to

run freely until it is perfectly

clear.

2. Connect the inlet hose

to the washing machine by

screwing it onto the corre-

sponding water inlet of the

appliance, which is situa-

ted on the top right-hand

side of the rear part of the

appliance (see figure).

3. Make sure that the hose is not folded over or bent.

!The water pressure at the tap must fall within the values

indicated in the Technical details table (see next page).

!If the inlet hose is not long enough, contact a specialised

shop or an authorised technician.

!Never use second-hand hoses.

!Use the ones supplied with the machine.

65 - 100 cm

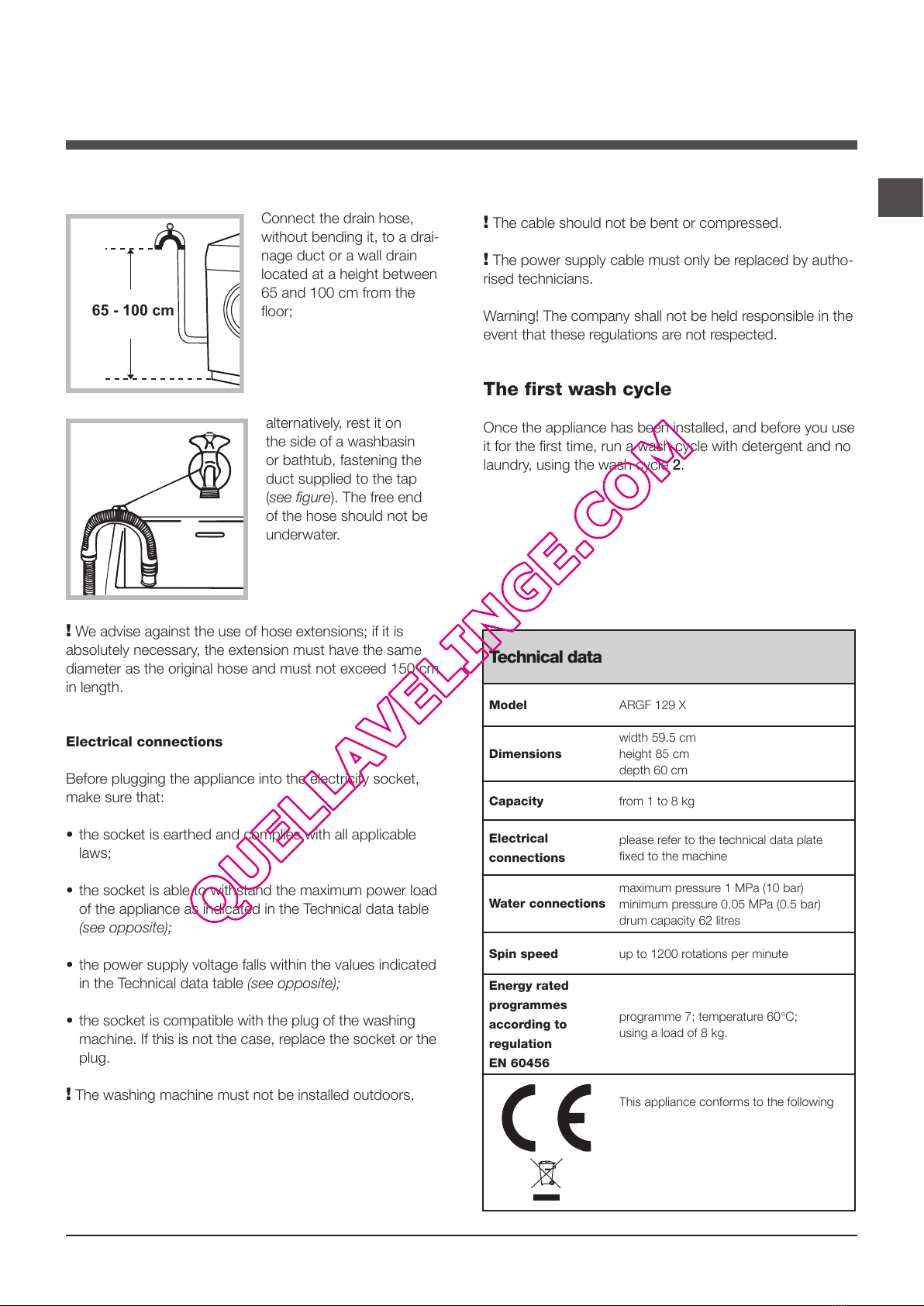

Connecting the drain hose

Connect the drain hose,

without bending it, to a drai-

nage duct or a wall drain

located at a height between

65 and 100 cm from the

floor;

alternatively, rest it on

the side of a washbasin

or bathtub, fastening the

duct supplied to the tap

(see figure). The free end

of the hose should not be

underwater.

!We advise against the use of hose extensions; if it is

absolutely necessary, the extension must have the same

diameter as the original hose and must not exceed 150 cm

in length.

Electrical connections

Before plugging the appliance into the electricity socket,

make sure that:

• thesocketisearthedandcomplieswithallapplicable

laws;

• thesocketisabletowithstandthemaximumpowerload

of the appliance as indicated in the Technical data table

(see opposite);

• thepowersupplyvoltagefallswithinthevaluesindicated

in the Technical data table (see opposite);

• thesocketiscompatiblewiththeplugofthewashing

machine. If this is not the case, replace the socket or the

plug.

!The washing machine must not be installed outdoors,

even in covered areas. It is extremely dangerous to leave

the appliance exposed to rain, storms and other weather

conditions.

!When the washing machine has been installed, the elec-

tricity socket must be within easy reach.

!Do not use extension cords or multiple sockets.

!The cable should not be bent or compressed.

!The power supply cable must only be replaced by autho-

rised technicians.

Warning! The company shall not be held responsible in the

event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use

it for the first time, run a wash cycle with detergent and no

laundry, using the wash cycle 2.

Technical data

Model ARGF 129 X

Dimensions

width 59.5 cm

height 85 cm

depth 60 cm

Capacity from 1 to 8 kg

Electrical

connections

please refer to the technical data plate

fixed to the machine

Water connections

maximum pressure 1 MPa (10 bar)

minimum pressure 0.05 MPa (0.5 bar)

drum capacity 62 litres

Spin speed up to 1200 rotations per minute

Energy rated

programmes

according to

regulation

EN 60456

programme 7; temperature 60°C;

using a load of 8 kg.

This appliance conforms to the following

EC Directives:

- 2004/108/EC (Electromagnetic Compa-

tibility)

- 2006/95/EC (Low Voltage)

- 2002/96/EC

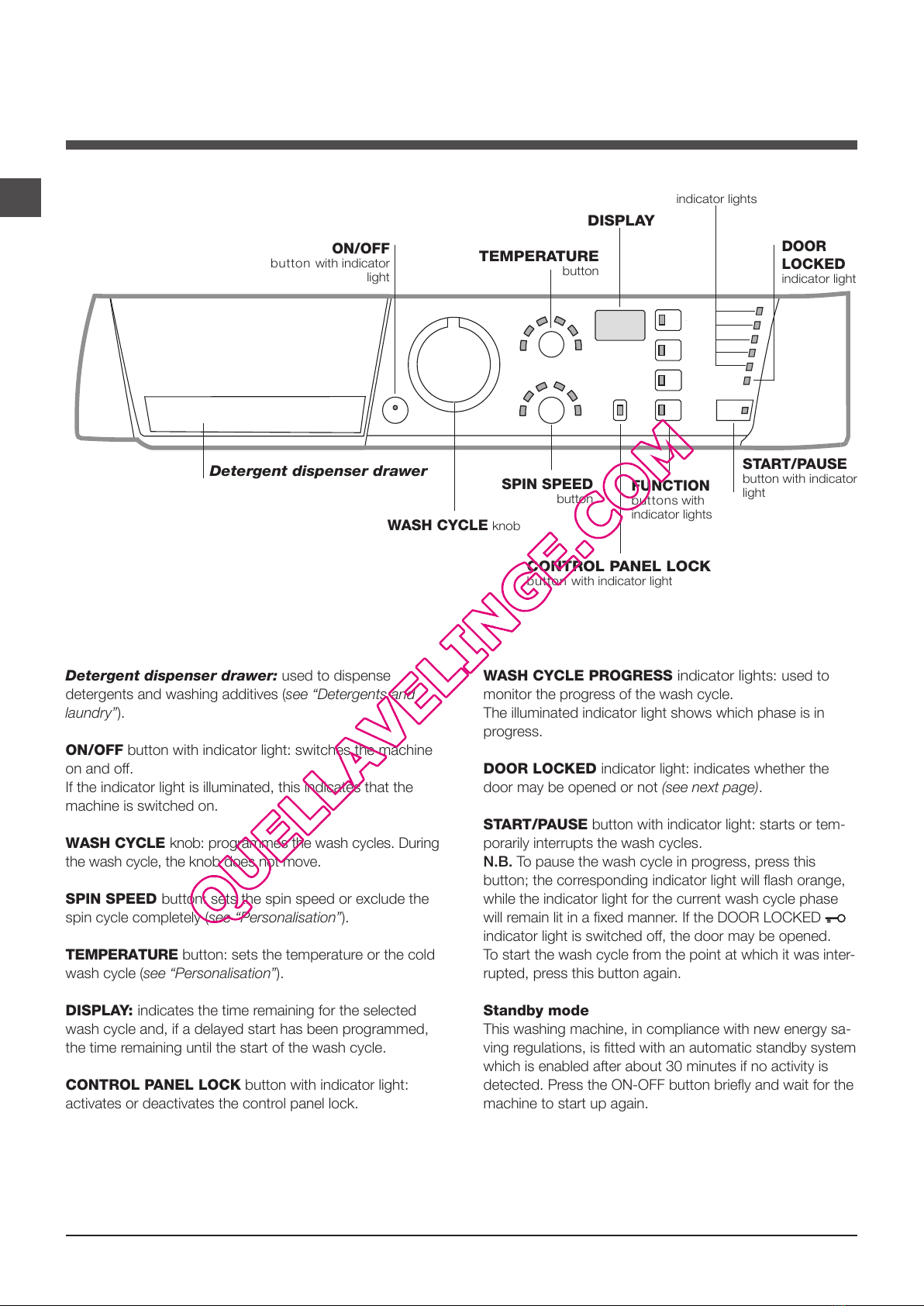

Detergent dispenser drawer: used to dispense

detergents and washing additives (see “Detergents and

laundry”).

ON/OFF button with indicator light: switches the machine

on and off.

If the indicator light is illuminated, this indicates that the

machine is switched on.

WASH CYCLE knob: programmes the wash cycles. During

the wash cycle, the knob does not move.

SPIN SPEED button: sets the spin speed or exclude the

spin cycle completely (see “Personalisation”).

TEMPERATURE button: sets the temperature or the cold

wash cycle (see “Personalisation”).

DISPLAY: indicates the time remaining for the selected

wash cycle and, if a delayed start has been programmed,

the time remaining until the start of the wash cycle.

CONTROL PANEL LOCK button with indicator light:

activates or deactivates the control panel lock.

FUNCTION buttons with indicator light: used to select the

available functions. The indicator light corresponding to the

selected function will remain lit.

WASH CYCLE PROGRESS

indicator light

s: used to

monitor the progress of the wash cycle.

The illuminated indicator light shows which phase is in

progress.

DOOR LOCKED indicator light: indicates whether the

door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or tem-

porarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this

button; the corresponding indicator light will flash orange,

while the indicator light for the current wash cycle phase

will remain lit in a fixed manner. If the DOOR LOCKED

indicator light is switched off, the door may be opened.

To start the wash cycle from the point at which it was inter-

rupted, press this button again.

Standby mode

This washing machine, in compliance with new energy sa-

ving regulations, is fitted with an automatic standby system

which is enabled after about 30 minutes if no activity is

detected. Press the ON-OFF button briefly and wait for the

machine to start up again.

Description of the washing

machine and starting a wash cycle

DOOR

LOCKED

indicator light

START/PAUSE

button with indicator

light

Control panel

WASH CYCLE PROGRESS

indicator lights

FUNCTION

buttons with

indicator lights

Detergent dispenser drawer

WASH CYCLE

knob

DISPLAY

ON/OFF

button with indicator

light

TEMPERATURE

button

SPIN SPEED

button

CONTROL PANEL LOCK

button with indicator light

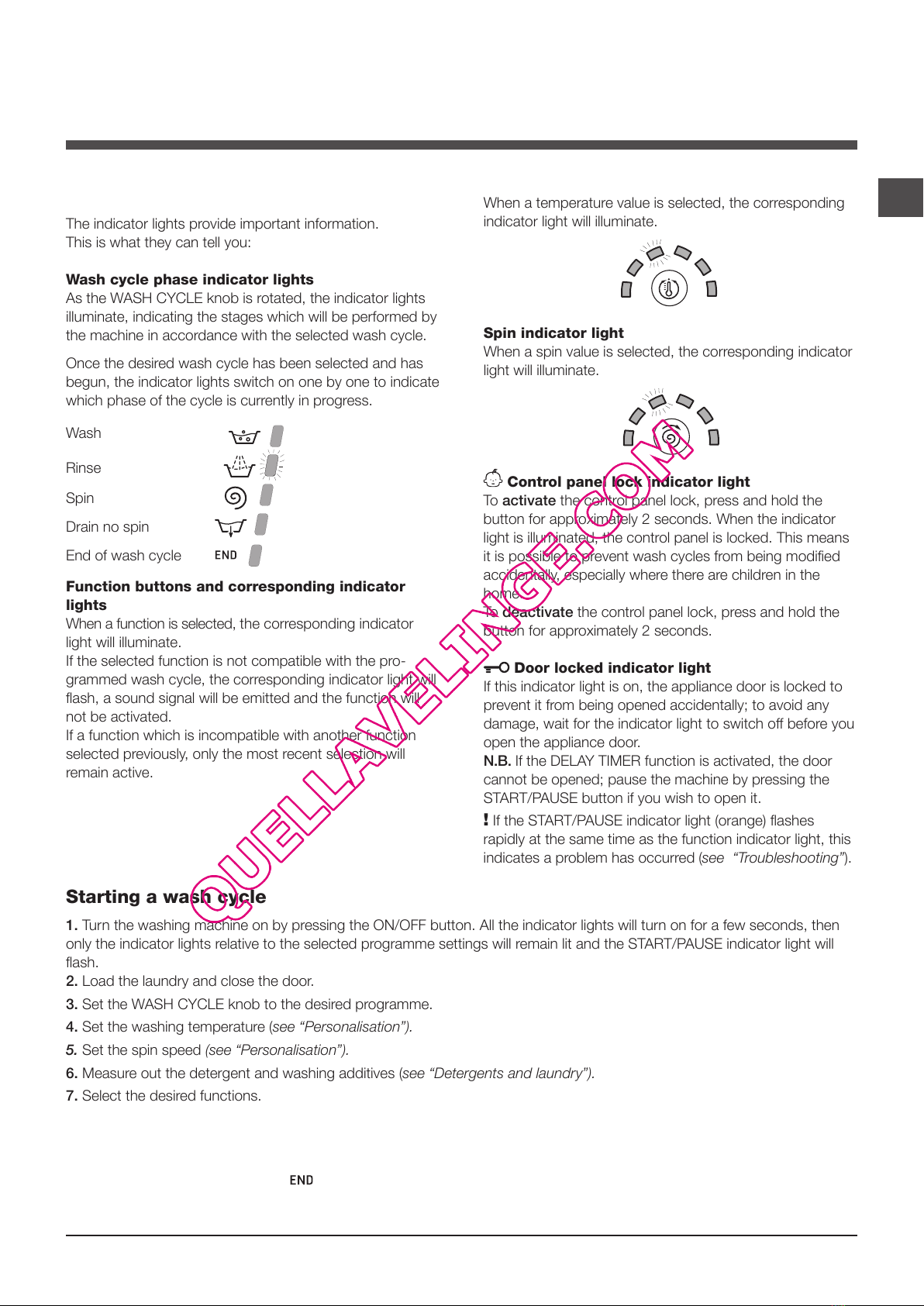

Indicator lights

The indicator lights provide important information.

This is what they can tell you:

Wash cycle phase indicator lights

As the WASH CYCLE knob is rotated, the indicator lights

illuminate, indicating the stages which will be performed by

the machine in accordance with the selected wash cycle.

Once the desired wash cycle has been selected and has

begun, the indicator lights switch on one by one to indicate

which phase of the cycle is currently in progress.

Function buttons and corresponding indicator

lights

When a function is selected, the corresponding indicator

light will illuminate.

If the selected function is not compatible with the pro-

grammed wash cycle, the corresponding indicator light will

flash, a sound signal will be emitted and the function will

not be activated.

If a function which is incompatible with another function

selected previously, only the most recent selection will

remain active.

Temperature indicator light

When a temperature value is selected, the corresponding

indicator light will illuminate.

Spin indicator light

When a spin value is selected, the corresponding indicator

light will illuminate.

Control panel lock indicator light

To activate the control panel lock, press and hold the

button for approximately 2 seconds. When the indicator

light is illuminated, the control panel is locked. This means

it is possible to prevent wash cycles from being modified

accidentally, especially where there are children in the

home.

To deactivate the control panel lock, press and hold the

button for approximately 2 seconds.

Door locked indicator light

If this indicator light is on, the appliance door is locked to

prevent it from being opened accidentally; to avoid any

damage, wait for the indicator light to switch off before you

open the appliance door.

N.B. If the DELAY TIMER function is activated, the door

cannot be opened; pause the machine by pressing the

START/PAUSE button if you wish to open it.

!If the START/PAUSE indicator light (orange) flashes

rapidly at the same time as the function indicator light, this

indicates a problem has occurred (see “Troubleshooting”).

Starting a wash cycle

1. Turn the washing machine on by pressing the ON/OFF button. All the indicator lights will turn on for a few seconds, then

only the indicator lights relative to the selected programme settings will remain lit and the START/PAUSE indicator light will

flash.

2. Load the laundry and close the door.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see “Personalisation”).

5. Set the spin speed (see “Personalisation”).

6. Measure out the detergent and washing additives (see “Detergents and laundry”).

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed

manner, in green.

To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

9. At the end of the wash cycle the indicator light will switch on. The DOOR LOCKED indicator light will switch off, indi-

cating that the door may be opened. Take out your laundry and leave the appliance door ajar to make sure the drum dries

completely. Switch the washing machine off by pressing the ON/OFF button.

Wash

Rinse

Spin

Drain no spin

End of wash cycle

Special wash cycles

Sanitizing cycle (wash cycle 7). A high-temperature hygienic wash cycle (over 60°C) which requires the use of bleach. Pour

the bleach, the detergent and the additives into the relevant compartments (see paragraph entitled “Detergent dispenser

drawer”).

Goodnight cycle (wash cycle 8). This is a silent cycle which can be run at night, when the electricity prices are lower. The

wash cycle is designed for cottons and synthetics. At the end of the cycle the machine stops while there is still water in the

drum; to spin and drain the laundry press the START/PAUSE button; alternatively the machine will perform the spin cycle and

drain the water automatically after 8 hours.

Baby cycle (wash cycle 9). This wash cycle can be used to remove the soiling typically caused by babies, while ensuring

that all detergent is removed from nappies in order to prevent the delicate skin of babies from suffering allergies. The cycle

has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special

disinfecting additives added to the detergent.

At the end of the wash cycle, the machine will slowly rotate the drum to prevent the formation of creases; to end the cycle press

the START/PAUSE button.

Mix 30’ (wash cycle 5) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and

therefore saves both energy and time. By selecting this wash cycle (5 at 30°C), it is possible to wash different fabrics together

(except for wool and silk items), with a maximum load of 3 kg.

Mix 15’ (wash cycle 6) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and

therefore saves both energy and time. By selecting this wash cycle (6 at 30°C), it is possible to wash different fabrics together

(except for wool and silk items), with a maximum load of 1.5 kg.

Wash cycles

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary accor-

ding to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

For all Test Institutes:

1) Test wash cycle in compliance with regulation EN 60456: set wash cycle 7 with a temperature of 60°C.

2) Long wash cycle for cottons: set wash cycle 2 with a temperature of 40°C.

3) Short wash cycle for cottons: set wash cycle 3 with a temperature of 40°C.

Table of wash cycles

Description of the wash cycle

Max.

temp.

(°C)

Max.

speed

(rpm)

Detergents Max.

load (kg)

Cycle

duration

Bleach Wash Fabric

softener

Everyday wash cycles (Daily)

1Cotton + Prewash 90°: Extremely soiled whites. 90°

1200

-  8

2Cotton: Heavily soiled whites and resistant colours. 60°

1200

   8

2Cotton (2): Heavily soiled whites and delicate colours. 40°

1200

   8

3Coloured Cottons (3): Lightly soiled whites and delicate colours. 40°

1200

   8

4Synthetics resistents: Heavily soiled resistant colours. 60°

800

-  3,5

4Synthetics delicates: Lightly soiled resistant colours. 40°

800

-  3,5

5Mix 30': To refresh lightly soiled garments quickly (not suitable for

wool, silk and clothes which require washing by hand). 30°

800

-  3

6Mix 15': To refresh lightly soiled garments quickly (not suitable for

wool, silk and clothes which require washing by hand). 30°

800

-  1,5

Special cycles

7Sanitizing cycle: Extremely soiled whites. 90°

1200

   8

7Sanitizing cycle (1): Heavily soiled whites and resistant colours. 60°

1200

-  8

8Goodnigt cycle: Lightly soiled delicate colours. 40°

800

-  4

9Baby cycle: Heavily soiled delicate colours. 40°

800

-  2

10 Shirts 40°

600

-  2

11 Silk/Curtains: For garments in silk and viscose, lingerie. 30°

-  2

12 Wool: For wool, cashmere, etc. 40°

600

-  2

Partials wash cycles

ARinse -

1200

- - 8

BSpin -

1200

- - - 8

CLight spin -

800

- - - 3,5

DDrain no spin -

- - - 8

Wash cycles

The duration of the wash cycles can be checked on the display.

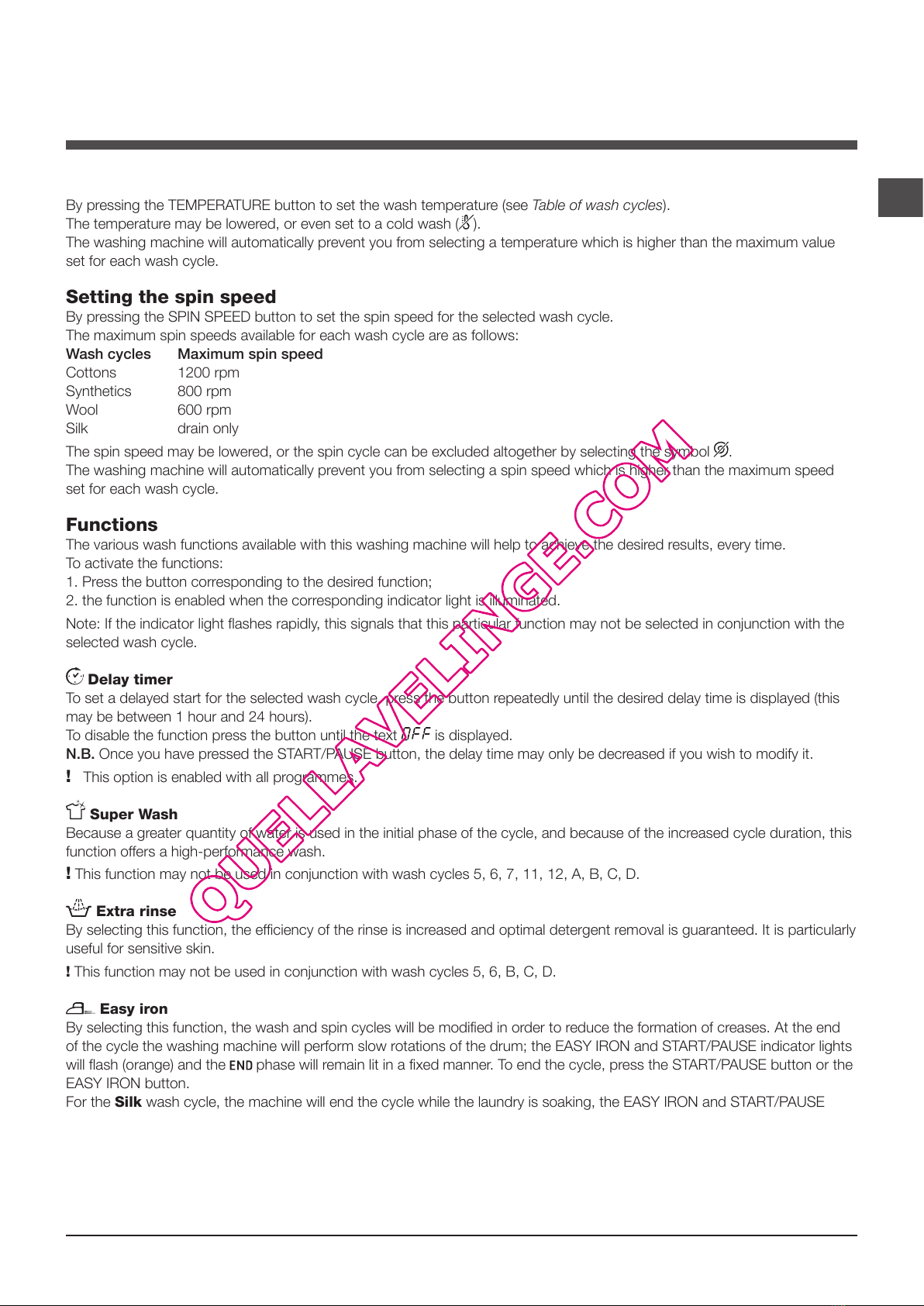

Setting the temperature

By pressing the TEMPERATURE button to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash ( ).

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value

set for each wash cycle.

Setting the spin speed

By pressing the SPIN SPEED button to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

Cottons 1200 rpm

Synthetics 800 rpm

Wool 600 rpm

Silk drain only

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol .

The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed

set for each wash cycle.

Functions

The various wash functions available with this washing machine will help to achieve the desired results, every time.

To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the

selected wash cycle.

Delay timer

To set a delayed start for the selected wash cycle, press the button repeatedly until the desired delay time is displayed (this

may be between 1 hour and 24 hours).

To disable the function press the button until the text is displayed.

N.B. Once you have pressed the START/PAUSE button, the delay time may only be decreased if you wish to modify it.

!This option is enabled with all programmes.

Super Wash

Because a greater quantity of water is used in the initial phase of the cycle, and because of the increased cycle duration, this

function offers a high-performance wash.

!This function may not be used in conjunction with wash cycles 5, 6, 7, 11, 12, A, B, C, D.

Extra rinse

By selecting this function, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly

useful for sensitive skin.

!This function may not be used in conjunction with wash cycles 5, 6, B, C, D.

Easy iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end

of the cycle the washing machine will perform slow rotations of the drum; the EASY IRON and START/PAUSE indicator lights

will flash (orange) and the phase will remain lit in a fixed manner. To end the cycle, press the START/PAUSE button or the

EASY IRON button.

For the Silk wash cycle, the machine will end the cycle while the laundry is soaking, the EASY IRON and START/PAUSE

indicator lights will flash (orange) and the RINSE phase will remain lit in a fixed manner. To drain the water so that the laundry

may be removed, press the START/PAUSE button or the EASY IRON button.

!This function may not be used in conjunction with wash cycles 5, 6, 7, 8, 9, 12, B, C, D.

Personalisation

Detergents and laundry

Detergent dispenser drawer

Good washing results also depend on the correct dose of

detergent: adding too much detergent will not necessa-

rily result in a more efficient wash, and may in fact cause

build up on the inside of your appliance and contribute to

environmental pollution.

!Do not use hand washing detergents because these

create too much foam.

Open the detergent di-

spenser drawer and pour

in the detergent or washing

additive, as follows.

compartment 1: Pre-wash detergent (powder)

Before pouring in the detergent, make sure that extra com-

partment 4 has been removed.

compartment 2: Detergent for the wash cycle

(powder or liquid)

Liquid detergent should only be poured in immediately

prior to the start of the wash cycle.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

extra compartment 4: Bleach

Bleach cycle

Bleaching may only be performed in conjunction with wash

cycles 2,3,7.

Pour the bleach into extra compartment 4; pour the deter-

gent and softener into the corresponding compartments,

then select one of the abovementioned wash cycles.

This option is recommended only for very soiled cotton

garments.

Preparing the laundry

•Dividethelaundryaccordingto:

- the type of fabric/the symbol on the label.

- the colours: separate coloured garments from whites

•Emptyallgarmentpocketsandcheckthebuttons.

•Donotexceedthelistedvalues,whichrefertotheweight

of the laundry when dry:

Durable fabrics: max. 8 kg

Synthetic fabrics: max. 3,5 kg

Delicate fabrics: max. 2 kg

Wool: max. 2 kg

MAX

How much does your laundry weigh?

1 sheet 400-500 g

1 pillow case 150-200 g

1 tablecloth 400-500 g

1 bathrobe 900-1200 g

1 towel 150-250 g

Garments requiring special care

Shirts: use special wash cycle 10 to wash shirts in various

fabrics and colours.

It guarantees maximum care is taken of the garments and

minimises the formation of creases.

Silk: use special wash cycle 11 to wash all silk garments.

We recommend the use of special detergent which has

been designed to wash delicate clothes.

Curtains: fold curtains and place them in a pillow case or

mesh bag. Use wash cycle 11.

Wool: is the only washing machine manufacturer to have

been awarded the prestigious Woolmark Platinum Care

endorsement (M.0508) by the Woolmark Company, which

means that all woollen garments may be washed in the

washing machine, even those which state “hand wash

only” on the label. Wash cycle 12 therefore offers

complete peace of mind when washing woollen garments

in the washing machine (max. load 2 kg) and guarantees

optimal performance.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and

to distribute the load in a uniform manner, the drum rotates

continuously at a speed which is slightly greater than the

washing rotation speed. If, after several attempts, the load

is not balanced correctly, the machine spins at a reduced

spin speed. If the load is excessively unbalanced, the

washing machine performs the distribution process instead

of spinning. To encourage improved load distribution and

balance, we recommend small and large garments are

mixed in the load.

Precautions and tips

!This washing machine was designed and constructed in

accordance with international safety regulations. The fol-

lowing information is provided for safety reasons and must

therefore be read carefully.

General safety

• Thisapplianceisnotintendedforusebypersons(inclu-

ding children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concer-

ning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that

they do not play with the appliance.

• Thisappliancewasdesignedfordomesticuseonly.

• Donottouchthemachinewhenbarefootorwithwetor

damp hands or feet.

• Donotpullonthepowersupplycablewhenunplugging

the appliance from the electricity socket. Hold the plug

and pull.

• Donotopenthedetergentdispenserdrawerwhilethe

machine is in operation.

• Donottouchthedrainedwaterasitmayreachextreme-

ly high temperatures.

• Neverforcetheportholedoor.Thiscoulddamagethe

safety lock mechanism designed to prevent accidental

opening.

• Iftheappliancebreaksdown,donotunderanycircum-

stances access the internal mechanisms in an attempt

to repair it yourself.

• Alwayskeepchildrenwellawayfromtheappliancewhile

it is operating.

• Thedoorcanbecomequitehotduringthewashcycle.

• Iftheappliancehastobemoved,workinagroupoftwo

or three people and handle it with the utmost care. Never

try to do this alone, because the appliance is very heavy.

• Beforeloadinglaundryintothewashingmachine,make

sure the drum is empty.

Disposal

• Disposingofthepackagingmaterials:observelocal

regulations so that the packaging may be re-used.

• TheEuropeanDirective2002/96/EConWasteElectrical

and Electronic Equipment, requires that old household

electrical appliances must not be disposed of in the

normal unsorted municipal waste stream. Old applian-

ces must be collected separately in order to optimise

the recovery and recycling of the materials they contain

and reduce the impact on human health and the envi-

ronment. The crossed out “wheeled bin” symbol on the

product reminds you of your obligation, that when you

dispose of the appliance it must be separately collected.

Opening the porthole door manually

In the event that it is not possible to open the porthole

door due to a powercut, and if you wish to remove the

laundry, proceed as follows:

1. remove the plug from the

electrical socket.

2. make sure the water level

inside the machine is lower

than the door opening; if it

is not, remove excess water

using the drain hose, collec-

ting it in a bucket as indicated

in the figure.

3. using a screwdriver, remo-

ve the cover panel on the lo-

wer front part of the washing

machine (see figure).

4. pull outwards using the tab as indicated in the figure,

until the plastic tie-rod is freed from its stop position; pull

downwards and open the door at the same time.

5. reposition the panel, making sure the hooks are securely

in place before you push it onto the appliance.

Consumers should contact their local authority or retailer

for information concerning the correct disposal of their

old appliance.

Care and maintenance

Cutting off the water and electricity

supplies

• Turnoffthewatertapaftereverywashcycle.Thiswill

limit wear on the hydraulic system inside the washing

machine and help to prevent leaks.

• Unplugthewashingmachinewhencleaningitanddu-

ring all maintenance work.

Cleaning the washing machine

The external surfaces of the machine and the control

panel may be cleaned using a non-abrasive cloth which

has been dampened with water. Do not use solvents or

abrasive product.

Cleaning the detergent dispenser drawer

Remove the dispenser by

raising it and pulling it out

(see figure).

Wash it under running wa-

ter; this operation should be

repeated frequently.

Caring for the door and drum of your

appliance

• Alwaysleavetheportholedoorajarinordertoprevent

unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump

which does not require any maintenance. Sometimes, small

items (such as coins or buttons) may fall into the pre-cham-

ber which protects the pump, situated in its bottom part.

!Make sure the wash cycle has finished and unplug the

appliance.

To access the pre-chamber:

1. using a screwdriver,

remove the cover panel

on the lower front part of

the washing machine (see

figure);

2. unscrew the lid by rota-

ting it anti-clockwise (see

figure): a little water may

trickle out. This is perfectly

normal;

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely

in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any

cracks, it should be replaced immediately: during the wash

cycles, water pressure is very strong and a cracked hose

could easily split open.

!Never use second-hand hoses.

Table of contents

Languages:

Other Hotpoint Ariston Washer manuals

Hotpoint Ariston

Hotpoint Ariston AQUALTIS AQ9D 691 U User manual

Hotpoint Ariston

Hotpoint Ariston ARTXF 129 User manual

Hotpoint Ariston

Hotpoint Ariston RSPG 824 J User manual

Hotpoint Ariston

Hotpoint Ariston AQUALTIS PWAQ82L29 User manual

Hotpoint Ariston

Hotpoint Ariston AQUALTIS AQS73D 29 User manual

Hotpoint Ariston

Hotpoint Ariston WMG 823 User manual

Hotpoint Ariston

Hotpoint Ariston RZ 1047 W User manual

Hotpoint Ariston

Hotpoint Ariston ARXXL 105 User manual

Hotpoint Ariston

Hotpoint Ariston AR 83 User manual

Hotpoint Ariston

Hotpoint Ariston AWM 129 User manual

Hotpoint Ariston

Hotpoint Ariston ARGD149K EU Operating and installation instructions

Hotpoint Ariston

Hotpoint Ariston WMD 843 User manual

Hotpoint Ariston

Hotpoint Ariston AQUALTIS AQ113DA 697 User manual

Hotpoint Ariston

Hotpoint Ariston RPG 926 D User manual

Hotpoint Ariston

Hotpoint Ariston RZ 1047 B User manual

Hotpoint Ariston

Hotpoint Ariston FMF 723 User manual

Hotpoint Ariston

Hotpoint Ariston AQUALTIS AQ83F User manual

Hotpoint Ariston

Hotpoint Ariston WMG 8237 User manual

Hotpoint Ariston

Hotpoint Ariston WML 902 User manual

Hotpoint Ariston

Hotpoint Ariston ECOT7F 129 User manual

Hotpoint Ariston

Hotpoint Ariston AQUALTIS AQ9D 48 X User manual

Hotpoint Ariston

Hotpoint Ariston Aqualtis AQXGF 169 User manual

Hotpoint Ariston

Hotpoint Ariston AQUALTIS AQ114D 697D User manual

Hotpoint Ariston

Hotpoint Ariston ECOT7L 1051 User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
