Hoshizaki KM-2400SRF3 User manual

PARTS LIST

HOSHIZAKI

STACKABLE CRESCENT CUBER

MODELS

KM-2400SRF3

KM-2400SRH3

NO.

JAN. 7, 2000ISSUED:

71162

AUG.12, 2003REVISED:

KM-2400SRF3 J-0 SEPT., 1999

K-0 JAN., 2000

KM-2400SRH3 L-0 DEC., 2000

M-0 DEC., 2001

M-1 MARCH, 2002

M-2 MAY,2002

N-0 DEC., 2002

N-1 MARCH, 2003

MATERIALABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PIFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARYCODES

Ex.1 K-0 (Note) - = Part deleted.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part (interchangeable).

skipped. So, "K" indicates "2000". o = New part for "x"

Ex.2 L- 0 in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3 L- 1Each time a part is changed (non-interchangeably)

in a year, this number advances.

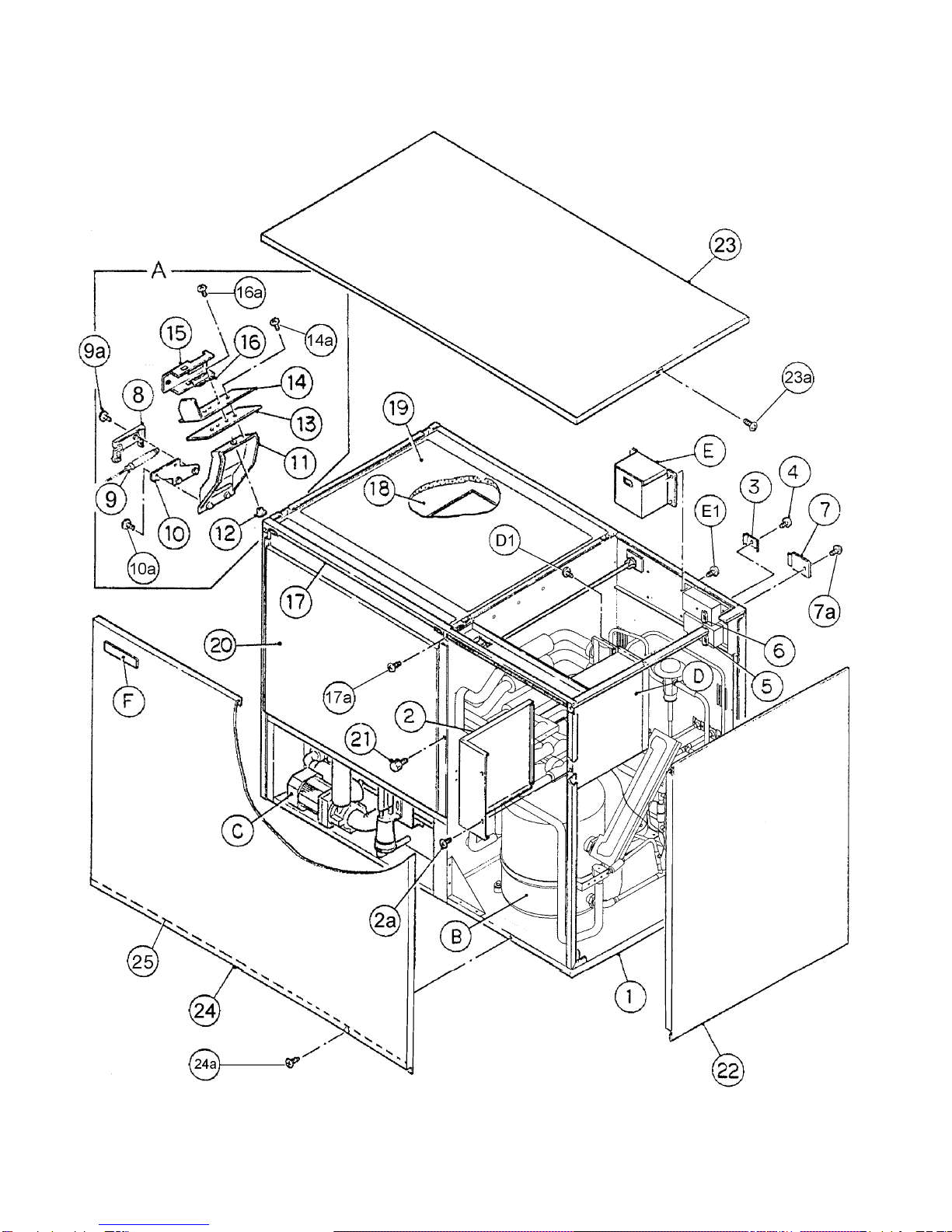

KM-2400SRF3, KM-2400SRH3 A. ICE CUBERASSEMBLY J-0, K-0, L-0, M-0, M-1,

M-2, N-0, N-1

MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

KM-2400SRF3 KM-2400SRH3

NUMBER J-0 K00006M

K00355E

K00356G

K00555L

L-0

M-0

M-1 M-2

N-0

N-1

B REFRIGERATION

CIRCUIT

- 1A0484A01 1 x1

- 1A0484A02 o1 1 1 x1

- 1A0484A03 o1 1

C WATER CIRCUIT - 105122A05 1 1 1 1 1 1

D CONT. BOX ASSEMBLY HS-1105 2A1122A03 1 1 -

- 2A1122A04 1 1 1 -

- 2A2527A02 1

D1 T2 SCREW 4X8 7P31-0408 3 3 3 3 3 3

E TRANSFORMER BOX

ASSEMBLY

- 326680A01 1 1 1 1 1 1

E1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4 4 4 4 4 4

F LABEL LOCATION - 2A1704A01 1 1 1 1 1 -

- 2A2562A01 1

1 EVAP. CASE GS, SS 2A1102G11 1 1 1

GS, SS 2A2100G01 1 1 1

2 CONT. BOX COVER GS 3A0174-01 1 1 1 1 1 -

GS 3A2386-01 1

2a T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2

3 SQUARE WASHER BRASS 433537-02 2 2 2 2 2 2

4 SCREW-GROUNDING BRASS 433304-02 2 2 2 2 2 2

5 BUSHING SR-30-1 420472-03 1 1 1 1 1 1

6 BUSHING SR-31-2 420472-08 1 1 1 1 1 1

7 JUNCTION BOX COVER GS 433410-01 2 2 2 2 2 2

7a T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2

8 BULB HOLDER PE 328919-01 1 1 1 1 1 1

9 SPACER PE 443545-01 1 1 1 1 1 2

9a T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2 2

MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

KM-2400SRF3 KM-2400SRH3

NUMBER J-0

K-0 L-0

M-0

M-1 M-2 N-0 N-1

10 BULB HOLDER (C) ABS 325845G01 1 1 1 1 1 1 1

10a TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2 2 2

11 BULB HOLDER (D) ABS 215644G01 1 1 1 1 1 1 1

12 BUSHING EP RUBBER

425307-01 1 1 1 1 1 1 1

13 SPACER ABS 439727-01 1 1 1 1 1 1 1

14 BULB HOLDER (E) GS 439725-01 1 1 1 1 1 1 1

14a TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2 2 2

15 BULB HOLDER (F) GS 328743-01 1 1 1 1 1 1 1

16 BULB HOLDER (G) GS 439726-01 1 1 1 1 1 1 1

16a TRUSS HEAD SCREW 4X6, SS 7C32-0406 2 2 2 2 2 2 2

17 FRONT PANEL-BRACKET SS 323903-01 1 1 1 1 1 1 1

17a T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3 3 3

18 SPACER ABS 324321-01 1 1 1 1 1 1 1

19 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1 1 1

20 FRONT INSULATION ABS, PE 326041G01 1 1 1 1 1 1 1

21 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1 1 1

22 SIDE PANEL (R) SS 215381G01 1 1 1 1 1 1 1

23 TOP PANEL SS 213669-02 1 1 1 1 1 1 1

23a TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3 3 3

24 FRONT PANEL (A) SS 215382-01 1 1 -

FRONT PANEL - 3A1838G01 1 1 1 1 1

24a TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2 2 2 2

25 GASKET L=1219 4A0808L02 1 1 1 1 1 1

KM-2400SRF3, KM-2400SRH3 B. REFRIGERATION CIRCUIT (1/2) J-0, K-0, L-0

M-0, M-1, M-2

N-0, N-1

KM-2400SRF3, KM-2400SRH3 B. REFRIGERATION CIRCUIT (2/2) J-0, K-0, L-0

M-0, M-1, M-2

N-0, N-1

MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:B. REFRIGERATION CIRCUIT

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER J-0

K-0 L-0 M-0 M-1 M-2 N-0 N-1

G EVAPORATOR - 105288A02 1 1 1 1 1 1 1 1

1 REARFRAME GS 326687G03 1 1 1 1 1 1 1 1

1a T2 SCREW 4X8 7P31-0408 4 4 4 4 4 4 4 4

2 SIDEFRAME (A) GS 215375G01 1 1 1 1 1 1 1 1

2a T2 SCREW 4X8 7P31-0408 3 3 3 3 3 3 3 3

3 SIDEFRAME (B) GS 215376G01 1 1 1 1 1 1 1 1

3a T2 SCREW 4X8 7P31-0408 4 4 4 4 4 4 4 4

4 FRONT FRAME GS 325857-01 1 1 1 1 1 1 1 1

4a T2 SCREW 4X8 7P31-0408 4 4 4 4 4 4 4 4

5 REARPANEL GS 2A1700-01 1 1 1 1 1 1 1 1

5a T2 SCREW 4X8 7P31-0408 8 8 8 8 8 8 8 8

6 BRACE GS 325858-01 1 1 1 1 1 1 1 1

6a T2 SCREW 4X8 7P31-0408 4 4 4 4 4 4 4 4

7 COMPRESSOR MTZ56HL3VE 4A2043-01 1 1 1 1 1 1 1 1

8 BOLT 8X45 437889-01 4 4 4 4 4 4 4 4

9 GROMMET - 4A2043F01 4 4 4 4 4 4 4 4

10 SPACER - 4A2043F02 4 4 4 4 4 4 4 4

11 SUCTION FITTING - 4A2043F03 1 1 1 1 1 1 1 1

12 DISCHARGE FITTING - 4A2043F04 1 1 1 1 1 1 1 1

13 C.P. REGULATOR Y1038-LAC-5-210

4A2063-01 1 1 1 1 1 1 1 1

14 RECEIVER RR MN WP450 440366-01 1 1 1 1 1 1 1 1

14a HEXHEADBOLT W/WASHER 5X10 7B0130510 3 3 3 3 3 3 3 3

15 RECEIVER BRACKET (A) GS 327093-01 1 1 1 1 1 1 1 1

16 RECEIVER BRACKET (B) GS 440860-01 1 1 1 1 1 1 1 1

16a T2 SCREW 4X8 7P31-0408 4 4 4 4 4 4 4 4

17 DRIER CW-053-S 4A1461-01 1 1 1 1 x1

C-05E84 4A2663-01 o1 1 1 1

18 DRIERBRACKET GS 445251-01 1 1 1 1 x1

NYLON TIE - 8911-0301 o1 1 1 1

18a T2 SCREW 4X8 7P31-0408 1 1 1 1 -

MODEL:KM-2400SRF3, KM-2400SRH3 TITLE:B. REFRIGERATION CIRCUIT

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER J-0

K-0 L-0 M-0 M-1 M-2 N-0 N-1

19 EXP. VALVE ANE1-1/4SW75 4A2053-01 3 3 3 3 3 3 3 3

20 FRAME SEAL EPDM 323925-01 4 4 4 4 4 4 4 4

20a T2 SCREW 4X12, SS 7P32-0412 4 4 4 4 4 4 4 4

21 VALVE BODY 70 440352-01 2 2 2 2 2 2 2 2

22 COIL-VALVE ABS-25-1-HD-2

440353-01 2 2 2 2 2 2 2 2

23 BOLT 4X6 440353F01 2 2 2 2 2 2 2 2

24 TRUSS HEAD SCREW 4X8 7C31-0408 4 4 4 4 4 4 4 4

25 LINE VALVE BRACKET GS 438213-01 1 1 1 1 1 1 1 1

25a T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2 2

26 VALVE BRACKET GS 4A2059-01 1 1 1 1 1 1 1 1

26a T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2 2

27 STRAINER - 441569-02 1 1 1 1 1 1 1 1

28 PRESSURE SWITCH ACB-1UB09 433441-07 1 1 1 1 1 1 1 1

29 PRESSURE SWITCH BRACKET GS 434938-01 1 1 1 1 1 1 1 1

29a T2 SCREW 4X8 7P31-0408 1 1 1 1 1 1 1 1

30 COUPLING COPPER 434136G01 1 x1

COPPER 434136G03 o1 1 1 1 1 1 1

31 TUBE HOLDER-L GS 438245-01 1 1 1 1 1 1 1 1

31a T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2 2

32 COUPLING COPPER 433751G01 1 1 1 1 1 1 1 1

33 TUBE HOLDER-S GS 438246-01 1 1 1 1 1 1 1 1

33a T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2 2

34 COPPER TUBE (A)-HIGH SIDE COPPER 3A1558G01 1 1 1 1 1 1 1 1

35 COPPER TUBE (B)-HIGH SIDE COPPER 3A1557G01 1 1 1 1 1 1 1 1

36 COPPER TUBE (C)-HIGH SIDE COPPER 3A1555G01 1 1 1 1 1 1 1 1

37 COPPER TUBE (D)-HIGH SIDE COPPER 3A1556-01 1 1 1 1 1 1 1 1

38 COPPER TUBE (E)-HIGH SIDE COPPER 3A0220-01 1 1 1 1 1 1 1 1

39 COPPER TUBE (F)-HIGH SIDE COPPER 3A1543-01 1 1 1 1 -

COPPER 3A2338-01 1 1 1 1

40 HEAT EXCHANGER COPPER 2A1710G01 1 1 1 1 1 1 1 1

41 COPPER TUBE (J)-HIGH SIDE COPPER 3A1552G01 1 1 1 1 1 1 1 1
