Hoshizaki KM-900MAF User manual

HOSHIZAKI

MODULAR CRESCENT CUBER

MODELS

NO.

(FINAL) PARTS LIST

ISSUED: MARCH 24, 1999

KM-900MAF

KM-900MWF

KM-900MRF

KM-900MRF3

71141

REVISED: JAN. 21, 2002

2

HA

KM-900MAF J-0 March, 1999

K-0 Dec., 1999

L-0 Dec., 2000

KM-900MWF J-0 April, 1999

K-0 Dec., 1999

L-0 Jan., 2001

KM-900MRF J-0 March, 1999

K-0 Dec., 1999

L-0 Dec., 2000

KM-900MRF3 K-0 Dec., 1999

L-0 Jan., 2001

3

HA MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitritrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

G.S = Galvanized steel

S.S = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "2000".

o = New part for "x"

Ex.2 L-0 in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3 L-1

Each time a part is changed non-interchangeably

in a year, this number advances.

4

HA

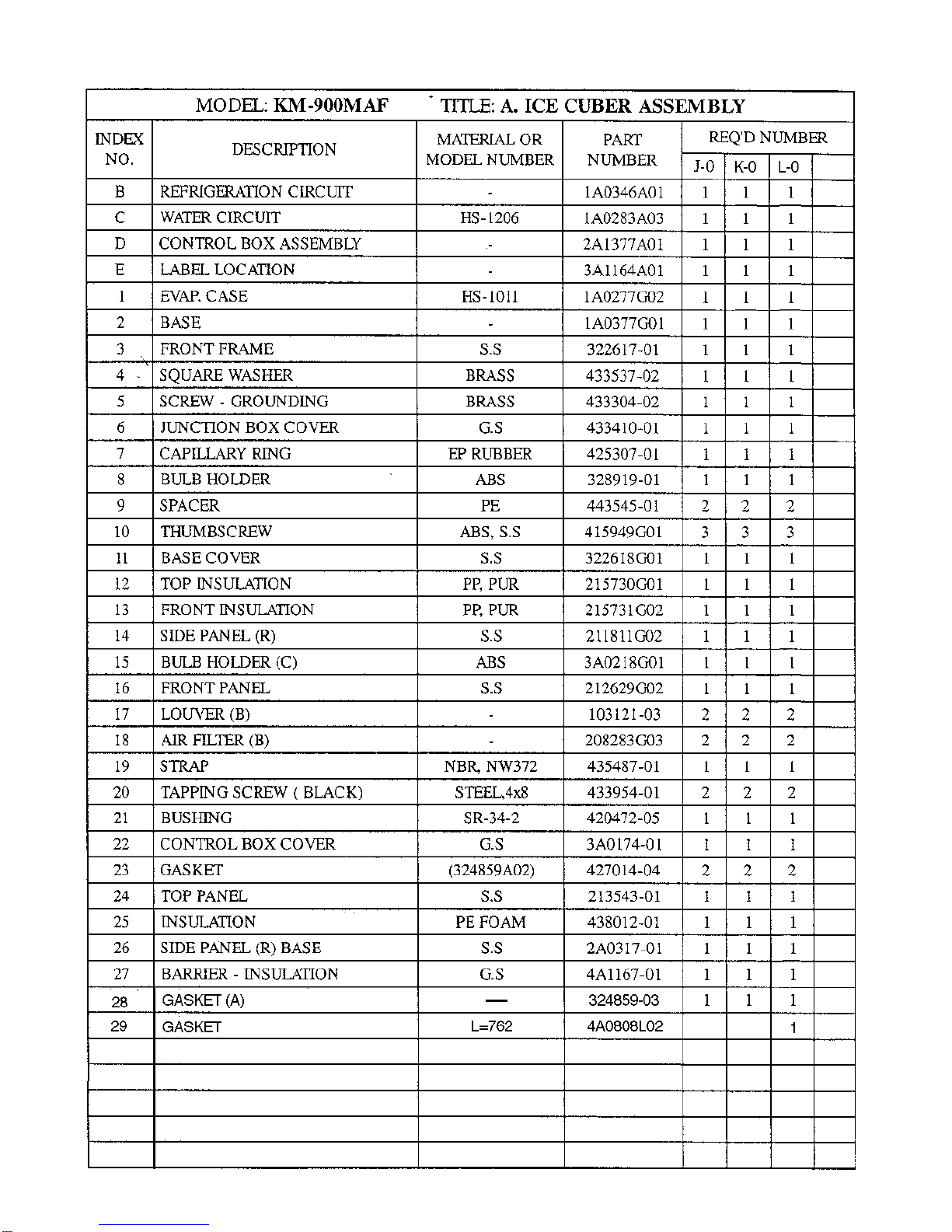

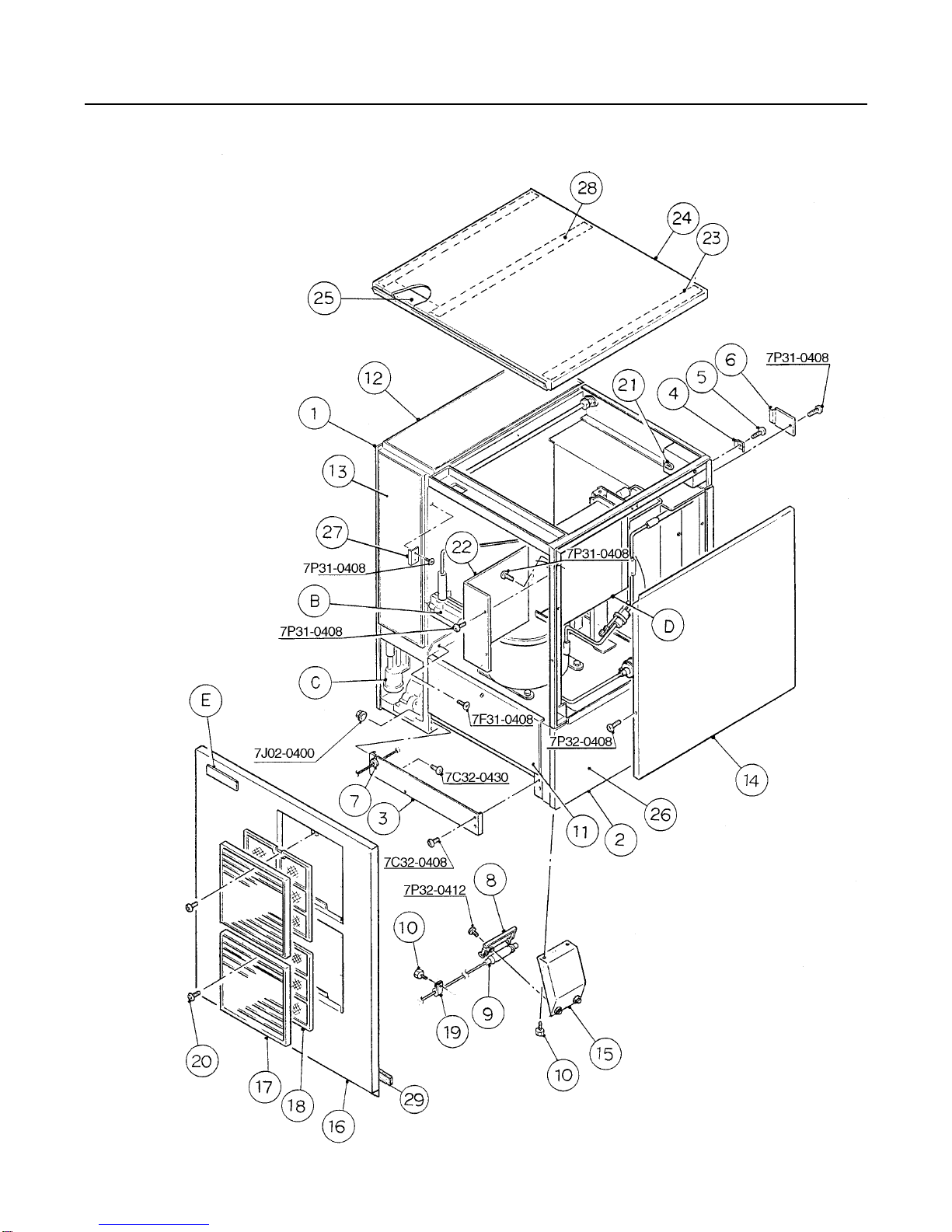

KM-900MAF A. ICE CUBER ASSEMBLY J-0, K-0, L-0

5

HA

6

HA

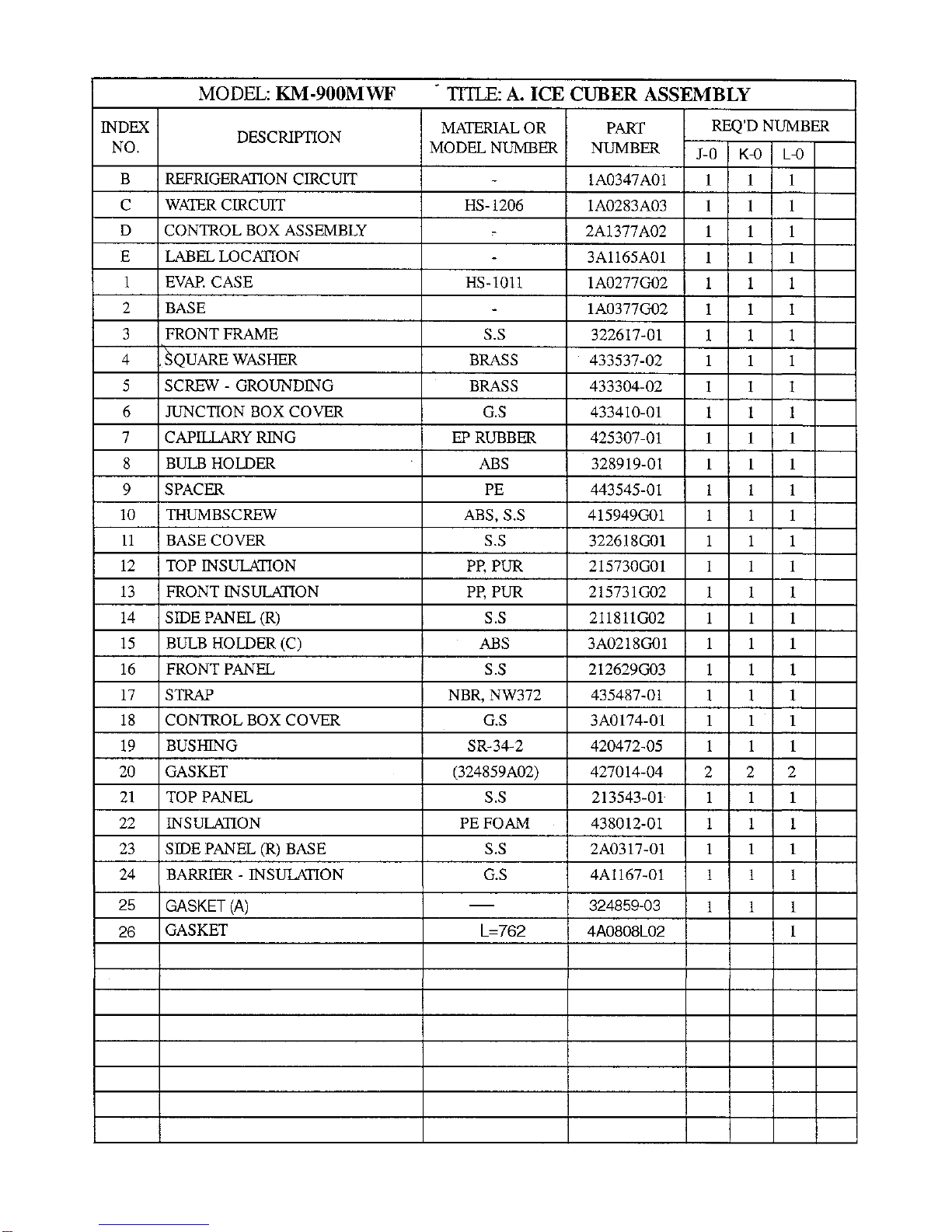

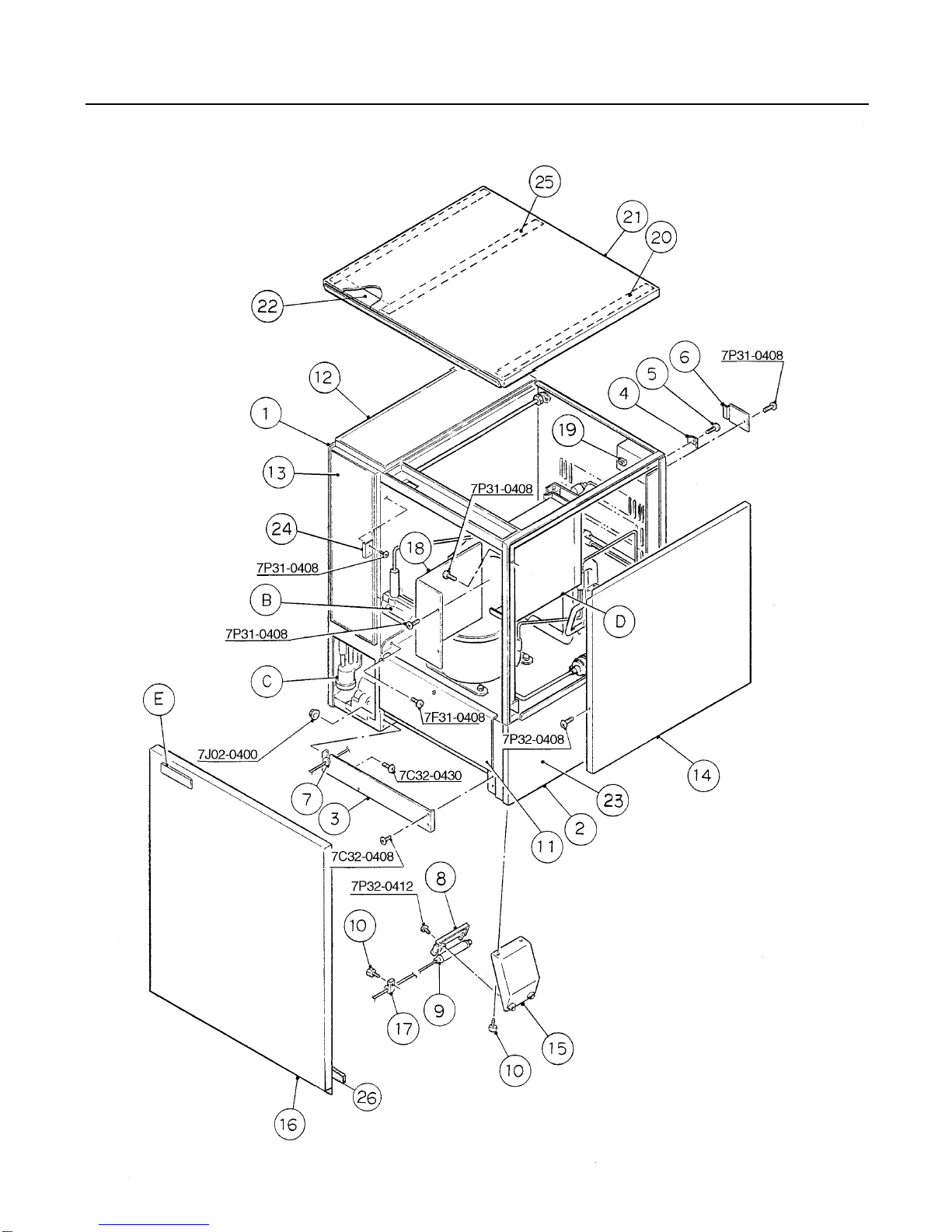

KM-900MWF A. ICE CUBER ASSEMBLY J-0, K-0, L-0

7

HA

8

HA

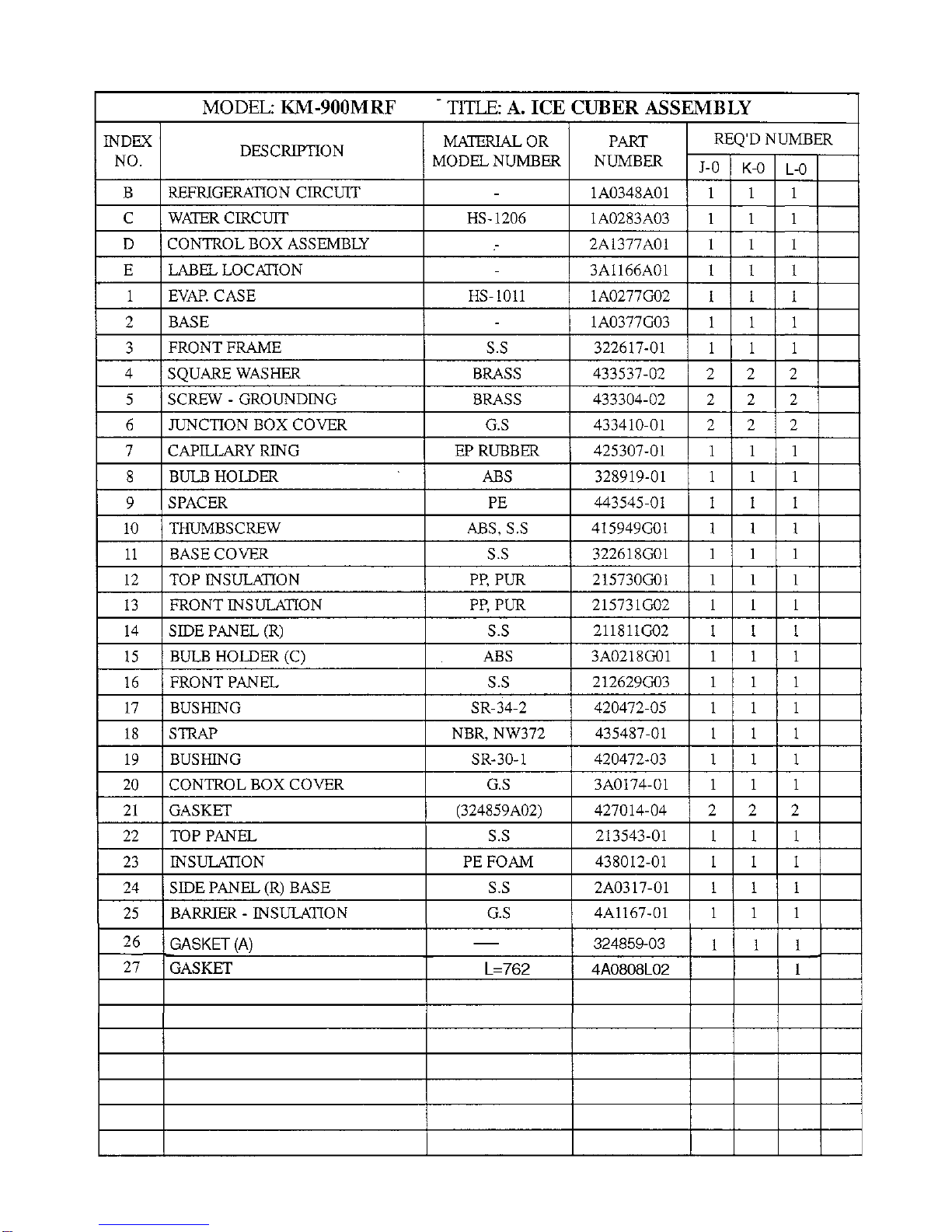

KM-900MRF & MRF3 A. ICE CUBER ASSEMBLY J-0, K-0, L-0

9

HA

10

HA
