Hoshizaki KM-1600MRF User manual

NO. MAR. 2, 1999

ISSUED: 71129

(FINAL) PARTS LIST

HOSHIZAKI

MODULAR CRESCENT CUBER

MODEL

KM-1600MRF

KM-1600MRF3

JULY 29, 2003

REVISED:

KM-1600MRF H-1 May 1998

H-2 Sept., 1998

J-0 Feb., 1999

K-0 Dec., 1999

L-0 Dec., 2000

KM-1600MRF3 H-1 May 1998

H-2 Sept., 1998

J-0 June 1999

K-0 Dec., 1999

L-0 Jan., 2001

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PE P = Polyethylene terephthalate = etlon

PP = Polypropylene

PS = Polystyrene

PIFE = Polytetrafluoroethylene = eflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "2000".

o = New part for "x"

Ex.2 L-0 in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3 L-1

Each time a part is changed non-interchangeably,

in a year, this number advances.

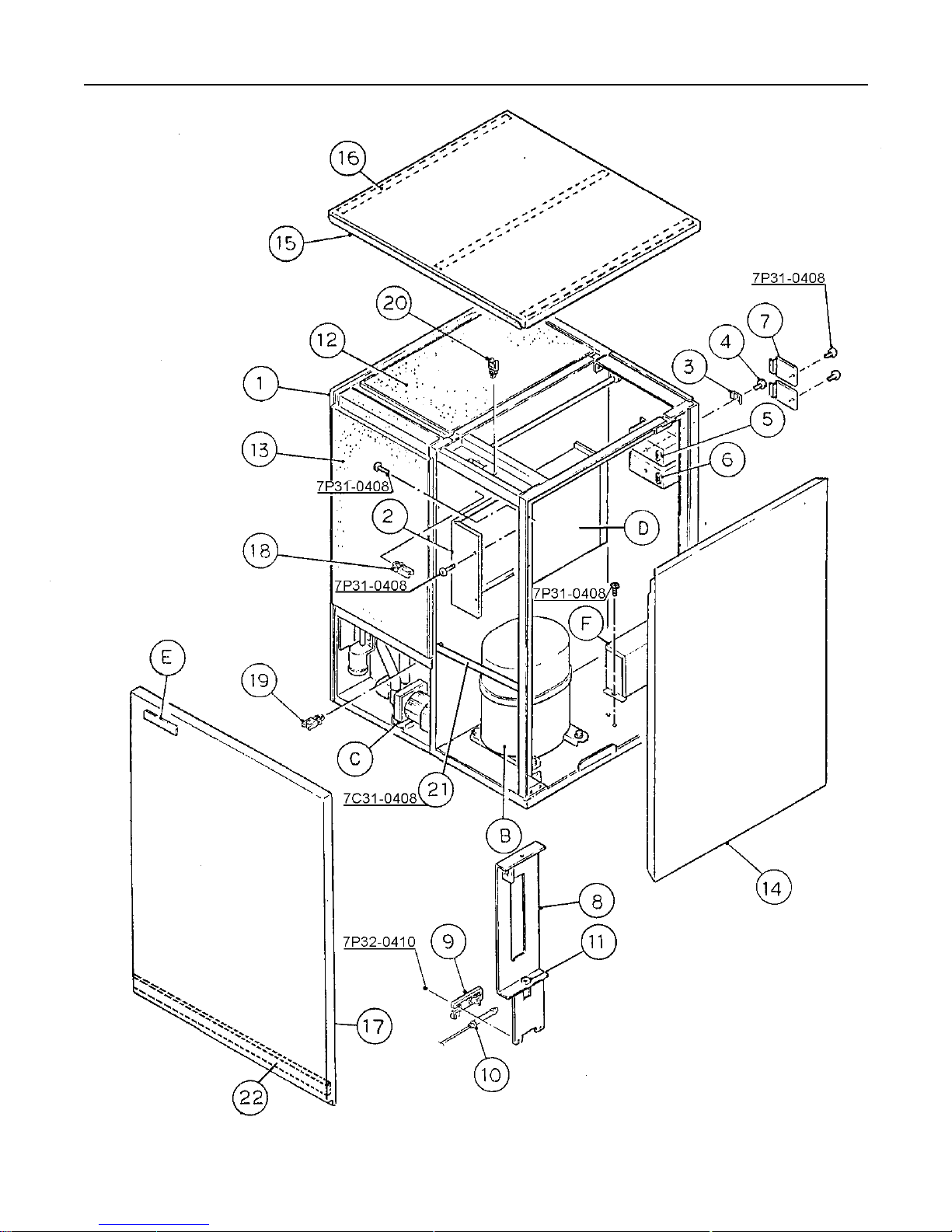

KM-1600MRF A. ICE CUBER ASSEMBLY H-1, H-2, J-0, K-0, L-0

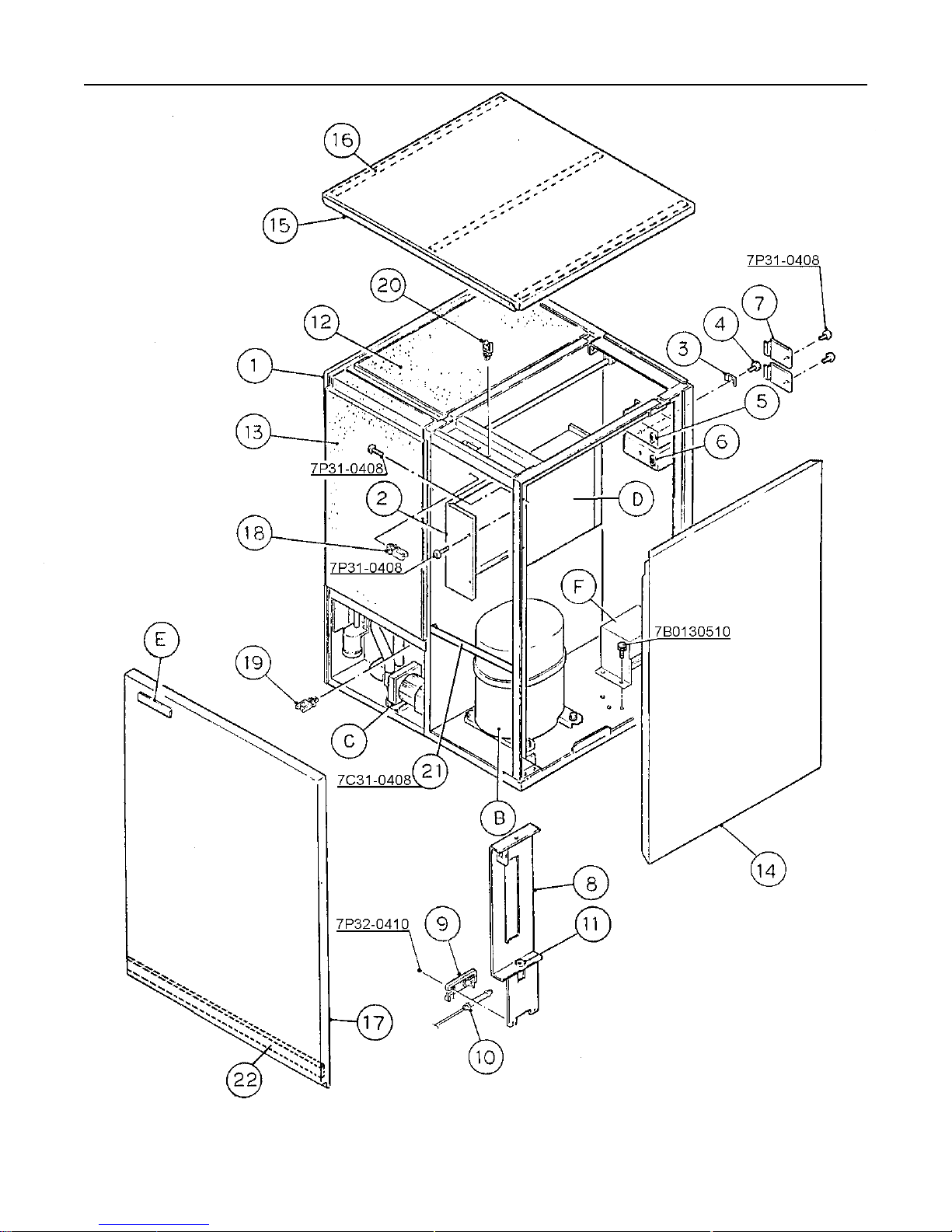

KM-1600MRF3 A. ICE CUBER ASSEMBLY H-1, H-2, J-0, K-0, L-0

MODEL: KM-1600MRF, KM-1600MRF3 TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-1 H-2 J-0,

K-0,

L-0

B REFRIGERATION CIRCUIT

(MRF) - 1A0242A03 1 1 1

REFRIGERATION CIRCUIT

(MRF3) - 1A0242A04 1 1 1

C WATER CIRCUIT HS-1201 1A0094A04 1 1 1

D CONT. BOX ASSEMBLY HS-1103 2A1122A02 1 1 1

T2 SCREW 4X8 7P31-0408 3 3 3

E LABEL LOCATION

(MRF) - 2A1140A01 1 1 1

LABEL LOCATION

(MRF3) - 2A1140A02 1 1 1

F CAPACITOR BOX ASSEMBLY (MRF) HS-1104 3A1003A01 1 1 1

T2 SCREW 4X8 7P31-0408 2 2 2

F TRANSFORMER BOX ASSEMBLY

(MRF3)

HS-0126 216433A03 1 1 1

HEX HEAD BOLT W/WASHER (LF) 5X10 7B0130510 4 4 4

1 EVAPORATOR CASE HS-1005 105061G06 1 1 1

2 CONT. BOX COVER GS 3A0174-01 1 1 1

T2 SCREW 4X8 7P31-0408 2 2 2

3 SQUARE WASHER COPPER 433537-02 2 2 2

4 SCREW - GROUNDING BRASS 433304-02 2 2 2

5 BUSHING SR-30-1 420472-03 1 1 1

6 BUSHING SR-34-2 420472-05 1 1 1

7 JUNCTION BOX COVER GS 433410-01 2 2 2

T2 SCREW 4X8 7P31-0408 2 2 2

8 BULB HOLDER - 322815G02 1 1 1

9 BULB HOLDER ABS 328919-01 1 1 1

10 SPACER PE 443545-01 2 2 2

TRUSS HEAD SCREW 4X10, SS 7C32-0410 2 2 2

11 BUSHING EPDM 425307-01 1 1 1

12 TOP INSULATION ABS, PE 322714G01 1 1 1

13 FRONT INSULATION ABS, PE 322711G01 1 1 1

MODEL: KM-1600MRF, KM-1600MRF3 TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-1 H-2 J-0,

K-0,

L-0

14 SIDE PANEL (R) SS 212688G01 1 1 1

15 TOP PANEL (323836A01) 212687-01 1 1 1

16 GASKET (323836A01) 427014-04 3 3 3

17 FRONT PANEL SS 212686-01 1 1 1

18 WIRE SADDLE - 4A0338-03 5 5 5

19 WIRE SADDLE - 4A0338-02 2 2 2

20 WIRE SADDLE - 4A0338-01 2 2 2

21 FRAME (F) 324093-01 1 1 1

T2 SCREW 4X8 7C31-0408 4 4 4

22 GASKET L=762 4A0808L02 1

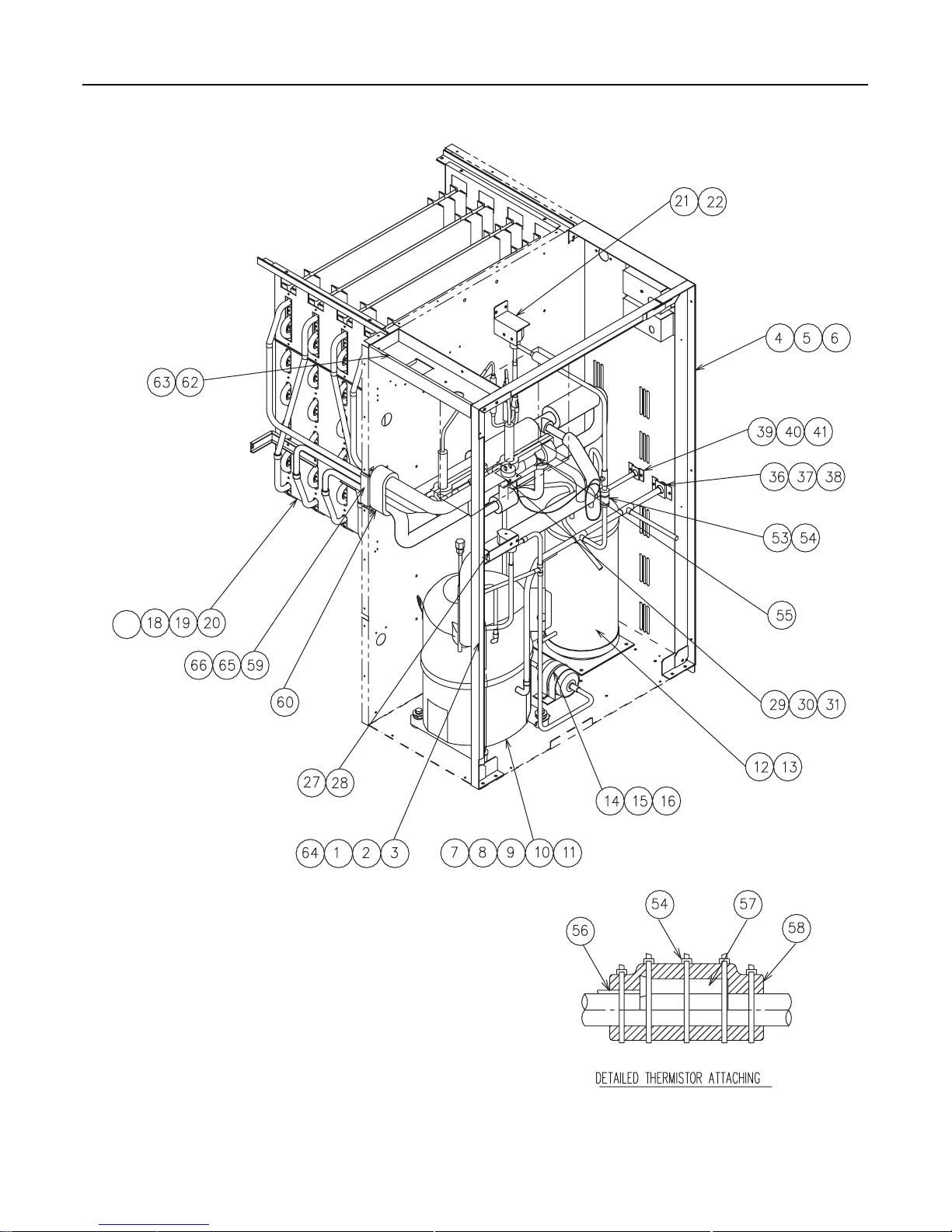

KM-1600MRF, MRF3 B. REFRIGERATION CIRCUIT 1/2 H-1, H-2, J-0, K-0, L-0

KM-1600MRF, MRF3 B. REFRIGERATION CIRCUIT 2/2 H-1, H-2, J-0, K-0, L-0

MODEL: KM-1600MRF, KM-1600MRF3 TITLE:B. REFRIGERATION CIRCUIT

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-1 H-2 J-0,

K-0,

L-0,

1 FRAME GS 222024G02 1 1 1

2 FT SCREW 4X8, SS 7F32-0408 4 4 4

3 T2 SCREW 4X8 7P31-0408 4 4 4

4 REAR PANEL GS 222025G03 1 1 1

5 FT SCREW 4X8, SS 7F32-0408 5 5 5

6 T2 SCREW 4X8 7P31-0408 5 5 5

7 COMPRESSOR (KM-1600MRF) CS20K6E-PFV-279 4A1420-02 1 1 1

8 COMPRESSOR (KM-1600MRF3) CS20K6E-TF5-279 4A1419-02 1 1 1

9 GROMMET - 434922-01 4 4 4

10 SPACER - 434921-01 4 4 4

11 BOLT 8x45 437889-01 4 4 4

12 RECEIVER RR MN WP450 438209-01 1 1 1

13 HEX HEAD BOLT W/WASHER (LF) 5X10 7B0130510 3 3 3

14 DRIER CW-053-S 4A1461-01 1 1 1

15 DRIER BRACKET GS 445251-01 1 1 1

16 T2 SCREW 4X8 7P31-0408 1 1 1

17 EXPANSION VALVE HFE-15NHD-2 4A1482-01 2 2 2

18 EVAPORATOR - 104442G01 1 1 1

19 TRUSS HEAD SCREW 4x8, SS 7C31-0408 4 4 4

20 T2 SCREW 4x8, SS 7P32-0408 2 2 2

21 HOT GAS VALVE BRACKET GS 444816-01 1 1 1

22 T2 SCREW 4X8 7P31-0408 2 2 2

23 VALVE BODY 70 440352-01 2 2 2

24 COIL - VALVE ABS-25-1-HD-2 440353-01 2 2 2

25 BOLT 4x6 440353F01 2 2 2
