Hoshizaki KM-1340MAH User manual

Hoshizaki

“A Superior Degree

of Reliability”

www.hoshizaki.com

Models

KM-1340MAH

KM-1340MWH

KM-1340MRH

Modular Crescent Cuber

Hoshizaki America, Inc.

PARTS LIST

™

Number: 71251

Issued: 5-1-2006

CONTENTS

Auxiliary Codes ...................................................................................................................... 3

Note About Ordering Parts .................................................................................................... 3

Material Abbreviations ........................................................................................................... 4

A. Ice Cuber Assembly .......................................................................................................... 5

KM-1340MAH .................................................................................................................... 5

KM-1340MWH ................................................................................................................... 7

KM-1340MRH ................................................................................................................... 9

B. Refrigeration Circuit ......................................................................................................... 11

KM-1340MAH .................................................................................................................. 11

KM-1340MWH ................................................................................................................. 15

KM-1340MRH ................................................................................................................. 19

C. Water Circuit .................................................................................................................... 23

KM-1340MAH, KM-1340MWH, KM-1340MRH ............................................................... 23

D. Control Box Assembly ..................................................................................................... 26

KM-1340MAH, KM-1340MWH, KM-1340MRH ............................................................... 26

E. Label Location ................................................................................................................. 28

KM-1340MAH .................................................................................................................. 28

KM-1340MWH ................................................................................................................. 30

KM-1340MRH ................................................................................................................. 32

F. Pump Motor Assembly ..................................................................................................... 34

KM-1340MAH, KM-1340MWH, KM-1340MRH ............................................................... 34

G. Accessories .................................................................................................................... 35

KM-1340MAH, KM-1340MWH, KM-1340MRH ............................................................... 35

Auxiliary Codes

KM-1340MAH Q-0 October 2005

R-0 February 2006

KM-1340MWH Q-0 October 2005

R-0 February 2006

KM-1340MRH Q-0 October 2005

R-0 February 2006

Note About Ordering Parts

Most assemblies cannot be ordered as complete units; parts in the assemblies generally

must be ordered separately.

Material Abbreviations

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetraﬂuoroethylene = Teﬂon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

K-0

Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.

"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.

Designates signiﬁcant part changes within the same year for this model. Base is 0 and this number

advances for each change.

Example: P-1

"P" indicates 2004.

"1" indicates the ﬁrst signiﬁcant part change for 2004.

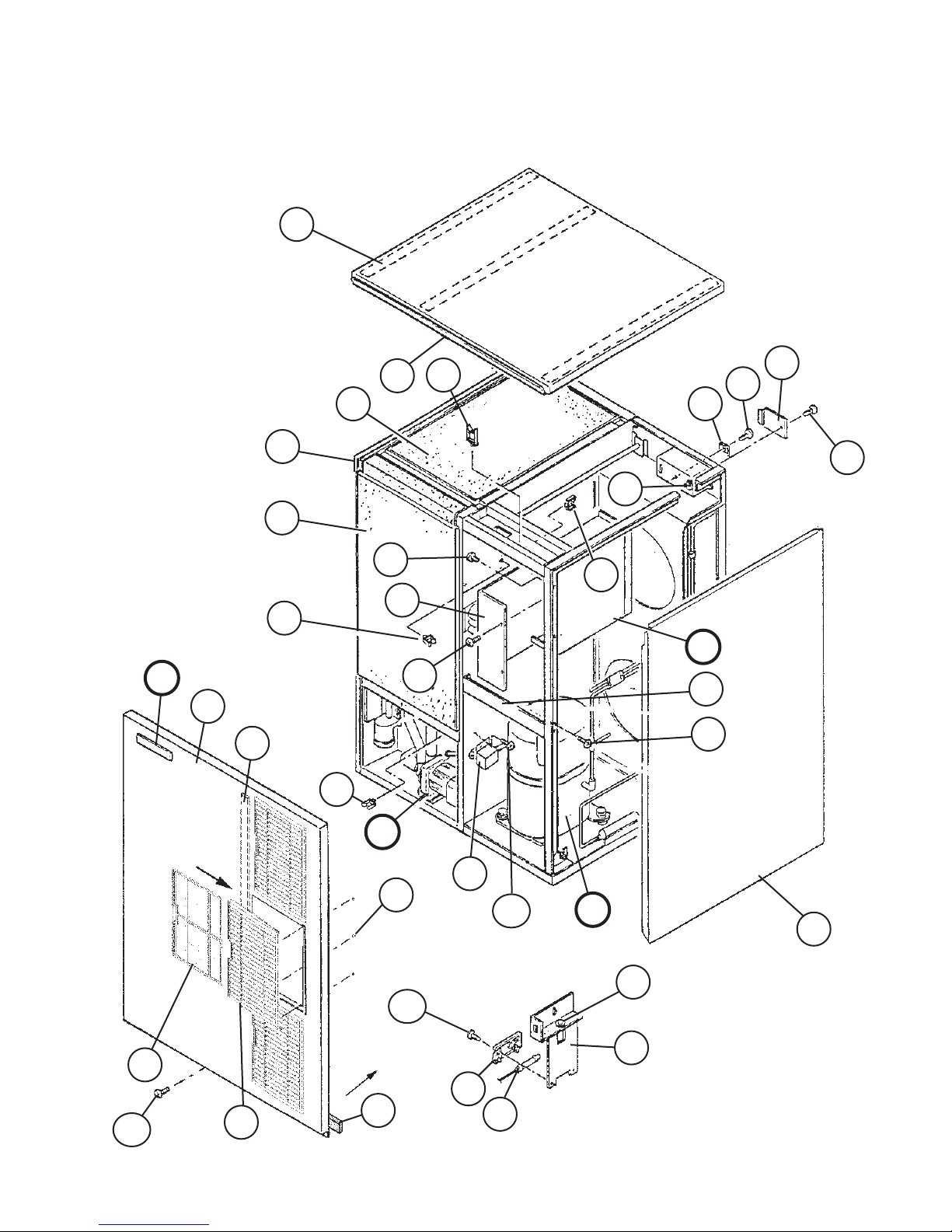

A. Ice Cuber Assembly

KM-1340MAH

Q-0, R-0

10a

25a

24a

Title: A. Ice Cuber Assembly Model: KM-1340MAH

Index

No. Description

Material or

Model Number Part Number

Required Number

Q-0

R-0

B Refrigeration Circuit - 1A1092A01 1

C Water Circuit - 1A0094A06 1

D Control Box Assembly - 2A2522A01 1

D1 T2 Screw 4×8 7P31-0408 3

E Label Location - 2A3637A01 1

1 Evaporator Case - 1A0602G01 1

2 Control Box Cover GS 3A2386-01 1

2a T2 Screw 4×8 7P31-0408 2

3 Frame (F) - 324093-01 1

3a T2 Screw 4×8 7P31-0408 4

4 Square Washer BRASS 433537-02 1

5 Screw - Grounding BRASS 433304-02 1

6 Bushing SR-34-2 420472-05 1

7 Junction Box Cover GS 433410-01 1

7a T2 Screw 4×8 7P31-0408 1

8 Bushing EPDM 425307-01 1

9 Foam Seal L=700 4A0661L01 1

10 Barrier - 3A0235-01 1

10a T2 Screw 4×8 7P31-0408 2

11 Wire Saddle - 4A0338-01 2

12 Wire Saddle - 4A0338-02 1

13 Top Insulation ABS, PE 322714G01 1

14 Front Insulation ABS, PE 322711G01 1

15 Side Panel (R) SS 2A2165G01 1

16 Top Panel 3A1941A01,

2A2163-01 1

17 Gasket 3A1941A01,

PVC

427014-04 3

18 Wire Saddle - 4A0338-03 5

19 Louver (A) ABS 1A0547-01 3

20 Push Retainer - 4A2414-01 9

21 Air Filter (A) ABS 2A2062G01 3

22 Spacer PE 443545-01 1

23 Bulb Holder 322815G02 1

24 Bulb Holder 328919-01 1

24a FT Screw SS, 4×10 7F32-0410 2

25 Front Panel SS 2A2164-01 1

25a Truss Head Screw 4×8, SS 7C32-0408 1

26 Gasket L=762 4A0808L02 1

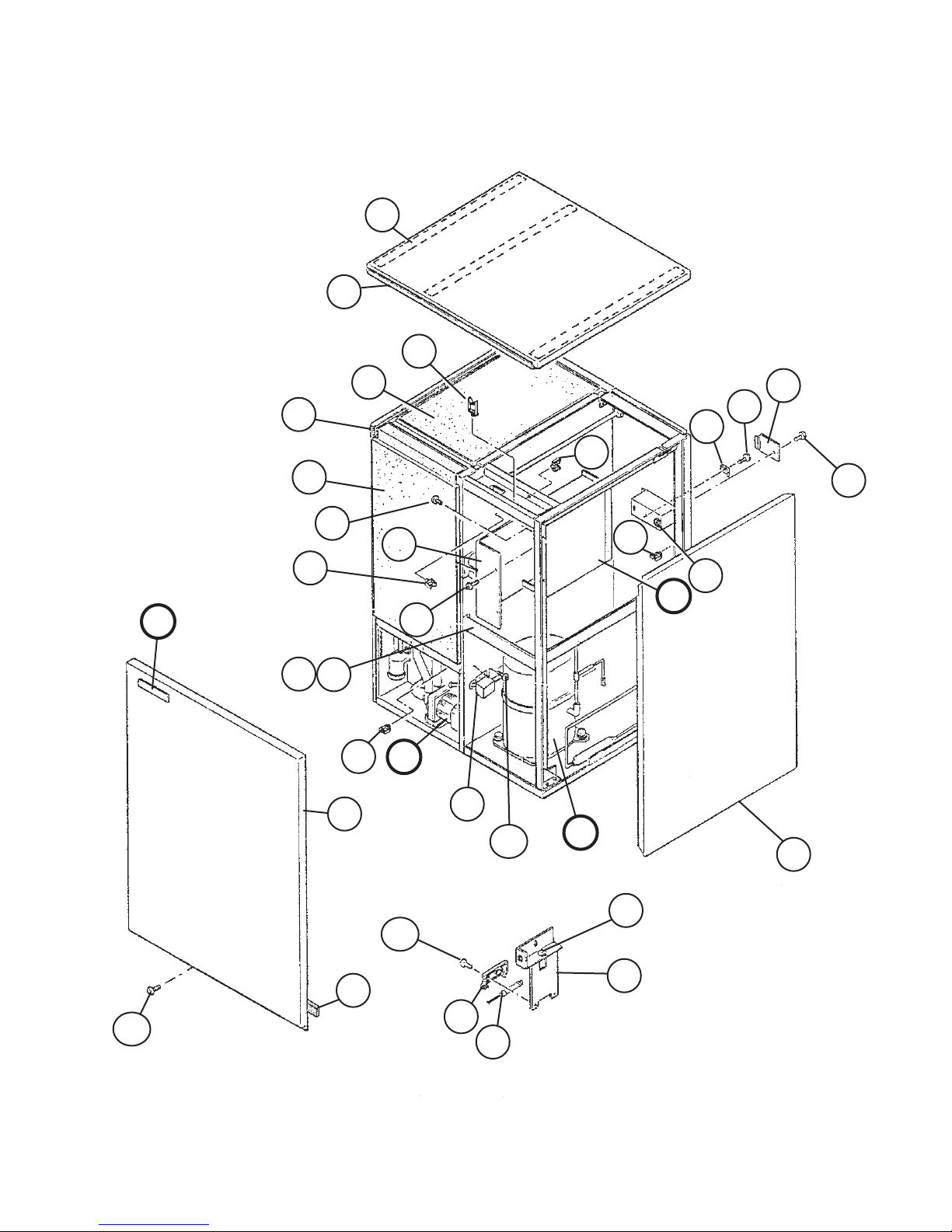

A. Ice Cuber Assembly

KM-1340MWH

Q-0, R-0

16a

15a 21

20a

Title: A. Ice Cuber Assembly Model: KM-1340MWH

Index

No. Description

Material or

Model Number Part Number

Required Number

Q-0

R-0

B Refrigeration Circuit - 1A1096A01 1

C Water Circuit - 1A0094A06 1

D Control Box Assembly - 2A2522A01 1

D1 T2 Screw 4×8 7P31-0408 3

E Label Location - 2A3638A01 1

1 Evap. Case HS-1016 1A0602G01 1

2 Control Box Cover GS 3A2386-01 1

2a T2 Screw 4×8 7P31-0408 2

3 Square Washer BRASS 433537-02 1

4 Screw - Grounding BRASS 433304-02 1

5 Bushing SR-34-2 420472-05 1

6 Junction Box Cover GS 433410-01 1

6a T2 Screw 4×8 7P31-0408 1

7 Frame (F) GS 324093-01 1

7a T2 Screw 4×8 7P31-0408 4

8 Top Panel (3A1941A01),

2A2163-01 1

9 Gasket PVC 427014-04 3

10 Wire Saddle VWS4274-C 4A0338-03 5

11 Wire Saddle VWS4218-C 4A0338-01 1

12 Top Insulation ABS, PE 322714G01 1

13 Front Insulation ABS,PE 322711G01 1

14 Side Panel (R) SS 2A2165G01 1

15 Front Panel (A) SS 2A2164-02 1

15a Truss Head Screw 4×8, SS 7C32-0408 1

16 Barrier GS 3A0235-01 1

16a T2 Screw 4×8 7P31-0408 2

17 Wire Saddle VWS42105-C 4A0338-04 1

18 Wire Saddle VWS4238-C 4A0338-02 2

19 Bulb Holder SS 322815G02 1

20 Bulb Holder ABS 328919-01 1

20a FT Screw 4×10, SS 7F32-0410 2

21 Spacer PE 443545-01 1

22 Bushing EPDM 425307-01 1

23 Gasket L=762 4A0808L02 1

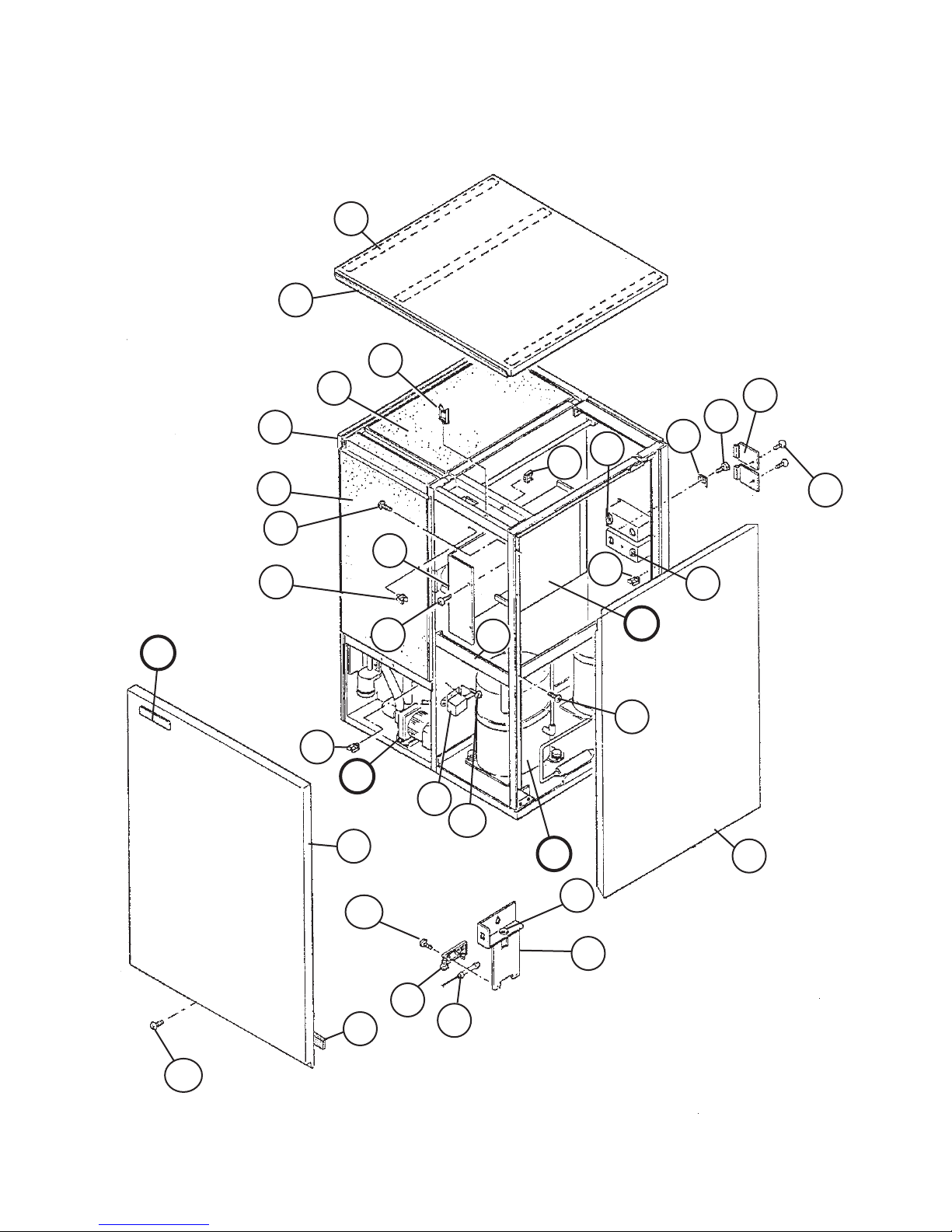

A. Ice Cuber Assembly

KM-1340MRH

Q-0, R-0

16a

22a

18a

19 20

Title: A. Ice Cuber Assembly Model: KM-1340MRH

Index

No. Description

Material or

Model Number Part Number

Required Number

Q-0

R-0

B Refrigeration Circuit - 1A1100A01 1

C Water Circuit - 1A0094A06 1

D Control Box Assembly - 2A2522A01 1

D1 T2 Screw 4×8 7P31-0408 3

E Label Location - 2A3636A01 1

1 Evap. Case - 1A0602G01 1

2 Control Box Cover GS 3A2386-01 1

2a T2 Screw 4×8 7P31-0408 2

3 Frame (F) GS 324093-01 1

3a T2 Screw 4×8 7P31-0408 4

4 Square Washer BRASS 433537-02 2

5 Screw - Grounding BRASS 433304-02 2

6 Bushing SR-34-2 420472-05 1

7 Junction Box Cover GS 433410-01 2

7a T2 Screw 4×8 7P31-0408 2

8 Spacer PE 443545-01 1

9 Bushing EPDM 425307-01 1

10 Top Panel (3A1941A01),

2A2163-01 1

11 Gasket PVC 427014-04 3

12 Wire Saddle VWS4274-C 4A0338-03 5

13 Top Insulation ABS, PE 322714G01 1

14 Front Insulation ABS,PE 322711G01 1

15 Side Panel (R) SS 2A2165G01 1

16 Front Panel (A) SS 2A2164-02 1

16a Truss Head Screw 4×8, SS 7C32-0408 1

17 Wire Saddle VWS4218-C 4A0338-01 1

18 Barrier GS 3A0235-01 1

18a T2 Screw 4×8 7P31-0408 2

19 Wire Saddle VWS42105-C 4A0338-04 1

20 Bushing SR-30-1 420472-03 1

21 Bulb Holder SS 322815G02 1

22 Bulb Holder ABS 328919-01 1

22a FT Screw 4×10, SS 7F32-0410 2

23 Wire Saddle VWS4238-C 4A0338-02 2

24 Gasket L=762 4A0808L02 1
