Hoshizaki F-330BAH User manual

Hoshizaki

“A Superior Degree

of Reliability”

www.hoshizaki.com

Model

F-330BAH(-C)

Self-Contained Flaker

Hoshizaki America, Inc.

Number:

Issued: 9-27-2007

Revised: 10-23-2007

PARTS LIST

71268

CONTENTS

Auxiliary Codes ...................................................................................................................... 3

Note About Ordering Parts .................................................................................................... 3

Material Abbreviations ........................................................................................................... 4

A. Ice Flaker Assembly .......................................................................................................... 5

B. Refrigeration Circuit .......................................................................................................... 9

C. Water Circuit ................................................................................................................... 11

D. Control Box Assembly ..................................................................................................... 13

E. Door Assembly ................................................................................................................ 15

F. Label Location ................................................................................................................. 16

G. Front Panel ..................................................................................................................... 18

H. Fan Motor Assembly ....................................................................................................... 19

J. Ice Making Unit ................................................................................................................ 20

K. Evaporator Assembly ...................................................................................................... 21

L. Accessories & Packaging ................................................................................................ 23

Auxiliary Codes

F-330BAH S-0 April 2007

S-1 October 2007

F-330BAH-C S-1 TBD 2007

Auxiliary Code Breakdown

K-0

Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.

"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.

Designates signicant part changes within the same year for this model. Base is 0 and this number

advances for each change.

Example: P-1

"P" indicates 2004.

"1" indicates the rst signicant part change for 2004.

Note About Ordering Parts

Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered

separately.

Material Abbreviations

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrauoroethylene = Teon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

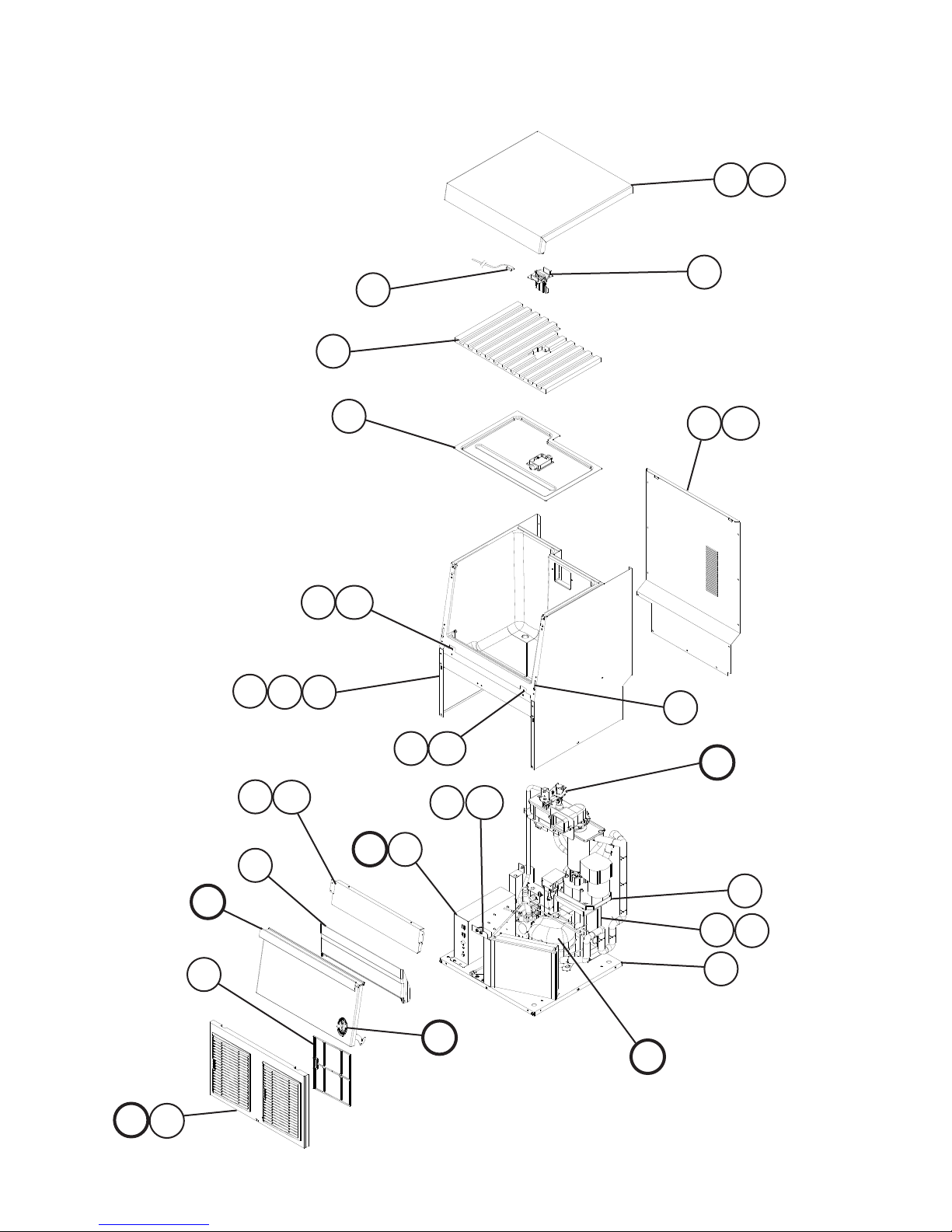

A. Ice Flaker Assembly

1/2

F-330BAH(-C)

S-0, S-1

DD1

GG1

5a 5b

15a

22a

16 16a

17 17a

26 26a

25 25a

A. Ice Flaker Assembly

2/2

F-330BAH(-C)

S-0, S-1

13 13a

Title: A. Ice Flaker Assembly Model: F-330BAH(-C)

Index

No. Description

Material or

Model Number Part Number

Required Number

S-0 S-1

B Refrigeration Circuit F-330BAH 1A1300A01 1 1

F-330BAH-C 1A1300A02 1

C Water Circuit - 1A1301A01 1 1

D Control Box Assembly - 2A4075A01 1 -

2A4464A01 1

D1 Truss Head Screw 4×8 7C31-0408 3 3

E Door Assembly - 3A4357A01 1 1

F Label Location F-330BAH 2A4063A01 1 1

F-330BAH-C 2A4063A02 1

G Front Panel - 3A4295G01 1 1

G1 Truss Head Screw 4×8, SS 7C32-0408 1 1

1 Base - 3A4296G01 1 1

2 Rear Frame - 2A4073-01 1 1

2a Truss Head Screw 5×10 7B0230510 3 3

3 Drain Pan - 323765G01 1 1

4 Bracket-Gear Motor - 3A4304G01 1 1

4a Hex Head Bolt w/Washer (LF) 6×12 7B0230612 4 4

5 Body Assembly - 3A4308G01 1 1

5a Hex Head Bolt w/Washer (LF) 5×10, SS 7B0230510 4 4

5b Truss Head Screw 4×8, SS 7C32-0408 8 8

6 Bracket-Switch - 4A4228-01 1 1

6a Truss Head Screw 4×8 7C31-0408 2 2

7 Microswitch (Safety Switch) - 4A2832-01 1 1

7a Pan Head Screw 3×12 60NEGI-05 2 2

8 Packing - 427151-01 1 1

9 Spout - 208791-02 1 1

9a Thumbscrew - 415949G11 3 3

10 Lever - 4A4191-01 1 1

11 Air Filter B - 2A2063G01 1 1

12 Spout Packing (A) - 453663-01 1 1

13 Spout (B) - 232654-03 1 1

13a Thumbscrew - 415949G11 2 2

14 Bushing SR-6N3-4 420472-02 1 1

15 Rear Panel - 1A1305-01 1 1

15a T2 Screw 4×8 7P31-0408 11 11

16 Front Frame (Low) - 3A4293-01 1 1

16a Hex Head Bolt w/Washer (LF) 5×10, SS 7B0230510 4 4

17 Front Frame - 3A4310G01 1 1

17a Truss Head Screw 4×8, SS 7C32-0408 4 4

18 Upper Panel - 1A1303-01 1 1

19 Actuator Assembly - 350301A02 1 1

20 Bin Control (Reed Switch) - 453861-02 1 1

21 Top Insulation - 1A1304-01 1 1

22 Top Panel - 1A1307-01 1 1

22a Truss Head Screw 4×8, SS 7C32-0408 2 2

23 Slope - 2A4259-01 1 1

Title: A. Ice Flaker Assembly Model: F-330BAH(-C)

Index

No. Description

Material or

Model Number Part Number

Required Number

S-0 S-1

24 Hinge Guide - 3A4159-01 2 2

25 Hinge (L) - 4A4192-01 1 1

25a Hex Head Bolt w/Washer (LF) 5×10, SS 7B0230510 2 2

26 Hinge (R) - 4A4192-02 1 1

26a Hex Head Bolt w/Washer (LF) 5×10, SS 7B0230510 2 2

27 Power Supply Cord - 4A1773-01 1 1

B. Refrigeration Circuit

F-330BAH(-C)

S-0, S-1

11b

77a

J1 J2

10 20

Title: B. Refrigeration Circuit Model: F-330BAH(-C)

Index

No. Description

Material Or

Model Number Part Number

Required Number

S-0 S-1

H Fan Motor Assembly - 3A4287A01 1 1

H1 Hex Head Bolt w/Washer (LF) 5×10, SS 7B0230510 2 2

J Ice Making Unit F-330BAH 3A4286A01 1 1

F-330BAH-C 3A4286A02 1

J1 Split Lock Washer M8, SS 7L22-0800 3 3

J2 Socket Hex Head Bolt 8×95, SS 7S12-0895 3 3

1 Compressor - 4A4185-01 1 1

1a Rubber Grommet - 4A1452-01 4 4

1b Bolt M6 468180-01 4 4

2 Cable Tie CV-200 7920-0010 2 2

3 Terminal Cover (Includes Clip) 4A2141-01 1 1

4 Starting Relay - 4A4232-01 1 1

5 Start Capacitor - 4A2134-04 1 1

6 Condenser - 3A4309-01 1 1

6a T2 Screw 4×8 7P31-0408 2 2

7 Shroud - 3A4303-01 1 1

7a T2 Screw 4×8 7P31-0408 4 4

8 Reducer - 421904-17 1 -

9 Tie T30RSF 436156-01 2 2

10 Drier - 445655-04 1 1

11 Heat Exchanger (Includes

capillary tube)

- 2A4069G01 1 1

12 Copper Tube-High Side

(Includes item 18: 463180-01)

- 3A4290G01 1 1

13 Process Tube Assemby

(Includes item 19: 457729-01)

- 4A4231G01 1 1

14 Insulation Tube L=145 7762-1030 1 1

15 Insulation Tube L=350 7762-1030 1 1

16 Insulation Tube L=40 7762-1030 2 2

17 Cable Tie CV-150 7920-0001 8 8

18 Pressure Switch (Included in

item 12: 3A4290G01)

- 463180-01 1 1

19 Access Valve (Included in

item 13: 4A4231G01)

- 457729-01 1 1

20 Nylon Tie PLWP3H-TL 8911-0301 1 -
