Hoover HOD6615/1 80 User manual
DISHWASHER
32000464 HOD6615/1 80
Service Manual
32000464 HOD6615/1 80 0748 (01/12/2007)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.

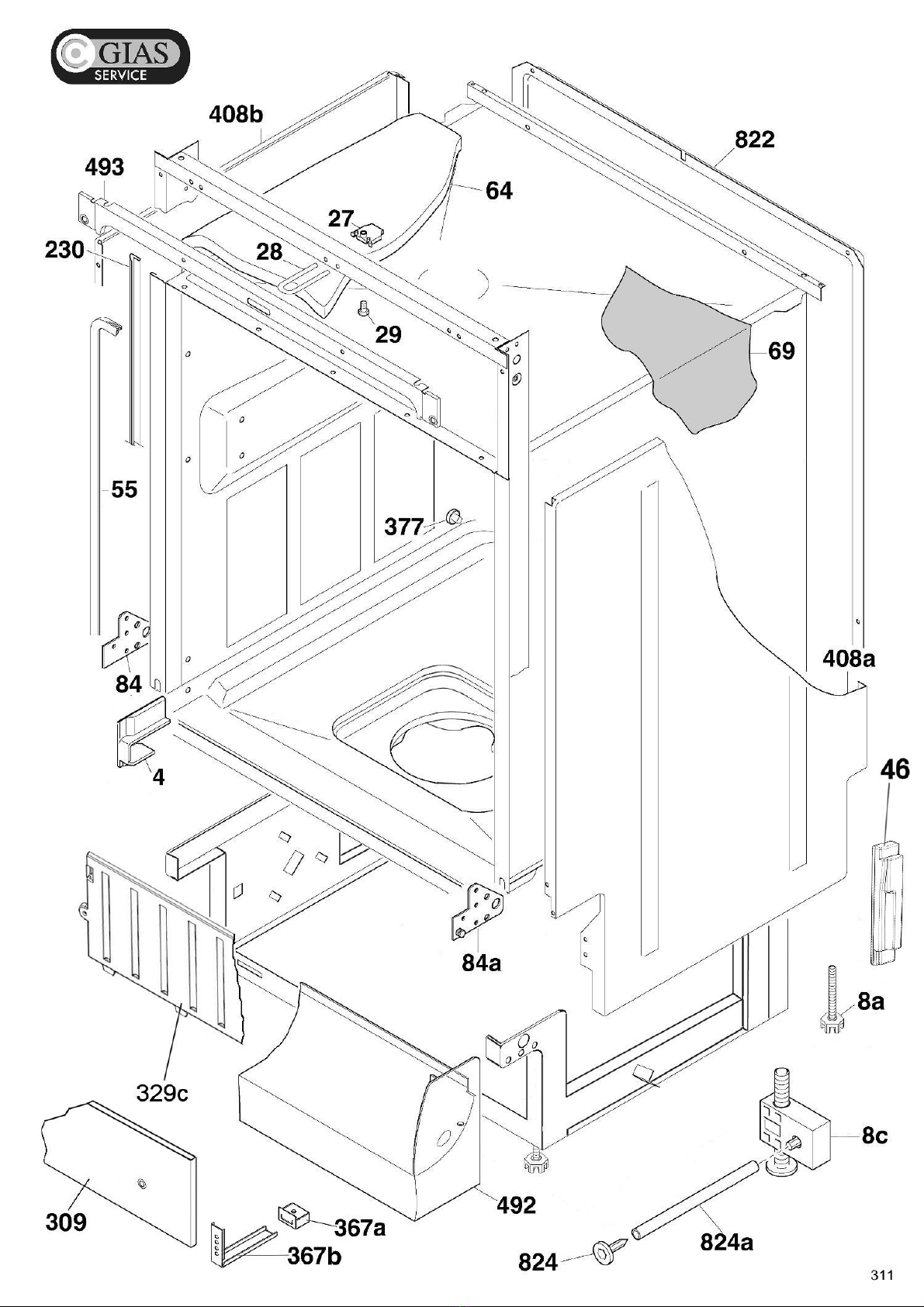

4a Right basket guide 41017657
4b Left basket guide 41017656
8a Foot 41026872
14 Button 41018590
21 Control panel assy 41024641
27 Closure regulator 91800770
28 Catch 41014449
29 Screw 41013184
36 Work table 41019992
44 Door lock 41008620
46 Balance weight 41029901
54a Innerdoor lower gasket 91620003
55 Front gasket 41019164
69 Insulating panel 41017649
84 L/H hinge holder 41026794
84a R/H hinge holder 41026793
85a R/H hinge 41007189
85b L/H hinge 41007190
92 Innerdoor 41010279
92a Innerdoor screw 91401201
93 Door 41009658
100 Electrodistributor 41010202
103 Gasket 49004681
117 Nozzle 92694801
122 Gasket 41029495
126 Seal gasket 41029550
127 Metal ring 41029551
133 Clip 92470012
134 Electrovalve 41026798
135a Hose 41015227
138 Drain hose 91670102
32000464 HOD6615/1 80 0748 (01/12/2007)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
138a Drain house elbow 92689587
138b Hoseb clamp 91600328
141 Seal gasket 92485226
142a Fill hose red 91670635
148a Outer heater assy 41006831
150 Door micro switch 41009693
151a Electronic module 49017471
151d Electronic board support 41011395
151f Programs electronic module 41024777
151j Touch controls/display board support 41024658
151z Not programmed Electronic module 41027100
153 Level switch 41030820
155e LED 41030048
155f Light guide 41024657
157 Wiring harness 41030046
157k 8 Way connecton 41012762
161 Drain pump 91200173
161a Drain pump scroll 91600290
171 Motor pump 41020655
172 Clip 91408000
173 Hose 41015226
177 Motor Schoch absorber 92131762
200 Drawer grasket 91406300
204a Upper spray arm 41009782
204b Lower spray arm 41009781
205 Spray arms tube 41006828
208 Filter 41005927
208a Microfilter 41014367
209 Filter plate 91800738
217 Filter bacin. 41026774
218 OR seal gasket 91406302
32000464 HOD6615/1 80 0748 (01/12/2007)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
225a Thermostat Gasket 92445626
241 Lower basket wheel 91601253
243 Lower basket 41030346
243b Inclinable plates holder 41022779
243c Inclinable small plates holder 41015096
244 Upper basket 41030308
244a Plates holder 41011632
245 Basket wheel pin 91601247
246 Basket wheel upper. 91601248
249a R/H front-L/H rear cups basket 41023030
249b L/H front-R/H rear cups basket 41023031
250 Wheel stopper 91619627
251 Runner 91800137
257 Cutlery basket 41023023
257b Cutlery holder 41023029
258a Basket rear handle 41024115
258b Basket front handle 41025568
258c Post. handle inferior basket 41024109
258d Front handle inferior basket 41024119
272 Clip 92470244
275 Level hose 41026801
283a Hub 41009859
287m NTC probe 41022107
290 Bearing for spray arm 91405300
295a Water softener 41026897
295b Water softener OR seal gasket 91941698
296 Water softener stopper 41029552
297 Hose 91620010
299 Water softener capacitor 41026799
305 Spring 92483809
311 Sleeve 91602981
