Honeywell RTH5100B User manual

RTH5100B

Non-Programmable Digital Thermostat

Quick Installation Guide

69-2329EF-03

69-2329EF—03 ii

Installation is Easy

Label wires and remove your old thermostat

Install and wire your new thermostat

Set your new thermostat to match your heating/cooling system

– It is preset for the most common system

We are here to help.

Call 1-800-468-1502 for wiring assistance before

returning the thermostat to the store.

1 69-2329EF—03

1Turn Off Power to Heating/Cooling System

M28097

69-2329EF—03 2

Remove old thermostat but leave wallplate with wires attached.

2Remove Old Thermostat

M28099

Is there a sealed tube containing

mercury? If so, see back cover

for proper disposal instructions.

Leave wallplate

in place

Old thermostat

Cover

3 69-2329EF—03

Label the wires using the supplied wire labels as you disconnect them.

3Label Wires with Tags

Wire Labels

M28100

M28093

69-2329EF—03 4

M29532

4Separate Wallplate from New Thermostat

Wallplate

Pull here to remove wallplate from new thermostat.

Remove battery holder.

5 69-2329EF—03

Mount the new wallplate using the included screws and anchors.

5Mount Wallplate

Drill 3/16-in. holes for drywall

Drill 3/32-in. holes for plaster

MCR29533

69-2329EF—03 6

MCR29534

Simply match wire labels.

6Connect Wires

Labels don’t match? See page 21.

Have a Heat Pump system? See page 13.

We are here to help.

Call 1-800-468-1502 for wiring assistance.

Remove metal jumper if

you have both Rand Rc

wires.

7 69-2329EF—03

MCR29535

Install two AAA alkaline batteries.

Back of thermostat

7Install Batteries

69-2329EF—03 8

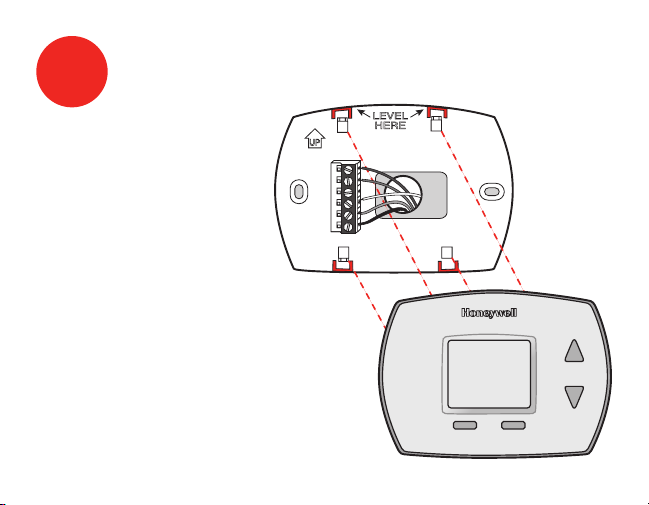

Install thermostat onto the

wallplate on the wall.

8Install Thermostat onto Wallplate

MCR29536
