Honeywell UniLED User manual

UniLED

165mm

130mm

363mm

352mm 149mm

73mm

52mm

Dimensional Drawings:

Honeywell Life Safety AS, Po. Box 3514, N-3007 Drammen, Norway http://www.hls-nordic.com

Installation:

Wall or ceiling mounting

3 4

LC1

L1 C3N C2

For elBus,Dali or potential free

contact use C1 and C2 terminals

For open cabling

Open the

battery cover SEALED RECHARGEABLE HIGH

TEMPERATURE Ni-MH BATTERY

Commis. Date:___________/____________

MUST BE RECYCLED OR

DISPOSED OF PROPERLY

Ni-MH

RED CABLE

BLACK CABLE

Order no. 2925024

4.8V/1.2Ah Perm. Ch 60mA

4 HT AA 1200

4 KRMT 15/51

Battery connection

Honeywell Life Safety AS, Po. Box 3514, N-3007 Drammen, Norway http://www.hls-nordic.com

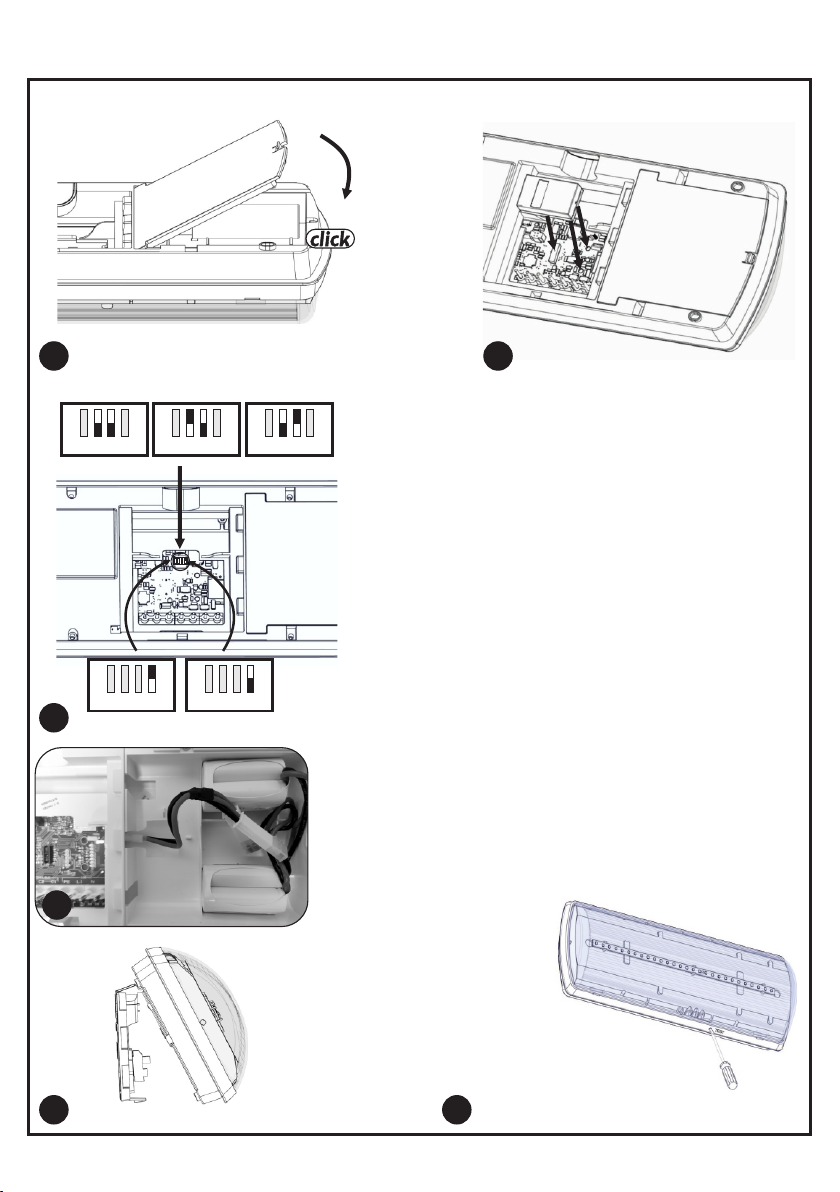

Close the battery cover Module placement

(elBus,Dali,Wireless,Potential free)

910

Mode selection

1 2 3 4

Maintained operation

1 2 3 4

Non-maintained operation

1 2 3 4

(default position)

3h 8h

The control of maintained or non maintained operation of the

luminary is achieved through Switch 4 of DS1. For maintained

operation, switch number 4 must be in ON position. For non-

maintained operation, switch number 4 must be in OFF.

Changing the operating mode

Autonomy duration selection

The user can select one of the 3 available minimum autonomy

durations 1 hour, 3 hours and 8 hours. The selection must be

done while the luminaire is disconnected from AC and battery

supplies. The selection is achieved through Switches 2 & 3 of

DS1. Switch 1 is not used.

Technical label installation

One additional labels is included in the package, for 3 hours

duration (180). The installer must cover the default 1 hour (60)

printing. Please take notice of the orientation of the label.

For accomplishing 8h autonomous light, an extra battery and

adaptor is required (Part No. 290BAT.9). Connect the two batteries

to the adaptor and then the adaptor’s connector to the

corresponding connector on the PCB. One additional label is

included in the package, for 8 hours duration (480). The installer

must cover the default 1 hour (60) printing. Please take notice of

the orientation of the label.

Dip Switch Positions (DS1)

Base the luminaire to the socket

A test button for manual tests and

reset is located next to the

indications LEDs.

Honeywell Life Safety AS, Po. Box 3514, N-3007 Drammen, Norway http://www.hls-nordic.com

Battery replacement

SEALED RECHARGEABLE HIGH

TEMPERATURE Ni-MH BATTERY

Commis. Date:___________/____________

MUST BE RECYCLED OR

DISPOSED OF PROPERLY

Ni-MH

RED CABLE

BLACK CABLE

Order no. 2925024

4.8V/1.2Ah Perm. Ch 60mA

4 HT AA 1200

4 KRMT 15/51

Battery connection Close the battery cover

Technical description

Part no.:

Battery (NiMH):

Battery Protection: Overcharge protection / full discharge protection

5 to 40 C

Up to 95%

1h & 3h: 16hours 8h: 23hours

Produced in accordance with:

Ambient Temperature Range:

Maximum Power Consumption:

Relative Humidity:

Charging Time:

Technical lifetime (light source): > 100000 hours

1h & 3h: 4.8W / 5VA 8h: 5.25W / 5.4VA

138057

1h & 3h: 4.8V / 1.2Ah 8h: 2x4.8V / 1.2Ah

EN 60598-1, EN 60598-2-22, EN 55015

EN 61547, EN 61000-3-2, EN 61000-3-3

Weight:

Expected Battery Lifetime:

Controlgear classification in accordance with IEC 62034: with automatic test function

Replacement Lamp: 290057.STR

959 gr

4 years

UniLED Combi ST LED 230V w/Pict 138h

27m

IP20

375lm

Normal

Emergency

375/175/155lm1h/3h/8h

Duration

At the end of their useful life the

packaging, product & batteries should

be disposed of via a suitable recycling

centre. Do not dispose of with your

normal household waste. Do not burn.

Honeywell Life Safety AS, Po. Box 3514, N-3007 Drammen, Norway http://www.hls-nordic.com

Note: If the supply cable of the luminaire is damaged, it shall exclusively be replaced by a competent person in

To avoid that luminaires perform their battery test at the same day, connect the battery packs with more than 1,5

minutes in between.

Important notice when installing luminaires within the same area!!!

Note: In case of mains power disconnection for a period of more than two months, the battery must be

disconnected.

Note: In case of battery or light source replacement, these must be replaced with parts of the same type. The

replacement must be performed by the manufacturer or a competent person.

The UniLED is a self-contained luminary with selftest function. it can be configured as maintained or non-

maintained.

Selftest functions

Note: When using DALI or Wireless communication, the frequencies and schedules for tests will instead be

determined by the connected PC software.

Every 15 days the luminaire will perform an emergency operation test. This will light the white LEDs for

approximately 3 seconds. The red LED will flash during this test sequence.

Every 6 months the luminaire will perform a battery condition test. The test will last for the stated duration. The

white LEDs will be lit and the yellow LED will flash during this test sequence.

Manual test functions

Emergency operation test:

In case that the luminaire no longer meets its rated duration of operation, the battery must be replaced.

Press the TEST button more than 10 seconds to delete all indicated errors. The luminaire enters regular operation

mode.

Press the TEST button less than 5 seconds. The white LEDs light for about 3 seconds and the red LED flashes.

Battery condition test:

Press the TEST button for 5 to 10 seconds. This test will last for the stated duration and can only be performed

when the battery is fully charged (steady green LED). The white LEDs light and the yellow LED flashes.

Resetting errors:

Indicator LEDs

LED Status explanation

Description

GREEN

RED

Normal

Charging (battery test not possible while charging

Mains off, battery not connected or charger fault

Battery fault

Battery test

Light source test

Light source fault

Battery fault and light source fault

Off On Flashing

YELLOW
