Honeywell MultiLED PRO Combi SET-10 User manual

MultiLED PRO

Honeywell Life Safety AS, Po. Box 3514, N-3007 Drammen, Norway http://www.hls-nordic.com

Common Installation Steps:

MultiLED PRO can be used as an emergency luminaire or an exit sign. See the next page for mounting

methods. Below some common steps to follow.

Step 2: Place a flat blade screwdriver to dismantle the the mounting part from the main body as shown in

picture.

Step 1: Place a flat blade screwdriver to the transparent legend from the main body by pressing gently on

the retaining clips as shown in picture.

Step 3: Set the module address. For more information about module settings see the next page.

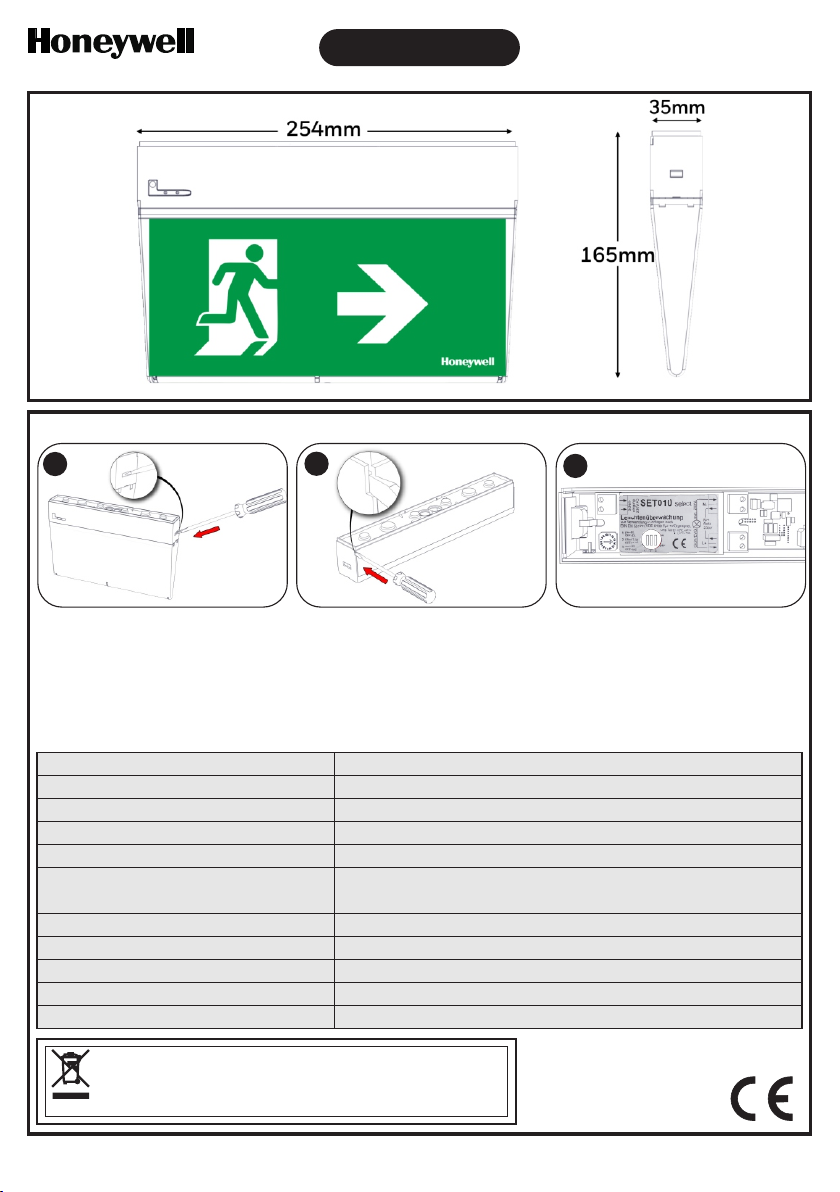

Dimensions drawing:

Technical description

Part no.:

-10 to 60 C

Up to 95%

Produced in accordance with:

Ambient Temperature Range:

Maximum Power Consumption:

Operation Voltage:

Relative Humidity:

Technical lifetime (light source):

Lumen output

> 100000 hours

220-240V AC/DC, 50-60 Hz

3.6W / 4VA

350lm

138010.S10

MultiLED PRO Combi SET-10 IP40 230V w/pict Centr

IP40

Degress of cover protection:

EN 60598-1, EN 60598-2-22, EN 55015

EN 61547, EN 61000-3-2, EN 61000-3-3

400 gr

Weight:

At the end of their useful life the packaging and product should

be disposed of via a suitable recycling centre. Do not dispose of

with your normal household waste. Do not burn.

Honeywell Life Safety AS, Po. Box 3514, N-3007 Drammen, Norway http://www.hls-nordic.com

Step 2: For double sided pictogram, install the appropriate pictograms to both sides. For single sided

pictogram, there is one blind pictogram in the package.

Step 3: Install the the transparent legend with the pictograms to the luminaire’s base.

Step 1: To use MultiLED PRO as an exit sign, install the provided two lens, mind the correct orientation, as

show in picture 2.

Step 1: To use MultiLED PRO as an emergency luminaire, install

the provided lens.

Step 1: Drill 2 holes, with a 3mm drill bit to the luminaire’s mounting part.

Step 2: Install the terminal board and fasten it with the two included screws (use 3*4 screws, small one).

Step 3: Drill a hole on a black grommet and pass the mains cables through it. Connect the mains cables to

terminal blocks: L for live wire and N for neutral. Power supply cables cross section should be 0.8 - 3

mm . Tighten the cable tie around the cables.

Step 4: Fasten the mounting part with the supplied mounting accessories (with or without spacers).

Step 5: Slide the main body of the luminaire back to the mounting part.

Mounting Methods

Ceiling Mounting

Honeywell Life Safety AS, Po. Box 3514, N-3007 Drammen, Norway http://www.hls-nordic.com

Hanging Mounting

Wall Mounting

Step 1: Drill 2 holes, with a 3mm drill bit to the luminaire’s mounting part.

Step 2: Install the terminal board and fasten it with the two included screws (use 3*4 screws, small one).

Step 3: Pass the cables through the hanging accessory and install it on the ceiling with the included mounting parts.

Step 4: Screw the luminaire mounting part with the two included mounting screws and pass through the power cable.

Step 5: Connect the mains cables to terminal blocks: L for live wire and N for neutral. Power supply cables cross section

should be 0.8 - 3 mm . Tighten the cable tie around the cables.

Step 6: Slide the main body of the luminaire back to the mounting part.

Step 3: Drill a hole on a black grommet and pass the mains cables through it. Connect the mains cables to

terminal blocks: L for live wire and N for neutral. Power supply cables cross section should be 0.8 - 3

mm . Tighten the cable tie around the cables.

Step 4: Fasten the mounting part with the supplied mounting accessories.

Step 5: Slide the main body of the luminaire back to the mounting part.

Step 2: Install the terminal board and fasten it with the two included screws (use 3*4 screws, small one).

Step 1: Drill 2 holes, with a 3mm drill bit to the luminaire’s mounting part.

The light source contained in this luminaire shall only be replaced by the manufacturer, or his agent, or

a similar qualified person.

NOTE! The light source is non-user replaceable.

Honeywell Life Safety AS, Po. Box 3514, N-3007 Drammen, Norway http://www.hls-nordic.com

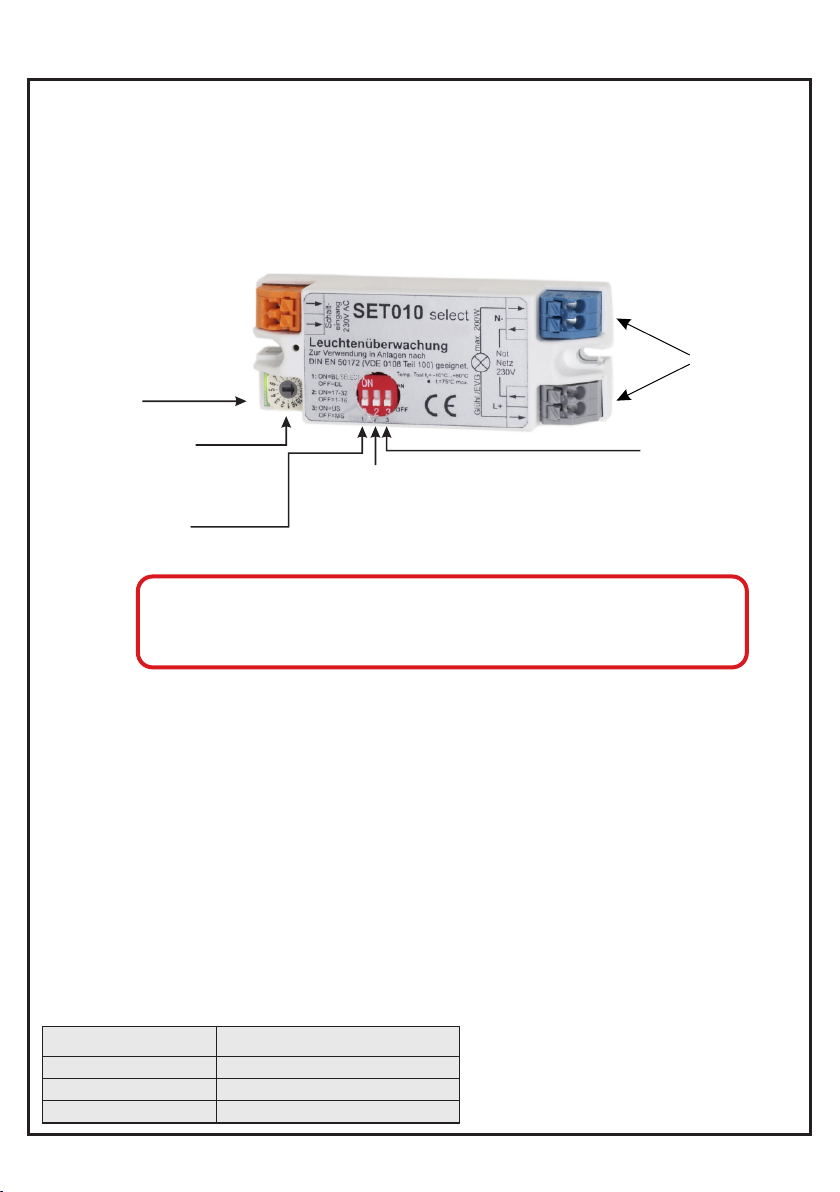

MODULE FOR SINGLE LAMP SELECTION AND MONITORING

Switching of one selected light in the electric circuit

SET010 select

DIP-switch 1

ON for non-maintained mode

OFF for maintained mode (Default)

DIP-switch 2

OFF for lighting address 1-16 (Default)

ON for lighting address 17-32

Indicator LED

Rotary coding switch

for setting the exact lamp adress DIP-switch 3 (OFF)

Attention!

Connect L and N correctly!

Exchanging L and N causes malfunction.

The module is already prepared for administering a total of 32 lighting addresses.

Setting the lighting address is carried out by a rotary coding switch that is easily accessible from the

outside.

By means of a suitable control, it is possible with the aid of the SET010 select to determine whether the

lamp connected to it is ready for use or faulty.

In the mixed operation circuit, the connected lamp can also be additionally set in non-maintained mode

or maintained mode (DIP Switch 1).

Lighting addresses 1 to 16 can be slected when DIP switch 2 is set at OFF.

Settings

Function

The address range 17 to 32 can be selected by setting DIP switch 2 to ON.

(DIP switch 2 = ON and rotary coding switch = 1 is equivalent to lighting address 17 etc.)

Technical description

Cross section:

Temperature:

Dimensions (L x W x H in mm) 78 x 30 x 20

Max: 1.5mm

-10°C up to +60°C, T =+75°C

cmax

SET010 select

Prewired
