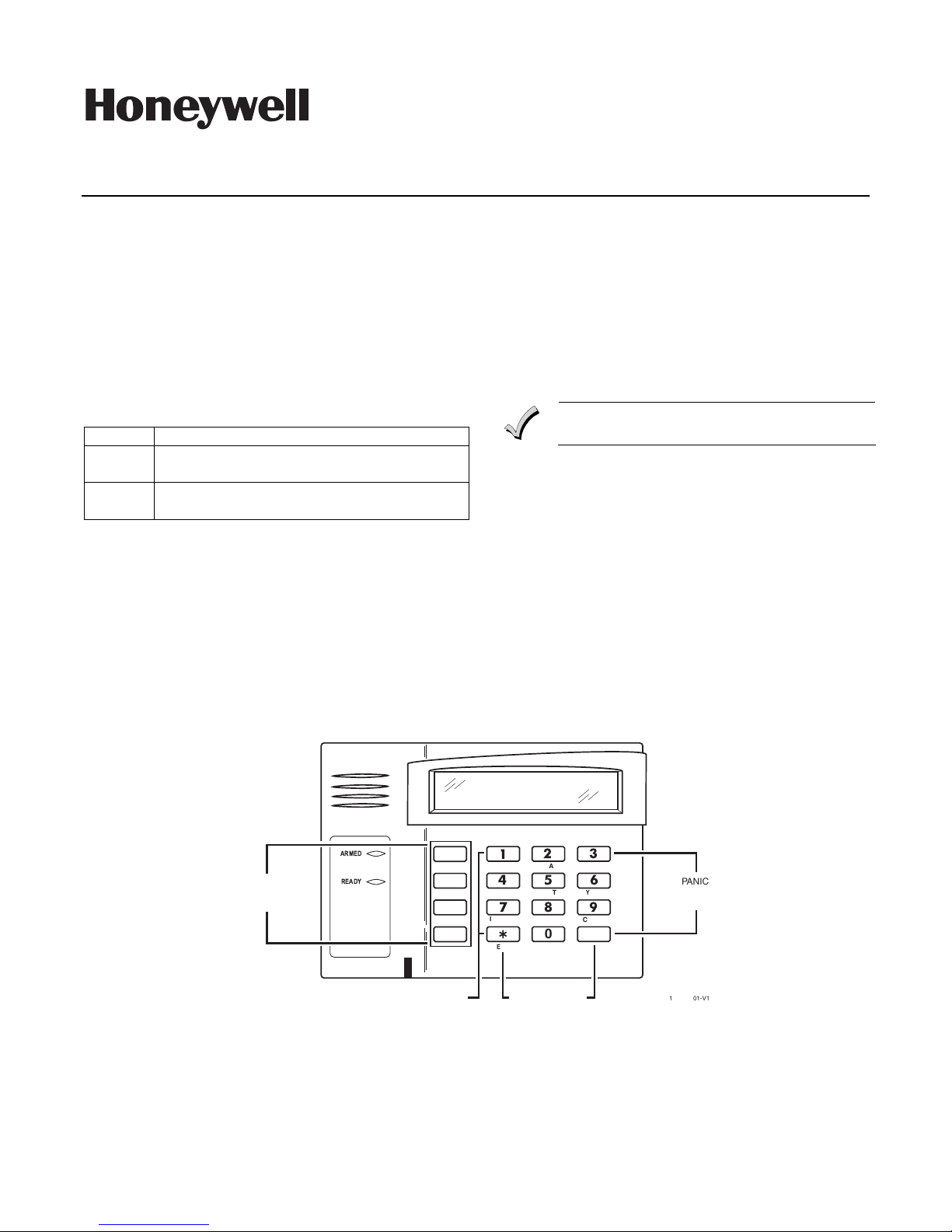

Honeywell ADEMCO 6160RF User manual

K0904V1 2/06 Rev. A

DEMCO 6160RF

Keypad/Transceiver

User Guide

KEYPAD DISPLAYS AND LEDS

The 6160RF has the following features:

•Large backlit, 2-line, 32-character alphanumeric

LCD.

•16 large telephone-style backlit keys located behind a

decorative door that swings down to provide access to

the keys.

•System numerals, imprinted in large type on the keys

for easy identification. System functions appear below

the keys on the keypad.

The following table shows the LEDs and their functions:

LED Function

ARMED

(Red)

Lights when the system is armed in any mode.

READY

(Green)

Lights when the system is ready to be armed (no

zone faults are present).

FUNCTION KEYS AND LABELS

The function keys are continuously backlit for ease in

use. (Check the User’s Guide that accompanies the

control panel for detailed instructions on the use of these

keys.)

Function Keys - The function keys include keys for

panic alarm activation. The panic alarms are activated

by pressing key pairs [1] & [*], [3] & [#], or [*] & [#], or

a Special Function Key.

Whether these panic keys function and the type of panic

alarms they produce is determined by the control

panel’s capability and programming. (Check with your

installer for the availability and type of alarm of these

panic keys.)

Special Function Keys - These are the four keys

located to the left of the numeric keys (see below). The

keys may be programmed by your installer for panic

alarms or other special functions such as single-button

arming (Check with your installer to see which options

are available with your system.)

Special function keys and function key pairs must be

held down for at least 2 seconds to activate an alarm.

A set of adhesive labels with typical panic symbols is

provided. Place the appropriate label in the indented

area on each key, so that the user can easily identify

each key’s function.

SOUNDER

The built-in speaker has the following functions:

•Produces warning sounds during alarm and trouble

conditions, and also during entry/exit delay periods.

Provides acknowledgment tones when keys are

pressed, and confirmation tones for successful

command entries.

OFF

INSTANT

MAXIMUM

READY

AWAY

TEST

CODE

STAY

BYPASS

CHIME

ARMED

READY

6160RF-001-V1

PANIC

KEY

PAIR

SPECIAL

FUNCTION

KEYS

PANIC KEY PAIR PANIC KEY PAIR

6160RF Keypad/Transceiver (front door removed)

TROUBLESHOOTING

The error messages listed in the following table cause the keypad to produce a single ding tone. The table

describes the error messages and the corrective actions.

Display Corrective Action

Low Bat (with Zone No.) 1. Replace the battery if the wireless transmitter has a replaceable battery.

2. Replace the transmitter if the wireless transmitter does not have a replaceable battery.

Open Ckt Contact your Installer.

Check 100 Contact your Installer.

‡K0904V1DŠ

K0904V1 2/06 Rev. A

165 Eileen Way, Syosset, New York 11791

www.honeywell.com/security
